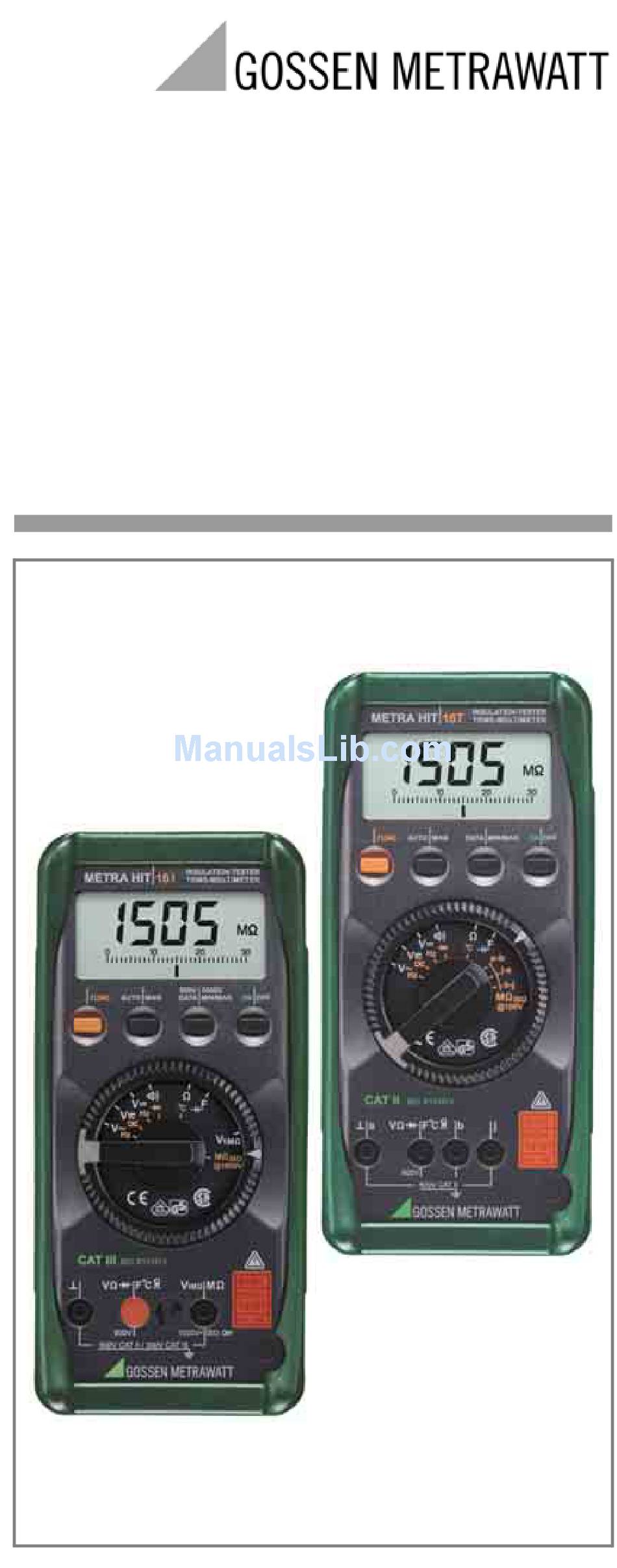

Operating Instructions
METRA
HIT⏐16I/L/T
Analog Digital Multimeter
3-348-892-02
with Insulation Measurement
9/5.06

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the METRA HIT 16I/L and is the answer not in the manual?

Questions and answers

Related Manuals for Gossen MetraWatt METRA HIT 16I/L

Summary of Contents for Gossen MetraWatt METRA HIT 16I/L

  • Page 1 Operating Instructions METRA HIT⏐16I/L/T Analog Digital Multimeter 3-348-892-02 with Insulation Measurement 9/5.06...
  • Page 2 METRA HIT 16I/L METRA HIT 16T (5/5a) (5/5b) (3/3a) (4/4a) (7a) max. 600 V max. 600 V (11) (12) (9) (10) (20) (13) (19) (18) (17) (16) (15) (14) GMC-I Gossen-Metrawatt GmbH...
  • Page 3 Measuring Instrument Key (1) LCD → chapter 4 (2) ON|OFF: Key to switch the instrument on and off → chapter 2 (3) DATA|MIN/MAX: Key for storage of measured values and MIN/MAX values → chapter 5 + chapter 6 (3a) 500V|1000V: Key for test voltage selection → chapter 14.1 (4) AUTO|MAN →...

  • Page 4: Table Of Contents

    Measurement Value Storage, “DATA” ......9 Minimum and Maximum Value Storage ......10 Voltage Measurement ........... 11 METRA HIT 16I/L: 1 MΩ Input Impedance ......11 METRA HIT 16T: Terminal Assignments ......11 Transient Overvoltages ............. 12 Measurement of Voltages Greater than 600 V ....12 Duty Cycle Measurement only with METRA HIT 16L ...

  • Page 5: Safety Features And Precautions

    For your safety, as well as for the protection of your instrument, the multimeter METRA HIT 16I/L are equipped with an automatic socket blocking device. This is coupled to the rotary switch, and only allows connection to the socket required for the selected func- tion.
  • Page 6 • Make certain that the measurement cables are in flawless condi- tion, e.g. no damage to insulation, no interruptions in cables or plugs etc. • Special care is required when measurements are made in HF electrical circuits. Dangerous pulsating voltages may be present. •...

  • Page 7: Initial Start-Up

    Repair, Parts Replacement and Balancing When the instrument is opened, voltage conducting parts may be exposed. The instrument must be disconnected from the measur- ing circuit for repair, replacement of parts or balancing. If repair or balancing of a live, open instrument is required, this may only be carried out by trained personnel who are familiar with the dangers involved.

  • Page 8: Selection Of Measurement Functions And Measuring Ranges

    Selection of Measurement Functions and Measuring Ranges METRA HIT 16I/L: The socket blocking device only allows for con- nection to the jacks which are required for the selected function. Automatic Range Selection The multimeter is equipped with automatic measuring range selec-...

  • Page 9: Lcd Display

    LCD Display Digital Display The digital display (9) shows the measurement value with correct decimal point and sign. The selected unit of measure (12) and the current type (11) are also displayed. A minus sign appears in front of the value for zero-frequency quantities, if the positive pole of the measured quantity is applied to the “⊥”...

  • Page 10: Minimum And Maximum Value Storage

    Minimum and Maximum Value Storage Minimum and maximum values which occur at the measuring instrument input after the MIN/MAX function has been activated can be “frozen”. The most important application for this function is the determination of minimum and maximum values for long-term observation of measured quantities.

  • Page 11: Voltage Measurement

    600V – (+) – (+) + (–) + (–) METRA HIT 16I/L: 1 MΩ Input Impedance The measuring instrument is equipped with a V selector switch 1MΩ position with an input impedance of approx. 1 MΩ specifically for electricians. This reduces incorrect measurement results caused by capacitive coupling during voltage measurement in electrical power networks to a minimum.

  • Page 12: Transient Overvoltages

    Transient Overvoltages The METRA HIT 16I/L and T multimeters are protected against transient overvoltages of up to 6 kV with a rise time of 1.2 and a decay time of 50 μs. Due to the fact that overvoltages of greater...

  • Page 13: Resistance Measurement

    – by pressing and holding the multifunction key FUNC, after which deletion is acknowledged with a twice repeated acoustic signal. – by switching the instrument off. Resistance Measurement METRA HIT 16I/L METRA HIT 16T F °C F °C b 600V...

  • Page 14: Diode And Continuity Testing

    (19) disappears from the LCD. By pressing and hold- ing the key, the acoustic signal is always activated, which is acknowledged with a twice repeated acoustic signal. Diode Testing METRA HIT 16I/L METRA HIT 16T F °C b F °C...

  • Page 15: Capacitance Measurement

    Capacitance Measurement ➭ Be certain that the device under test is voltage-free. Extraneous voltages distort the measurement results! ➭ Set the rotary switch to “F”. ➭ Connect the (discharged!) DUT to the “⊥” and “F” jacks with measurement cables. Note! For polarized capacitors, the “–”...

  • Page 16: Temperature Measurement

    Temperature Measurement Temperature can be measured in °C or °F with the help of Pt 100 and Pt 1000 temperature sensors. ➭ Set the rotary switch to “Ω”. ➭ Connect the sensor to the multimeter measurement jacks (7). ➭ Press the multifunction key FUNC once for display in °C, twice for display in °F, and three times for the compensation of measure- ment cable resistance.

  • Page 17: Insulation Resistance Measurement With The Metra Hit 16I/L

    Insulation Resistance Measurement with the METRA HIT 16I/L 14.1 Preparation for Measurement Note! Insulation resistance may only be measured at voltage- free objects. When measuring high-ohmic insulation resistances do not touch the measurement cables. ➭ Set the rotary switch to “V1MΩ”.

  • Page 18: Insulation Resistance Measurement

    The minimum values for insulation resistance can be determined with the following table, which must be displayed under consider- ation of maximum operating error for the METRA HIT 16I/L (under nominal conditions of use) in order to assure that the required limit values are not violated.

  • Page 19: Insulation Resistance Measurement At Telecommunications Equipment With The Metra Hit 16T

    Insulation Resistance Measurement at Telecommunications Equipment with the METRA HIT 16T Three jacks, a, b and j, have been provided for measurement at telecommunications equipment with two conductors and shield. Insulation testing between a and b, j and a or b and j can be selected with the function selector switch.

  • Page 20: Evaluation Of Measurement Values

    Conclusion of Measurement and Discharging ➭ Briefly press the multifunction key FUNC. After the measurement has been completed, any residual voltage is displayed which may be caused by conductor capacitance. The 100 kΩ internal resistance provides for quick discharging. Contact with the DUT must be maintained.

  • Page 21: Characteristic Values

    – 145.0 ... 0.1 °F — — + 400.0 °C 1000 + 400.0 ... 0.1 °F — — + 999.0 °C True RMS measurement (TRMS) Measurement with cli-on current meter WZ12B METRA HIT 16I/L only METRA HIT 16L only GMC-I Gossen-Metrawatt GmbH...
  • Page 22 Digital Display Intrinsic Error Overload Capacity Meas. Measuring ±(...% of rdg.+... digit) Function Range Value Duration at reference conditions 30.00 mV 0.5 + 3 300.0 mV 0.5 + 3 3.000 0.25 + 1 30.00 0.25 + 1 300.0 0.25 + 1 600 V 0.35 + 1 3.000...
  • Page 23 Insulation Measurement, METRA HIT 16I/L / METRA HIT 16T Measurement Digital Display Function Measuring Range Resolution Intrinsic Error at Switch Setting reference conditions ±(1% of rdg. + 10 d) 0 ... 1000 V 1MΩ MΩ ±(1% of rdg. + 10 d) 0 ...
  • Page 24 Influencing Quantities and Influence Errors Influenc- Measured Sphere of Influ- Influence Error Quantity/ ±(... % of rdg. + ... digit) ence Quantity Measuring Range 30/300 mV 1.0 + 3 3 ... 300 V 0.15 + 1 600 V 0.2 + 1 0.4 + 2 30 Ω...

  • Page 25: Reference Conditions

    Influencing Measured Quantity/ Sphere of Influence Influence Error Quantity Measuring Range ±2 digits ±4 digits 30 Ω/300 Ω/°C/°F ±4 digits ±3 digits ... < 7.9 V 3 kΩ ... 30 MΩ Battery ±2 digits Voltage MΩ , MΩ > 8.1 V ... 10.0 V nF, μF ±1 digit ±1 digit...
  • Page 26 Display LCD (65 mm x 30 mm) with analog and digital display including dis- play of unit of measure, voltage type and various special functions. Analog Display LCD scale with pointer Scale Length 55 mm for V 47 mm for all other ranges 5 ...

  • Page 27: Maintenance

    Interface Type RS232C, serial, per DIN 19241 Data Transmission optical with infrared light through housing Baud Rate 8192 bit/s Ambient Conditions −20 °C ... + 50 °C Operating Temp. −25 °C ... + 70 °C (without battery) Storage Temp. ≤ 75%, no condensation allowed Relative Humidity Elevation to 2000 m...

  • Page 28: Housing

    ➭ Retighten the housing base with the two screws. ➭ Please dispose of used batteries properly! 18.2 Housing No special maintenance is required for the housing. Keep outside surfaces clean. Use a slightly dampened cloth for cleaning. Avoid the use of cleansers, abrasives or solvents. Collection of Used Instruments and Environmentally Compatible Disposal The milliohmmeter is a category 9 product (monitoring and control instrument) in accordance with ElektroG (German Electrical and...

  • Page 29: Repair And Replacement Parts Service Dkd Calibration Lab And Rental Instrument Service

    Repair and Replacement Parts Service DKD Calibration Lab* and Rental Instrument Service If required, please contact: GMC-I Gossen-Metrawatt GmbH Service-Center Thomas-Mann-Strasse 20 90471 Nürnberg • Germany Phone +49-(0)-911-8602-0 +49-(0)-911-8602-253 E-Mail service@gossenmetrawatt.com This address is only valid in Germany. Please contact our represen- tatives or subsidiaries for service in other countries.

  • Page 30: Gmc-I Gossen-Metrawatt Gmbh

    Edited in Germany • Subject to change without notice • A pdf version is available on the internet GMC-I Gossen-Metrawatt GmbH Thomas-Mann-Str. 16-20 90471 Nürnberg • Germany Phone+49-(0)-911-8602-0 +49-(0)-911-8602-669 E-Mail info@gossenmetrawatt.com www.gossenmetrawatt.com...
