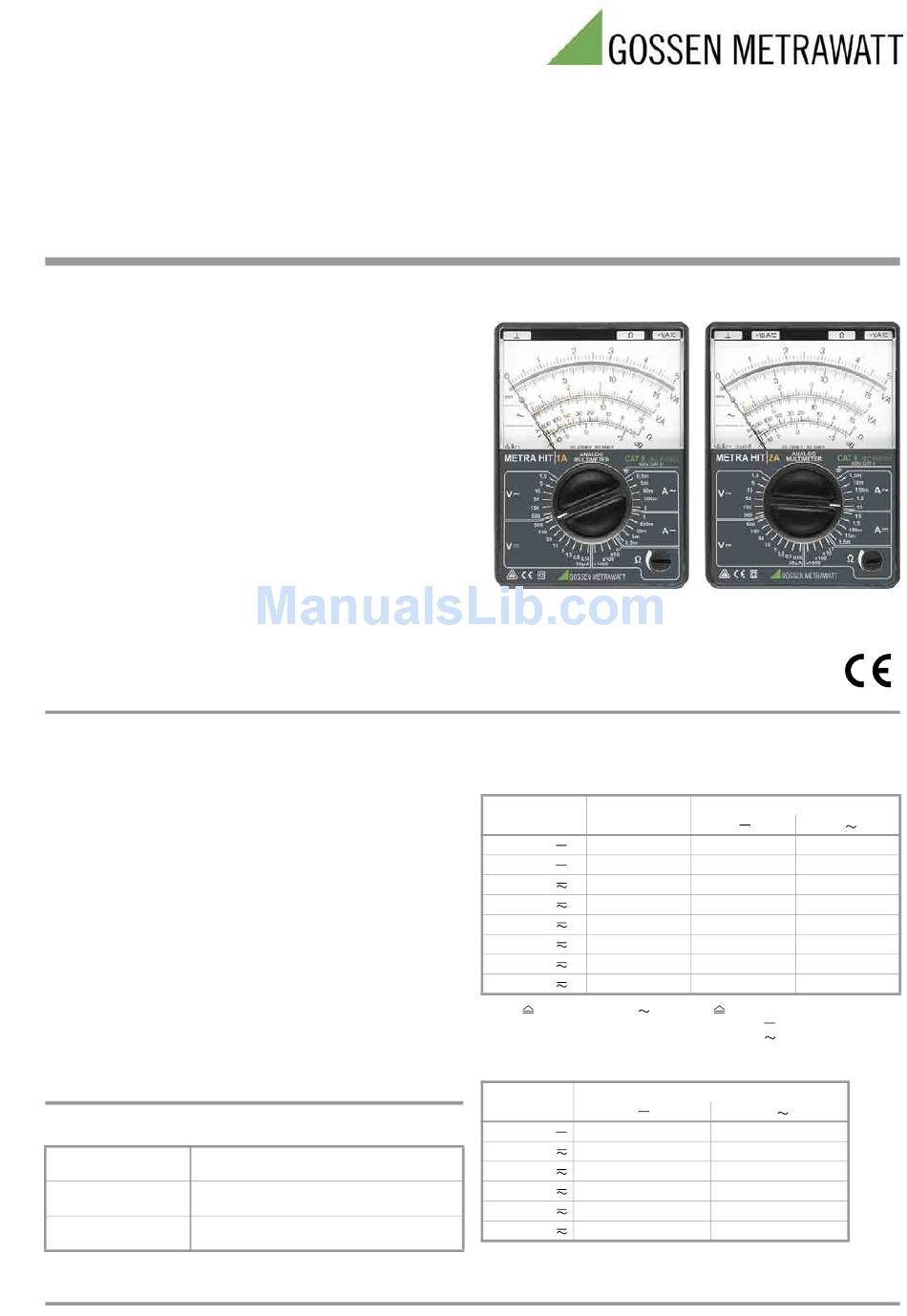

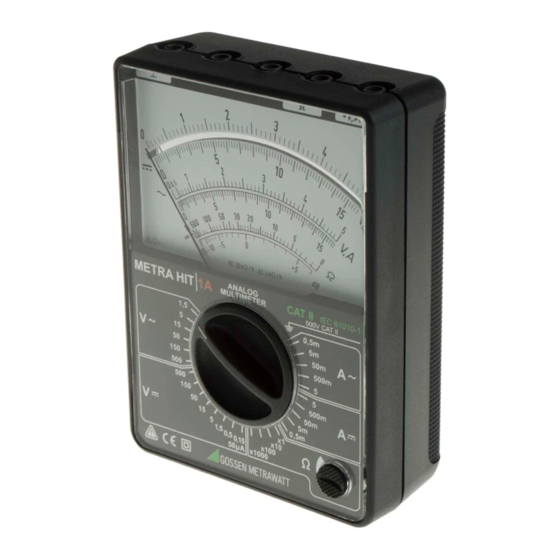

METRA HIT 1A and METRA HIT 2A
Analog Multimeters
• Voltage measurement:
0...0.15, 0...0.5 V=, 0 ...1.5, 5, 15, 50, 150, 500 V=/~
• Input resistance: 20 kΩ/V=, 4 kΩ/V~
Current measurement: 0 ... 50 µA=, 0 ... 0.5, 5, 50, 500 mA,
•
5 A=/~
• Extended current measurement, METRA HIT 2A: ... 15 A=/~
Resistance measurement: 1 Ω ... 1 MΩ (4 ranges)
•
Capacitance: 200 mF ... 2 µF (4 ranges)
•
• Level: -15 ... +56 dB (6 ranges)
Broad Range of Applications
A large number of measuring ranges allows for universal use of
the instruments, for example in electronics, digital technology and
a wide variety of general electrical applications.
Safety Features
The connector jacks and plugs included with the measurement
cables which are available as accessories are protected against
inadvertent contact.
Measuring Range Selector Switch
All measuring ranges are selected with a rotary switch.
Rugged Mechanical Design
The rugged plastic housing and the spring loaded bearing jewels
in the moving-coil mechanism protect the instrument from
damage due to mechanical stressing. Especially effective
protection is provided by the protective rubber cover and the
ever-ready case, both of which are available as accessories.
Applicable Regulations and Standards
IEC/EN 61010-1:2001/ Safety requirements for electrical equipment for
VDE 0411-1:2002 measurement, control and laboratory use
EN 60529 Test instruments and test procedures,
VDE 0470, part 1 degrees of protection provided by enclosures (IP code)
DIN EN 61326 Electrical equipment for control technology and
VDE 0843, part 20 laboratory use – EMC requirements
GOSSEN METRAWATT GMBH
5 Ampere
500 V CAT II
IEC/EN 61010-1, Second Edition
Characteristic Values
Voltage Measuring Ranges
Voltage Output
0.15 V —
0.50 V —
1.50 V -15 ... + 6 dB
5.00 V - 5 ... + 16 dB
15.00 V + 5 ... + 26 dB
50.00 V +15 ... + 36 dB
150.00 V +25 ... + 46 dB
500.00 V +35 ... + 56 dB
1)
0 dB 0.775 V in the 1.5 V range, 0 dB
Voltage related input resistance:
METRA HIT 1A: Current Measuring Ranges
Current
50.00 µA 0.158 V
0.50 mA 1.15 V
5.00 mA 1.25 V
50.00 mA 1.25 V
500.00 mA 1.85 V
5000.00 mA 1.73 V
3-349-304-03
15 Ampere / Class 2.5
Internal Resistance, Approx.
1)
3.15 kΩ
10.00 kΩ
31.50 kΩ 6.50 kΩ
100.00 kΩ 20.00 kΩ
315.00 kΩ 65.00 kΩ
1.00 MΩ 200.00 kΩ
3.15 MΩ 650.00 kΩ
10.00 MΩ 2.00 MΩ
1 mW to 600 Ω
for : 20.0 kΩ/V
for : 4.0 kΩ/V
Voltage Drop, Approx.
—
1.00 V
1.25 V
1.25 V
1.85 V
1.73 V
2/7.04
—
—
