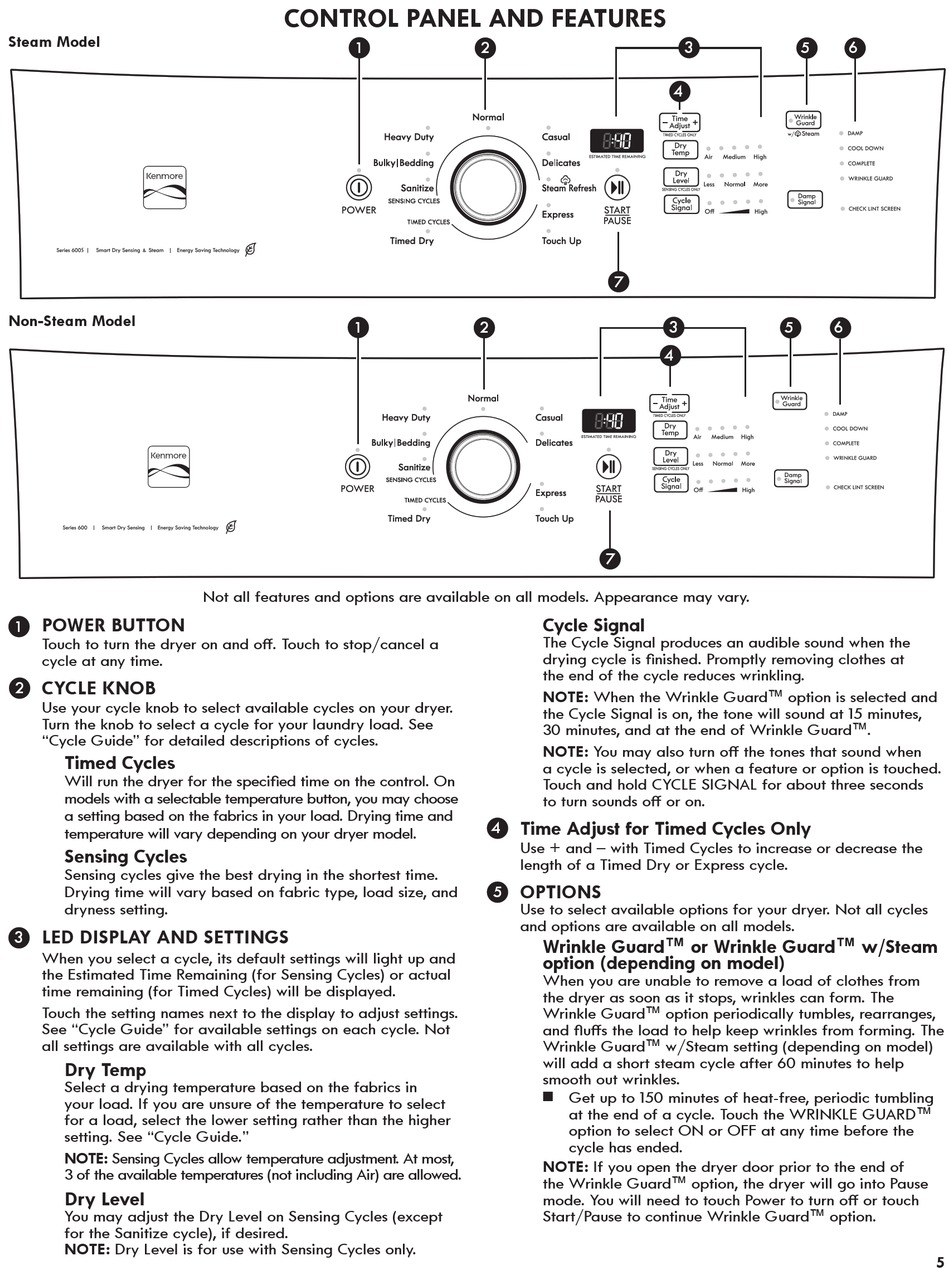

Control Panel And Features - Kenmore 110.66132*410 Use & Care Manual

Steam Model
Non-Steam Model
POWER BUTTON
1
Touch to turn the dryer on and off. Touch to stop/cancel a
cycle at any time.
CYCLE KNOB
2
Use your cycle knob to select available cycles on your dryer.
Turn the knob to select a cycle for your laundry load. See
"Cycle Guide" for detailed descriptions of cycles.
Timed Cycles
Will run the dryer for the specified time on the control. On
models with a selectable temperature button, you may choose
a setting based on the fabrics in your load. Drying time and
temperature will vary depending on your dryer model.
Sensing Cycles
Sensing cycles give the best drying in the shortest time.
Drying time will vary based on fabric type, load size, and
dryness setting.
LED DISPLAY AND SETTINGS
3
When you select a cycle, its default settings will light up and
the Estimated Time Remaining (for Sensing Cycles) or actual
time remaining (for Timed Cycles) will be displayed.
Touch the setting names next to the display to adjust settings.
See "Cycle Guide" for available settings on each cycle. Not
all settings are available with all cycles.
Dry Temp
Select a drying temperature based on the fabrics in
your load. If you are unsure of the temperature to select
for a load, select the lower setting rather than the higher
setting. See "Cycle Guide."
NOTE: Sensing Cycles allow temperature adjustment. At most,
3 of the available temperatures (not including Air) are allowed.
Dry Level
You may adjust the Dry Level on Sensing Cycles (except
for the Sanitize cycle), if desired.
NOTE: Dry Level is for use with Sensing Cycles only.

CONTROL PANEL AND FEATURES

1
1
Not all features and options are available on all models. Appearance may vary.
2
7
2
7
Cycle Signal
The Cycle Signal produces an audible sound when the
drying cycle is finished. Promptly removing clothes at
the end of the cycle reduces wrinkling.
NOTE: When the Wrinkle Guard™ option is selected and
the Cycle Signal is on, the tone will sound at 15 minutes,
30 minutes, and at the end of Wrinkle Guard™.
NOTE: You may also turn off the tones that sound when
a cycle is selected, or when a feature or option is touched.
Touch and hold CYCLE SIGNAL for about three seconds
to turn sounds off or on.
Time Adjust for Timed Cycles Only
4
Use + and – with Timed Cycles to increase or decrease the
length of a Timed Dry or Express cycle.
OPTIONS
5
Use to select available options for your dryer. Not all cycles
and options are available on all models.
Wrinkle Guard™ or Wrinkle Guard™ w/Steam
option (depending on model)
When you are unable to remove a load of clothes from
the dryer as soon as it stops, wrinkles can form. The
Wrinkle Guard™ option periodically tumbles, rearranges,
and fluffs the load to help keep wrinkles from forming. The
Wrinkle Guard™ w/Steam setting (depending on model)
will add a short steam cycle after 60 minutes to help
smooth out wrinkles.
Get up to 150 minutes of heat-free, periodic tumbling
n
at the end of a cycle. Touch the WRINKLE GUARD™
option to select ON or OFF at any time before the
cycle has ended.
NOTE: If you open the dryer door prior to the end of
the Wrinkle Guard™ option, the dryer will go into Pause
mode. You will need to touch Power to turn off or touch
Start/Pause to continue Wrinkle Guard™ option.
3 5
4
3
5 6
4
6
5
