Bercomac Berco 700465 Owner's Manual

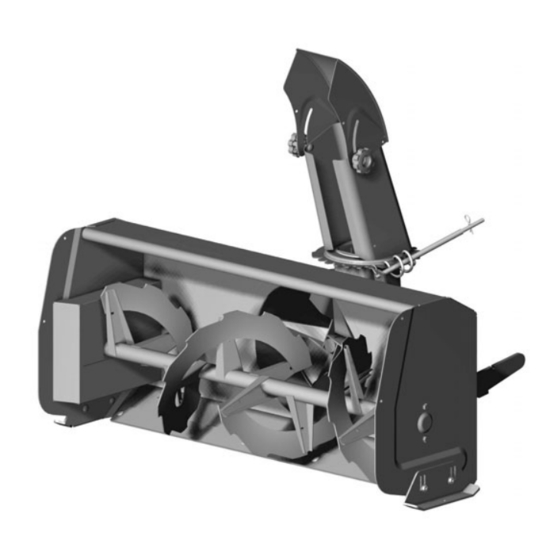

Compact two stage 40" snowblower for electric lift fits on lawn and yard tractors
Hide thumbs
Table of Contents

Advertisement

Quick Links

C
ompact Two Stage 40" Snowblower
READ & FOLLOW ALL SAFETY RULES & INSTRUCTIONS BEFORE
104814_EN
Berco
for electric lift
FITS ON LAWN AND YARD TRACTORS
* ASSEMBLY
* OPERATION
CAUTION:
OPERATING YOUR EQUIPMENT
*104814_EN*
OWNER'S MANUAL
Model Number
* REPAIR PARTS
* MAINTENANCE
1
700465
J-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Berco 700465 and is the answer not in the manual?

Questions and answers

Related Manuals for Bercomac Berco 700465

Summary of Contents for Bercomac Berco 700465

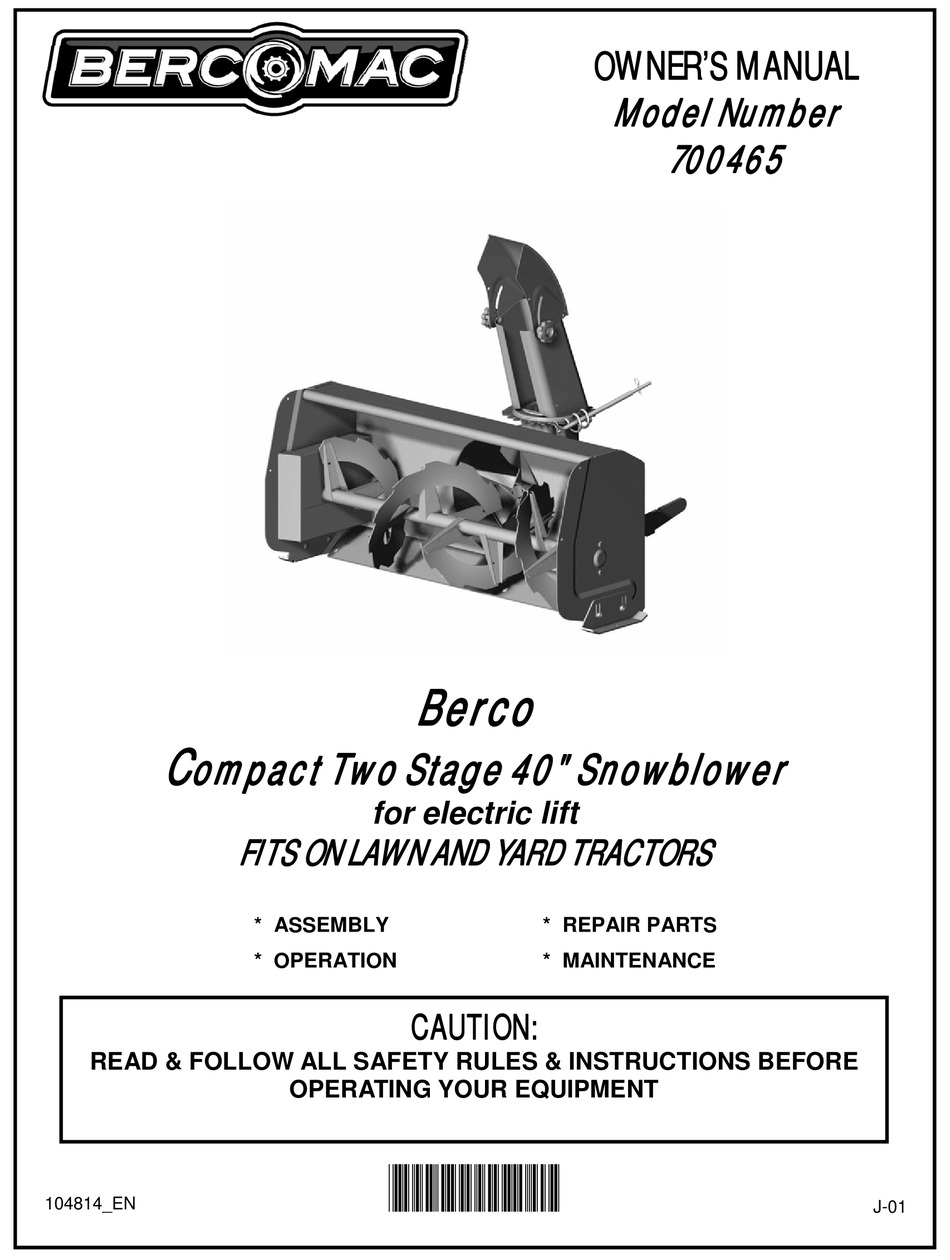

  • Page 1 OWNER’S MANUAL Model Number 700465 Berco ompact Two Stage 40" Snowblower for electric lift FITS ON LAWN AND YARD TRACTORS * ASSEMBLY * REPAIR PARTS * OPERATION * MAINTENANCE CAUTION: READ & FOLLOW ALL SAFETY RULES & INSTRUCTIONS BEFORE OPERATING YOUR EQUIPMENT *104814_EN* 104814_EN J-01...
  • Page 2 NOTE: All warranty work must be performed by an authorized dealer using original (manufacturer) replacement parts. NOTE: Bercomac reserves the right to change or improve the design of any part or accessory without assuming any obligation to modify any product previously manufactured.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS PAGE INTRODUCTION ..............................SAFETY PRECAUTIONS ............................SAFETY DECALS ..............................ASSEMBLY Tools Required ............................Step 1: Snowblower Preparation ......................Step 2: Snowblower Installation ....................... OPERATION Snowblower Operation ..........................Controls ..............................MAINTENANCE Adjustments .............................. Lubrication ..............................Cutting Edge Maintenance ........................Clearing a Clogged Discharge Chute ......................

  • Page 4: Introduction

    INTRODUCTION TO THE PURCHASER This new accessory was carefully designed to give years of dependable service. This manual has been provided to assist in the safe operation and servicing of your attachment. NOTE: All photographs and illustrations in the manual may not necessarily depict the actual models or attachment, but are intended for reference only and are based on the latest product information available at the time of publication.

  • Page 5: Safety Precautions

    SAFETY PRECAUTIONS Careful operation is your best insurance against an accident. Read this section carefully before operating the vehicle and accessory. This accessory is capable of amputating hands and feet and throwing objects. Failure to observe the following safety instructions could result in serious injury. All operators, no matter how experienced they may be, should read this and other manuals related to the vehicle and accessory before operating.
  • Page 6 SAFETY PRECAUTIONS OPERATION: 13. Keep the accessory away from heat sources or flames. Do not put hands or feet near, under or inside rotating parts. MAINTENANCE AND STORAGE Exercise extreme caution when operating on or When cleaning, repairing or inspecting the vehicle crossing gravel drives, walks or roads.

  • Page 7: Safety Decals

    SAFETY DECALS REPLACE IF DECALS ARE DAMAGED SEE PARTS BREAKDOWN FOR DECAL LOCATION DECAL #105126 DECAL #105130 To avoid serious injury: Keep hands, feet & clothing away from rotating auger while engine is running. DECAL #105127 Before installing or using: Locate, read and make sure to understand all of the owner’s manual.

  • Page 8: Assembly

    ASSEMBLY Overall view TOOLS REQUIRED: No tools are required. SNOWBLOWER PREPARATION: Refer parts breakdown section parts identification. Install the chute (item 2). Item # Description Action Rotation ring Install over opening. Chute Place as shown, turn to lock into place. Install chute...
  • Page 9 ASSEMBLY Install rotation worm (item 2). Item # Description Action Flat washer 7/16’’, (2) Install on each side of rotation support. Rotation worm Install in rotation support. 2.5mm hair pin Secure rotation worm shaft in support. Install rotation worm Prepare handle (item 3). Item # Description Action...

  • Page 10: Step 2: Snowblower Installation

    INSTALLATION STEP 2 SNOWBLOWER INSTALLATION: You must install the subframe and drive mechanism before continuing to install the snowblower. WARNING TO PREVENT INJURIES: Stop the motor. Apply parking brake. Remove the ignition key. Disconnect the wire from the spark plug(s) and keep away from spark plug(s) to prevent accidental starting.
  • Page 11 INSTALLATION Install handle (item 2). Item # Description Action Hair pin Remove from handle. Handle Insert in handle support. Rotation worm Insert in handle and secure with hair pin. Install handle...

  • Page 12: Operation

    OPERATION WARNING WARNING Read the tractor Owner’s Manual carefully. Be PREVENT INJURIES MORE thoroughly familiar with the controls & proper TRACTION WHEN USING AN ATTACHMENT: use of the attachment. Know how to stop the -Rear counterweight of 100 lbs. minimum is required to counterbalance the attachment’s attachment quickly weight.

  • Page 13: Maintenance

    MAINTENANCE Refer to parts breakdown section for parts CLEARING A CLOGGED DISCHARGE identification. CHUTE: WARNING WARNING TO PREVENT INJURIES: TO PREVENT INJURIES: Stop the motor. -Do not attempt to clear plugged chute, auger or Apply parking brake. fan of snow while vehicle engine is running. Remove the ignition key.

  • Page 14: Belt Installation, Adjustment And Replacement

    MAINTENANCE g) Tighten firmly with the knob. BELT INSTALLATION, ADJUSTMENT, AND REPLACEMENT: h) Apply tension on the belt by pulling up the tension arm (item 1). WARNING Engage the snowblower for a few seconds. Stop the engine. Inspect the belt to make sure it does The belt tension arm is spring loaded &...

  • Page 15: Dismounting & Storage

    DISMOUNTING & STORAGE SNOWBLOWER DISMOUNTING STORAGE a) Clean snowblower thoroughly and repaint all CAUTION parts from which paint has worn. The belt tension is spring loaded & needs to be b) List the replacement parts that will be needed to held firmly while displacing to prevent injury be replaced before the next season.

  • Page 16: Troubleshooting

    TROUBLESHOOTING * Please refer to parts breakdown section for parts identification. PROBLEM POSSIBLE CAUSES CORRECTIVE ACTION Auger stops turning. Nylon shear pin is probably broken. Replace shear pin. The reduction chain is broken or the Remove both chain guards. Inspect & repair connecting link is unlocked.
  • Page 17 TROUBLESHOOTING * Please refer to parts breakdown section for parts identification. PROBLEM POSSIBLE CAUSES CORRECTIVE ACTION Chute plugs easily. Tractor engine turning too slowly. Run engine at full throttle during snowblowing operation. Advancing too quickly with tractor. Allow snowblower to ingest snow at its own speed.

  • Page 18: Chute With Rotation System

    PARTS BREAKDOWN CHUTE WITH ROTATION SYSTEM...
  • Page 19 PARTS LIST CHUTE WITH ROTATION SYSTEM Ref. Qty. Part # English description Description française Réf. Qté. Pièce # Rotation ring Coussinet de rotation 102756 Chute Goulotte 102748 Knob Bouton 102020 Carriage bolt 5/16" n.c. x 3/4" Boulon à carrosserie 5/16" n.c. x 3/4" Nylon flat washer 7/16"...

  • Page 20: Snowblower

    PARTS BREAKDOWN SNOWBLOWER 700465...

  • Page 21: Parts List

    PARTS LIST SNOWBLOWER 700465 Ref. Qty. Part # English description Description française Réf. Qté. Pièce # Frame Châssis 104808 Bearing Roulement à billes 102757 Bearing Roulement à billes 102758 Éventail 102743 Retaining ring Bague de retenue 102760 Main drive pulley inc. 102784 Poulie d'entraîn.
  • Page 22 PARTS LIST SNOWBLOWER 700465 Ref. Qty. Part # English description Description française Réf. Qté. Pièce # Knob Bouton 103027 Tension lever Levier de tension 104810 Handgrip Poignée 102062 Spring Washer Rondelle à ressort 104352 Bracket Fixation 104737 Bushing Coussinet 102225 Bearing Roulement à...

  • Page 23: Torque Specification Table

    TORQUE SPECIFICATION TABLE GENERAL TORQUE SPECIFICATION TABLE USE THE FOLLOWING TORQUES WHEN SPECIAL TORQUES ARE NOT GIVEN NOTE: These values apply to fasteners as received from supplier, dry or when lubricated with normal oil. They do not apply if special graphited or moly disulphide greases or other extreme pressure lubricants are used. This applies to both UNF and UNC threads.

  • Page 24: Options & Attachments

    OPTIONS & ATTACHMENTS ROTARY BROOM #700380 with nylon brush /#700381 with polypropylene brush. COUNTERWEIGHT Model # as per tractor. Fits on same subframe as Required for safety and traction. SNOWBLADE #700463 snowblower or utility blade. Counter-balances weight of Mounts on the same subframe as the Requires an adaptor.
  • Page 25 NOTES _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________...
  • Page 26 NOTES _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________...
  • Page 27 NOTES _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________...
  • Page 28 WHEN PERFORMANCE & DEPENDABILITY ARE NON NEGOTIABLE ! Ber comac Limitée 92, Fortin North, Adstock, Quebec, Canada, G0N 1S0 WWW.BERCOMAC.COM PRINTED IN CANADA...
