NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked "*" are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• Abbreviation
SP : Singapore model

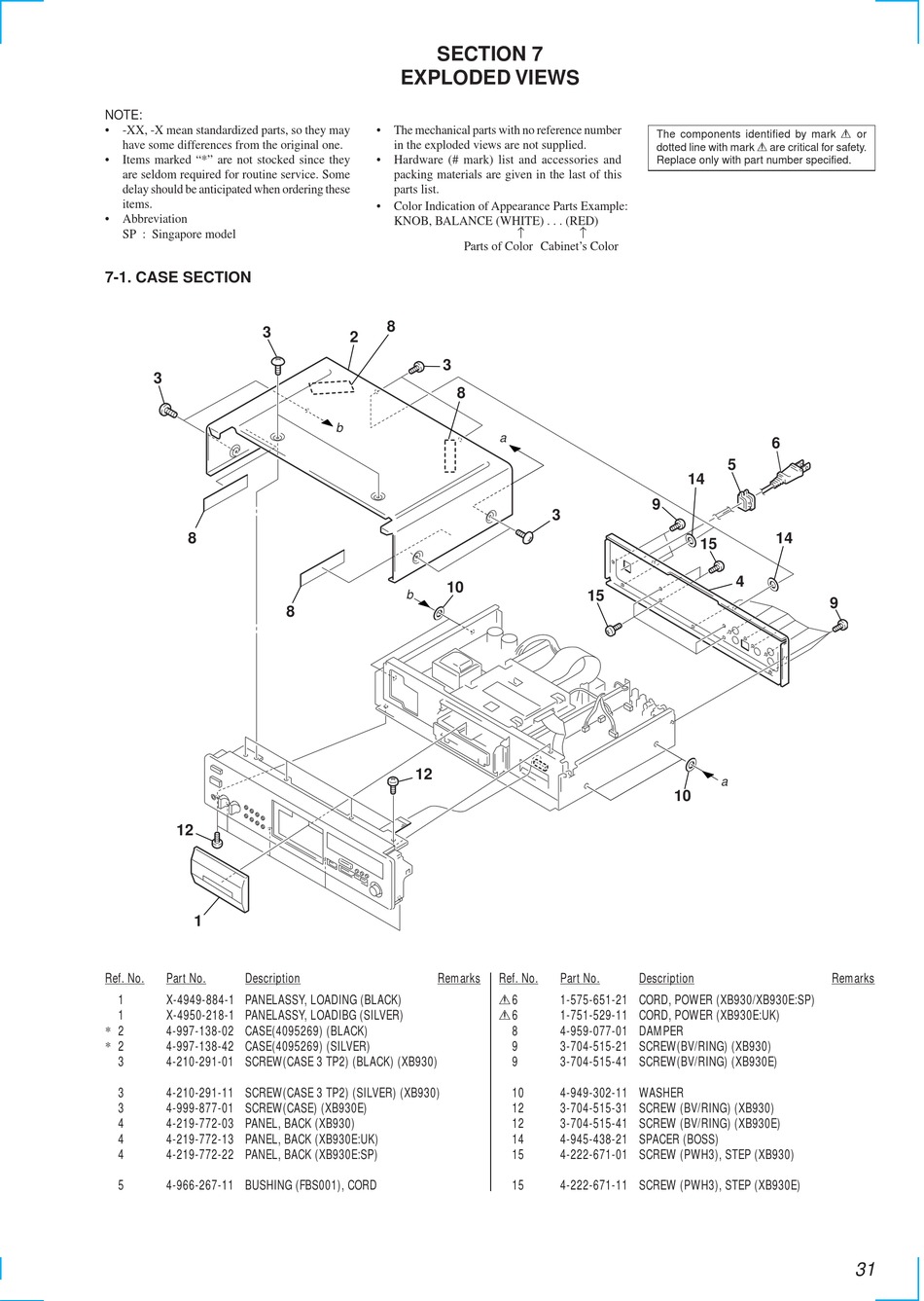

7-1. CASE SECTION
3
3
8
12
1
Ref. No. Part No. Description
1 X-4949-884-1 PANELASSY, LOADING (BLACK)
1 X-4950-218-1 PANELASSY, LOADIBG (SILVER)
* 2 4-997-138-02 CASE(4095269) (BLACK)
* 2 4-997-138-42 CASE(4095269) (SILVER)
3 4-210-291-01 SCREW(CASE 3 TP2) (BLACK) (XB930)
3 4-210-291-11 SCREW(CASE 3 TP2) (SILVER) (XB930)
3 4-999-877-01 SCREW(CASE) (XB930E)
4 4-219-772-03 PANEL, BACK (XB930)
4 4-219-772-13 PANEL, BACK (XB930E:UK)
4 4-219-772-22 PANEL, BACK (XB930E:SP)
5 4-966-267-11 BUSHING (FBS001), CORD
SECTION 7

EXPLODED VIEWS

• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
• Color Indication of Appearance Parts Example:
KNOB, BALANCE (WHITE) . . . (RED)
8
2
3
8
b
10
b
8
12
Remarks
↑ ↑
Parts of Color Cabinet's Color
a
3
15
Ref. No. Part No.
! 6 1-575-651-21 CORD, POWER (XB930/XB930E:SP)
! 6 1-751-529-11 CORD, POWER (XB930E:UK)
8 4-959-077-01 DAMPER
9 3-704-515-21 SCREW(BV/RING) (XB930)
9 3-704-515-41 SCREW(BV/RING) (XB930E)
10 4-949-302-11 WASHER
12 3-704-515-31 SCREW (BV/RING) (XB930)
12 3-704-515-41 SCREW (BV/RING) (XB930E)
14 4-945-438-21 SPACER (BOSS)
15 4-222-671-01 SCREW (PWH3), STEP (XB930)
15 4-222-671-11 SCREW (PWH3), STEP (XB930E)
The components identified by mark ! or
dotted line with mark ! are critical for safety.
Replace only with part number specified.
6
5
14
9
14
15
4
a
10
Description
9
Remarks
31
