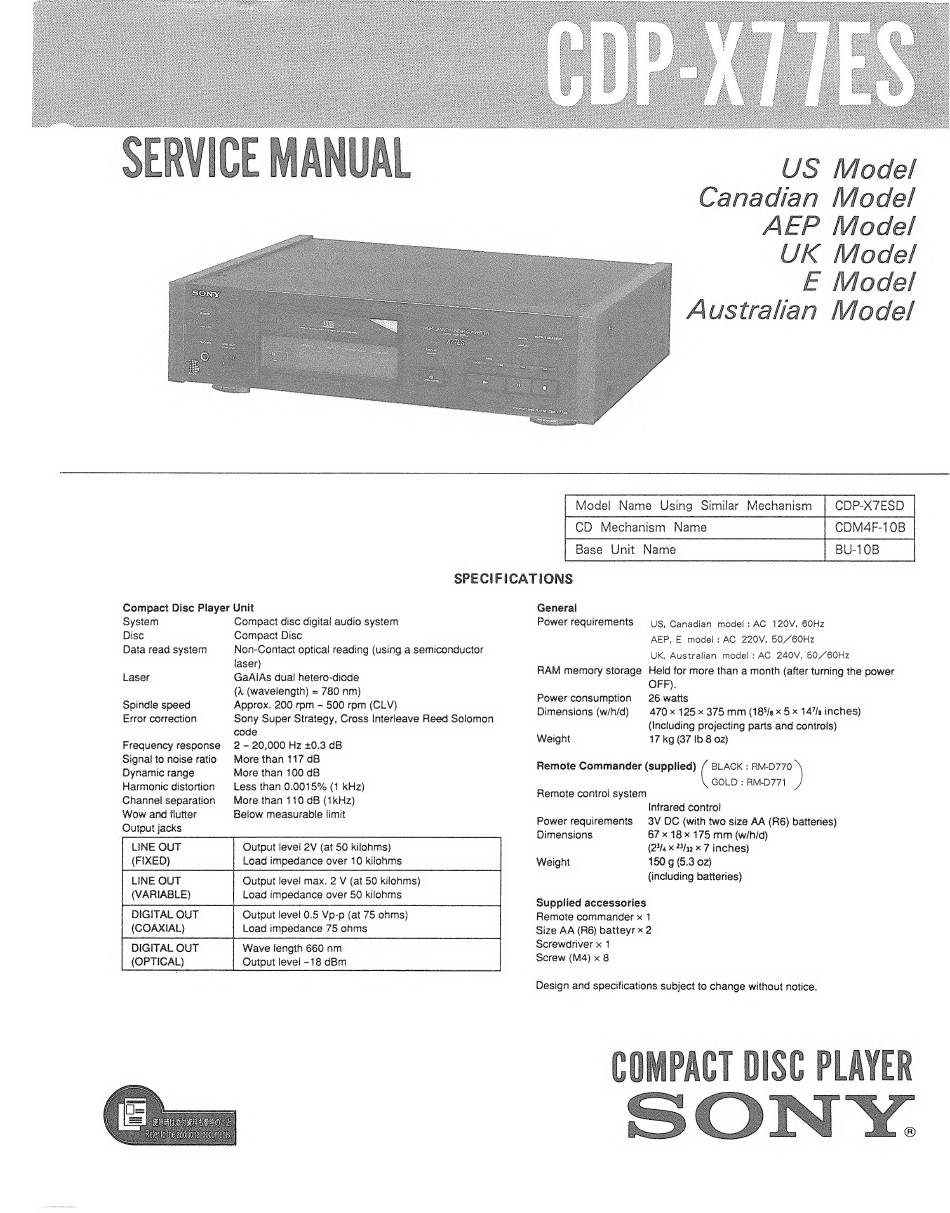

Sony CDP-X77ES Service Manual

Model Name Using Similar Mechanism
US Model
Canadian Model
AEP Model
UK Model
E
Australian
ode!
CDP-X7ESD
CDM4F-10B
BU-10B
SPECIFICATIONS
Compact Disc Player Unit
System
Disc
Data read system
Laser
Spindle speed
Error correction
Frequency response
Signal to noise ratio
Dynamic range
Harmonic distortion
Channel separation
Wow and flutter
Output jacks
LINE OUT
(FIXED)
LINE OUT
(VARIABLE)
DIGITAL OUT
(COAXIAL)
DIGITAL OUT
(OPTICAL)
Compact disc digital audio system
Compact Disc
Non-Contact optical reading (using a semiconductor
laser)
GaAlAs dual hetero-diode
(A (wavelength) = 780 nm)
Approx. 200 rpm ~ 500 rpm (CLV)
Sony Super Strategy, Cross Interleave Reed Solomon
code
2 - 20,000 Hz +0.3 dB
More than 117 dB
More than 100 dB
Less than 0.0015% (1 kHz)
More than 110 dB (1kHz)
Below measurable limit
Output level 2V (at 50 kilohms)
Load impedance over 10 kilohms
Output level max. 2 V (at 50 kilohms)
Load impedance over 50 kilonms
Output level 0.5 Vp-p (at 75 ohms)
Load impedance 75 ohms
Wave length 660 nm
Output level ~18 dBm
General
Power requirements
RAM memory storage
Power consumption
Dimensions (w/h/d)
Weight
Remote Commander (supplied)
Remote control system
Power requirements
Dimensions
Weight
Supplied accessories
US, Canadian model: AC 120V, 60Hz
AEP, E model: AC 220V, 50/60Hz
UK, Australian model: AC 240V, 50/60Hz
Held for more than a month (after turning the power
OFF).
26 watts
470 x 125 x 375 mm (18%/s x § x 147/s inches)
(Including projecting parts and controls)
17 kg (37 Ib 8 oz)
BLACK : RM-D770
GOLD : RM-D771
Infrared control
3V DC (with two size AA (R6) batteries)
67 x 18 x 175 mm (wih/d)
(23/4 x 23/32 x 7 inches)
150 g (6.3 oz)
(including batteries)
Remote commander x 1
Size AA (R6) batteyr x 2
Screwdriver x 1
Screw (M4) x 8
Design and specifications subject to change without notice.
