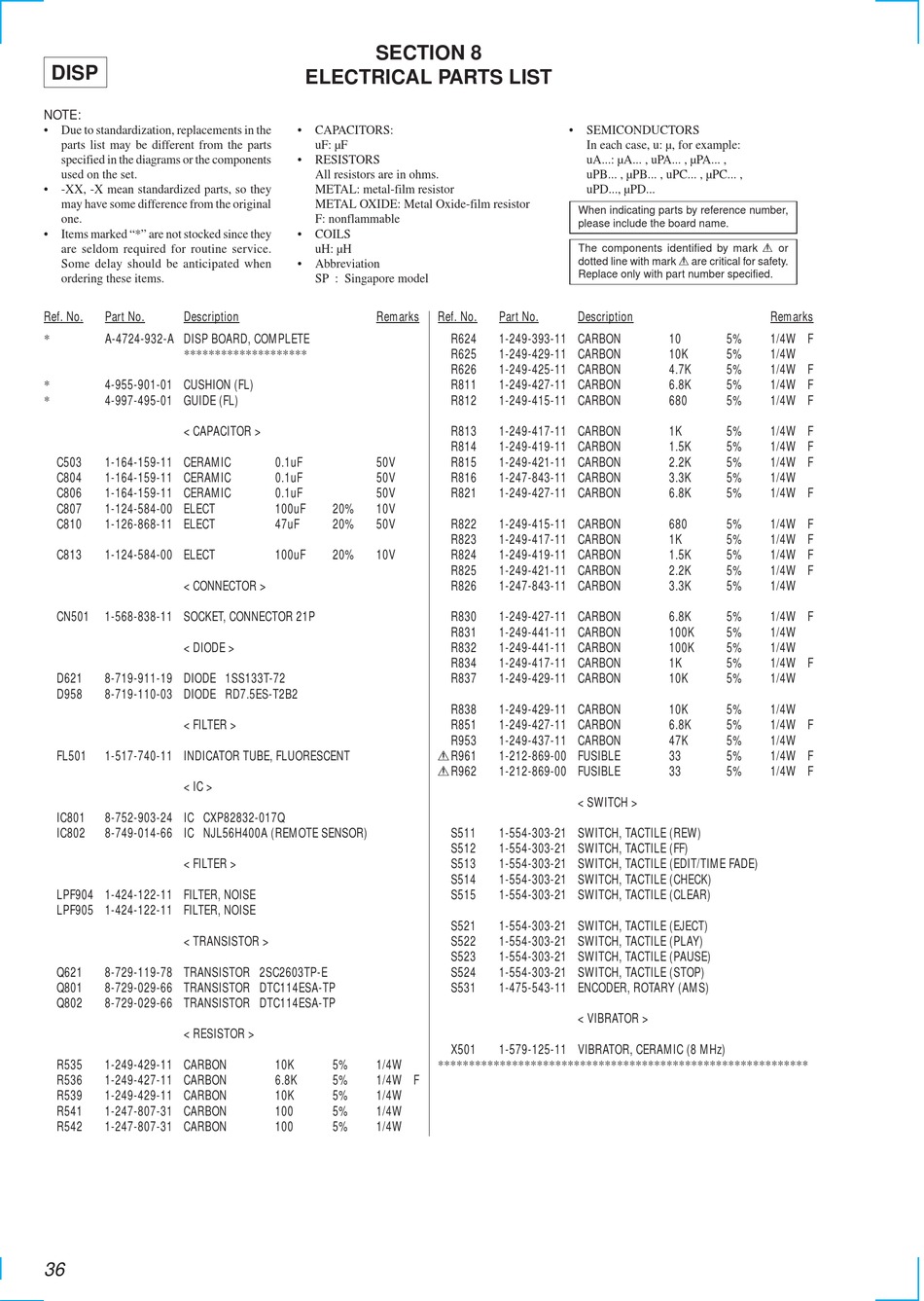

Electrical Parts List - Sony CDP-XB930L Service Manual

DISP
NOTE:
• Due to standardization, replacements in the
parts list may be different from the parts
specified in the diagrams or the components
used on the set.
• -XX, -X mean standardized parts, so they
may have some difference from the original
one.
• Items marked "*" are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
Ref. No. Part No. Description
* A-4724-932-A DISP BOARD, COMPLETE
********************
* 4-955-901-01 CUSHION (FL)
4-997-495-01 GUIDE (FL)
*
< CAPACITOR >
C503 1-164-159-11 CERAMIC
C804 1-164-159-11 CERAMIC
C806 1-164-159-11 CERAMIC
C807 1-124-584-00 ELECT
C810 1-126-868-11 ELECT
C813 1-124-584-00 ELECT
< CONNECTOR >
CN501 1-568-838-11 SOCKET, CONNECTOR 21P
< DIODE >
D621 8-719-911-19 DIODE 1SS133T-72
D958 8-719-110-03 DIODE RD7.5ES-T2B2
< FILTER >
FL501 1-517-740-11 INDICATOR TUBE, FLUORESCENT
< IC >
IC801 8-752-903-24 IC CXP82832-017Q
IC802 8-749-014-66 IC NJL56H400A (REMOTE SENSOR)
< FILTER >
LPF904 1-424-122-11 FILTER, NOISE
LPF905 1-424-122-11 FILTER, NOISE
< TRANSISTOR >
Q621 8-729-119-78 TRANSISTOR 2SC2603TP-E
Q801 8-729-029-66 TRANSISTOR DTC114ESA-TP
Q802 8-729-029-66 TRANSISTOR DTC114ESA-TP
< RESISTOR >
R535 1-249-429-11 CARBON
R536 1-249-427-11 CARBON
R539 1-249-429-11 CARBON
R541 1-247-807-31 CARBON
R542 1-247-807-31 CARBON
36
SECTION 8

ELECTRICAL PARTS LIST

• CAPACITORS:
uF: µF
• RESISTORS
All resistors are in ohms.
METAL: metal-film resistor
METAL OXIDE: Metal Oxide-film resistor
F: nonflammable
• COILS
uH: µH
• Abbreviation
SP : Singapore model
Remarks Ref. No.
0.1uF 50V
0.1uF 50V
0.1uF 50V
100uF 20% 10V
47uF 20% 50V
100uF 20% 10V
! R961
! R962
10K 5% 1/4W
************************************************************
6.8K 5% 1/4W F
10K 5% 1/4W
100 5% 1/4W
100 5% 1/4W
• SEMICONDUCTORS
In each case, u: µ, for example:
uA...: µA... , uPA... , µPA... ,
uPB... , µPB... , uPC... , µPC... ,
uPD..., µPD...
When indicating parts by reference number,
please include the board name.
The components identified by mark ! or
dotted line with mark ! are critical for safety.
Replace only with part number specified.
Part No. Description
R624 1-249-393-11 CARBON
R625 1-249-429-11 CARBON
R626 1-249-425-11 CARBON
R811 1-249-427-11 CARBON
R812 1-249-415-11 CARBON
R813 1-249-417-11 CARBON
R814 1-249-419-11 CARBON
R815 1-249-421-11 CARBON
R816 1-247-843-11 CARBON
R821 1-249-427-11 CARBON
R822 1-249-415-11 CARBON
R823 1-249-417-11 CARBON
R824 1-249-419-11 CARBON
R825 1-249-421-11 CARBON
R826 1-247-843-11 CARBON
R830 1-249-427-11 CARBON
R831 1-249-441-11 CARBON
R832 1-249-441-11 CARBON
R834 1-249-417-11 CARBON
R837 1-249-429-11 CARBON
R838 1-249-429-11 CARBON
R851 1-249-427-11 CARBON
R953 1-249-437-11 CARBON
1-212-869-00 FUSIBLE
1-212-869-00 FUSIBLE
< SWITCH >
S511 1-554-303-21 SWITCH, TACTILE (REW)
S512 1-554-303-21 SWITCH, TACTILE (FF)
S513 1-554-303-21 SWITCH, TACTILE (EDIT/TIME FADE)
S514 1-554-303-21 SWITCH, TACTILE (CHECK)
S515 1-554-303-21 SWITCH, TACTILE (CLEAR)
S521 1-554-303-21 SWITCH, TACTILE (EJECT)
S522 1-554-303-21 SWITCH, TACTILE (PLAY)
S523 1-554-303-21 SWITCH, TACTILE (PAUSE)
S524 1-554-303-21 SWITCH, TACTILE (STOP)
S531 1-475-543-11 ENCODER, ROTARY (AMS)
< VIBRATOR >
X501 1-579-125-11 VIBRATOR, CERAMIC (8 MHz)
Remarks
10 5% 1/4W F
10K 5% 1/4W
4.7K 5% 1/4W F
6.8K 5% 1/4W F
680 5% 1/4W F
1K 5% 1/4W F
1.5K 5% 1/4W F
2.2K 5% 1/4W F
3.3K 5% 1/4W
6.8K 5% 1/4W F
680 5% 1/4W F
1K 5% 1/4W F
1.5K 5% 1/4W F
2.2K 5% 1/4W F
3.3K 5% 1/4W
6.8K 5% 1/4W F
100K 5% 1/4W
100K 5% 1/4W
1K 5% 1/4W F
10K 5% 1/4W
10K 5% 1/4W
6.8K 5% 1/4W F
47K 5% 1/4W
33 5% 1/4W F
33 5% 1/4W F
