CDP-XB930/XB930E

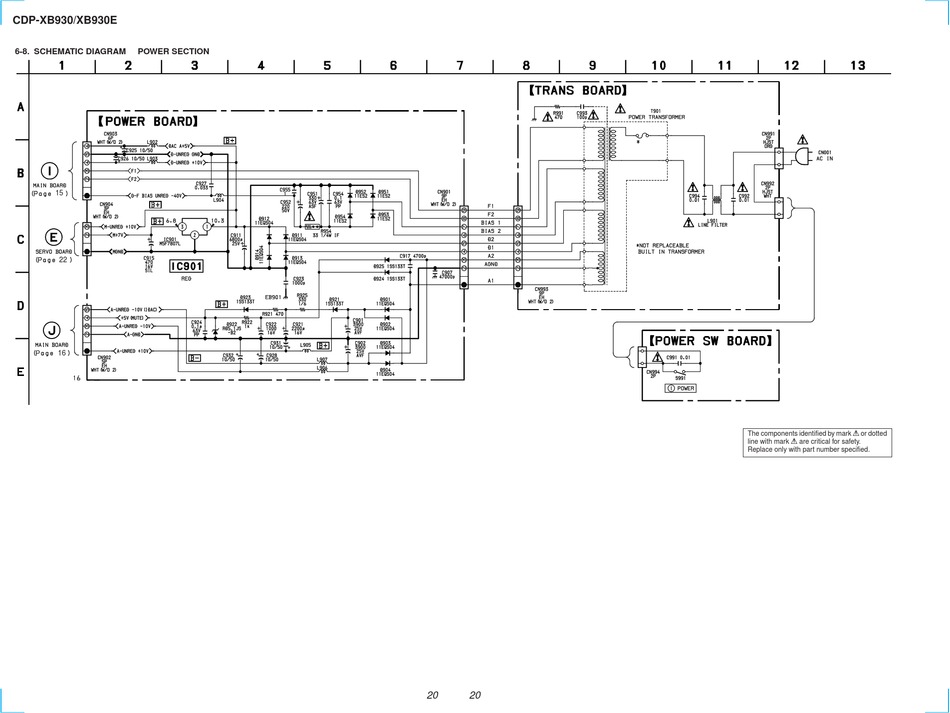

6-8. SCHEMATIC DIAGRAM
POWER SECTION
15
22
16
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
20
20
