General - Sony CDP-XB930L Service Manual

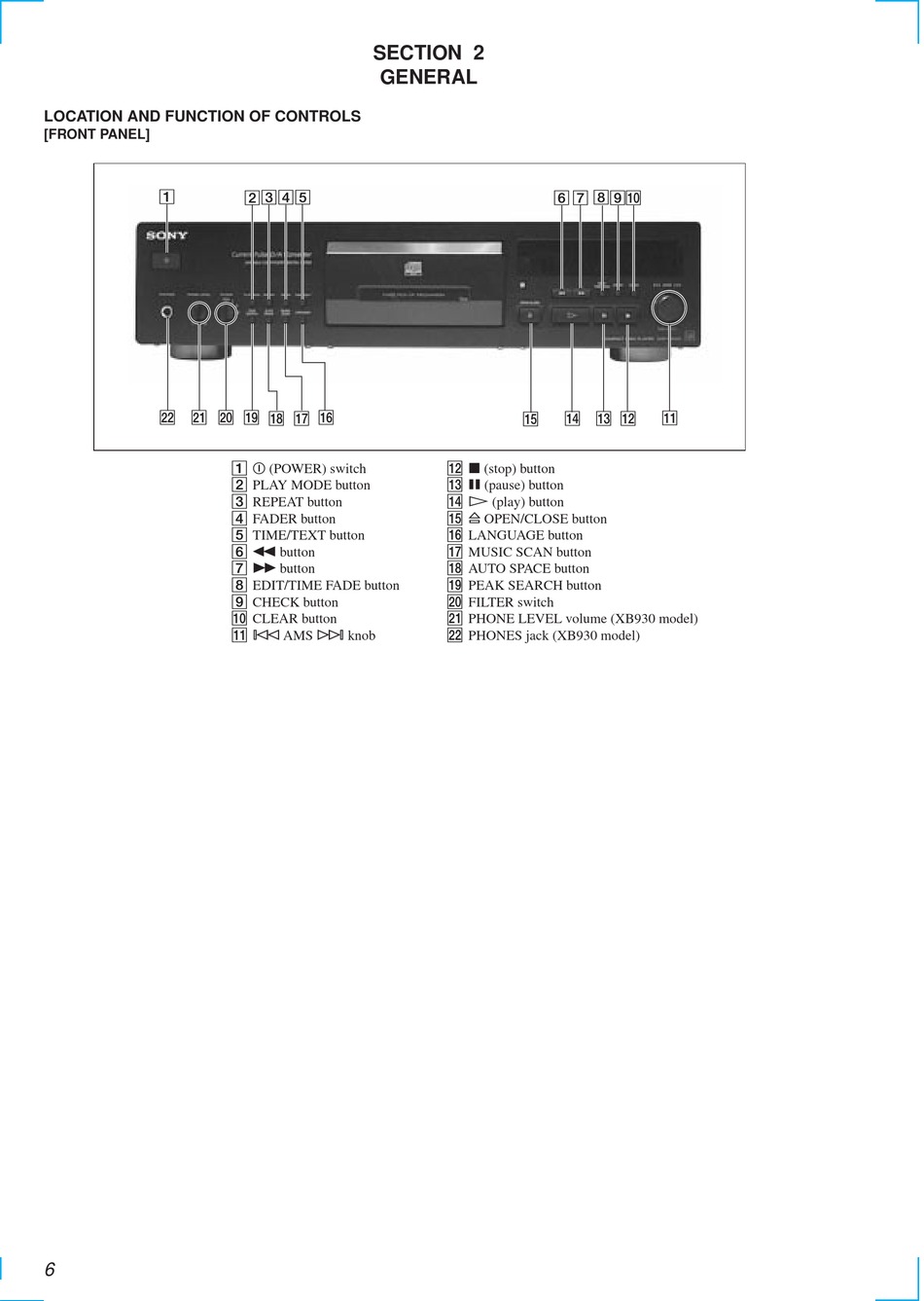

LOCATION AND FUNCTION OF CONTROLS
[FRONT PANEL]
1
@¡ @º !ª !• !¶ !§
@™
6
SECTION 2

GENERAL

2345
1 U (POWER) switch
2 PLAY MODE button
3 REPEAT button
4 FADER button
5 TIME/TEXT button
6 0 button
7 ) button
8 EDIT/TIME FADE button
9 CHECK button
0 CLEAR button
!¡ ≠ AMS ± knob
6 7 8 9!º
!£ !™
!∞ !¢
!™ p (stop) button
!£ P (pause) button
!¢ · (play) button
!∞ § OPEN/CLOSE button
!§ LANGUAGE button
!¶ MUSIC SCAN button
!• AUTO SPACE button
!ª PEAK SEARCH button
@º FILTER switch
@¡ PHONE LEVEL volume (XB930 model)
@™ PHONES jack (XB930 model)
!¡
