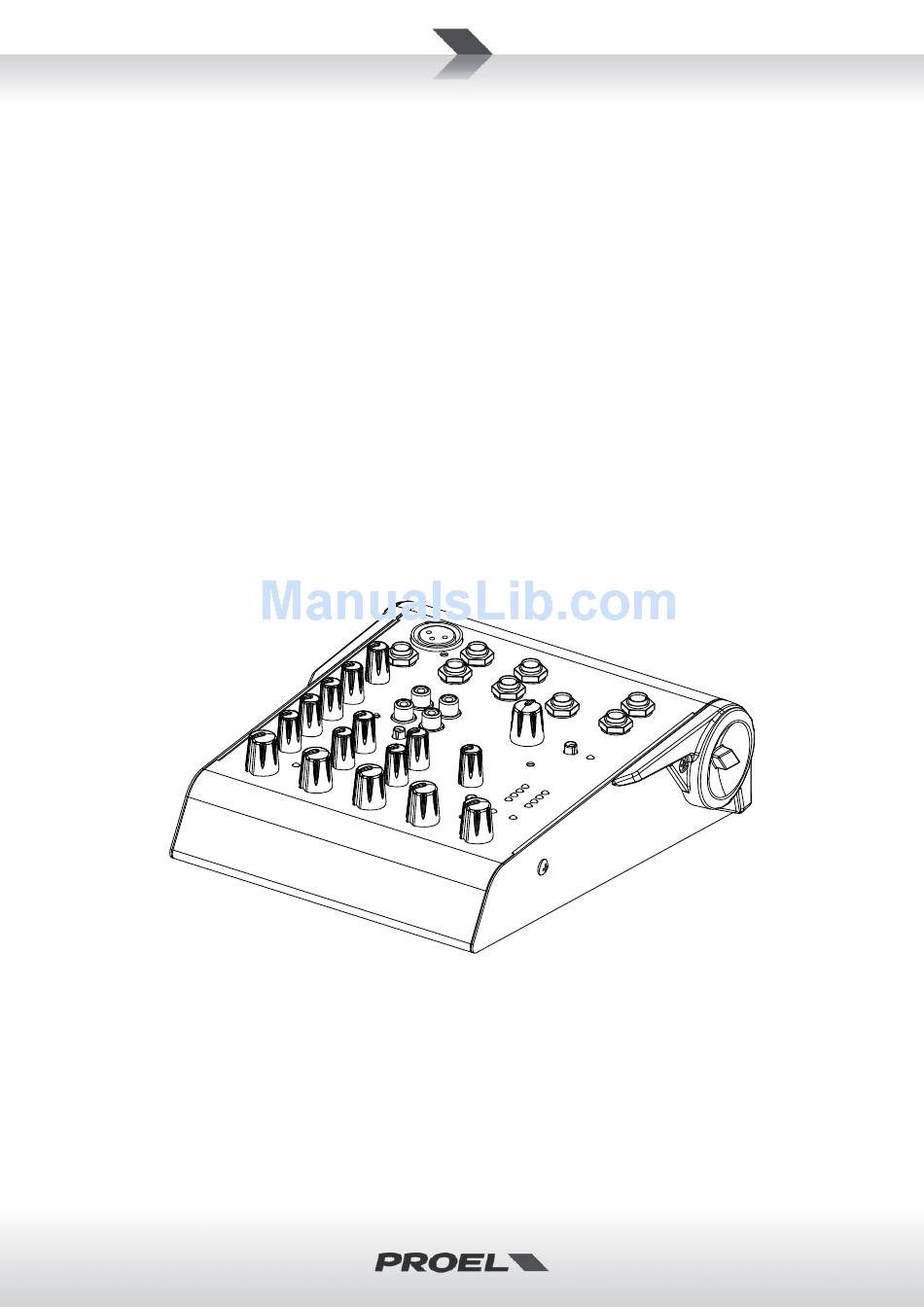

  • Page 1 5-CH MIXER with EFFECT USER MANUAL MANUALE D'USO...
  • Page 2 PROEL. PROEL reserves the right to make any aesthe c, func onal or design modifi ca on to any of its products without any prior no ce.

  • Page 3: Table Of Contents

    INDEX INDICE TECHNICAL SPECIFICATIONS ....4 SPECIFICHE TECNICHE ..... . 4 MECHANICAL DIMENSIONS .

  • Page 4: Technical Specifications

    TECHNICAL SPECIFICATIONS SPECIFICHE TECNICHE MODEL Connectors MODELLO Conne ori MONO INPUT CHANNEL 1 CANALE INGRESSO MONO 1 Mic Input Sensi vity from -10 to -50 dBu Sensibilità Ingresso Mic from -10 to -50 dBu Balanced XLR-F XLR-F Bilanciato Mic Input Impedance 2 Kohm Impedenza Ingresso Mic 2 Kohm...

  • Page 5: Mechanical Dimensions

    MECHANICAL DIMENSIONS DIMENSIONI MECCANICHE 17.2 cm 6.77"...

  • Page 6: Control Panel (Fig.1)

    CONTROL PANEL (FIG.1) PANNELLO DI CONTROLLO (FIG.1)

  • Page 7: Connections (Fig.3)

    CONNECTIONS (FIG.3) CONNESSIONI (FIG.3) p - hot p - hot ring - cold cold ground sleeve - ground LINE IN, various OUT LINE IN, OUT vari LINE IN, various OUT LINE IN, OUT vari Jack (balanced) Jack (bilanciato) Jack (unbalanced) Jack (sbilanciato) p - le *note: connect both cold and ground...

  • Page 8: English Language

    This warranty does not extend to damage resul ng from improper installa on, misuse, neglect or abuse. Proel S.p.A. will verify damage on returned units, and when the unit has been properly used and warranty is s ll valid, then the unit will be replaced or repaired. Proel S.p.A. is not responsible for any "direct damage"...

  • Page 9: General Information

    Thank you for having chosen a PROEL product. The new Mi Series has been created by PROEL in order to off er very compact mixers with a high input density at a very aff ordable price. The series includes 5 models with 5, 6, 10, 12 and 16 channels, featuring in a very compact package a high number of inputs and a full set of intelligent features, able to sa sfy most of the sound reinforcement applica ons.
  • Page 10 11. LINE RIGHT Input This is a JACK connector, which accepts a balanced or unbalanced line level input signal from almost any source. This is used only in presence of LEFT jack input to use the channel as STEREO. 12. FX control (send to FX post) This control sends the signal to the internal Digital Eff...
  • Page 11 20. TO MIX / TO PHONES switch Use this switch to route the signal coming from 2TRK input to MAIN MIX or to PHONES only. 21. 2TRK Output Use these unbalanced RCA connectors to send out the MAIN MIX signal to a recorder, such as an analog tape or an A/D converter connected to a Personal Computer.

  • Page 12: Lingua Italiana

    • I Prodo Proel sono des na esclusivamente ad un u lizzo specifi co di po sonoro: segnali di ingresso di po audio (20Hz-20kHz). Proel declina ogni responsabilità per danni a terzi causa da mancata manutenzione, manomissioni, uso improprio o installazione non eseguita secondo le norme di sicurezza.

  • Page 13: Informazioni Generali

    Mi5 off re in un formato ultra-compa o il suono e la qualità dei mixer professionali, fornendo un suono pulito e fedele e tu e le funzioni di missaggio in una formato a raente e non convenzionale. Malgrado le sue rido e dimensioni, include un DSP di elevata qualità...
  • Page 14 11. LINE RIGHT (ingresso linea destro) È un conne ore po jack in grado di acce are un segnale a livello linea bilanciato o sbilanciato da ogni po di sorgente. È usato solo in presenza del jack LINE LEFT per usare il canale in modalità STEREO. 12.
  • Page 15 20. TO MIX / TO PHONES (tasto) Usarlo per indirizzare il segnale proveniente dall'ingresso 2TRK IN al MAIN MIX o alle uscite PHONES solamente. 21. 2TRK OUTPUT (uscite rca stereo) Usare ques conne ori RCA sbilancia per inviare il segnale di uscita del MAIN MIX a un registratore, quale un registratore a casse e analogico od un computer con ingresso audio.
  • Page 16 PROEL S.p.A. (World Headquarter) Via alla Ruenia 37/43 64027 Sant’Omero (TE) - ITALY Tel: +39 0861 81241 Fax: +39 0861 887862 www.proel.com REV. 38/14 CODE 96MAN0102...
