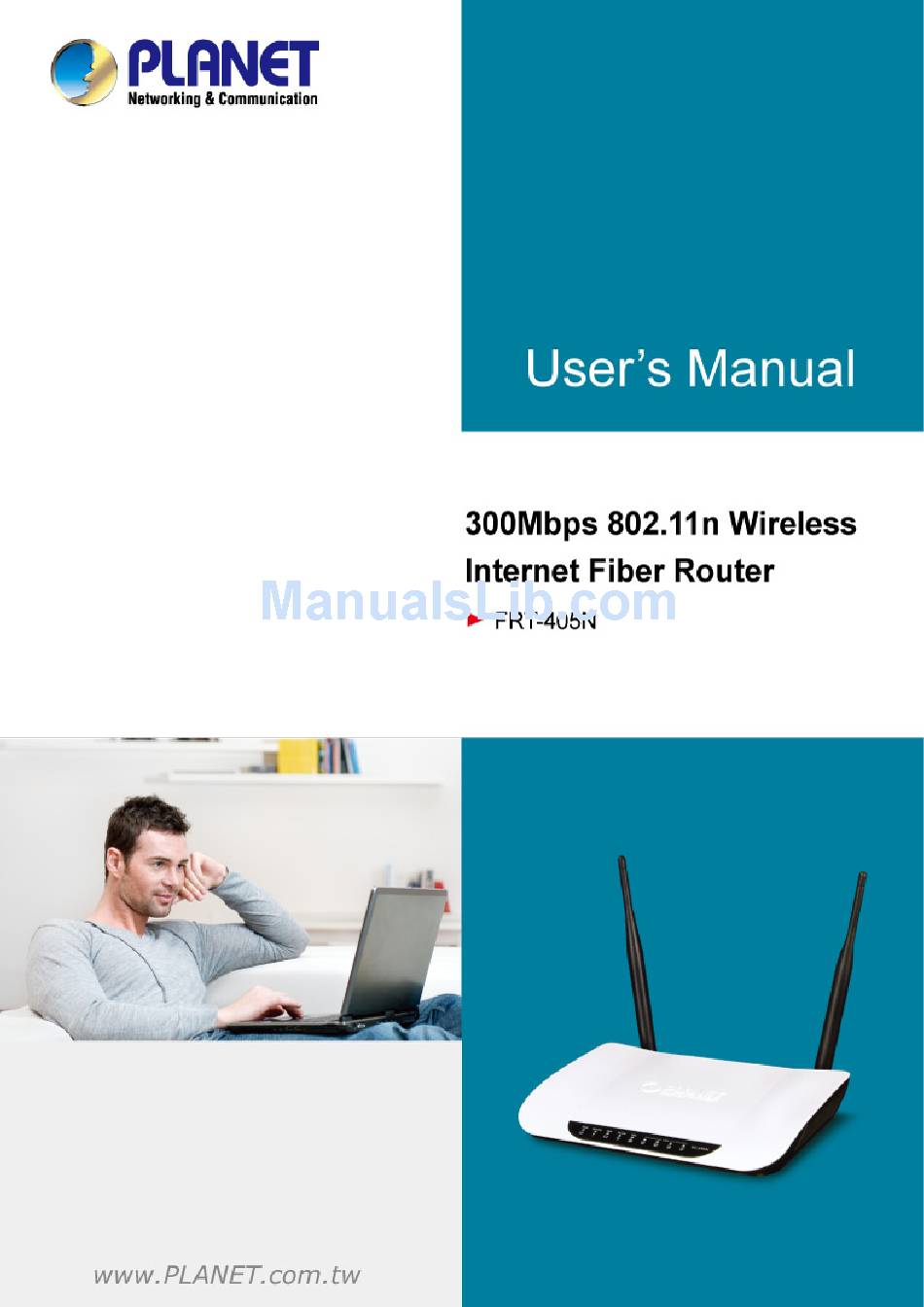

  • Page 1 User Manual of FRT-405N...

  • Page 2: Federal Communication Commission Interference Statement

    Copyright Copyright  2013 by PLANET Technology Corp. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of PLANET.

  • Page 3: National Restrictions

    (1) This device may not cause harmful interference (2) This Device must accept any interference received, including interference that may cause undesired operation. Federal Communication Commission (FCC) Radiation Exposure Statement This equipment complies with FCC radiation exposure set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20 cm (8 inches) during normal operation.
  • Page 4 User Manual of FRT-405N WEEE regulation To avoid the potential effects on the environment and human health as a result of the presence of hazardous substances in electrical and electronic equipment, end users of electrical and electronic equipment should understand the meaning of the crossed-out wheeled bin symbol. Do not dispose of WEEE as unsorted municipal waste;...

  • Page 5: Table Of Contents

    CHAPTER 2. HARDWARE INSTALLATION ....................14 2.1 Hardware Description ...................... 14 2.1.1 Front Panel of FRT-405N......................14 2.1.2 LED Indications of FRT-405N ....................14 2.1.3 Rear Panel of FRT-405N ......................15 2.2 Cabling ..........................16 2.2.1 Installing the SFP Transceiver ....................16 2.2.2 Removing the Module ......................
  • Page 6 5.3.4 WDS ............................50 5.3.5 WPS ............................52 5.3.6 Station List ..........................54 5.3.7 Statistics ........................... 54 5.4 Firewall ..........................55 5.4.1 MAC/IP/Port Filtering ....................... 55 5.4.2 Port Forwarding (Virtual Server) ....................57 5.4.3 DMZ............................59 5.4.4 System Security Settings ......................60 5.4.5 Content Filtering........................
  • Page 7 APPENDIX A: CABLE PROFILES ......................... 96 A.1 Device‘s RJ-45 Pin Assignments ................... 96 A.2 RJ-45 Cable Pin Assignment ..................96 A.3 Fiber Optical Cable Connection Parameter..............97 A.4 Available Modules......................98 APPENDIX B: PLANET SMART DISCOVERY UTILITY ................99 APPENDIX C: GLOSSARY .......................... 100...

  • Page 8: Chapter 1.Product Introduction

    User Manual of FRT-405N Chapter 1.Product Introduction 1.1 Package Contents Thank you for choosing PLANET FRT-405N. Before installing the router, please verify the contents inside the package box. FRT-405N Unit Quick Installation Guide CD-ROM (User Manual included) Power Adapter 5dBi Antenna x 2...

  • Page 9: Product Description

    With built-in 100Base-FX fiber interface, the FRT-405N supports different optic types for WAN and the distance can be up to 15~60 km through the Fiber connection. The FRT-405N is the ideal solution for FTTH (Fiber-to-the-home) applications. It can handle multiple high-throughput services such as IPTV, on-line gaming, VoIP, Internet access and keep the bandwidth usage smoothly.

  • Page 10: Product Features

    LAN. DHCP Server Support: Dynamic Host Configuration Protocol provides a dynamic IP  address to PCs and other devices upon request. The FRT-405N can act as a DHCP Server for devices on your local LAN. Wireless Features ...
  • Page 11 User Manual of FRT-405N WPS Push Button Control: The FRT-405N supports WPS (Wi-Fi Protected Setup) for  users to easily connect to wireless network without configuring the security. WEP Support: WEP (Wired Equivalent Privacy) is included. Key sizes of 64 bit and 128 bit ...

  • Page 12: Product Specifications

    User Manual of FRT-405N 1.4 Product Specifications Model FRT-405N Product Description 300Mbps 802.11n Wireless Internet Fiber Router Hardware Specifications 4 x 10/100Base-TX, Auto-Negotiation, Auto MDI/MDI-X RJ45 port Interface 1 x 100Base-FX SFP slot Wireless 2x 5dBi detachable antenna Connector SFP (Small form-factor Pluggable)
  • Page 13 User Manual of FRT-405N System Management Web-based (HTTP) configuration SNTP time synchronize System Log supports Remote Log Password protection for system management Wireless Interface Specifications Wireless Standard IEEE 802.11b, g and 802.11n Frequency Band 2.4 to 2.4835GHz (Industrial Scientific Medical Band )

  • Page 14: Chapter 2. Hardware Installation

    This chapter offers information about installing your router. If you are not familiar with the hardware or software parameters presented here, please consult your service provider for the values needed. 2.1 Hardware Description 2.1.1 Front Panel of FRT-405N The front panel provides a simple interface monitoring of the router. Figure 2-1 shows the front panel of the FRT-405N.

  • Page 15: Rear Panel Of Frt-405N

    Data is being transmitted or received via the corresponding LAN port. LAN1-4 The port is up. Table 2-1 The LED indication of FRT-405N 2.1.3 Rear Panel of FRT-405N The rear panel provides the physical connectors connected to the power adapter and any other network device.

  • Page 16: Cabling

    The 10/100Mbps RJ-45 ports come with Auto-Negotiation capability. Users only need to plug in working network device into one of the 10/100Mbps RJ-45 ports. The FRT-405N will automatically run in 10Mbps or 100Mbps after the negotiation with the connected device. The FRT-405N has one 100Base-FX SFP interface (Optional Multi-mode / Single-mode 100Base-FX SFP module) ...

  • Page 17: Removing The Module

    User Manual of FRT-405N Figure 2-3 Plug in the SFP transceiver Before connecting the other switches, workstation or Media Converter, 1. Make sure both sides of the SFP transceiver are with the same media type or WDM pair; for example, 100Base-FX to 100Base-FX, 100Base-BX20-U to 100Base-BX20-D.
  • Page 18 User Manual of FRT-405N Never pull out the module without pulling the lever or the push bolts on the module. Directly pulling out the module with force could damage the module and SFP module slot of the device.

  • Page 19: Chapter 3. Connecting To The Router

    2. It is recommended to use Internet Explore 7.0 or above to access the Router. 3.2 Installing the Router Please connect the device to your computer as follows: Locate the FRT-405N in an optimum place and adjust the antenna for the best coverage. Figure 3-1 ...
  • Page 20 Connect your fiber wire to the “WAN” Port via SFP fiber wire.Figure3-2 shows the WAN port connection diagram Figure 3-2: FRT-405N WAN port Connection Diagram  Use Ethernet cable to connect “LAN” port of the modem and “LAN” port of your computer. ...
  • Page 21 User Manual of FRT-405N Follow Figure 3-4 to connect the network devices.  Internet 100Base-FX Data IPTV Fiber Optical Entertainment (DHCP Client or 192.168.1.2) Figure 3-4: FRT-405N Connection Diagram...

  • Page 22: Chapter 4. Installation Guide

    User Manual of FRT-405N Chapter 4. Installation Guide 4.1 Configuring the Network Properties Configuring PC in Windows 7 1. Go to Start / Control Panel / Network and Internet / Network and Sharing Center. Click Change adapter settings on the left banner.
  • Page 23 User Manual of FRT-405N 4. Select Internet Protocol Version 4 (TCP/IPv4) and click Properties. Figure 4-1-3 TCP/IP Setting 5. Select the Obtain an IP address automatically and the Obtain DNS server address automatically button. 6. Click OK to finish the configuration.

  • Page 24: Configuring Pc In Windows Xp

    User Manual of FRT-405N Configuring PC in Windows XP 1. Go to Start / Control Panel (in Classic View). In the Control Panel, double-click on Network Connections 2. Double-click Local Area Connection. Figure 4-1-5 Select Network Connections 3. In the Local Area Connection Status window, click Properties.
  • Page 25 User Manual of FRT-405N 4. Select Internet Protocol (TCP/IP) and click Properties. Figure 4-1-7 TCP/IP Setting 5. Select the Obtain an IP address automatically and the Obtain DNS server address automatically button. 6. Click OK to finish the configuration. Figure 4-1-8 Obtain an IP address automatically...

  • Page 26: Configuring With Web Browser

    User Manual of FRT-405N 4.2 Configuring with Web Browser It would be better to change the administrator password to safeguard the security of your network. To configure the router, open your browser, type “http: //192.168.1.1” into the address bar and click “Go” to get to the login page.

  • Page 27: Chapter 5. System Settings

    User Manual of FRT-405N Chapter 5. System Settings Determine your Connection Settings Before you configure the router, you need to know the connection information supplied by your Internet service provider. Connecting the Fiber Router to your Network Unlike a simple hub or switch, the setup of the Fiber Router consists of more than simply plugging everything together.
  • Page 28 User Manual of FRT-405N Figure 5-2 Login Window...

  • Page 29: Operation Mode

    User Manual of FRT-405N 5.1 Operation Mode The FRT-405N supports three operation modes – Bridge, Gateway and WISP. Currently, the default setting is Gateway mode. Please note that Bridge mode and Gateway mode cannot be used simultaneously. For Bridge mode, all interfaces are bridged into a single bridge interface.

  • Page 30: Internet Settings

    User Manual of FRT-405N 5.2 Internet Settings 5.2.1 WAN The WAN Settings screen allows you to specify the type of Internet connection. The WAN settings offer the following selections for the router’s WAN port, STATIC (fixed IP), DHCP (Auto config), PPPoE, L2TP, and PPTP.
  • Page 31 User Manual of FRT-405N The page includes the following fields: Object Description IP Address Enter the IP address in dotted-decimal notation provided by your ISP. Enter the subnet Mask in dotted-decimal notation provided by your ISP, Subnet Mask usually is 255.255.255.0...
  • Page 32 User Manual of FRT-405N The page includes the following fields: Object Description This option specifies the Host Name of the Router. Host Name Enable or disable MAC clone. MAC Clone...
  • Page 33 User Manual of FRT-405N  PPPOE Select PPPoE (ADSL) in the WAN Connection Type drop-down list and the following page appears. If the WAN connection type is set to PPPoE, you can configure the following parameters to PPPoE dial up.
  • Page 34 User Manual of FRT-405N  L2TP Select L2TP in the WAN Connection Type drop-down list and the following page appears. There are two address modes: Static and Dynamic. 1. If you select Static in the Address Mode field, the page shown in the following figure appears:...
  • Page 35 User Manual of FRT-405N The page includes the following fields: Object Description Allow user to make a tunnel with remote site directly to secure the data transmission among the connection. User can use embedded L2TP client Server IP supported by this router to make a VPN connection.
  • Page 36 User Manual of FRT-405N  PPTP Select PPTP in the WAN Connection Type drop-down list and the following page appears. There are two address modes: Static and Dynamic. The page includes the following fields: Object Description Allow user to make a tunnel with remote site directly to secure the data transmission among the connection.
  • Page 37 User Manual of FRT-405N Subnet Mask Fill in the subnet mask for WAN interface. Default Gateway Fill in the default gateway for WAN interface out going data packets. Keep Alive: Keep the PPTP connection all the time. Please also configure the Redial Period field.

  • Page 38: Lan

    User Manual of FRT-405N 5.2.2 LAN This page allows you to enable or disable networking functions and configure their parameters according to your practice. The page includes the following fields: Object Description The physical address of the Router, as seen from the LAN. The value MAC Address can't be changed.

  • Page 39: Dhcp Clients

    User Manual of FRT-405N with DHCP function set will be assigned an IP address from the range. Fill in the end IP address to allocate a range of IP addresses; client with End IP Address DHCP function set will be assigned an IP address from the range.

  • Page 40: Dynamic Routing Settings

    User Manual of FRT-405N The page includes the following fields: Object Description Destination Enter the legal destination IP address. Destination IP address is a host address or the network address. Range Gateway Enter the specific gateway. Interface The interface for this route. You can select LAN, WAN and Custom.

  • Page 41: Ipv6

    User Manual of FRT-405N 5.2.5 IPv6 You may set up rules to provide Quality of Service (QoS) guarantee for some specific applications. On the page, you can enable or disable Quality of Service. The page includes the following fields: Object...

  • Page 42: Wireless Setting

    Enter a value of up to 32 characters. The same name of SSID (Service Set Identification) must be assigned to all wireless devices in your network. Considering your wireless network security, the default SSID is set to be default. This value is case-sensitive. For example, PLANET...

  • Page 43: Ht Physical Mode

    User Manual of FRT-405N is NOT the same as planet. Multiple SSID 1/2/3/4 There are 4 multiple SSIDs. Enter their descriptive names that you want to use. Broadcast Network Select Enable to allow the SSID broadcast on the network, so that the Name (SSID) STA can find it.
  • Page 44 User Manual of FRT-405N The page includes the following fields: Object Description Select Mixed Mode or Green Field. Operation Mode Channel Bandwidth Select 20 or 20/40. Guard Interval Select 20 or 20/40. Select the proper value from 0 to 32. Auto is the default value.

  • Page 45: Advanced

    User Manual of FRT-405N 5.3.2 Advanced This page includes more detailed settings for the AP. Advanced Wireless Settings page includes items that are not available on the Basic Wireless Settings page, such as basic data rates, beacon interval, and data beacon rate.
  • Page 46 User Manual of FRT-405N 2347. The default value is 2347. Tx Power The Tx Power range is between 1 and 100. The default value is 100. Short preambles work with every wireless type other than older types with limited transmission rates in the 1 to 2 Mbps range.
  • Page 47 User Manual of FRT-405N Object Description There are two main ways that Windows Media servers send data to Windows Media Player clients: multicast and unicast. Multicast-to-Unicast Enable or Disable Multicast-to-Unicast...

  • Page 48: Security

    User Manual of FRT-405N 5.3.3 Security Choose Wireless Settings>Security and the following page appears. It allows you to modify the settings to prevent the unauthorized accesses. The page includes the following fields: Object Description SSID choice Select SSID in the drop-down list.

  • Page 49: Access Policy

    User Manual of FRT-405N Access Policy Object Description There are three options, including Disable, Allow, and Reject. Select Allow, only the clients whose MAC address is listed can access the Policy router. Select Reject, the clients whose MAC address is listed are denied to access the router.

  • Page 50: Wds

    User Manual of FRT-405N 5.3.4 WDS WDS (Wireless Distribution System) allows access points to communicate with one another wirelessly in a standardized way. It can also simplify the network infrastructure by reducing the amount of cabling required. Basically the access points will act as a client and an access point at the same time.
  • Page 51 User Manual of FRT-405N The page includes the following fields: Object Description The FRT-405N WDS Lazy mode is allowed the other FRT-405N WDS Lazy Mode bridge / repeater mode link automatically. It provides 4 options, including CCK, OFDM, HTMIX, and Phy Mode GREENFIELD.

  • Page 52: Wps

    User Manual of FRT-405N 5.3.5 WPS You can enable or disable the WPS function on this page. Select Enable in the WPS drop-down list. Click Apply and the following page appear.

  • Page 53: Wps Summary

    User Manual of FRT-405N WPS Summary It displays the WPS information, such as WPS Current Status, WPS Configured, and WPS SSID. Object Description Reset OOB Reset to out of box (OoB) configuration WPS Progress There are two ways for you to enable WPS function: PIN or PBC. You can use a push button configuration (PBC) on the Wi-Fi router.

  • Page 54: Station List

    User Manual of FRT-405N 5.3.6 Station List Through this page, you can easily identify the connected wireless stations. It automatically observes the ID of connected wireless station (if specified), MAC address, and current status. 5.3.7 Statistics This page will show you the connected TX, RX statistics.

  • Page 55: Firewall

    User Manual of FRT-405N 5.4 Firewall The VDSL Router provides the fully firewall functions, such as MAC/IP/Port Filtering, Port Forwarding, DMZ, SPI Firewall and Content Filtering. It serves as an Internet firewall to protect your network from being accessed by outside users.

  • Page 56: Basic Settings

    User Manual of FRT-405N Basic Settings Object Description MAC/IP/Port Filtering Enable or disable the MAC/IP/Port filtering function. The Packet that does not match any rules would be dropped or Default Policy accepted. MAC/IP/Port Filter Settings Object Description Enter the MAC address that matches the source address of the packet Source MAC address (optional).

  • Page 57: Port Forwarding (Virtual Server)

    User Manual of FRT-405N 5.4.2 Port Forwarding (Virtual Server) This page allows you to configure to re-direct a particular range of service port numbers from the Internet network to a particular LAN IP address, and set virtual server to provide services on the Internet.

  • Page 58: Virtual Server Settings

    User Manual of FRT-405N Virtual Server Settings Object Description Enable or disable this function. After selecting Enable, you can set the Virtual Server Settings following parameters. IP Address Enter the virtual server IP address in internal network. Public Port Enter the WAN service port.

  • Page 59: Dmz

    User Manual of FRT-405N 5.4.3 DMZ DMZ (De-militarized Zone) allows a single computer on your LAN to expose ALL of its ports to the Internet. Enter the IP address of that computer as a DMZ (De-militarized Zone) host with unrestricted Internet access.

  • Page 60: System Security Settings

    User Manual of FRT-405N 5.4.4 System Security Settings Choose Firewall > System Security and the following page appears. This page allows you to configure the system firewall to protect Router from attacking. Remote Management Object Description Remote management Deny or allow remote management through web.

  • Page 61: Content Filtering

    User Manual of FRT-405N Block Port Scan Object Description You may select enable or disable to determine whether to block the Block Port Scan scanning which comes from the external network. Block SYN Flood Object Description You may select enable or disable to determine whether to block the Block SYN Flood SYN Flood attacks come from the external network.
  • Page 62 User Manual of FRT-405N Webs Content Filters Object Description If you want to block some applications as Proxy, Java and ActiveX of Webs Content Filters web pages please select the check box and click “Apply”. Current Webs URL Filters Object...

  • Page 63: Layer 2 Functions

    User Manual of FRT-405N 5.5 Layer 2 functions A single layer-2 network may be partitioned to create multiple distinct broadcast domains. Such a domain is referred to as a Virtual LAN or VLAN. Network administrators set up VLANs to provide the segmentation services traditionally provided by routers in LAN configuration.

  • Page 64: Vlan Setting

    User Manual of FRT-405N The page includes the following fields: Object Description Port This is the LAN port number for this row. You can choose 5 modes.  Auto Negotiation 100 Full  Mode  100 Half  10 Full ...

  • Page 65: Mac Address Table

    User Manual of FRT-405N VLAN Mode Setting Mode: You can enable or disable the VLAN here.  VLAN Member Configuration Object Description VLAN Group: You can select enable or disable. VID: Set the VID here for each Virtual LAN. LAN1~4: It means the LAN port on the router.

  • Page 66: Utilities

    User Manual of FRT-405N 5.6 Utilities The FRT-405N provides four functions for users to use. 5.6.1 Ping Test Setup This page is used to configure the parameters for Ping Test which pings to IP address or Domain Name. 5.6.2 IPv6 Ping Test This page is used to configure the parameters for IPv6 Ping Test which pings to IPv6 address or Domain Name.

  • Page 67: Trace Route

    User Manual of FRT-405N 5.6.3 Trace Route This page is used to configure the Traceroute which traces to IP address or Domain Name.

  • Page 68: Watch Dog Ping

    User Manual of FRT-405N 5.6.4 Watch Dog Ping On this page you can enable Ping Watchdog. And configure the parameters for Ping Watchdog which pings to IP address every time interval. System will reboot when failing to ping the IP address 3 times.

  • Page 69: Fiber/Oam Setting

    User Manual of FRT-405N 5.7 Fiber/OAM Setting You can configure fiber setting in this part. It includes Flow Control, Ingress Rate Limit, Egress Rate Limit. 5.7.1 Fiber Configuration Choose Fiber/OAM Setting > Fiber Configuration, and the following page appears. This function allows displaying the Fiber port status, Mode, Flow Control and Rate limit.

  • Page 70: Administration

    User Manual of FRT-405N 5.8 Administration You can configure admin management in this part. It includes Management, Update Firmware, Setting Management, Reboot, Status, Statistics and System Log. 5.8.1 Management Choose Administration > Management, and the following page appears. You may configure administrator account and password on the page.

  • Page 71: Setting Management

    User Manual of FRT-405N Updating Firmware Object Description Click Browse to select the firmware file, and click Apply to upgrade Location the firmware. 5.8.3 Setting Management Choose Administration > Settings Management and the following page appears. You may save system settings by exporting them to a configuration file, restore them by importing the file, or reset them to the factory default.

  • Page 72: Snmp Configuration

    User Manual of FRT-405N Exporting Settings Object Description Export Button Click the Export to export the settings Importing Settings Object Description Import Settings Click Browse to select the configuration file, and then click Upload the configuration file. Click Cancel to cancel the uploading Import operation.
  • Page 73 Set the name to access the router. Usually set the administrator’s System Contact: name. System Name: Set the router’s name, such as “FRT-405N”. Set the router’s network location. System Location: Show you the IP that allowed to access. Allowed IP to access...

  • Page 74: Reboot

    User Manual of FRT-405N The default is Public. Indicates the community write access string to permit reading and re-writing this router’s SNMP information. Write Community: The default is Private. Trap Configuration Object Description Mode : Indicates the SNMP trap mode operation. Possible modes are: Enabled: Enable SNMP trap mode operation.
  • Page 75 User Manual of FRT-405N...

  • Page 76: Statistics

    User Manual of FRT-405N 5.8.7 Statistics You can see the Statistic information on this screen. It includes the Traffic for all interfaces.

  • Page 77: System Log

    User Manual of FRT-405N 5.8.8 System Log The system log dialog allows you to view the system log and click the “Refresh” button to refresh the system event logs. Choose Administration > System Log and the following page appears. You are allowed to view and disable / enable the system log on this page.

  • Page 78: Ntp

    User Manual of FRT-405N 5.8.10 NTP Choose Administration > NTP and the following page appears. You may configure NTP settings on this page. NTP Settings Object Description Display the current date and time. Click Sync with host, the current Current Time time is synchronized by your PC which is connected to Router.

  • Page 79: Ddns

    Easy DDNS Planet Easy DDNS is a way help to get your Domain Name with just one click. Once you enabled the Easy DDNS, your Planet Network Device will use the format PLxxxxxx where xxxxxx is the last 6 characters of your MAC address that can be found on the web page or bottom label of the device.

  • Page 80: Ddns Settings

    Enter the password of DDNS provider in the field. DDNS Enter the domain name of your device. Planet DDNS First of all, please go to http://www.planetddns.com to register a Planet DDNS account, and refer to the FAQ (http://www.planetddns.com/index.php/faq) for how to register a free account.
  • Page 81 User Manual of FRT-405N To select Dynamic DNS Provider > PlanetDDNS.com Step 1. Type the User Name for your DDNS account. Step 2. Type the Password for your DDNS account. Step 3. Type the Domain Name you received from dynamic DNS service provider.
  • Page 82 Apply the settings and ensure you have connected the WAN port to the Internet. In a remote device, enter the Domain Name to the internet browser’s address bar. You can go to My Devices page of Planet DDNS website to check if the “Last Connection IP” is displayed. This indicates your DDNS service is working properly.

  • Page 83: Max Session

    User Manual of FRT-405N 5.8.12 Max Session Choose Administration > Max Session and the following page appears. You may configure Max Session on this page. 5.8.13 Session List Choose Administration > Session List and the following page appears. You may monitor Session List on...

  • Page 84: Chapter 6. Quick Connection To A Wireless Network

    6. Quick Connection to a Wireless Network Chapter In the following sections, the default SSID of the FRT-405N is configured to “default”. 6.1 Windows XP (Wireless Zero Configuration) Step 1: Right-Click on the wireless network icon displayed in the system tray Figure 6-1 System Tray –...
  • Page 85 User Manual of FRT-405N Step 4: Enter the encryption key of the Wireless AP (1) The Wireless Network Connection box will appear (2) Enter the encryption key that configured in section 5.3.3 (3) Click the [Connect] button Figure 6-3 Enter the network key Step 5: Check if “Connected”...

  • Page 86: Windows 7 (Wlan Autoconfig)

    User Manual of FRT-405N Some laptops are equipped with a “Wireless ON/OFF” switch for the internal wireless LAN. Make sure the hardware wireless switch is switch to “ON” position. 6.2 Windows 7 (WLAN AutoConfig) WLAN AutoConfig service is built-in in Windows 7 that can be used to detect and connect to wireless network.
  • Page 87 User Manual of FRT-405N If you will be connecting to this Wireless AP in the future, check [Connect automatically]. Step 4: Enter the encryption key of the Wireless AP (1) The Connect to a Network box will appear (2) Enter the encryption key that configured in section 5.3.3...
  • Page 88 User Manual of FRT-405N Figure 6-9 Connected to a Network...

  • Page 89: Mac Os X 10.X

    User Manual of FRT-405N 6.3 Mac OS X 10.x In the following sections, the default SSID of the FRT-405N is configured to “default”. Step 1: Right-Click on the network icon displayed in the system tray The AirPort Network Connection menu will appear Figure 6-10 Mac OS –...
  • Page 90 User Manual of FRT-405N Figure 6-12 Enter the Password If you will be connecting to this Wireless AP in the future, check [Remember this network]. Step 5: Check if the AirPort is connected to the selected wireless network. If “Yes”, then there will be a “check” symbol in the front of the SSID.
  • Page 91 User Manual of FRT-405N There is another way to configure the MAC OS X Wireless settings: Step 1: Click and open the [System Preferences] by going to Apple > System Preference or Applications Figure 6-14 System Preferences Step 2: Open Network Preference by clicking on the [Network] icon...
  • Page 92 User Manual of FRT-405N Step 3: Check Wi-Fi setting and select the available wireless network (1) Choose the AirPort on the left-menu (make sure it is ON) (2) Select Network Name [default] here If this is the first time to connect to the Wireless AP, it should show “Not network selected”.

  • Page 93: Iphone / Ipod Touch / Ipad

    User Manual of FRT-405N 6.4 iPhone / iPod Touch / iPad In the following sections, the default SSID of the FRT-405N is configured to “default”. Step 1: Tap the [Settings] icon displayed in the home screen Figure 6-17 iPhone – Settings icon...
  • Page 94 User Manual of FRT-405N Figure 6-19 Wi-Fi setting – Not Connected Step 3: Tap the target wireless network (SSID) in “Choose a Network…” (1) Turn on Wi-Fi by tapping “Wi-Fi” (2) Select SSID [default] Figure 6-20 Turn on Wi-Fi Step 4: Enter the encryption key of the Wireless AP...
  • Page 95 User Manual of FRT-405N (3) Tap the [Join] button Figure 6-21 iPhone -- Enter the Password Step 5: Check if the device is connected to the selected wireless network. If “Yes”, then there will be a “check” symbol in the front of the SSID.

  • Page 96: Appendix A: Cable Profiles

    User Manual of FRT-405N Appendix A: Cable Profiles A.1 Device‘s RJ-45 Pin Assignments 10/100Mbps, 10/100Base-TX ■ Contact MDI-X 1 (TX +) 2 (TX -) 3 (RX +) 6 (RX -) Not used 4, 5, 7, 8 Not used Implicit implementation of the crossover function within a twisted-pair cable, or at a wiring panel, while not expressly forbidden, is beyond the scope of this standard.

  • Page 97: Fiber Optical Cable Connection Parameter

    User Manual of FRT-405N Straight Cable SIDE 1 SIDE2 SIDE 1 1 = White / Orange 1 = White / Orange 2 = Orange 2 = Orange 3 = White / Green 3 = White / Green 4 = Blue...

  • Page 98: Available Modules

    User Manual of FRT-405N A.4 Available Modules The following list the available Modules for FRT-40x / 40xN MFB-FX SFP-Port 100Base-FX Transceiver (1310nm) -2km MFB-F20 SFP-Port 100Base-FX Transceiver (1310nm) - 20km MFB-FA20 SFP-Port 100Base-BX Transceiver (WDM,TX:1310nm) -20km MFB-FB20 SFP-Port 100Base-BX Transceiver (WDM,TX:1550nm) -20km...

  • Page 99: Appendix B: Planet Smart Discovery Utility

    User Manual of FRT-405N Appendix B: Planet Smart Discovery Utility To easily list the FRT-405N in your Ethernet environment, the Planet Smart Discovery Utility from user’s manual CD-ROM is an ideal solution. The following installation instructions guide you to running the Planet Smart Discovery Utility.

  • Page 100: Appendix C: Glossary

    User Manual of FRT-405N Appendix C: Glossary Address mask A bit mask select bits from an Internet address for subnet addressing. The mask is 32 bits long and selects the network portion of the Internet address and one or more bits of the local portion. Sometimes it called subnet mask.
  • Page 101 User Manual of FRT-405N Central Office. Refers to equipment located at a Telco or service provider's office. Customer Premises Equipment located in a user's premises DHCP (Dynamic Host Configuration Protocol) DHCP is software that automatically assigns IP addresses to client stations logging onto a TCP/IP network.
  • Page 102 User Manual of FRT-405N File Transfer Protocol. The Internet protocol (and program) transfer files between hosts. Hop count A measure of distance between two points on the Internet. It is equivalent to the number of gateways that separate the source and destination.
  • Page 103 User Manual of FRT-405N Media Access Control Layer - A sub-layer of the Data Link Layer (Layer 2) of the ISO OSI Model responsible for media control. Management Information Base - A collection of objects can be accessed via a network management protocol, such as SNMP and CMIP (Common Management Information Protocol).
  • Page 104 User Manual of FRT-405N Request for Comments - Refers to documents published by the Internet Engineering Task Force (IETF) proposing standard protocols and procedures for the Internet. RFC can be found at www.ietf.org. Route The path that network traffic takes from its source to its destination. The route a datagram may follow can include many gateways and many physical networks.
  • Page 105 User Manual of FRT-405N Static IP Address A static IP address is an IP address permanently assigned to computer in a TCP/IP network. Static IP addresses are usually assigned to networked devices that are consistently accessed by multiple users, such as Server PCs, or printers.
  • Page 106 User Manual of FRT-405N User Datagram Protocol - A connectionless transport protocol that runs on top of TCP/IP's IP. UDP, like TCP, uses IP for delivery; however, unlike TCP, UDP provides for exchange of datagram without acknowledgments or guaranteed delivery. Best suited for small, independent requests, such as requesting a MIB value from an SNMP agent, in which first setting up a connection would take more time than sending the data.
  • Page 107 *Model Number: FRT-405N * Produced by: Manufacturer‘s Name : Planet Technology Corp. Manufacturer‘s Address: 10F., No.96, Minquan Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) is herewith confirmed to comply with the requirements set out in the Council Directive on the 1999/5/EC R&TTE.
  • Page 108 ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ , PLANET Technology Ελληνικά Corporation, ΔΗΛΩΝΕΙ ΟΤΙ ΑΥΤΟ 802.11n Português PLANET Technology Corporation, declara que este   Wireless Internet Fiber Router 802.11n Wireless Internet Fiber Router está ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ conforme com os requisitos essenciais e outras ΑΠΑΙΤΗΣΕΙΣ...
