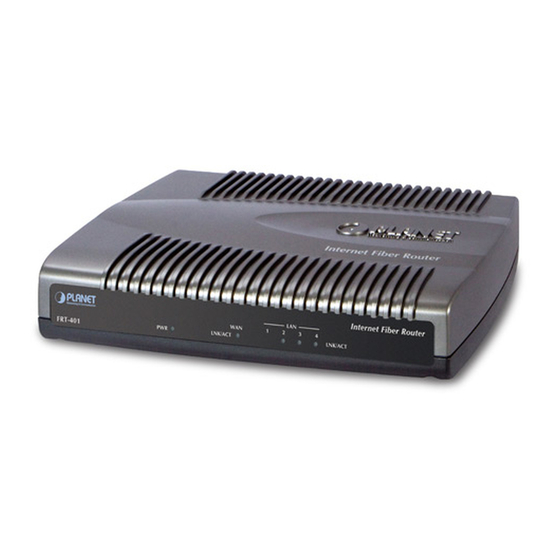

- Page 1 Wired / Wireless Internet Fiber Router FRT-401 / FRT-401S15 / FRT-405 FRT-401N / FRT-401NS15 / FRT-405N Quick Installation Guide...
-
Page 2: Table Of Contents
Table of Contents 1. Package Contents ............... 3 2. Overview ................... 4 3. Hardware Installation ..............8 4. Access Your Fiber Router ............11 5. Further Information ..............12... -
Page 3: Package Contents
1. Package Contents FRT-40x / FRT-40xN Series Unit x 1 Power Adapter x 1 User’s Manual CD x 1 Quick Installation Guide x 1 Antennas x 2 (For wireless models) If any of above items are damaged or missing, please contact your dealer immediately. -
Page 4: Overview
2. Overview FRT-401 / FRT-401S15 / FRT-405 Front Panel FRT-401 / FRT-401S15 FRT-405 Front Panel LED definition State Description When the router is powered on, and in ready state. When the router is powered off. Data is being transmitted or received via the Flashing fiber connection. - Page 5 Rear Panel FRT-401 / FRT-401S15 FRT-405 Rear Panel Port and Button Definition Connector Description 12V DC Power connector with 12V DC, 1.0A Press more than 3 seconds for reset to factory default RESET setting. Router is successfully connected to a device through the corresponding port (1, 2, 3, or 4).
- Page 6 FRT-401N / FRT-401NS15 / FRT-405N Front Panel FRT-401N / FRT-401NS15 FRT-405N Front Panel LED definition State Description When the router is powered on, and in ready state When the router is powered off WPS client registration is successful Flashing WPS client registration window is currently open WPS is not available, or WPS is not enabled or initialized WLAN radio is on...
- Page 7 Data is being transmitted or received via the Flashing corresponding LAN port LAN1-4 The port is up Rear Panel FRT-401N / FRT-401NS15 FRT-405N Rear Panel Port and Button Definition Connector Description 12V DC Power connector with 12V DC, 1.0A. Press more than 3 seconds for reset to factory RESET default setting.
-
Page 8: Hardware Installation
The unless model number is specified; and photo of VC-230 hardware installation of PLANET Fiber Router do not need software configuration. To install your Fiber Router on a desktop or shelf, simply complete the following steps. - Page 9 (DHCP Client or 192.168.1.2) Connect the Fiber-optic cable to WAN port. Check the WAN LED on the front panel is on accordingly. The Fiber types of PLANET Wired / Wireless Fiber Router as the following: FRT-401 / FRT-401N: 100Base-FX (SC, MM, 2Km)
- Page 10 100Base-FX SFP transceiver 100Base-FX LC Fiber FRT-405 / FRT-405N...
-
Page 11: Access Your Fiber Router
Now that the physical connection between your PC and Fiber Router has been established, you must login in order to access Web Management. The Fiber Router supports Web-based configuration. From this chapter, we will describe how to access Web Management of PLANET FRT-40x Series. First Time Login... -
Page 12: Further Information
5. Further Information For further detail configurations and information of Operation Mode, WAN, LAN, Firewall, Fiber/OAM, Wireless can be found in the user’s manual CD. If you have other questions, please contact the local dealer where you purchasing this product.
