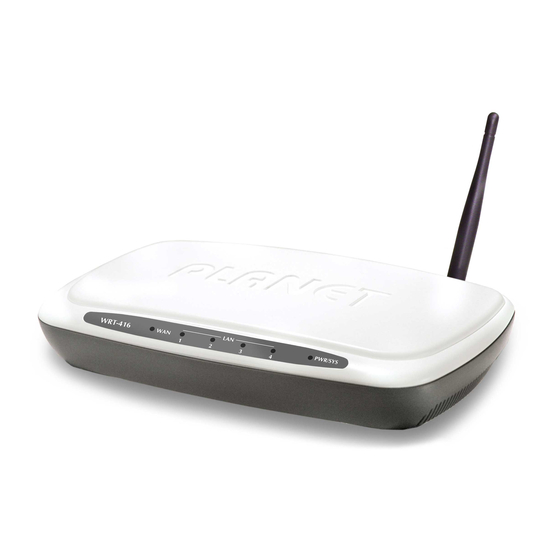

- Page 1 802.11g Wireless Broadband Router WRT-416 Quick Installation Guide...
- Page 2 Table of Contents Package Content ... 3 Hardware Installation ... 4 Initial Configuration... 5 Further Configuration ... 8...
-
Page 3: Package Content
Package Content 1 x WRT-416 1 x Power Adapter 1 x User’s Manual CD 1 x Quick Installation Guide 1 x External Antenna 1 x Ethernet Cable If any of the above items are missing or damaged, contact your local dealer for support. -
Page 4: Hardware Installation
Wireless Router. Then follow the steps below to connect the related devices. Step 1: Connect your computer to the LAN port of WRT-416 by using RJ-45 cable. Attach one end of the Ethernet cable with RJ-45 connector to your hub, switch or a computer’s Ethernet port, and the other end to one of the LAN ports of your router. -
Page 5: Initial Configuration
2. Enter WRT-416 IP address (default IP address is http://192.168.1.1) into the address field of the web browser. Please also make sure your PC’s IP address is in the same IP range with WRT-416. If the router’s LAN port has been changed with new IP address, enter the new IP address instead. - Page 6 4. Once you log in, the Configuration Wizard and Status page will pop up at the same time. Configuration Wizard will appear every time you enter WRT-416. If you do not want to display wizard by itself next time, select “don’t pop up” option and click “save”. In the future, you can still have wizard appeared by clicking “Wizard”...
- Page 7 6. On this page, you can set the Radio Band, Mode, SSID and Channel to your WRT-416. The SSID is to identify your wireless network. All the devices (AP and wireless client) on the same wireless network must be configured to the same SSID. You can leave the Radio Band and Channel settings to default.
-
Page 8: Further Configuration
Further Configuration If you want to configure more detail settings of WRT-416, please refer to the manual in the bundled CD. If you have any difficulty on resolving the problem while installing or using the WRT-416, please feel free to...
