10

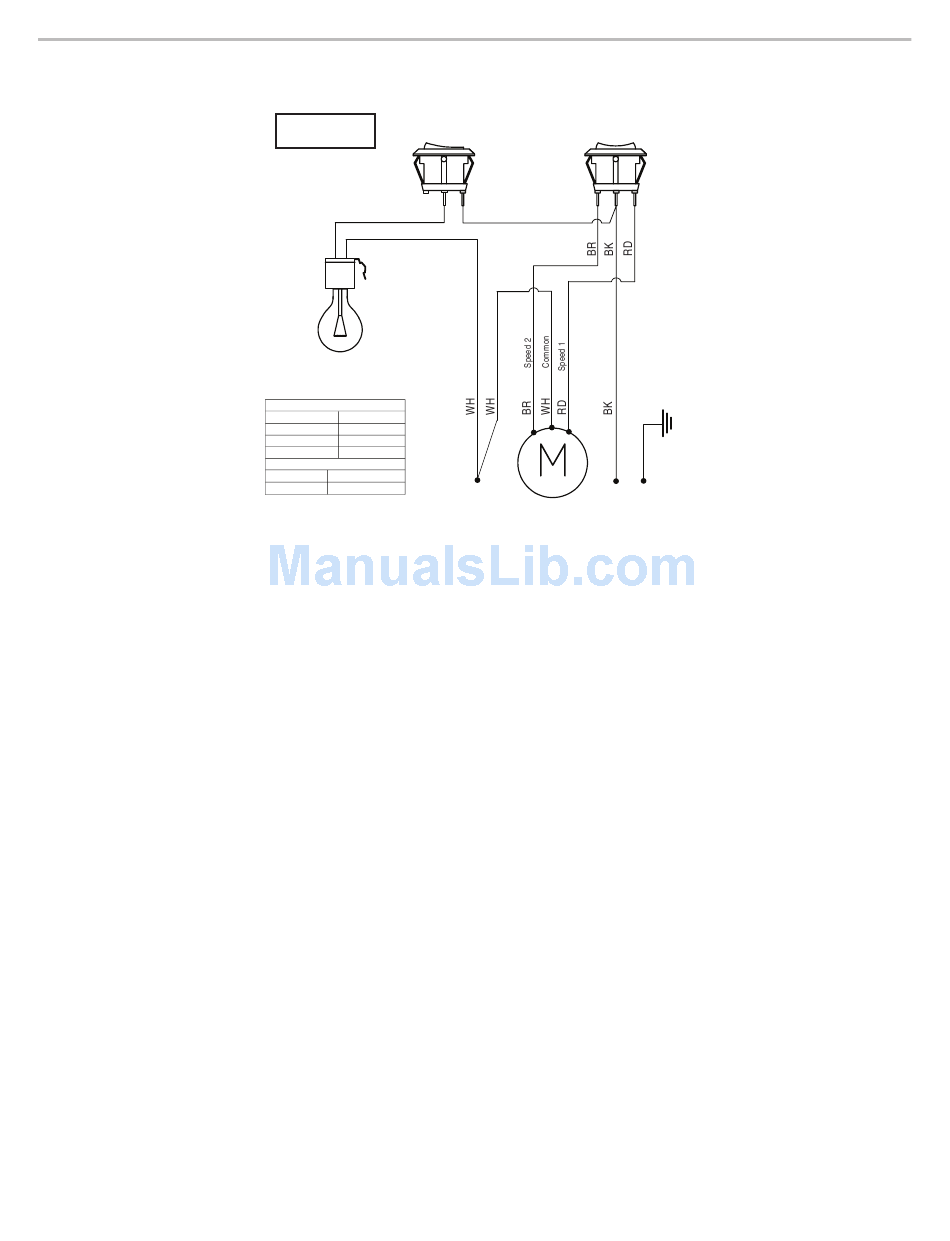

WIRING DIAGRAM
Light Switch
SE113C
On - Off
BK
WH
Motor Characteristics
Power Supply
120 VAC
Frequency
60 Hz
Amperage
0.33 ±10% A
Wattage Rating
20 ±10% Watts
Motor Resistance
Brown - White
45.28 ±10% Ohms
Brown - Red
47.44 ±10% Ohms
Motor Switch
Low - Off - High
BK
Ground
Screw
C10
N
L
GND
