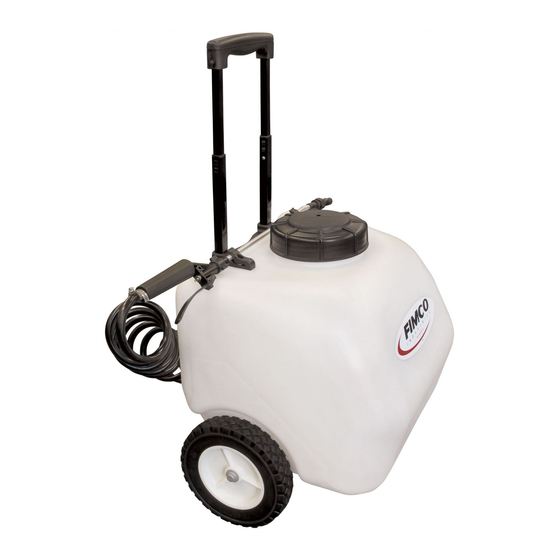

8 gallon super spot sprayer

Advertisement

Quick Links

Owner's Manual

General Information

Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your sprayer.
Please read it carefully, as it furnishes information which will help
you achieve years of trouble-free operation.
Warranty/Parts/Service
For home usage, products are warranted for one year from date
of purchase against manufacturer or workmanship defects.
Commercial users have a 90 day warranty.
Your authorized dealer is the best source of replacement parts
and service. To obtain prompt, efficient service, always
remember to give the following information...
- Correct Part Description and/or part number.
- Model number/Serial number of your sprayer.
Part descriptions and part numbers can be obtained from the
illustrated parts list section(s) of this manual.
Whenever you need parts or repair service, contact your
distributor/dealer first. For warranty work, always take your
original sales slip, or other evidence of purchase date, to your
distributor/dealer.
Model: LG-8-P (5301814)
(8 Gallon Super Spot Sprayer)

Technical Specifications

• 8 Gallon, Corrosion-Resistant Polyethylene Tank
• 1.0 G.P.M. Diaphragm Pump With Cooling Fan & In-line Fuse
• Telescopic Handle For Easy Mobility & Storage
• Rechargeable 12V Battery (AC Charger Included)
• Coiled Hose With 15 Feet Working Length
• Squeeze Lever Handgun
• Vented Lid
• 8 Inch Wheels
• Unit height with handle Extended = approx 37"
• Unit height with handle Retracted = approx 22"
Assembly
This unit is mostly assembled at the factory. You may need
to screw the barrel portion of the handgun onto the trigger
assembly, as this may disassembled to fit into the box.
Operation
Fill the container with solution (water and chemical) then stir to
mix. Mixing can also be done by sticking the handgun nozzle
into the container and spray into the solution.
Turn the switch to "ON" and squeeze the lever on the handgun
to spray.
After spraying, rinse and clean the equipment both inside and
out. Flush the pumping system with water.
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440
Form No. 1687
[5008080
(12/11)]
Printed in the U.S.A.
