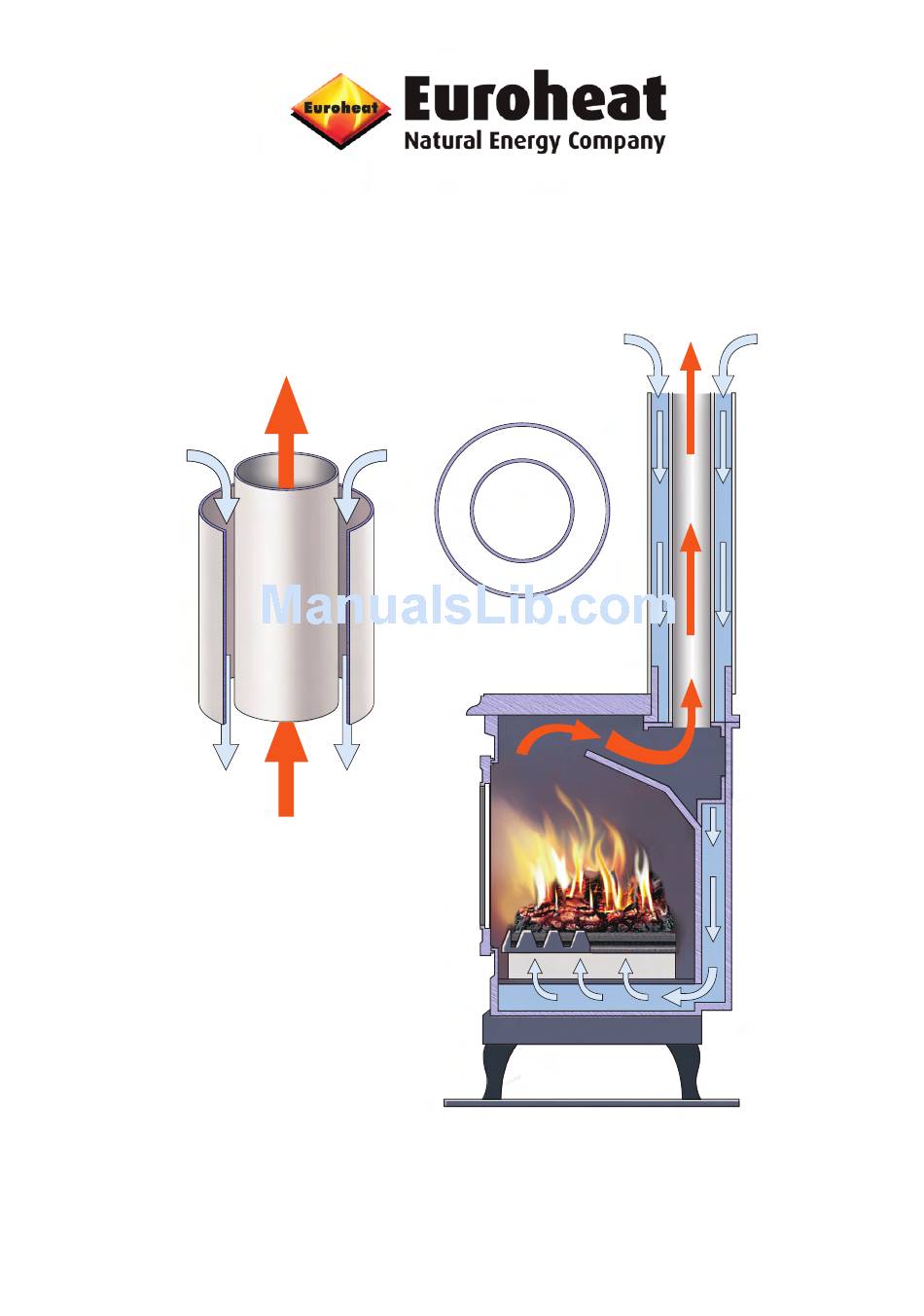

- Page 1 Balanced Flue Stove Technical Guide Document No: IN1105 © EUROHEAT DISTRIBUTORS (H.B.S) LTD. Technical Guide IN1105 Ed 5 May 2009...
-
Page 2: Hearth And Fireplace Requirements
Curtains and furnishings should be a minimum of 1m from the stove. © EUROHEAT DISTRIBUTORS (H.B.S) LTD. Technical Guide IN1105 Ed 5 May 2009... - Page 3 © EUROHEAT DISTRIBUTORS (H.B.S) LTD. Technical Guide IN1105 Ed 5 May 2009...
- Page 4 In some cases the top section of a chimney may have been removed and the versatility of the balanced flue system allows you to use what remains of the chimney using the chimney adapter kit. © EUROHEAT DISTRIBUTORS (H.B.S) LTD. Technical Guide IN1105 Ed 5 May 2009...
- Page 5 However, in addition, the outlet should not be nearer than 300mm to an opening into the building fabric formed for the purpose of accommodating a built in element, such as a window frame. © EUROHEAT DISTRIBUTORS (H.B.S) LTD. Technical Guide IN1105 Ed 5 May 2009...
- Page 6 For each 90 degree bend introduced the horizontal run must be reduced by 1m. For each 45 degree bend introduced the horizontal run must be reduced by 500mm. © EUROHEAT DISTRIBUTORS (H.B.S) LTD. Technical Guide IN1105 Ed 5 May 2009...
- Page 7 Flue spigot Example 'C' Min 310mm/ Max 440mm The rear exit flue may have a maximum horizontal run of 440mm from the flue spigot, the minimum length 310mm. © EUROHEAT DISTRIBUTORS (H.B.S) LTD. Technical Guide IN1105 Ed 5 May 2009...
- Page 8 MS91102 MS91103 Level Kit giving the Sleeve liner MS91065 MS91066 installation Terminal a clean finish FP767 FP767 guard both inside and outside. Closure bezel MS91033 MS91040 © EUROHEAT DISTRIBUTORS (H.B.S) LTD. Technical Guide IN1105 Ed 5 May 2009...
- Page 9 180mm HorizontalHigh MS91102 MS91103 Level Kit 1 metre length MS91028 MS91034 500mm length MS91029 MS91035 250mm length MS91030 MS91036 90° short bend MS91031 MS91037 Wall band MS91052 MS91053 © EUROHEAT DISTRIBUTORS (H.B.S) LTD. Technical Guide IN1105 Ed 5 May 2009...
- Page 10 150mm 180mm Top to Vertical High Level Kit MS91100 MS91101 1 metre length MS91028 MS91034 500mm length MS91029 MS91035 90° short bend MS91031 MS91037 Wall band MS91052 MS91053 © EUROHEAT DISTRIBUTORS (H.B.S) LTD. Technical Guide IN1105 Ed 5 May 2009...
- Page 11 Top to Vertical High Level Kit MS91100 MS91101 1 metre length MS91028 MS91034 Adjustable MS91045 MS91046 length 45° short bend MS91054 MS91055 Wall band MS91052 MS91053 Roof flashing MS91063 MS91063 © EUROHEAT DISTRIBUTORS (H.B.S) LTD. Technical Guide IN1105 Ed 5 May 2009...
- Page 12 Components used Description Part No. Quantity 150mm 180mm Top to Vertical High Level Kit MS91100 MS91101 1 metre length MS91028 MS91034 Wall band MS91052 MS91053 Roof flashing MS91063 MS91063 © EUROHEAT DISTRIBUTORS (H.B.S) LTD. Technical Guide IN1105 Ed 5 May 2009...
- Page 13 Components used Description 150mm 180mm Ceiling support MS91056 MS91057 Fire stop spacer MS91058 MS91059 Roof flashing MS91063 MS91063 Wall band MS91052 MS91053 © EUROHEAT DISTRIBUTORS (H.B.S) LTD. Technical Guide IN1105 Ed 5 May 2009...
- Page 14 Depending on which direction your flue configuration will take and the model of the stove, a reduction plate may or may not be required. See pages 24 & 25 for details. © EUROHEAT DISTRIBUTORS (H.B.S) LTD. Technical Guide IN1105 Ed 5 May 2009...
- Page 15 It can go through the long 90° bend (in the top to horizontal kit) and terminate through the gable end of the property. © EUROHEAT DISTRIBUTORS (H.B.S) LTD. Technical Guide IN1105 Ed 5 May 2009...
- Page 16 (or PVC). Advise from your conservatory installer/manufacturer should be sought. The flue system should be supported. 600mm 600mm 600mm © EUROHEAT DISTRIBUTORS (H.B.S) LTD. Technical Guide IN1105 Ed 5 May 2009...
-
Page 17: Frequently Asked Questions
Q. What is the maximum length the flue can travel horizontaly from the rear outlet of the stove? A. The standard low level horizontal flue kit gives a maximum extension of 440mm. No additional lengths or bends should be fitted. © EUROHEAT DISTRIBUTORS (H.B.S) LTD. Technical Guide IN1105 Ed 5 May 2009... - Page 18 The min can be reduced further by cutting 40mm off the T2 section 12mm Max 555mm Min 445mm The min can be reduced further by cutting 40mm off the T1 section © EUROHEAT DISTRIBUTORS (H.B.S) LTD. Technical Guide IN1105 Ed 5 May 2009...
- Page 19 For additional lengths and accessories see pages 21 to 24. Vertical Terminal 200mm Locking Band 250mm Adjustable Starter Pipe Adjustable Starter Pipe Toatal length Minimum Length Maximum Length for Calculations For Calculations 250mm 30mm 170mm © EUROHEAT DISTRIBUTORS (H.B.S) LTD. Technical Guide IN1105 Ed 5 May 2009...
- Page 20 Telescopic Module (horizontal adjustable) Minimum Length 310 mm Maximum Length 440 mm Horizontal Terminal Terminal Guard Wind shield Spacers and self tapping screws for wind shield © EUROHEAT DISTRIBUTORS (H.B.S) LTD. Technical Guide IN1105 Ed 5 May 2009...
- Page 21 45 Degree bend MS91054 MS91055 170mm vertical 75mm horizontal 2 x 45 Degree bend MS91054 x 2 MS91055 x 2 340mm 150mm off set off set Wall band MS91052 MS91053 © EUROHEAT DISTRIBUTORS (H.B.S) LTD. Technical Guide IN1105 Ed 5 May 2009...
- Page 22 Required when flue pipe passes through a cavity wall. It can be cut down to size or an extender sleeve added. Outer diameter 150mm kit 165mm 180mm kit 195mm Extender sleeve Description Part No. 150mm Part No. 180mm Sleeve Liner MS91065 MS91066 Extender sleeve MS91067 MS91068 © EUROHEAT DISTRIBUTORS (H.B.S) LTD. Technical Guide IN1105 Ed 5 May 2009...
- Page 23 300g cartridge for use with a sealant gun. Fraxfill is recommended applications with operating temperatures of up to 1200°C. Description Part No. 150mm kits Part No. 180mm kits Fraxfill MS9045 MS9045 © EUROHEAT DISTRIBUTORS (H.B.S) LTD. Technical Guide IN1105 Ed 5 May 2009...
-
Page 24: Before Installation
Depending on which direction your flue configuration will take, a reduction plate may or may not be required. The choke plate is a circular plate which fits under the inner flue connection. The list below will advise which FRP will or will not be needed. Harmony 15 Stanford 15 (H15 & S15) Description Fuel Type Natural... - Page 25 Top to horizontal high level kit with standard flue kit 70mm Natural 70mm Top to vertical high level kit 70mm Natural No FRP Rear to horizontal low level kit No FRP © EUROHEAT DISTRIBUTORS (H.B.S) LTD. Technical Guide IN1105 Ed 5 May 2009...
- Page 26 150ID Top to horizontal 150mm Flue kit system MS91102 high level kit and accessories Top to vertical high MS91100 level kit Rear to horizontal MS91097 low level kit © EUROHEAT DISTRIBUTORS (H.B.S) LTD. Technical Guide IN1105 Ed 5 May 2009...
- Page 27 It is your responsibility to ensure that no part of the flue installation contravenes any gas or building regulations. © EUROHEAT DISTRIBUTORS (H.B.S) LTD. Technical Guide IN1105 Ed 5 May 2009...
- Page 28 Ceramic rope or Fraxfill sealant to prevent draughts Seal the bezel part of sleeve liner to the outer face of the wall using a suitable sealant 50mm Sleeve liner minimum © EUROHEAT DISTRIBUTORS (H.B.S) LTD. Technical Guide IN1105 Ed 5 May 2009...
- Page 29 It is your responsibility to connects to the vertical flue ensure that no part of the flue installation terminal. contravenes any gas or building regulations. © EUROHEAT DISTRIBUTORS (H.B.S) LTD. Technical Guide IN1105 Ed 5 May 2009...
- Page 30 (FRP) if required, see pages 23 and 24, to the rear of the stove. Fit the blanking plate onto the top plate. © EUROHEAT DISTRIBUTORS (H.B.S) LTD. Technical Guide IN1105 Ed 5 May 2009...
-
Page 31: Glossary Of Terms
Fraxfill is a pliable (tacky putty) white ceramic fibre gap fill supplied in Fraxfill (MS9045) a 300g cartridge for use with a sealant gun. Fraxfill is recommended for applications with operating temperatures of up to 1200°C. © EUROHEAT DISTRIBUTORS (H.B.S) LTD. Technical Guide IN1105 Ed 5 May 2009... - Page 32 For the latest editions of all Euroheat documentation visit our web site www.euroheat.co.uk. We would request that you inform Euroheat of information which you feel is not provided in this document which would assist other users in the future.
