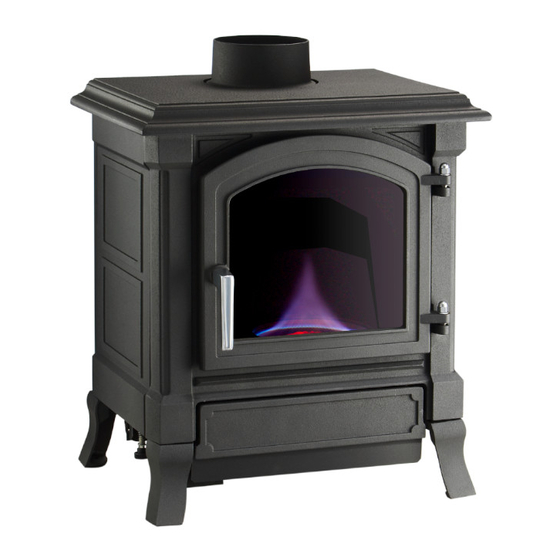

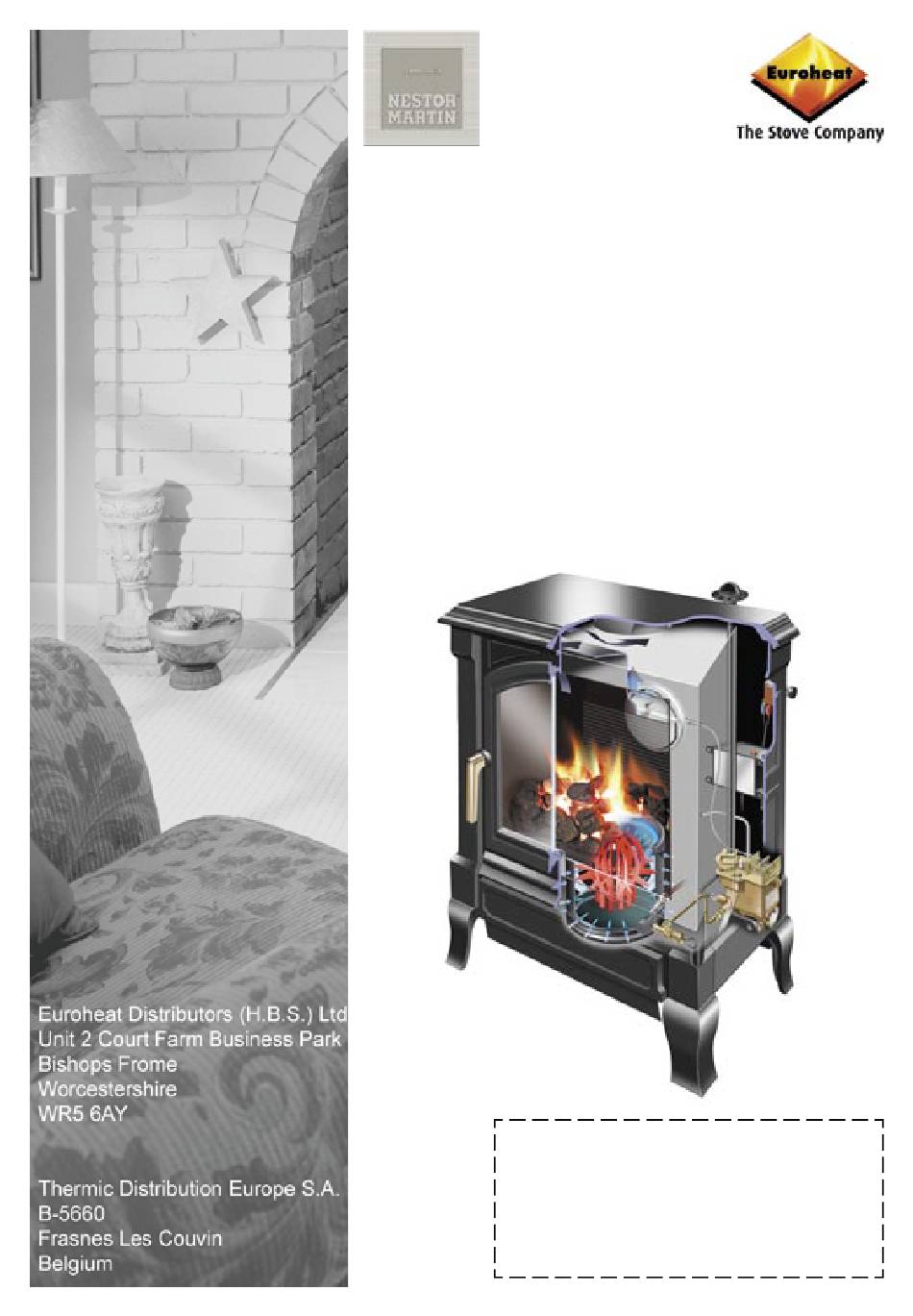

- Page 1 Installation, Servicing and Commissioning Instructions for Harmony Oil Stoves H11, H21, H31 & H41 Part No. Serial Number E&OE Instructions Part Number IN1190 Ed B © EUROHEAT DISTRIBUTORS (H.B.S) LTD April 2007 H11##0105A...
-
Page 2: Table Of Contents
Fault Finding Flow Chart 1 Fault Finding Flow Chart 2 Fault Finding Flow Chart 3 Fault Finding Flow Chart 4 Fault Finding Flow Chart 5 Service Record E&OE Instructions Part Number IN1190 Ed B © EUROHEAT DISTRIBUTORS (H.B.S) LTD.April 2007 H11##0105A... -
Page 3: Introduction
Part J England and Wales. Part F Scottish Regulations. Technical Booklet L For Northern Ireland Engineer support line 01885 491117 8.30- 5.30 during week days. Facsimile 01885 491101 24 hours. E&OE Instructions Part Number IN1190 Ed B © EUROHEAT DISTRIBUTORS (H.B.S) LTD April 2007 H11##0105A... -
Page 4: Competent Persons Regulations And Oil Technicians In England And Wales
OFTEC Technician, if the need to apply for a notice and pay a fee is to be avoided. The table overleaf shows which categories of technician can undertake the various types of work covered by the new Regulations. E&OE Instructions Part Number IN1190 Ed B © EUROHEAT DISTRIBUTORS (H.B.S) LTD.April 2007 H11##0105A... - Page 5 This is an important step which acknowledges those in the industry who work to Regulations and Standards and will help customers recognise that OFTEC Registered Technicians have had their competence independently assessed. April 2002 E&OE Instructions Part Number IN1190 Ed B © EUROHEAT DISTRIBUTORS (H.B.S) LTD April 2007 H11##0105A...
-
Page 6: Flue Options Harmony 11, 21, 31
Top and Rear flue options where a top flue adapter is fitted. Replace choke plate when converting the flue flue outlet if one is supplied with the stove. E&OE Instructions Part Number IN1190 Ed B © EUROHEAT DISTRIBUTORS (H.B.S) LTD.April 2007 H11##0105A... -
Page 7: Installation
4" 100mm 4" 100mm Important: commissioning and service engineers must be able to access the oil control valve. 16" 400mm 6" 150mm E&OE Instructions Part Number IN1190 Ed B © EUROHEAT DISTRIBUTORS (H.B.S) LTD April 2007 H11##0105A... -
Page 8: The Flue
For heat outputs see stove and boiler technical details page 15 E&OE Instructions Part Number IN1190 Ed B © EUROHEAT DISTRIBUTORS (H.B.S) LTD.April 2007 H11##0105A... -
Page 9: Ventilation
Access for cleaning Sufficient clearance behind stove for maintenance Level and stable supporting hearth E&OE Instructions Part Number IN1190 Ed B © EUROHEAT DISTRIBUTORS (H.B.S) LTD April 2007 H11##0105A... -
Page 10: External Flues
45° from the top flue outlet, or off the top of a T pipe, as long as it does not adversely effect the flue draught. E&OE Instructions Part Number IN1190 Ed B © EUROHEAT DISTRIBUTORS (H.B.S) LTD.April 2007 H11##0105A... -
Page 11: Flue Terminations
Eurocowl E (FP106). Available only from Euroheat on 01885 491126 (cowl pictured in these diagrams is the Euro-cowl) Aero-cowl (FP103) and inverted GC1 cowl (FP104 & FP105) available only from Euroheat. Stabilizing why ? If you the installer follow the recommendations of this instruction manual one factor you cannot control is the effect that wind pressure has at the flue termination. -
Page 12: Fuel And Fuel Oil Storage
E&OE Instructions Part Number IN1190 Ed B © EUROHEAT DISTRIBUTORS (H.B.S) LTD.April 2007 H11##0105A... -
Page 13: Fuel Line And Storage Installation
3.5 meters a constant level valve part number MS10041 can be fitted. Tiger loop systems are not suitable E&OE Instructions Part Number IN1190 Ed B © EUROHEAT DISTRIBUTORS (H.B.S) LTD April 2007 H11##0105A... -
Page 14: Euroheat Oil Filter Kit
Bleed screws to prevent air locks Brass compression fittings 10mm included Robust and secure construction To Order Contact your local Euroheat retailer or call Euroheat Spares Department direct on: 01885 491126. Order Number: MS9195 E&OE Instructions Part Number IN1190 Ed B ©... -
Page 15: Electric Ignition
If an air lock is suspected in the oil control valve, remove the top plate mounting screws and press the float assembly to the base of the oil control for 2-3 seconds. This will fully open the oil level metering stem releasing trapped air. E&OE Instructions Part Number IN1190 Ed B © EUROHEAT DISTRIBUTORS (H.B.S) LTD April 2007 H11##0105A... -
Page 16: Toby Oil Control Valve
Euroheat are able to supply a suitable negative pressure measuring device, part number MSO26. This is the recommended measurement system. -
Page 17: Technical Specifications For Harmony
fitted to the stove’s flue spigot, if during commissioning the flue is found to be subjecting the stove to a negative pressure which is too high for efficient combustion or the longevity of the stove. E&OE Instructions Part Number IN1190 Ed B © EUROHEAT DISTRIBUTORS (H.B.S) LTD April 2007 H11##0105A... -
Page 18: Progressive Draught Stabilizer
flue draughts, it is designed to provide the correct draught settings with flues whose inadequate or excessive draughts have been brought to within reasonable parameters. Further information can be obtained from your Euroheat dealer or directly from Euroheat by requesting technical document IN 1078 Progressive Draught Stabalizer. -
Page 19: Choke Governing Plates
Choke Governing Plates Choke plates are used to reduce the flue size when the chimney naturally creates excessive flue draught. By reducing the flue diameter the flue draught will be reduced. Euroheat supply two standard sizes 100mm (4”) and 75mm (3”). -
Page 20: Draught Requirements 6" Burner
0 . 0 4 5 0 . 0 3 5 I n c h e s w a t e r g a u g e E&OE Instructions Part Number IN1190 Ed B © EUROHEAT DISTRIBUTORS (H.B.S) LTD.April 2007 H11##0105A... -
Page 21: Draught Requirements 8"& 10" Burner
0.095 S m o k e y f l a m e 0.085 0.08 0.045 0.035 0.03 Good Inches water gauge E&OE Instructions Part Number IN1190 Ed B © EUROHEAT DISTRIBUTORS (H.B.S) LTD April 2007 H11##0105A... -
Page 22: Commissioning Concepts
Minimum commissioning equipment required. base. Remove this oil before lighting). Negative pressure meter. We recommend the use of MS026 Dwyer measurement gauge (available from Euroheat) E&OE Instructions Part Number IN1190 Ed B © EUROHEAT DISTRIBUTORS (H.B.S) LTD.April 2007 H11##0105A... -
Page 23: Commissioning
This setting will increase coal effect operation. Flow Rates Model Minimum Maximum Flow Flow Harmony 11 2.1cc 7.7cc Harmony 21 2.5cc 10.5cc Harmony 31 4.3cc 15.3cc Harmony 41 5.3cc 20.0cc E&OE Instructions Part Number IN1190 Ed B © EUROHEAT DISTRIBUTORS (H.B.S) LTD April 2007 H11##0105A... -
Page 24: Solving Negative Pressure Problems
flow rate to gain a correct improve the chimney system or calibrate the high fire maximum flame. oil flow to reduce the flame size. E&OE Instructions Part Number IN1190 Ed B © EUROHEAT DISTRIBUTORS (H.B.S) LTD.April 2007 H11##0105A... - Page 25 The warranty registration form should be completed and the user advised to return it fully com- pleted to Euroheat. All instructions are left with the user Commissioning Engineers notes Record any unusual procedures taken E&OE Instructions Part Number IN1190 Ed B © EUROHEAT DISTRIBUTORS (H.B.S) LTD April 2007 H11##0105A...
-
Page 26: The Coal Effect
CE103 Coal Effect Kit for 6 & 8” Vapourising Oil Burners Kit CE103 comprises of: Moulded Small cube 2 in total 15 in total Large cuboid Irregular 3 in total 6 in total E&OE Instructions Part Number IN1190 Ed B © EUROHEAT DISTRIBUTORS (H.B.S) LTD.April 2007 H11##0105A... -
Page 27: Technical Specifications For Harmony
The back left coal will sit in an indentation and the front two will bridge two grid bars. E&OE Instructions Part Number IN1190 Ed B © EUROHEAT DISTRIBUTORS (H.B.S) LTD April 2007 H11##0105A... - Page 28 Place one of the two smooth moulded coals to bridge the three small cube coals, as illustrated. It should not touch the grid bars. E&OE Instructions Part Number IN1190 Ed B © EUROHEAT DISTRIBUTORS (H.B.S) LTD.April 2007 H11##0105A...
- Page 29 Place an irregular coal with the smaller of two smooth faces uppermost onto the back left corner of the grid. E&OE Instructions Part Number IN1190 Ed B © EUROHEAT DISTRIBUTORS (H.B.S) LTD April 2007 H11##0105A...
- Page 30 Place the remaining four cubic coals when the grid and guard are in the stove so that the coals rest against the guard. E&OE Instructions Part Number IN1190 Ed B © EUROHEAT DISTRIBUTORS (H.B.S) LTD.April 2007 H11##0105A...
-
Page 31: Ce402 Coal Effect Kit For 10" Vapourising Oil Burners
The Harmony 2 with a 9 kw boiler size 3, does not need all of the large coals because the the boiler protrudes over the coal bed. (see diargram 2 ) DIAGRAM 1 E&OE Instructions Part Number IN1190 Ed B © EUROHEAT DISTRIBUTORS (H.B.S) LTD April 2007 H11##0105A... - Page 32 DIAGRAM 2 For the Harmony II with a 9 kw boiler, size 3, you will NOT be able to fit this coal. DIAGRAM 3 DIAGRAM 4 E&OE Instructions Part Number IN1190 Ed B © EUROHEAT DISTRIBUTORS (H.B.S) LTD.April 2007 H11##0105A...
- Page 33 DIAGRAM 5 DIAGRAM 6 DIAGRAM 7 E&OE Instructions Part Number IN1190 Ed B © EUROHEAT DISTRIBUTORS (H.B.S) LTD April 2007 H11##0105A...
- Page 34 flame need reducing. The coals when fired may shrink and move, so after commissioning the customer should be made aware that they may have to reset some coals. Be careful not to let the coals smother the burner. E&OE Instructions Part Number IN1190 Ed B © EUROHEAT DISTRIBUTORS (H.B.S) LTD.April 2007 H11##0105A...
-
Page 35: Annual Servicing
R) If the operation of the appliance is suspect follow and complete the commissioning instructions, or follow the fault finding charts. E&OE Instructions Part Number IN1190 Ed B © EUROHEAT DISTRIBUTORS (H.B.S) LTD April 2007 H11##0105A... -
Page 36: Fault Finding Flow Chart 1
� ������ ����� ������� ��� ������� �� ������ ������ ������������� ���� ���� �������� ��� ������� ���� ����� �������� ������ �� �� ������� ��� ������ ��������� ������� E&OE Instructions Part Number IN1190 Ed B © EUROHEAT DISTRIBUTORS (H.B.S) LTD.April 2007 H11##0105A... -
Page 37: Technical Specifications For Harmony
������ ���� ��� ��� ���� ������� ����� ���������� ������� ��� ������ ������� �� ������ ���� ��� �� ����� ������ ��� ������������� ������� ����� ������ ������� ������� ��� E&OE Instructions Part Number IN1190 Ed B © EUROHEAT DISTRIBUTORS (H.B.S) LTD April 2007 H11##0105A... -
Page 38: Fault Finding Flow Chart 3
���� ����� ����� �������� ����������� �� ����� �������� ��� ���������� ������� ��� ���� ����� �� ���� ����� �������� ��� ������� ��������� �� ��� ���� ���� ������� E&OE Instructions Part Number IN1190 Ed B © EUROHEAT DISTRIBUTORS (H.B.S) LTD.April 2007 H11##0105A... -
Page 39: Fault Finding Flow Chart 4
���������� ������� ����� ����� � ��� ������� ��� ��������� ��������� ���� ��� ������������� ��� ������������� ��� ������� ������� ������� ���� ������������� ������� ���� �������� ������������ E&OE Instructions Part Number IN1190 Ed B © EUROHEAT DISTRIBUTORS (H.B.S) LTD April 2007 H11##0105A... -
Page 40: Fault Finding Flow Chart 5
��������� ���� ���� ����� ����� ��� ������������ ��� ���� ���� �������� ��� ����� � ���� ���� ���� �������� ����� ���� �������� ��� ����� ����� ������� ���� ��������� E&OE Instructions Part Number IN1190 Ed B © EUROHEAT DISTRIBUTORS (H.B.S) LTD.April 2007 H11##0105A... -
Page 41: Service Record
Parts Replaced Service Engineer :- ......................... House Name ......................... Number/Street Name ......................... Locality Name ......................... Post Town ......................... County ..............Post Code ..............Telephone Number ............E&OE Instructions Part Number IN1190 Ed B © EUROHEAT DISTRIBUTORS (H.B.S) LTD April 2007 H11##0105A... - Page 42 For the latest editions of all Euroheat documentation visit our web site www.euroheat.co.uk. We would request that you inform Euroheat of information which you feel is not provided in this document which would assist other users in the future. The Euroheat Technical Team E&OE...
