This Manual Must Always be Available to the Stove Operator

Operating Instructions

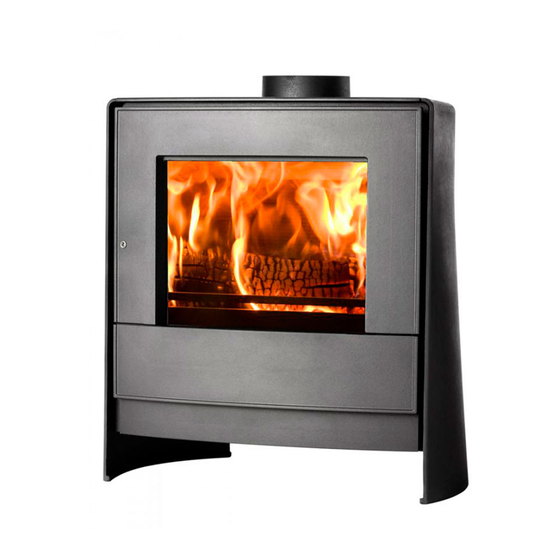

Efel

Elgar C23

Elgar C33

Elgar C43

IN1213 Edition B1 January 2013

PART NUMBER

SERIAL NUMBER

Table of Contents

Need help?

Do you have a question about the Efel and is the answer not in the manual?

Questions and answers

Summary of Contents for Euroheat Efel

Page 1: Operating Instructions
This Manual Must Always be Available to the Stove Operator Operating Instructions Efel Elgar C23 Elgar C33 Elgar C43 IN1213 Edition B1 January 2013 PART NUMBER SERIAL NUMBER...
Page 2 Local Authority Building Control Department. For more details contact HETAS. Euroheat would suggest only Registered Competent Engineers such as HETAS approved engineers install Euroheat appliances. If a competent approved engineer is not employed to install your appliance building control must be contacted and a building control number is issued.
Page 3: The Model Range Explained
This information is also attached to your stove for reference. Important Please ensure the warranty registration form is returned to Euroheat. In this way the model and its history will be recorded for reference in the future.
Page 4: Operating Items Supplied With The Stove
PART NUMBER SERIAL NUMBER SERIAL NUMBER If any of the Instructions or the Warranty Registration form are missing please contact Euroheat quoting the stoves serial number and a replacement will be despatched immediately. Before Operating this Appliance The paint used on the stove is a heat resistant paint capable of withstanding 650°C, but it needs to be heated for several hours to allow it to cure and attain its full hardness.
Page 5 Riddling Grate Air Entering through the Plexus Control Assembly Below the Combustion Riddling Actuating Rod Chamber (Position and Shape of the Ash Pan Door Rod Varies with Model) © EUROHEAT DISTRIBUTORS (H.B.S) LTD. Jan 2013 Instructions Part Number IN1213 Ed B1...
Page 6 Always riddle the grate before putting on loadings of coal to give the initial release of gasses sufficient air with which to burn; failure to do so may allow the stove and flue to fill with gasses ready to ignite. © EUROHEAT DISTRIBUTORS (H.B.S) LTD. Jan 2013 Instructions Part Number IN1213 Ed.B1...
Page 8 Not only will a fire burning rubbish pollute, the stove is not designed to contain such an assortment of sizes and weights and a flaming box falling from the stove when the door is opened will present an unacceptable fire hazard. © EUROHEAT DISTRIBUTORS (H.B.S) LTD. Jan 2013 Instructions Part Number IN1213 Ed.B1...
Page 9: The Plexus Air Control
COAL WOOD COAL COAL WOOD WOOD WOOD Anthracite LIGHTING AND MANUFACTURED COALS ALWAYS USE THE STOVE TOOL TO MAKE AIR DIRECTION ADJUSTMENTS. © EUROHEAT DISTRIBUTORS (H.B.S) LTD. Jan 2013 Instructions Part Number IN1213 Ed B1...
Page 10: Air Volume Control
Push in Control Knob ALWAYS USE THE STOVE OPERATING TOOL TO MAKE AIR VOLUME ADJUSTMENTS. © EUROHEAT DISTRIBUTORS (H.B.S) LTD. Jan 2013 Instructions Part Number IN1213 Ed.B1...
Page 11: Ash Collection
Available Accessories Euroheat offer a range of accessoriy items which may assist with your day to day operation. These include fire tool sets for cleaner operation, log stores for storing wood and other items. Ask your euroheat retailer for the “every thing but the stove brochure”...
Page 12 Do not put the ash into, or with, anything combustible; even seemingly cold ashes may contain small glowing embers capable of igniting items they come in contact with. © EUROHEAT DISTRIBUTORS (H.B.S) LTD. Jan 2013 Instructions Part Number IN1213 Ed.B1...
Page 13 There will be hot embers in the stove, long, even days, after the fire appeared to extinguish. Never clean out ashes onto paper, never use a plastic bristled brush or a vacuum cleaner to remove ash. Never let children “help” with the stove in any way. © EUROHEAT DISTRIBUTORS (H.B.S) LTD. Jan 2013 Instructions Part Number IN1213 Ed B1...
Page 14: Getting Started With Wood
Resist the temptation to use more paper than this, or to crumple it too tightly; doing either will prevent the rapid development of flames and will cause smoke to be produced. © EUROHEAT DISTRIBUTORS (H.B.S) LTD. Jan 2013 Instructions Part Number IN1213 Ed.B1...
Page 15 Rotate the air direction control fully anti-clockwise, 9 o’clock position, and do not be alarmed if the fire appears to die, or be tempted to move it back to its middle position. COAL WOOD © EUROHEAT DISTRIBUTORS (H.B.S) LTD. Jan 2013 Instructions Part Number IN1213 Ed B1...
Page 16 You can throw away your “L” plates and move on to become an advanced driver. See page 17. © EUROHEAT DISTRIBUTORS (H.B.S) LTD. Jan 2013 Instructions Part Number IN1213 Ed.B1...
Page 17 Before checking your technique, make absolutely certain that the wood you are using is dry, not “seasoned”, “barn stored” or “ready for burning”. It must be dry if you want to burn it successfully, cleanly and efficiently. (See the Euroheat document Number IN1172 for further information.) The Fire Went Out Do not put wood onto the kindling too soon or without allowing vents for the flames.
Page 18: Advanced Driving With Wood
Avoid burning un-split logs if you can. If the logs are split it is better to put the log on the fire bark side down because the bark will ignite rapidly when placed on the charcoal and gasses from the split surfaces will have an unrestricted air supply. © EUROHEAT DISTRIBUTORS (H.B.S) LTD. Jan 2013 Instructions Part Number IN1213 Ed.B1...
Page 19 If you have fitted a remotely controlled burner rate adjustment, please read Technical Guide IN1203 Thermostatic Remote Control (pictured), for advice on making the most of its facilities. © EUROHEAT DISTRIBUTORS (H.B.S) LTD. Jan 2013 Instructions Part Number IN1213 Ed B1...
Page 20: Slow, Overnight Burning
The stoves to which this instruction manual applies are not approved for overnight burning of wood in smoke exempt areas and should not be used for this purpose. © EUROHEAT DISTRIBUTORS (H.B.S) LTD. Jan 2013 Instructions Part Number IN1213 Ed.B1...
Page 21: Getting Started With Coal
Resist the temptation to use more paper than this, or to crumple it too tightly; doing either will prevent the rapid development of flames and will cause smoke to be produced. © EUROHEAT DISTRIBUTORS (H.B.S) LTD. Jan 2013 Instructions Part Number IN1213 Ed B1...
Page 22 WOOD the mid, 12 o’clock, position. If you are burning Anthracite, the air direction control should now be rotated fully clockwise, 3 o’clock Manufactured Anthracite position. Smokeless Coal © EUROHEAT DISTRIBUTORS (H.B.S) LTD. Jan 2013 Instructions Part Number IN1213 Ed.B1...
Page 23: Lighting Coal With Firelighters
Placing a layer of coal on the grate for the firelighters to sit on will help to defuse the air flow. Bridge the firelighters with coal trying to avoid coal actually touching the firelighters. © EUROHEAT DISTRIBUTORS (H.B.S) LTD. Jan 2013 Instructions Part Number IN1213 Ed B1...
Page 24 You can throw away your “L” plates and move on to become an advanced driver. See page 25 © EUROHEAT DISTRIBUTORS (H.B.S) LTD. Jan 2013 Instructions Part Number IN1213 Ed.B1...
Page 25 COAL WOOD COAL WOOD Manufactured Anthracite Smokeless Coal © EUROHEAT DISTRIBUTORS (H.B.S) LTD. Jan 2013 Instructions Part Number IN1213 Ed B1...
Page 27: Cleaning The Stove
For further information see Technical Document IN1088 Spring Autumn Syndrome. Useful Organizations Solid Fuel Association 0845 601 4406 www.solidfuel.co.uk The National Association of Chimney Sweeps 01785 811732 www.chimneyworks.co.uk HETAS Ltd. 0845 634 5626 www.hetas.co.uk © EUROHEAT DISTRIBUTORS (H.B.S) LTD. Jan 2013 Instructions Part Number IN1213 Ed B1...
Page 28 Model size 43 The vermiculite baffle is removed by removing the bolt from the locating plate on the left side cast plate. © EUROHEAT DISTRIBUTORS (H.B.S) LTD. Jan 2013 Instructions Part Number IN1213 Ed.B1...
Page 29: Summer Shutdown
Faulty Operation Always seek the advice of a qualified engineer if your stove is not operating correctly. Never use the stove with any damaged or malfunctioning components. © EUROHEAT DISTRIBUTORS (H.B.S) LTD. Jan 2013 Instructions Part Number IN1213 Ed B1...
Page 30 10.5kW 12pa 72.8% Gross Declaration The information provided for the room heater fuelled by wood and smokeless coal, has been measured as specified in EN13240:2001 and EN 13240-A2:2004. © EUROHEAT DISTRIBUTORS (H.B.S) LTD. Jan 2013 Instructions Part Number IN1213 Ed.B1...
Page 31: Warranty Registration
Euroheat. Euroheat reserve the right to reject the extended support if the requirements are not met. Euroheat & Nestor Martin have a policy of continual research and development and reserve the right to modify its appliances without prior notice. We make every effort to ensure that the information provided in this document is correct and accurate at the time of printing, but continued updates occur to adapt documents to appliance changes and customer feedback.
Page 32 10,000 pages of technical information, spare parts, product shots, news and 1001 other things, - you will not find a more comprehensive solution to your queries, whatever time of the day. www.euroheat.co.uk Court Farm Business Park, Bishops Frome, Worcestershire WR6 5AY Pre sales: 01885 491112...
