UH950S
Handheld UHF-CB Transceiver
For more exciting new products please visit our website:
Australia: www.uniden.com.au

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UH950S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Uniden UH950S

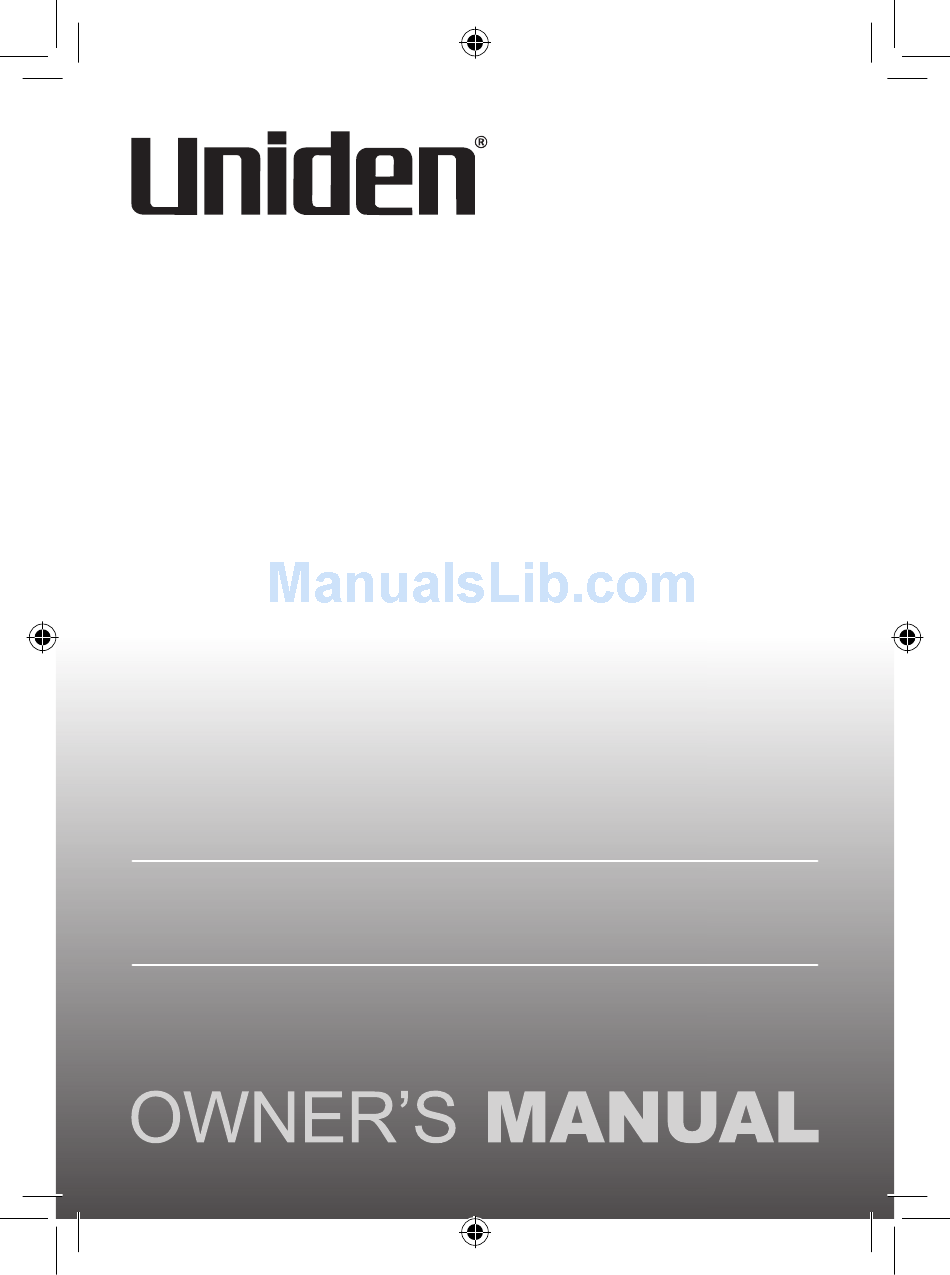

  • Page 1 UH950S Handheld UHF-CB Transceiver For more exciting new products please visit our website: Australia: www.uniden.com.au...
  • Page 2: Lithium Ion Battery Pack Warning

    Being defined as having no ingress of water when immersed at 1 metre for 30 minutes. The UH950S will only meet this rating if fully assembled and all rubber seals and covers are well maintained and correctly fitted. This means that the accessory jack cover is inserted, and the battery pack and antenna are attached and securely fastened.
  • Page 3: Table Of Contents

    Drop-Out Delay Instant Priority Channel Monitor CTCSS Busy Channel Lock-out (BCL) Call Tone Roger Beep Key Beep Scramble Keypad Lock Backlighting CTCSS Codes and Frequencies DCS Codes Table UHF-CB Channel Guidelines UHF-CB Channels and Frequencies Warranty UNIDEN UH950S Handheld UHF-CB Transceiver...
  • Page 4: Introduction

    This hand held UHF-CB radio will give you consistent, outstanding performance in virtually all conditions and situations. To ensure that you get the most from the UH950S features, please read this operating guide carefully before using the unit.

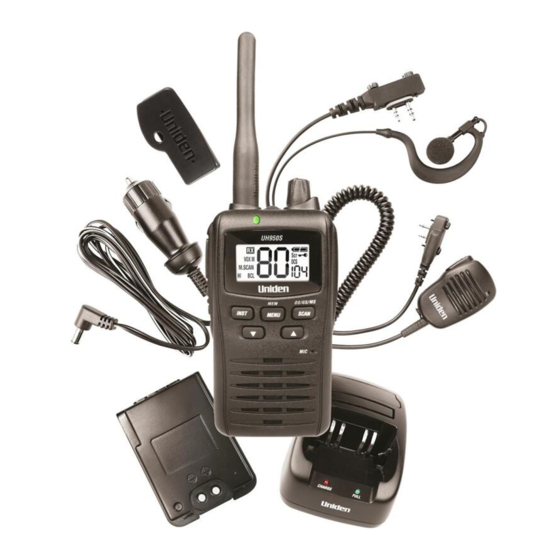

  • Page 5: Included In Your Package

    Wrist Strap DC Adaptor (EM-950) Owner’s Manual If any of these items are missing from the box, contact your place of purchase, immediately. NOTE Optional Accessories • Cigarette Lead Charger with Hang Up Bracket (CK950) UNIDEN UH950S Handheld UHF-CB Transceiver...
  • Page 6: Controls And Indicators

    F DCS P VOX 12 PTT Button G CTCSS/DCS Channel 13 BOOST Button Numbers 14 CALL/SQL Button H CTCSS 15 Belt Clip I Key Lock 16 Battery J Battery Level Indicator 17 Battery Release Clip UNIDEN UH950S Handheld UHF-CB Transceiver...
  • Page 7: Getting Started

    Input Voltage (Cigarette Lead Charger): +12VDC NOTE to+24VDC. If Charge LED didn’t light up, please confirm the above temperature. Attaching the Antenna Attach the antenna to the UH950S Be sure the antenna is firmly seated. UNIDEN UH950S Handheld UHF-CB Transceiver...
  • Page 8: Attaching The Battery Pack

    It will only fi t in one way. 2. Snap the battery release clip until it clicks. Be sure the battery pack fi ts tightly against the UH950S body. Avoid exposing the Lithium Ion battery, attached or unattached to the radio, in direct sunshine, heated cars, or in areas with temperatures below –20°C (–4°F) or above...
  • Page 9: Charging The Battery Pack

    Charging the Battery Pack Your radio is powered by a specially designed Lithium Ion battery pack. • Before operating the UH950S, charge the Lithium Ion battery pack for 3 hours without interruption in the drop-in charger. For the initial battery charge, make sure the radio is off for optimum charging.
  • Page 10: Battery Level Display

    Battery Life : 27 Hours (Typical) This is based on the following Duty Cycle: Transmit (Low Power) 5% Receive Stand-by LED Status What it Indicates Green Start Up/Power on Green Monitor mode Green Receiving Signal Transmitting signal UNIDEN UH950S Handheld UHF-CB Transceiver...
  • Page 11: Accessory Jack Cover

    Release the Accessory Jack Cover to plug in the SPKR/MIC. Secure the SPKR/MIC plug by tightening the plug collar clockwise with your fi ngers. Hand tighten It is recommended to use your fi ngers instead of any tool to tighten the screws. NOTE UNIDEN UH950S Handheld UHF-CB Transceiver...
  • Page 12: Operation

    1. Press and hold [CALL/SQL] . Sq and the current squelch level will flash on the display. 2. Use to change the squelch level from Auto/1 to 5. 3. Press [CALL/SQL] to confirm the setting. UNIDEN UH950S Handheld UHF-CB Transceiver...
  • Page 13: Selecting Channel

    62 and 63 are for future use. TX is inhibited on these channels.) The maximum RF transmit power of UH950S is 5W. (see Transmit Power Select, p.15.) 1. Before you transmit, listen for activity on the selected channel. 2. When the channel is clear;...
  • Page 14: To Operate In Duplex Mode

    CH41-CH48 when duplex is selected. 3. Press & hold [ to save and exit. MENU/MEM] Contact your retailer for a list of repeaters available in your area. NOTE Operation with the aid of a Repeater UNIDEN UH950S Handheld UHF-CB Transceiver...
  • Page 15: Transmit Power Select

    Group Scan (GS) and Master Scan (M.SCN) (a special case of Group Scan). During SCAN the UH950S only checks channels or frequencies that are in the SCAN Memory, which are indicated by the M (memory) icon. The UH950S maintains two SCAN Memories; one for Open Scan (OS) mode and the other for Group Scan (GS) mode, to give you flexibility and allow you to use the radio more effectively.
  • Page 16 Press and hold the [SCAN| OS/GS/MS] key. M.SCAN icon appears on the display. MS (Master Scan) Press and hold the [SCAN| OS/GS/MS] key. OS (Open Scan) Press and hold the [SCAN| OS/GS/MS] key. GS (Group Scan) UNIDEN UH950S Handheld UHF-CB Transceiver...
  • Page 17: Master Scan (M.scn) Mode

    CH09-CH20 are stored into GS Memory and CTCSS01 is set for MASTER SCAN Subcode by default. The GS memory can be changed, UNIDEN UH950S Handheld UHF-CB Transceiver...
  • Page 18 P1: Master Scan is ON with loading CH09-20 in GS. P2: Master Scan is ON with loading CH21-30, 39, 40 in GS. P3: Master Scan is ON with loading CH49-60 in GS. P4: Master Scan is ON with loading CH61-70, 79, 80 in GS. UNIDEN UH950S Handheld UHF-CB Transceiver...
  • Page 19 Operation 3. Press [ one more time. MENU/MEM] 4. Select the desired Subcode (CTCSS DCS) or by pressing ▼or ▲. UNIDEN UH950S Handheld UHF-CB Transceiver...
  • Page 20: Open Scan (Os) Mode

    OS Mode is indicated by the absence of the GS icon. NOTE If SCAN is deactivated while on an active channel, the UH950S will stay on that active channel. If no channels are active, the UH950S will reinstate the starting channel. NOTE...
  • Page 21: Group Scan (Gs) Mode

    If scanning stops on a channel which is not a Priority Channel, UHF CB Radio will continue monitoring the Priority Channel for activity while listening to the active one. To select GS scan mode, Press and hold the [SCAN| OS/GS/MS] key. GS icon appears on the display. UNIDEN UH950S Handheld UHF-CB Transceiver...
  • Page 22: Priority Channel

    Select the Channel you want to store as the Instant Priority Channel by pressing Press and hold [INST] for 1.5 seconds to program the channel. PRI icon appears. Recalling the Instant Channel Momentarily press the [INST] button to return to the Instant Channel. UNIDEN UH950S Handheld UHF-CB Transceiver...
  • Page 23: Monitor

    1. Select desired channel. 2. Press [MENU/MEM] two times. DCS/CTCSS setting flashes. 3. Press to change the selection. 4. Press & hold [MENU/MEM] to save and exit. Select oF to turn DCS/CTCSS off for the selected channel. NOTE UNIDEN UH950S Handheld UHF-CB Transceiver...
  • Page 24: Dcs

    1. Press [MENU/MEM] eight times. VOX setting flashes. 2. Press to select the desired setting. The 6 VOX levels are from 1 (low sensitivity) to 5 (high sensitivity) and Off. 3. Press & hold [MENU/MEM] to save and exit. UNIDEN UH950S Handheld UHF-CB Transceiver...
  • Page 25: Busy Channel Lock-Out (Bcl)

    3. Press & hold [MENU/MEM] to save and exit. Call Tone Your UH950S radio is equipped with 10 selectable call tones that will be transmitted when [CALL/SQL] is pressed. 1. Press [MENU/MEM] 10 times. CL setting flashes.
  • Page 26: Roger Beep

    This prevents users without descrambler equipment or a compatible unit from understanding the conversation. Select desired channel. Scr appears when Scramble setting is from 1 to 5. 1. Press [MENU/MEM] 3 times. The Scramble setting flashes. UNIDEN UH950S Handheld UHF-CB Transceiver...
  • Page 27: Keypad Lock

    The Liquid Crystal Display (LCD) is backlit for easy viewing at night or in low light situations. The back lighting automatically switches ON every time a key (except PTT and BOOST) is pressed. It turns OFF 5 seconds after the last key is pressed. UNIDEN UH950S Handheld UHF-CB Transceiver...
  • Page 28: Ctcss Codes And Frequencies

    71.9 141.3 74.4 146.2 77.0 151.4 79.7 156.7 82.5 162.2 85.4 167.9 88.5 173.8 91.5 179.9 94.8 186.2 97.4 192.8 100.0 203.5 103.5 210.7 107.2 218.1 110.9 225.7 114.8 223.6 118.8 241.8 123.0 250.3 127.3 UNIDEN UH950S Handheld UHF-CB Transceiver...
  • Page 29: Dcs Codes Table

    DCS Codes Table DCS Code DCS Code DCS Code Code No. Code No. Code No. (Octal) (Octal) (Octal) UNIDEN UH950S Handheld UHF-CB Transceiver...
  • Page 30: Uhf-Cb Channel Guidelines

    The above situations are not a fault of the radio but a symptom of mixed wideband and narrowband radios in current use. It is expected that as older wideband radios are phased out this issue will be eliminated. UNIDEN UH950S Handheld UHF-CB Transceiver...
  • Page 31: Uhf-Cb Channels And Frequencies

    477.300 (CH36) 477.050 476.575 477.325 (CH37) 477.075 476.600 477.350 (CH38) 477.100 476.625 477.125 476.650 477.150 476.675 477.175 476.700 477.200 476.725 477.225 476.750 477.250 476.775 477.275 476.800 477.300 476.825 477.325 476.850 477.350 476.875 477.375 476.900 477.400 UNIDEN UH950S Handheld UHF-CB Transceiver...
  • Page 32 477.0625 476.5875 477.3375 (CH 77) 477.0875 476.6125 477.3625 (CH 78) 477.1125 476.6375 477.1375 476.6625 477.1625 476.6875 477.1875 476.7125 477.2125 476.7375 477.2375 476.7625 477.2625 476.7875 477.2875 476.8125 477.3125 476.8375 477.3375 476.8625 477.3625 476.8875 477.3875 476.9125 477.4125 UNIDEN UH950S Handheld UHF-CB Transceiver...
  • Page 33: Warranty

    (“Uniden Aust”). Terms of Warranty: Uniden Aust warrants to the original retail purchaser only that the UH950S (“the Product”), will be free from defects in materials and craftsmanship for the duration of the warranty period, subject to the limitations and exclusions set out below.
  • Page 34 Product, together with satisfactory evidence of your original purchase (such as a legible copy of the sales docket) to Uniden at the address shown below. You should contact Uniden regarding any compensation that may be payable for your expenses incurred in making a warranty claim.
  • Page 35 UNIDEN UH950S Handheld UHF-CB Transceiver...
  • Page 36 THANK YOU FOR BUYING A UNIDEN PRODUCT. © 2014 Uniden Australia Pty Limited. Printed in Vietnam. U01UT963ZZA(0)
