Summary of Contents for Chauvet Q-Wash 436Z-LED

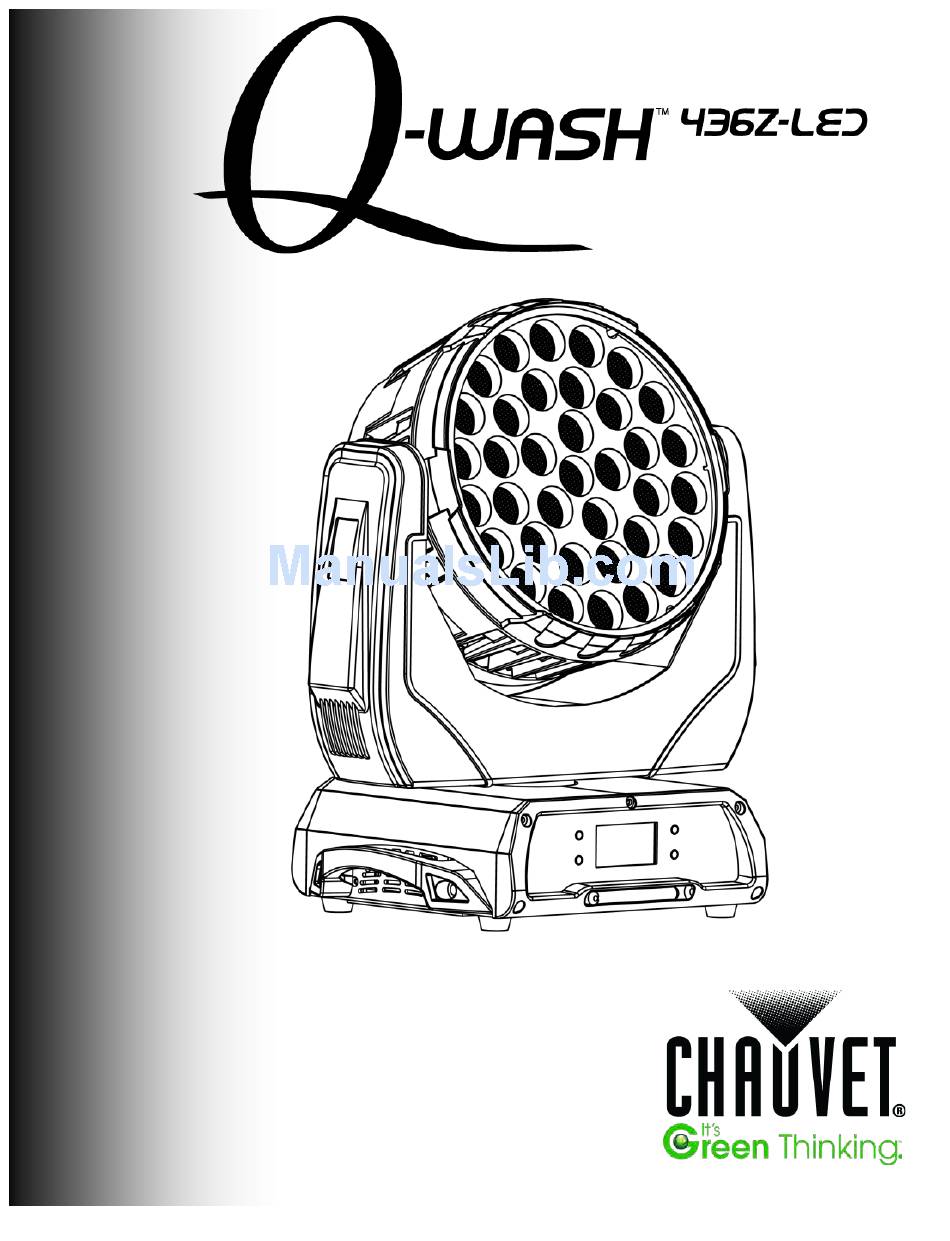

  • Page 1 User Manual...
  • Page 2 CHAUVET®. Any other product names, logos, brands, company names, and other trademarks featured or referred to within this document are the property of their respective trademark holders. CHAUVET® owns the content of this User Manual in its entirety, including but not limited Copyright Notice to pictures, logos, trademarks, and resources.

  • Page 3: Table Of Contents

    Table of Contents Table of Contents 1. Before You Begin ............................1 What Is Included ................................1 Claims ......................................1 Manual Conventions ..................................1 Symbols ....................................... 1 Product at a Glance ..............................2 Safety Notes ................................. 2 Personal Safety .................................... 2 Mounting and Rigging ..................................
  • Page 4 Table of Contents Password ....................................14 Limit Pan/Tilt Range ................................... 14 Offset Calibration ..................................14 White Calibration ..................................15 Reset ......................................16 Reset to Factory Default ................................16 Software Version ..................................16 Menu Map ................................... 17 Menu Map (cont.) ................................ 18 Menu Map (cont.) ................................

  • Page 5: Before You Begin

    Failure to report damage to the carrier immediately may invalidate your claim. In addition, keep the box and contents for inspection. For other issues, such as missing components or parts, damage not related to shipping, or concealed damage, file a claim with CHAUVET® within 7 days of delivery. Manual Conventions Convention...

  • Page 6: Product At A Glance

    · In case of a serious operating problem, stop using this product immediately! In the unlikely event that your CHAUVET® product may require service, contact CHAUVET® Technical Support. LEDs gradually decline in brightness over time, mostly because of heat. Packaged in...

  • Page 7: Introduction

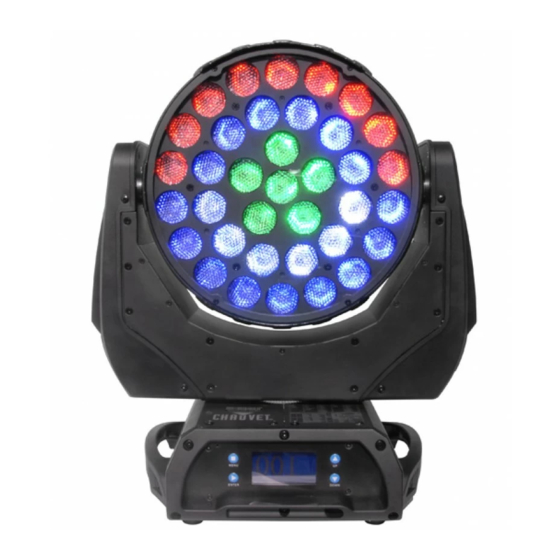

    Introduction 2. Introduction The Q-Wash™ 436Z-LED is a high-power quad-color RGBW LED, moving head wash Product Description product. This product consists of a base section and a moving yoke with a pan range of up to 540º. The moving head, which has a tilt range of 270º, contains the 36 quad-color RGBW LEDs and the zoom motors.

  • Page 8: Product Overview

    Introduction Product Overview Control Panel Handles Front View Side View Mounting Points Fuse DMX In/Out Power Rear View Bottom View Q-Wash™ 436Z-LED User Manual Rev. 1...

  • Page 9: Product Dimensions

    Introduction Product Dimensions Q-Wash™ 436Z-LED User Manual Rev. 1...

  • Page 10: Setup

    The listed current rating indicates the maximum current draw during normal operation. For more information, you may download Sizing Circuit Breakers from the CHAUVET® website: www.chauvetpro.com. Always connect this product to a protected circuit with an appropriate electrical ground to avoid the risk of electrocution or fire.

  • Page 11: Power Linking

    If you are not familiar with or need more information about DMX standards, Master/Slave connectivity, or the DMX cables needed to link this product to a DMX controller, download Primer from CHAUVET® website: www.chauvetpro.com. Q-Wash™ 436Z-LED User Manual Rev. 1...

  • Page 12: Mounting

    Always mount this product in a safe position and make sure there is adequate room for Orientation ventilation, configuration, and maintenance. Rigging CHAUVET® recommends using the following general guidelines when mounting this product. · When selecting an installation location, consider easy access to this product for operation, programming adjustments, and routine maintenance.

  • Page 13: Operation

    Operation 4. Operation Control Panel Button Function Description <MENU> Exits from the current menu or function <ENTER> Enables the currently displayed menu or sets the currently selected value in to the current function <UP> Navigates upward through the menu list and increases the numeric value when in a function <DOWN>...

  • Page 14: Loss Of Signal Setting

    Operation Loss of Signal Setting This setting controls how the product will respond when the DMX signal is lost. 1. Go to SETTINGS > PERFORM > DMX ERROR. a. Select SAVE to make the product use the last command used when the signal is lost.

  • Page 15: Edit Custom Programs

    Operation Edit Custom This setting allows the programming of up to 49 steps in the CUSTOM running mode. 1. Go to STAND ALONE > EDIT. Programs 2. Select STEP. 3. Set the program step (01~49). a. Select PAN or TILT. i.

  • Page 16: Fixture Cloning

    Operation Fixture Cloning The Q-Wash™ 436Z gives you 3 ways in which to transfer the settings from 1 Q-Wash™ 436Z to other Q-Wash™ 436Z products when hooked up via DMX daisy chain configuration. To transfer the CUSTOM program only: 1. Go to STAND ALONE > SEND. a.

  • Page 17: Dimmer Curves

    Operation Dimmer Curves This setting determines how fast the output of the Q-Wash™ 436Z-LED changes when you modify the values of the red, green, blue, white, and dimmer faders. This setting provides four different options to simulate the dimming curve of an incandescent lighting product.

  • Page 18: Control Panel Lock

    Operation Control Panel Lock The Q-Wash™ 436Z gives you 3 different security levels, which lock out unauthorized personnel from making changes to the product. To secure the SETTINGS level only: 1. Go to SERVICE > ACCESS > SETTINGS LOCK. a. Select ON to require the password to access the level or OFF to allow open access.

  • Page 19: White Calibration

    Operation White Calibration This setting allows you to select and edit the temperature of the white colors used in channel 10 (Macros) when in the PERSON2 mode. 1. Select SERVICE > CALIB.C. a. Select 3200K. b. Select RED, GREEN, or BLUE. i.

  • Page 20: Reset

    Operation Reset The Q-Wash™ 436Z gives you 3 different levels to reset the product. To reset the Pan and Tilt motors only: 1. Go to MANUAL > RESET > PT.RESET. a. Select YES to reset or NO to exit. To reset the Zoom motor only: 2.

  • Page 21: Menu Map

    Operation Menu Map Main Level Programming Levels Description ADDRESS 000~512 Sets the DMX starting address PERSON1 10-Channel mode PERSON2 16-Channel mode PERSON PERSON3 29-Channel mode PERSON4 8-Channel mode PERSON5 29-Channel mode WDMX ACTIVATE WIRELESS Reserved for future use WDMX RESET SLOW NORM FANS...

  • Page 22: Menu Map (Cont.)

    Operation Menu Map (cont.) Main Level Programming Levels Description NORM DIM INVERT Defines the direction of the dimmer fader INVERT Continues with last command upon loss of SAVE DMX control DMX ERROR BLACK Blacks out fixture upon loss of DMX signal The DMX controller resets the product DMX RESET DISPLAY...

  • Page 23: Menu Map (Cont.)

    Operation Menu Map (cont.) Main Level Programming Levels Description DMX 512 Selects DMX running mode AUTO1 Selects the first automatic program AUTO2 Selects the second automatic program CUSTOM Selects a user customizable program TEST Starts the product’s test sequence SLAVE Selects the Slave running mode STEP 01~49...

  • Page 24: Menu Map (Cont.)

    Operation Menu Map (cont.) Main Level Programming Levels Description TILT GREEN BLUE MANUAL Allows manual control of all settings from MANUAL 000~255 (cont.) control panel WHITE DIMMER STROBE ZOOM CONTROL CALIB.M TILT 000~255 Calibrates the start position of the motors ZOOM 3200K GREEN...

  • Page 25: Menu Map (Cont.)

    Operation Menu Map (cont.) Main Level Programming Levels Description 5600K GREEN Sets color temperature for White 5 BLUE 5900K GREEN Sets color temperature for White 6 BLUE 6500K GREEN Sets color temperature for White 7 BLUE CALIB.C 7200K GREEN 000~255 Sets color temperature for White 8 (cont.) BLUE...

  • Page 26: Dmx Values

    Operation DMX Values PERSON 1 Channel Function Value Percent/Setting 000 ó 255 0~100% 000 ó 255 Tilt 0~100% 000 ó 255 0~100% 000 ó 255 Green 0~100% 000 ó 255 Blue 0~100% 000 ó 255 White 0~100% 000 ó 255 Dimmer 0~100% 000 ó...

  • Page 27: Dmx Values (Cont.)

    Operation DMX Values (cont.) PERSON 2 Channel Function Value Percent/Setting 000 ó 255 0~100% 000 ó 255 Pan Fine 0~100% 000 ó 255 Tilt 0~100% 000 ó 255 Tilt Fine 0~100% 000 ó 255 Pan/Tilt Speed 0~100% 000 ó 255 0~100% 000 ó...

  • Page 28: Dmx Values (Cont.)

    Operation DMX Values (cont.) PERSON 2 Channel Function Value Percent/Setting (cont.) 000 ó 009 No Function 010 ó 019 Static Ring 1 020 ó 029 Static Ring 2 030 ó 039 Static Ring 3 040 ó 049 Static Ring 4 050 ó...

  • Page 29: Dmx Values (Cont.)

    Operation DMX Values (cont.) PERSON 3 Channel Function Value Percent/Setting 000 ó 255 0~100% 000 ó 255 Pan Fine 0~100% 000 ó 255 Tilt 0~100% 000 ó 255 Tilt Fine 0~100% 000 ó 255 Pan/Tilt Speed 0~100% 000 ó 255 Red 1 0~100% 000 ó...

  • Page 30: Dmx Values (Cont.)

    Operation DMX Values (cont.) PERSON 3 Channel Function Value Percent/Setting (cont.) 000 ó 255 Dimmer 0~100% 000 ó 009 No Function Strobe 010 ó 255 0~10 Hz 000 ó 255 Zoom 0~100% 000 ó 019 No Function 020 ó 039 Pan/tilt black activation 040 ó...

  • Page 31: Dmx Values (Cont.)

    Operation DMX Values (cont.) PERSON 4 Channel Function Value Percent/Setting 000 ó 255 0~100% 000 ó 255 Tilt 0~100% 000 ó 255 0~100% 000 ó 255 Saturation 0~100% 000 ó 255 Value 0~100% 000 ó 009 No Function Strobe 010 ó 255 0~10 Hz 000 ó...

  • Page 32: Dmx Values (Cont.)

    Operation DMX Values (cont.) PERSON 5 Channel Function Value Percent/Setting 000 ó 255 0~100% 000 ó 255 Pan Fine 0~100% 000 ó 255 Tilt 0~100% 000 ó 255 Tilt Fine 0~100% 000 ó 255 Pan/Tilt Speed 0~100% 000 ó 255 Dimmer 0~100% 000 ó...

  • Page 33: Dmx Values (Cont.)

    Operation DMX Values (cont.) PERSON 5 Channel Function Value Percent/Setting (cont.) 000 ó 255 Red 1 0~100% 000 ó 255 Green 1 0~100% 000 ó 255 Blue 1 0~100% 000 ó 255 White 1 0~100% 000 ó 255 Red 2 0~100% 000 ó...

  • Page 34: Technical Information

    Be prepared to provide the model number, serial number, and a brief description of the cause(s) for the return. Clearly label the package with an RMA number. CHAUVET® will refuse any product returned without an RMA number.

  • Page 35: Technical Specifications

    Technical Information Technical Specifications Dimensions and Length Width Height Weight Weight 11.89 in (302 mm) 15.74 in (400 mm) 18.58 in (472 mm) 27.6 lbs (12.52 kg) Note: Dimensions in inches rounded to the nearest decimal digit. Power Power Supply Type Range Voltage Selection Switching (internal)

  • Page 36: Contact Us

    World Headquarters United Kingdom and Ireland Contact Us CHAUVET® CHAUVET® Europe Ltd. General Information General Information Address: 5200 NW 108th Avenue Address: Unit 1C Sunrise, FL 33351 Brookhill Road Industrial Estate Voice: (954) 577-4455 Pinxton, Nottingham, UK Fax: (954) 929-5560...
