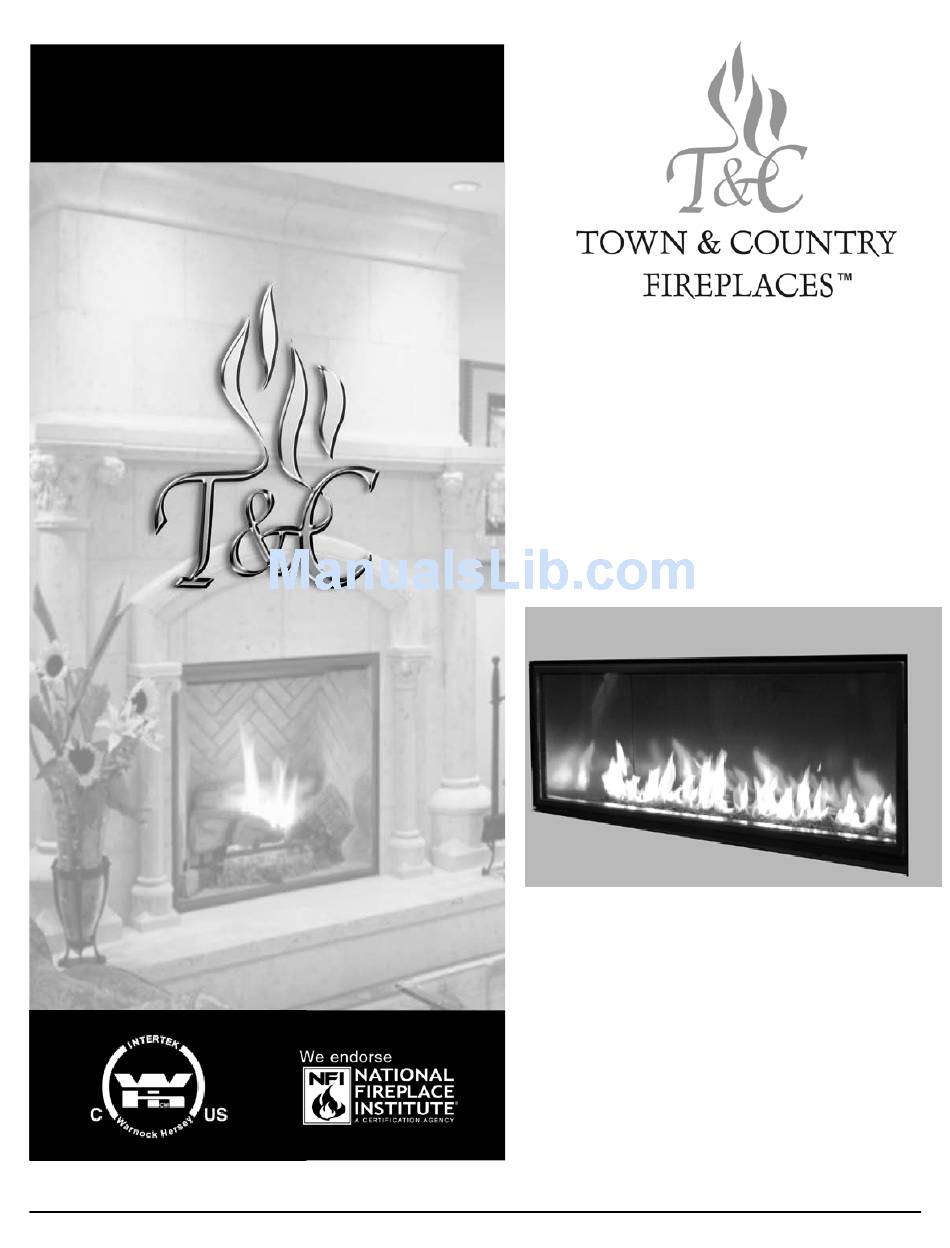

IMPORTANT:
THESE INSTRUCTIONS ARE TO REMAIN
WITH THE HOMEOWNER
These instructions are supplementary to the Installation
and Operating Instructions supplied with the fireplace
and should be kept together. Refer to the Installation
and Operating Instructions for proper gas supply, safety
requirements and operating instructions.
080709-12
TCWS.38NG03.C
BLACK DIAMOND
BURNER KIT
INSTRUCTIONS
PART# TCWS.38NG03.C
For use with
Model TCWS38
Series C
5056.4252203
TCWS.38NG03.C
Advertisement
Table of Contents
Related Manuals for Town & Country Fireplaces TCWS.38NG03.C
Summary of Contents for Town & Country Fireplaces TCWS.38NG03.C
- Page 1 Operating Instructions supplied with the fireplace and should be kept together. Refer to the Installation and Operating Instructions for proper gas supply, safety requirements and operating instructions. TCWS.38NG03.C BLACK DIAMOND BURNER KIT INSTRUCTIONS PART# TCWS.38NG03.C For use with Model TCWS38 Series C 080709-12 5056.4252203 TCWS.38NG03.C...
-
Page 2: Contents Of Package
(Fig. #1) Connect spark electrode wire (ORANGE) to the rear electrical bulk head fitting. Connect the flame sensor wire (WHITE) to the front electrical bulk head fitting. (Fig. #1) TCWS.38NG03.C 080709-12... - Page 3 Bend side tabs on burner tray inwards about 20° or 1/2” . (Fig. #4) Fig #5 Tilt the burner tray into the unit and place on top of the legs. Attach pilot to burner tray. Ensure pilot is tight to burner tray. (Fig. #5) TCWS.38NG03.C 080709-12...
- Page 4 (Fig. #8) NOTE: Too much glass media will cause sooting and improper flame pattern. Fig #9 Place rear porcelain trim, wide edge, against the back panel and press down over the pre-bent tabs on the burner tray. (Fig. #9) TCWS.38NG03.C 080709-12...
- Page 5 Fig #10 10. Install front porcelain cover (wide edge should face the front). (Fig. #10 & 11) Fig #11 WIDE EDGE TO FRONT OF FIREPlACE TCWS.38NG03.C 080709-12...
-
Page 6: Propane Conversion
Fig #16 until the operation of the converted appliance is checked as specified in the manufacturer's instructions With a 7/16” wrench loosen the pilot supplied with the kit. head on the pilot assembly. (Fig. #16) TCWS.38NG03.C 080709-12... - Page 7 Fig #20 Replace the minimum rate screw with the one provided in the propane conversion kit supplied with this fireplace. Ensure that the screw is fully seated. (Fig. #20) TCWS.38NG03.C 080709-12...
- Page 8 Failure to do Fig #23 so will cause overheating and premature failure of Fig #24 the control system. 14. If the burner was removed in previous steps replace in reverse order or return to instal- lation process on Pg. 2 TCWS.38NG03.C 080709-12...
-
Page 9: Gas Pressure Check
Correct gas pressure requirement: Supply Pressure Natural Gas Propane Min. Pressure 5.0" WC 12.5" WC (For purpose of input adjustment) Max. Pressure 13.9" WC 13.9" WC Manifold Pressure Maximum 3.8" WC 11" WC Minimum 2.1" WC 5.5" WC TCWS.38NG03.C 080709-12... -
Page 10: Burner Flame Adjustment
Proper air shutter setting is required. The flame should be just orange and “lazy” . It should NEVER be set to create sooting on internal parts and window glass. Allow the fireplace to run for 30 minutes before evaluating flame appearance. TCWS.38NG03.C 080709-12... -
Page 11: Replacement Parts
ITEM ..DESCRIPTION ............PART NO. ITEM ..DESCRIPTION ............PART NO. #5..ORIFICE, NATURAL GAS (#40) ......5022.3 #1..BLACK DIAMOND BURNER ... TCWS.38NG03.C #6..PROPANE CONVERSION KIT ..TCWS.38LPCE01 #2..GLASS MEDIA ........TCRP.501201 #3..FUEL SUPPLY TUBE ........5019.223 #4.. - Page 12 Technical support: 1-250-748-1184 Web site: www.townandcountryfireplaces.net 2975 Allenby Rd., Duncan, BC V9L 6V8 Printed in Canada...
