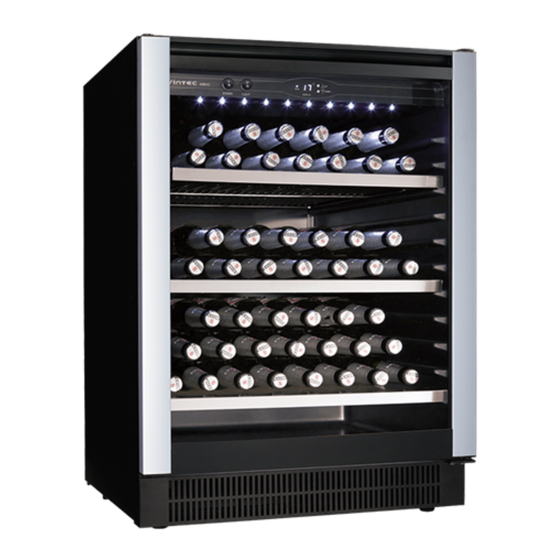

- Page 1 Armoire à vin. Beverage Preservation Technology USER MANUAL 40BVC AL-V40BVC...
- Page 2 The information in this document is subject to modification without any prior notice. VINTEC offers no guarantee for our Beverage Center if it is being used for any purpose other than that for which it was specifically designed. VINTEC cannot be held responsible for any error in this manual.
- Page 3 It is hazardous for anyone other than an Authorised Service Person to carry out servicing or repairs to this appliance. In Queensland the authorized person must hold a Gas Work Authorisation for hydrocarbon refrigerants, before carrying out servicing or repairs which involve the removal of covers. –...
- Page 4 Leveling your Beverage Center: Beverage Center must be leveled BEFORE loading your Beverage. Your Vintec Beverage Center is equipped with 4 adjustable feet to facilitate easy leveling. VINTEC recommends that you tighten the back feet to the maximum and adjust the front feet to create a level. Back spacer: Compressor run appliances require proper ventilation for proper and longer usage.
- Page 5 IMPORTANT - THIS SPACER MUST BE ATTACHED TO THE UNIT BEFORE INSTALLATION FOR VENTILATION PURPOSE. FAILURE TO DO SO VOIDS THE WARRANTY TURNING ON YOUR BEVERAGE CENTER Plug in and switch on the unit by pressing on the power button for a few seconds. When you use the Beverage Center for the first time (or restart the Beverage Center after having it shut off for a long time), there will be a few degrees, variance between the temperature you have selected and the one indicated on the LED readout.
- Page 6 An individual’s perception of noise is directly linked to the environment in which the Beverage Center is located, as well the specific type of models. VINTEC Beverage Center are in line with international standards for such appliance. VINTEC will always do its utmost to satisfy its customers but will not retake possession of the goods due to complaints based on normal operating noise occurrences.
-
Page 7: Temperature Settings
TYPES OF REGULATION Please note that depending on the loading and settings chosen it takes 24hours for the Beverage Center to see the temperature stabilizing. During this time LED seems to move erratically. It is a normal process. This process occurs whenever the setting is modified and/or whenever a large amount of bottles are added to the unit. -
Page 8: Adjustable Shelves
DEFROSTING/CONDENSATION/ HYGROMETRY/ VENTILATION Your beverage center is designed with “Auto-cycle” defrost system. During “Off-cycle” the refrigerated surfaces of the beverage center defrost automatically. Defrost water from the beverage center storage compartment drains automatically and part of it goes into a drainage container, which is located at the back of the beverage center next to the compressor. -
Page 9: Reversibility Of The Door
REVERSIBILITY OF THE DOOR Warning: To avoid accident during the process of changing the door, we recommend that you get assistance. Door is heavy and may cause injury if dropped. According the model and the type of handle your beverage cabinet is equipped with, such as long strait bar handle , the door might needs to be rotated for 180 degrees or changed for a right opening one. - Page 10 INSTALLATION INSTRUCTIONS AND DRAWINGS 1. Wine Cabinet’s dimension : Height 820mm – 860mm (40mm adjustable feet) Width 595mm Depth 571mm 2. This wine cabinet is not designed to be fully integrated behind a joinery door. 3. Please note that a minimum cut out of 615mm is required to facilitate installation, removal and servicing.
-
Page 11: Operation Anomalies
If your beverage center appears to be malfunctioning, unplug it and contact your VINTEC’s after sales service. Any intervention on the cold circuit should be performed by a refrigeration technician who should carry out an inspection of the circuit sealing system. -
Page 12: Troubleshooting Guide
TROUBLESHOOTING GUIDE Common problems may easily be solved, saving you the cost of a possible service call. Please read carefully the instruction manual and revert to troubleshooting guide chart. PROBLEM POSSIBLE CAUSE Beverage center does not operate. Not plugged in. The appliance is turned off. - Page 13 40BVC AL-V40BVC Technical data （R134a） （R600a） Models Capacity355ml 137L 137L Net capacity 35 g Gas charge quantity Pre-set temp in degrees 2-10 2-10 Adjustable temp in degrees 100W 140W Power Input Heater Built-in Built-in Freestanding or Built-in : (1) Nº of shelf 5-35ºC...
- Page 14 Copyright: All rights are reserved. All photocopying, reproduction, translation whether partial or total are strictly prohibited, without prior written consent from VINTEC. www.vintec-cellar.com...
