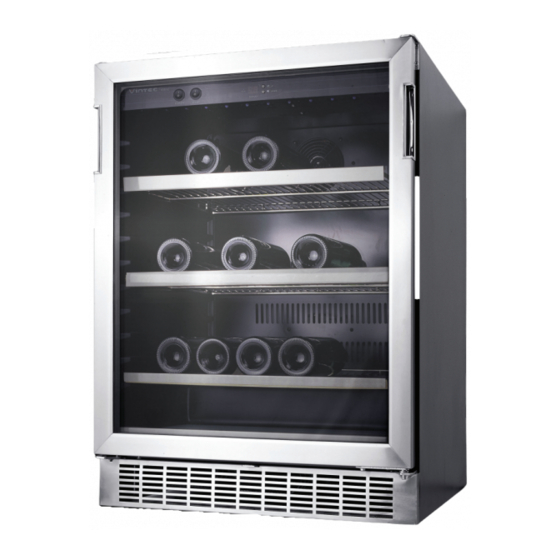

- Page 1 ______________________________________________ INSTRUCTION MANUAL - BEVERAGE CENTRE V40BVC ______________________________________________...
- Page 2 WARNING • To prevent damage to the door gasket, make sure you have the door fully open when pulling shelves out of the compartment. • The appliance must be positioned so that the plug is accessible. Release the electric cord. Move your cabinet to its final location.
- Page 3 Place your Beverage centre on a floor that is strong enough to support it when it is fully ★ loaded. To level your Beverage Centre, adjust the leveling legs of the Beverage centre until it is balanced. Locate the Beverage centre away from direct sunlight and sources of heat (stove, ★...
- Page 4 • Rescrew the Lock screws (1) please see picture 1. • Pull the door (5) outward, take it out (please see picture 2.) • Screw off 3 pcs bolts, take out the top hinge (right) 4. (please see picture 3) Fix the top hinge (left) with bolts on the position as picture shows, then install the door as the way it pulls out, then steps finish (please see picture 4) Attention...

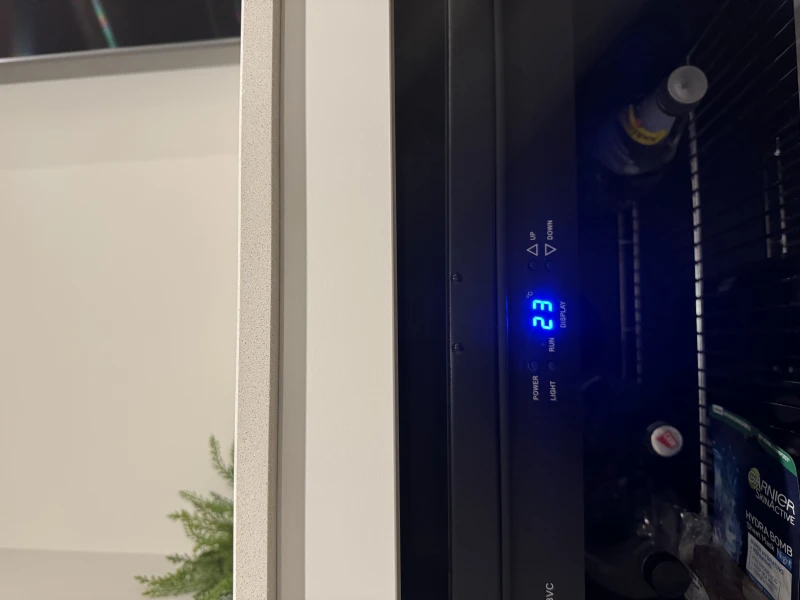

- Page 5 • Set the desired cooling temperature by pressing the buttons adjacent to the “Up/Down” program. Each depression of the buttons will scroll through the available temperature settings in incre- ments of 1 degree. The temperature selected will flash in the LED display for approximately 5 seconds, then revert back to display the temperature of the internal cabinet.
-
Page 6: Care And Maintenance
CARE AND MAINTENANCE Cleaning your Beverage Centre • Turn off the power, unplug the appliance, and remove all items including shelves and rack. • Wash the inside surfaces with a warm water and baking soda solution. The solution should be about 2 tablespoon of baking soda to a quart of water. - Page 7 V40 Series - Under Bench Installation Instructions Cabinet dimensions: H 820 x W 595 x D 572 mm Please note that a minimum cut out of 615mm is required to facilitate installation, removal and servicing. This cabinet requires 1cm clearance on both sides and top, 4 cm clearance at the rear. A ventilation grid is required (see above diagram for positioning of grid) This cabinet is front venting - if kick board is to be used it will need a grille to allow adequate in and out flow of air.
-
Page 8: Troubleshooting Guide
You can solve many common Beverage Centre problems easily, saving you the cost of a possible service call, Try the suggestions below to see if you can solve the problem before calling the serv- icer. TROUBLESHOOTING GUIDE PROBLEM POSSIBLE CAUSE Beverage Centre does not operate Not plugged in The appliance is turned off...
