sourCe ConFiGurAtion

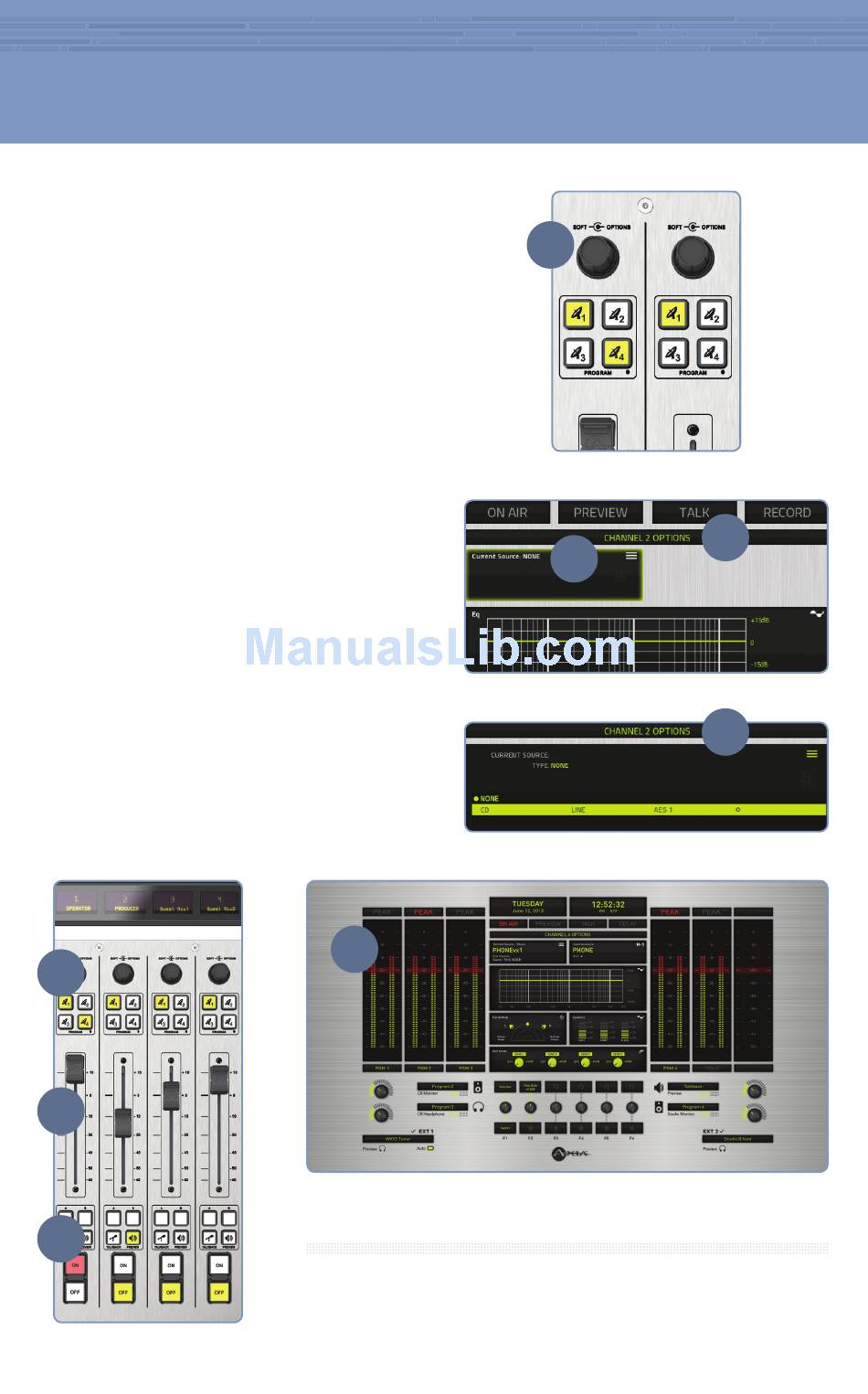

12. On the Fusion Console Surface, press the channel
encoder knob (K) found at the top of the fader strip
for Channel Options.
13. The connected video monitor will display the
Channel Options (L). Rotate the encoder knob (K)
one step to select the source window. (Selected
options will be outlined in yellow.) Once the desired
option is selected, press the encoder knob (K) to
enter the selection.
14. Select the "Current Source" option (M). The next
view will show configured source profiles (N).
15. Rotate the encoder knob (K) to highlight the source
just created.
16. Press the encoder knob (K) to select the highlighted
source.
17. Press the Program 1 button on the fader strip (O) so
it is illuminated.
18. Press the "On" button (P) on the fader strip.
19. Move the fader (Q) up-you should hear audio. The
meters on your video display should be active (R).
20. Note: To hear the audio, make sure Program 1 is
selected in the monitor section for CR Monitor
and that the volume is at an appropriate level.
For StudioEngine users only: make sure the xNode
output feeding your speaker has been assigned the
CR Monitor source output of the StudioEngine.
21. Repeat "Source Configuration" steps to configure
additional sources.
O
Q
P
(Cont.)
R
your setuP is ComPlete!
That's it! You are now ready to experience the Axia Fusion, a powerful,
flexible and easy to use console, packed with all of the capabilities and
features you need. Enjoy!
