instAllAtion witH AxiA studioenGine

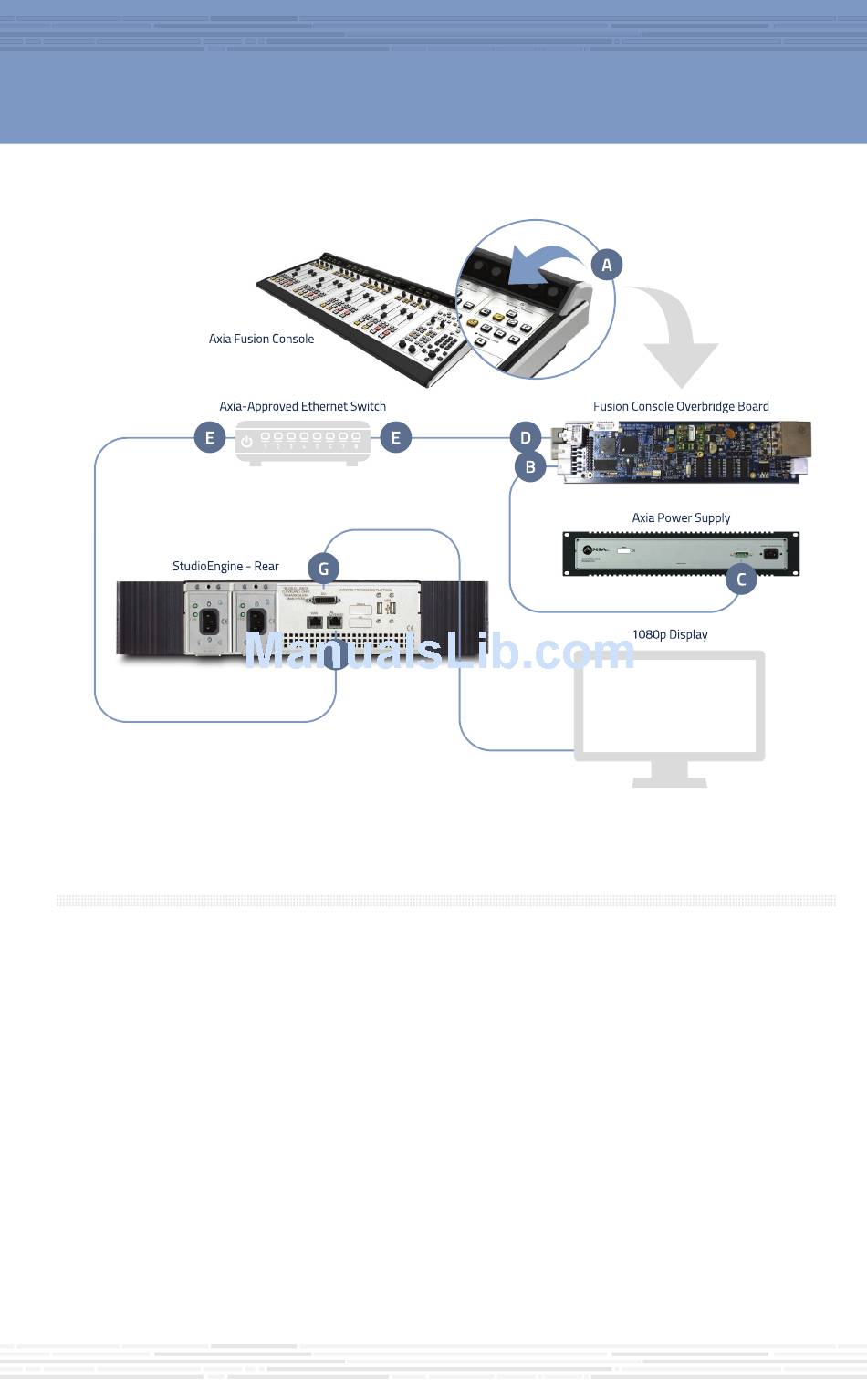

PHysiCAl ConneCtions witH AxiA studioenGine

1. Tilt the overbridge panel of the Fusion Console (A) forward (toward faders) to gain access to the
Fusion Console overbridge board.
2. Connect one end of the supplied Fusion power cable to the power port on the Fusion Console
overbridge board (B). Connect the other end to the 48DVC Output port (C) on the rear of the Axia
Power Supply. Connect the Axia Power Supply to AC Mains using the Axia Power Supply power
cable provided.
3. Connect Ethernet cable to the network connection port on the Fusion Console overbridge
board (D), connect other end to a configured Ethernet switch (E).
4. Connect Ethernet cable to the Livewire port (F) on the StudioEngine, connect other end to a
configured Ethernet switch (E).
5. Connect a 1080p monitor to the DVI-D video port (G) on the StudioEngine.
6. Close the Fusion Console overbridge panel (A).
7. Continue to Network Configuration with Axia StudioEngine.
