instAllAtion witH AxiA PowerstAtion

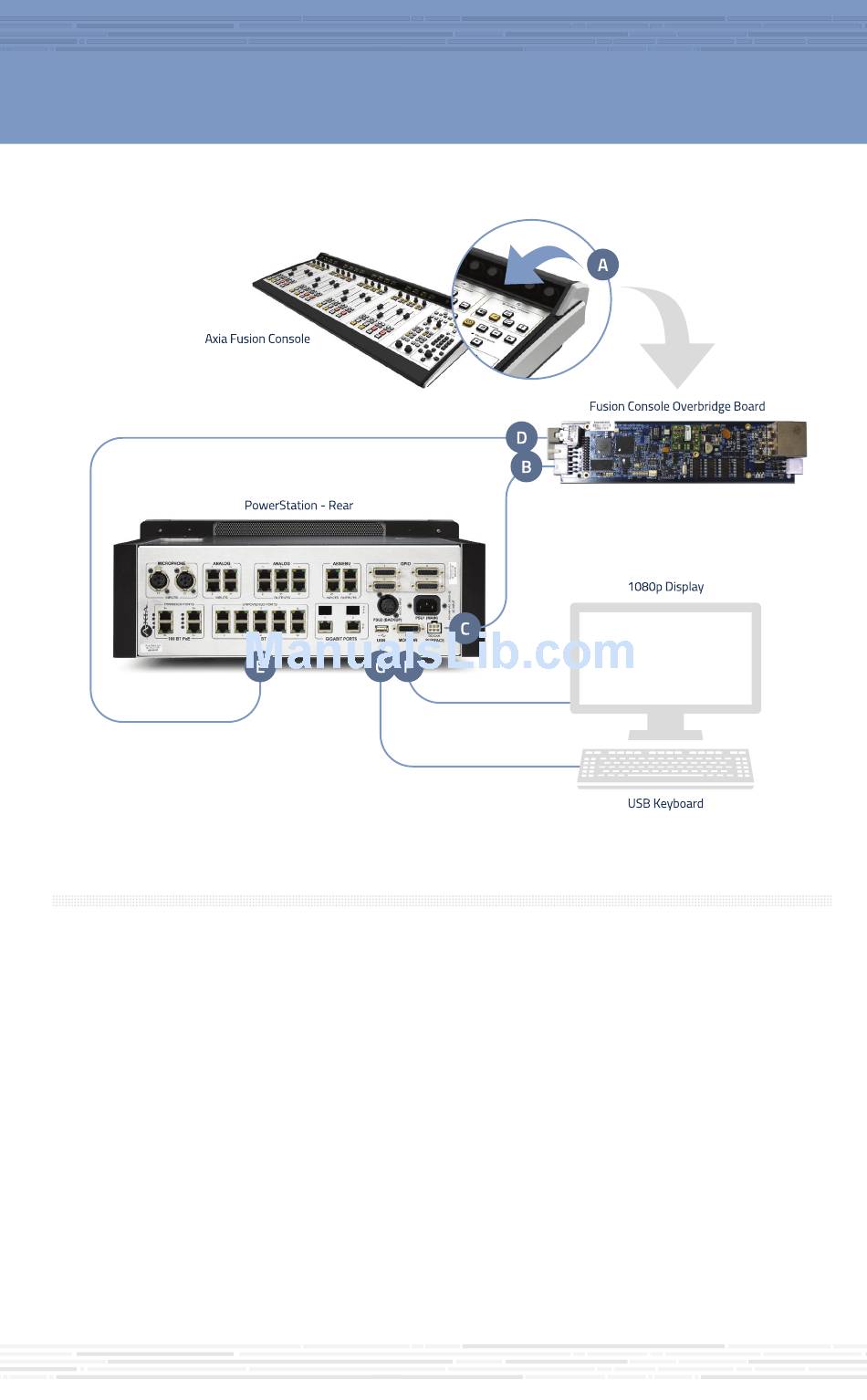

PHysiCAl ConneCtions witH AxiA PowerstAtion

1. Tilt the overbridge panel of the Fusion Console (A) forward (toward faders) to gain access to the
Fusion Console overbridge board.
2. Connect one end of the 6-Pin molex power cable supplied with the PowerStation to the Surface
port (B) on the PowerStation. Connect the other end to the power port on the Fusion Console
overbridge board (C).
3. Connect Ethernet cable to the network connection port on the Fusion Concole overbridge board
(D), connect other end to an available network port on the PowerStation (E).
4. Connect 1080p monitor to the DVI-D video port (F) on the PowerStation.
5. Connect USB keyboard to USB port (G) on the PowerStation.
6. Close the Fusion Console overbridge panel.
7. Continue to Network Configuration with Axia PowerStation.
