SPECIFICATION
GENERAL
Supply Voltage
DC 12V. Negative Ground
Current Consumption
Max.7A
Power Output
7W X 4 ( Measured at DC 14.4 V )
Unit Dimensions
178[W] X 165[D] X 50[H] mm.
FM SECTION
Frequency range
87.5MHz -107.9MHz (USA.)
87.5MHz - 108.0MHz (EUR.)
Effective sensitivity
3uV.
I.F Frequency
10.7MHz.
AM SECTION
Frequency range
530KHz - 1710KHz (USA.)
522KHz - 1620KHz (EUR.)
Effective sensitivity
40dB.
I.F Frequency
450KHz
RCA LINE OUT (OPTION)
Output
CD Max. 1000 200mV
CD PLAYER
System
Compact Disc Audio System.
Suitable CDs
CD,CD-R,CD-RW Disc
Signal format
Sampling frequency 44.1KHz.
NO. of quantization bits 1bit.
Frequency characteristics
20Hz-100Hz < 5dB
10KHz-20KHz < 5dB.
S/N Ratio to CD
50dB [1KHz]
Number of channels
2 STEREO channels.
+
-

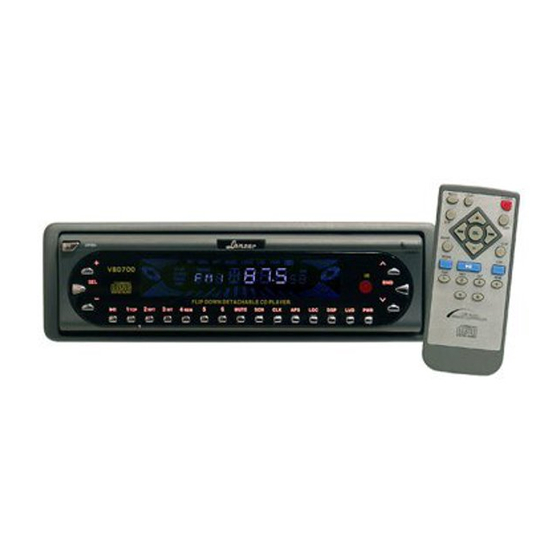

INSTRUCTION MANUAL
ANTI-THEFT FLIP DOWN DETACHABLE SYSTEM
AUTO-LOADING DISC COMPACT DISC PLAYER
AM/FM-STEREO DIGITAL PLL TUNING RADIO
INFRARED REMOTE CONTROL
VBD700
http://www. lanzar. com
Advertisement
Table of Contents
Related Manuals for Lanzar VBD700
Summary of Contents for Lanzar VBD700
-

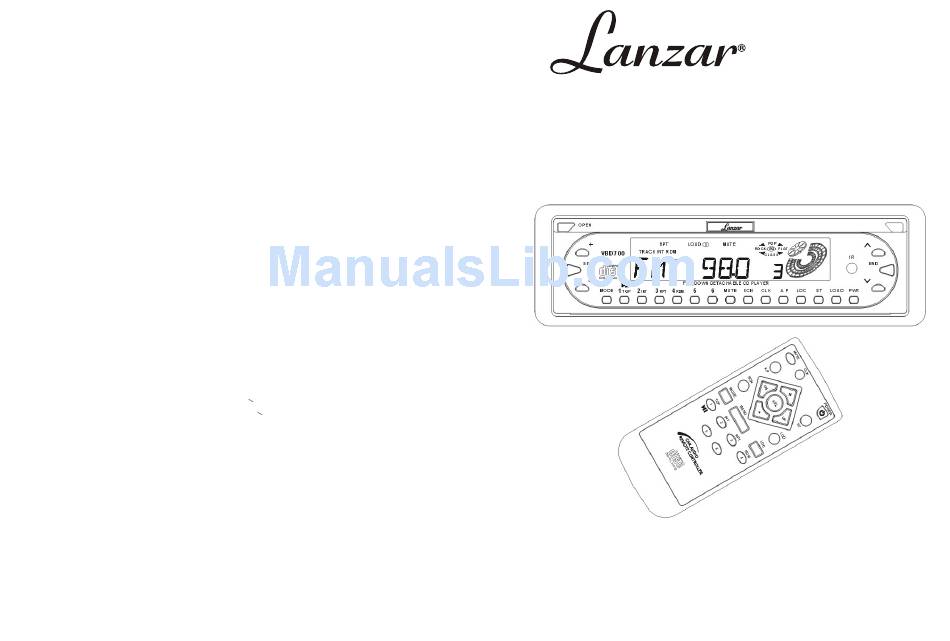

Page 1: Instruction Manual
Frequency characteristics 20Hz-100Hz < 5dB 10KHz-20KHz < 5dB. S/N Ratio to CD 50dB [1KHz] Number of channels 2 STEREO channels. ANTI-THEFT FLIP DOWN DETACHABLE SYSTEM AUTO-LOADING DISC COMPACT DISC PLAYER AM/FM-STEREO DIGITAL PLL TUNING RADIO INFRARED REMOTE CONTROL http://www. lanzar. com... -
Page 2: Trouble Shooting
TROUBLE SHOOTING Preface Before using the check list please make all the connections first. If you still have questions after going through the checklist, please consult Thank you for purchasing this car audio product. your local customer service representative. Please read this manual carefully before operating this car audio product. Please keep this manual for future use. -
Page 3: Location And Function Of Controls
LOCATION AND FUNCTION OF CONTROLS CARE FOR USING CD'S: Ò É Ä Ñ ½ â ³ ý About CD-R/CD-R/W discs: In addition to commercially-recorded audio CD's, this unit can play CD-R and CD-R/W discs. In come cases, particularly when recorded on older CD burners, some CD-R and CD-R/W discs may not play. - Page 4 b) Press the SEL button and hold for more than 2 seconds to access the menu mode. Now press the SEL button briefly to select the menu mode as follows: INSTALLATION METHOD EQ (OFF / FLAT / CLASS / ROCK /POP ) -> BEEP ON/OFF-> SEEK 1 /2 -> 12H/24H->VOL LAST/ADJ.
- Page 5 9. BAND BUTTON MAINTENANCE OF REMOTE CONTROL Press the BND button briefly to select the radio broadcasting band you would Before using the remote control, pull out the insulating patch. This like to hear. The AM/FM band is toggled cyclically through the tuning bands patch was installed to insulate the battery from draining until ready to use.
- Page 6 OPERATION OF REMOTE CONTROLLER: 20. CLOCK BUTTON Note: To view the current time, press the CLK button, where it will display for five Before using this remote controller, please make sure seconds and then revert to the current unit mode. turn on the device by pressing the power button on During the period when the time is displayed, pressing and holding the CLK the front control panel.
