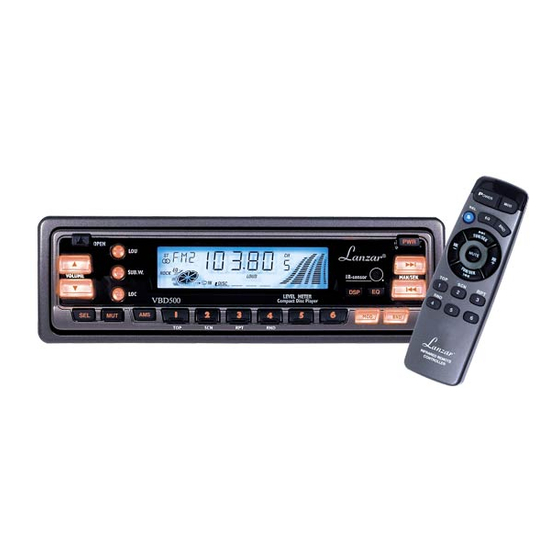

OWNER'S MANUAL
PLL SYNTHESIZER STEREO RADIO WITH
COMPACT DISC PLAYER DIGITAL
VBD 500

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lanzar Vibe VBD500 and is the answer not in the manual?

Questions and answers

Related Manuals for Lanzar Lanzar Vibe VBD500

Summary of Contents for Lanzar Lanzar Vibe VBD500

  • Page 1 OWNER’S MANUAL PLL SYNTHESIZER STEREO RADIO WITH COMPACT DISC PLAYER DIGITAL VBD 500...

  • Page 2: Installation

    INSTALLATION Notes: • Choose the mounting location where the unit will not interfere with the normal driving function of the driver. • Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and the system work properly. •...

  • Page 3: Din Rear-Mount (Method B)

    (Fig. 2) Removing the unit DIN REAR-MOUNT (Method B) Installation using the screw holes on the sides of the unit. 1. Dashboard 2. Nut (5mm) 3. Spring washer 4. Screw (5 x 25mm) 5. Screw 6. Strap Be sure to use the strap to secure the back of the unit in place.

  • Page 4: Using The Detachable Front Panel

    USING THE DETACHABLE FRONT PANEL To Detach the Front Panel 1. Press the open button (open), then the front panel will be folded down. Open 2. Remove the front panel by pulling its middle-hand outward. 3. For safekeeping, store the front panel in the supplied protective case immediately after being removed.
  • Page 5 To Reinstall the Front Panel 1. Push the front panel into the main body. A ‘click’ sound should be heard. 2. Note that if the front panel fails to lock in position properly, press control button may not function and LCD display may be missing some segments. Pushing the open button and then reinstall the front panel again.

  • Page 6: Wiring Connection

    WIRING CONNECTION ANTENNA CONNECTOR IGNITION SWITCH (B+) YELLOW MEMORY BACK-UP BLACK GROUND (B–) BLUE POWER ANTENNA FRONT Lch SPEAKER WHITE/BLACK REAR Lch SPEAKER GREEN/BLACK MAIN UNIT WHITE GREEN (GREEN) SUBWOOFER CABLE (GREY) Rch RED RCA CABLE Lch WHITE GREY FRONT Rch SPEAKER GREY/BLACK VIOLET...

  • Page 7: General Operation

    OPERATION GENERAL OPERATION • ON/OFF Switch on the unit by pressing any button [except OPEN button (7) and EJECT button (4)]. When system is on, press PWR button (9) to turn off the unit. • FACEPLATE RELEASE Press OPEN button (7) to detach the removable faceplate.
  • Page 8 • SOUND ADJUSTMENT Press SEL button (11) to select the desired adjustment mode. The adjustment mode will change in the following order: Volume By pressing VOLUME adjust the desired sound quality. • LOUDNESS Press LOU/BND button (14) for several seconds to reinforce the bass output and display will show “LOUD”.
  • Page 9 RADIO OPERATION • BAND SELECTION At tuner mode, press LOU/BND button (14) shortly to select the desired band. The reception band will change in the following order: • STATION SELECTION Press MAN/SEK button (17) or MAN/SEK automatic seek function. Press for several seconds until “MANUAL” appeared on the display, the manual tuning mode is selected.
  • Page 10 CD OPERATION • SELECT TRACKS Press MAN/SEK button following track. Track number shows on display. Hold MAN/SEK button starts from when you release the button. • STOP PLAYING Press PAU button (21) to pause CD player. Press it again to resume play. •...

  • Page 11: Remote Control Handset

    REMOTE CONTROL HANDSET CONTROL & FUNCTION KEYS 1. POWER = Power ON/OFF Button 2. MOD = Mode Button 3. S (SEL) = Select Button 4. DSP = Display Button 5. BND = Band Select Button 6. AMS = Automatically Memory Storing & Program Scanning Button 7.

  • Page 12: Specification

    SPECIFICATION GENERAL Power Supply Requirements Chassis Dimensions Tone Controls - Bass (at 100 Hz) - Treble (at 10 KHz) Maximum Output Power Current Drain CD PLAYER Signal to Noise Ratio Channel Separation Frequency Response RADIO Frequency Coverage Sensitivity (S/N = 30 dB) Stereo Separation Frequency Coverage Sensitivity (S/N = 20 dB)

  • Page 13: Troubleshooting

    TROUBLE SHOOTING Before going through the check list, check wiring connection. If any of the problems persist after check list has been made, consult your nearest service dealer. Symptom No power. The car ignition is not on. The fuse is blown. Disc cannot Presence of CD disc be loaded or...
  • Page 16 www.lanzar.com 88-C0660-22...
