Summary of Contents for Lanzar SDBT75NU

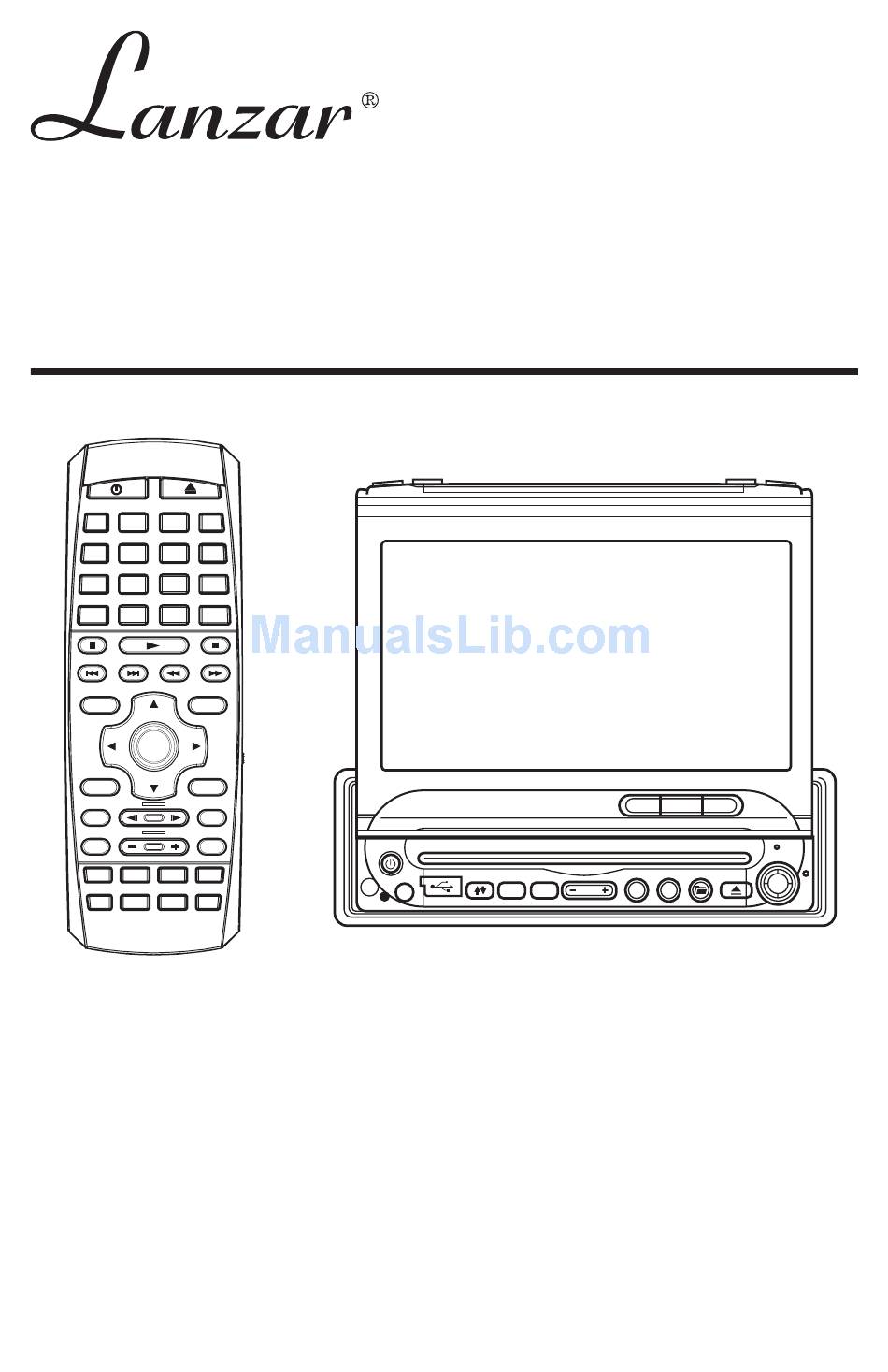

- Page 1 SDBT75NU OWNER’S MANUAL Mobile Video System • Vertical Adjustable And Horizontal Rotatable Panel • 7.0 Inch Touch Screen Monitor • Multi-subtitle/audio Languages Function • Multi-angle Function • Smart Mode Function • Parental Control • Bluetooth Function • Remote Control www.lanzar.com...
-
Page 2: Features
FEATURES Compatible with PAL DVD (Video CD) and NTSC DVD (Video CD) This player can play discs recorded in either PAL or NTSC format. • A single LSI chip now integrates all major DVD playback circuit functions including MPEG2 decoder, video D/A converter, and audio decoders. -
Page 3: Table Of Contents
CONTENTS Features ...2 Use This Product Safely ...2 Safety Information ...4 Disc Notes ...5 Installation ...6 The Player ...9 Electrical Connection ...11 Remote Control...13 Preparing the Remote Control ...15 Loading a disc ...15 Ejecting a disc ...15 Operation ...16 Basic Operation ...16 Disc (DVD, VCD, CD, MP3) Operation...20 Radio Operation...25 AV Operation...26... -
Page 4: Safety Information
SAFETY INFORMATION CAUTION: MOBILE DVD PLAYER IS A CLASS I LASER PRODUCT. HOWEVER THIS MOBILE DVD PLAYER USES A VISIBLE/INVISIBLE LASER BEAM WHICH COULD CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE MOBILE DVD PLAYER CORRECTLY AS INSTRUCTED. -
Page 5: Disc Notes
DISC NOTES Disc formats supported by this player 12 cm disc (Single-sided disc only) Video CD 12 cm disc 12 cm disc 12 cm disc Handling and Cleaning • Dirt, dust, scratches and warping disc will cause misoperation. • Do not place stickers or make scratches on discs. -
Page 6: Installation
INSTALLATION Notes: • Choose the mounting location where the unit will not interfere with the normal driving function of the driver. • Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and the system work properly. - Page 7 INSTALLATION Tabs Screwdriver 6. Reconnect the wire harness and the antenna and be careful not to pinch any wires or cables. 7. Slide the unit into the sleeve until it locks into place. 8. To further secure the unit, use the supplied metal strap to secure the back of the unit in place.
- Page 8 INSTALLATION DIN REAR-MOUNT (Method B) If your vehicle is a Nissan, Toyota, follow these mounting instructions. Use the screw holes marked T (Toyota), N (Nissan) located on both sides of the unit to fasten the unit to the factory radio mounting brackets supplied with your vehicle.
-
Page 9: The Player
THE PLAYER FRONT VIEW Closed Position Open Position... - Page 10 THE PLAYER 1. BAND 2. AS/PS 3. Disc Slot 4. LCD Display 5. LOC 6. MO/ST (Cursor Buttons) (Pick up) 8. ENT/ (Pick up) (Eject) (MENU) 11. S(Smart MODE) /MUT 13. VOL+/- 14. MODE 15. DSP (Open/Close) (USB Interface) 18. AV IN 19.
-
Page 11: Electrical Connection
ELECTRICAL CONNECTION REMOTE SENSOR CONNECTOR (BLACK) CHOCK Ground (Black) ACC (RED) Power Antenna (Blue) +12V Constant Power Supply (Yellow) 4-speaker System (Green/Black) Rear Left (Green) Speaker (White/Black) Front Left (White) Speaker (Gray/Black) Front Right (Gray) Speaker (Violet/Black) Rear Right (Violet) Speaker TELEPHONE MUTE (ORANGE) BRAKE (PINK) -
Page 12: Remote Control
REMOTE CONTROL LOCATION AND FUNCTION OF KEYS... - Page 13 REMOTE CONTROL Press POWER to turn the unit ON or OFF. Press to eject the disc. 3. EQ Press it to select desired audio equalization. 4. SUBT/BACK Changing of the SUBTITLE language on multi-subtitle language DVD disc. In menu operation on the screen press it to return to the previous menu. In navigation mode, press BACK the cursor will backspace.
-
Page 14: Preparing The Remote Control
REMOTE CONTROL Preparing the Remote Control Inserting the Batteries 1. Open the battery compartment cover. 2. Insert the new batteries. Make sure that the positive and negative terminals of the batteries are oriented as indicated. 3. Close the cover Battery: One button cell lithium battery. -
Page 15: Operation
OPERATION BASIC OPERATION Turning the player on/off Shortly press button on the front panel or on the remote control to turn the player When the unit is on, press and hold button on the front panel or shortly press button on the remote control will turn the unit off. - Page 16 OPERATION Note: 1. Don’t rotate the monitor forcibly to avoid mechanical damage. 2. When the front panel is on the outside position (Slide item select the right dot.), you can adjust the angle of the panel. Pushing the front panel into the slot, the front panel will be drawn out after several seconds.
- Page 17 OPERATION will return to the previous menu, to turn off the current menu. 1) AUDIO Tap AUDIO bar to enter the AUDIO menu. Tap the Trable, Loud, Bass, Sub.W, Fad/Bal, EQ bar to adjust the different items. (Note: when the unit has not subwoofer function, tapping Sub.W bar on the screen doesn’t work.) A: Treble Adjustment...
-
Page 18: Dvd Setup
OPERATION A: Expert menu In expert menu, the following operation will be allowed: - Use to select Beep on or off. - Use to turn the Clock display on or off. Note: With the expert menu on, when select clock on, the current time will be displayed on the up right of the screen, and you can see the time is changing. -
Page 19: Disc (Dvd, Vcd, Cd, Mp3) Operation
OPERATION speaker’s audio is RADIO or DVD. When the speaker’s sound is RADIO, AV OUT is no output. When the speaker’s sound is DVD, AV OUT is DVD. If there comes navigation sound, the current front speaker’s audio will be switched to navigation sound, the rear speaker’s audio is RADIO or DVD. -
Page 20: On-Screen Display Function
OPERATION For VCD/SVCD/CD/MP3/WMA: REP:[OFF] REP:[REP1] Note: REPEAT feature does not support VCD2.0 (with PBC ON). Paragraph Repeat Play: when you want to repeating play a desired paragraph. A-B repeat allows a passage to be repeated continuously. 1) Press A-B button first at the start of the required passage: REPEAT A- 2) Press A-B button secondly at the end... -
Page 21: Goto Function
OPERATION The meaning of the menu is the same with the DVD menu above. GOTO FUNCTION FOR DVD: Press GOTO button, the screen will display the following message: Use the number keys to input the desired Title, Chapter or Time, then press OK key to confirm. - Page 22 OPERATION OK will clear the information you have programmed. For data disc including audio (MP3/WMA), movie(MPEG), picture (JPG) files: The operation is the same as VCD/CD operation. Press PROG button on the remote control the following media play window will be shown on the screen: Prog- 1__:__...
- Page 23 OPERATION You can change the OSD LANGUAGE among: English, German, Spanish, French, Portuguese, Italian and Russian. You can change the AUDIO/ SUBTITLE/ MENU language among: English, French, Spanish, German, Italian, Portuguese, Russian. And you can select audio/subtitle/menu language off. AUDIO SETUP •...
-
Page 24: Radio Operation
OPERATION RADIO OPERATION Switching to radio mode Press MODE button on remote control to select radio mode or tap the Radio icon on the SOURCE menu on the screen. In radio mode, the following information will appear on the display. Selecting the frequency band Press BAND on remote control or tap BAND bar on the screen to select... -
Page 25: Av Operation
OPERATION When search station in LOC mode, if there is no station available, it will switch to DIS mode and search station automatically. If there is no station available too it will stop searching and return to LOC mode. When search station in DIS mode, if there is no station available, it will stop searching in DIS mode. - Page 26 OPERATION Pairing icon on the screen the following picture will appear: 1) Tap CONNECT bar to change the mode to connect mobile. (In disconnect mode, you can not pair the unit to the phone.) 2) Tap PAIRING bar on the screen, you will see “Pair allowable”...
- Page 27 OPERATION In this menu, tap the numeric icons to input the phone number then tap to confirm. Pick up/ Hung up a Phone Call In auto answer mode, when a call coming the unit will answer the call automatically. In manual answer mode, when a call coming, tap to pick up the phone.
-
Page 28: Trouble Shooting
TROUBLE SHOOTING If it appears that your DVD unit is faulty, first consult this checklist. It may be that something simple has been overlooked. Under no circumstances should you try to repair the player yourself, as this will invalidate the warranty. Only qualified service personnel can remove the cover or service this player. -
Page 29: Specification
SPECIFICATIONS Power Supply Requirements Maximum Output Power Current Drain RADIO Frequency Coverage Sensitivity (S/N = 30 dB) Image Rejection Stereo Separation Frequency Coverage Sensitivity (S/N = 20 dB) Image Rejection Signal System Discs Played Monitor Screen Size Resolution Note: Specifications and design are subject to modification, without notice, due to improvements in technology.
