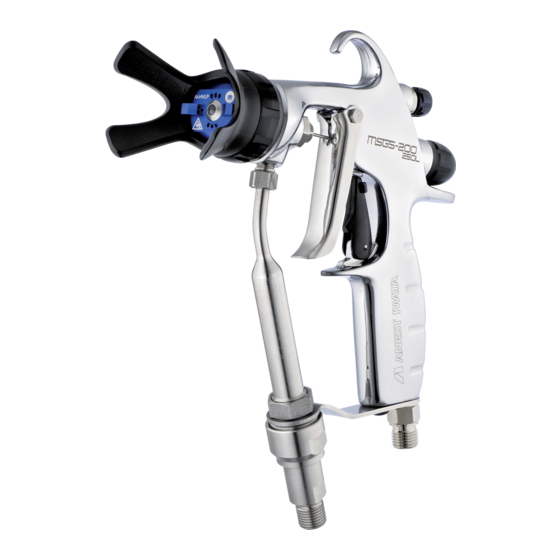

MSG-200B
MULTI SPRAY GUN
Before use, adjustment or maintenance, it is important to read this instruction manual very
GB
carefully. This manual must be stored in a safe place for any future reference that may be necessary.
This ANEST IWATA Multi spray guns kit complies to ATEX regulations 94/9/EC.
Protection level: II 2 G X Suitable for using Zones 1 and 2.
X marking: Any static electricity discharge from the Multi Spray gun is to be diverted to the ground via the conductive air hose as stipulated.
IMPORTANT
This Multi Spray gun should be operated only by an adequately trained operator, for safe use and maintenance of the equipment.
Any misuse or handling other than those indicated in this Instruction Manual is not covered by guarantee. ANEST IWATA dis-
claims all responsibility for any accident or damage caused by failure to observe the operational and safety procedures in this
manual. In the interest of user friendliness, this manual contains information in a brief and concise form.
For any additional information you may require regarding Multi Spray gun operations, or if any missing parts or any damage dur-
ing transportation is found, please contact your nearest ANEST IWATA Company (see last cover page).
Be sure to observe warnings and cautions in this instruction manual.
If not, it can cause paint ejection and serious bodily injury by drawing organic solvent.
Be sure to observe following marked items which are especially important.
WARNING Indicates a potentially hazardous situation which, if not avoided, may result in serious injury or loss of life.
CAUTION Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury or pro-
perty damage.
IMPORTANT Indicates notes which we ask you to observe. The safety precautions in this instruction manual are the mini-
mum necessary conditions. Follow national and local regulations regarding fire prevention, electricity and
safety as well as your own company regulations.
IMPORTANT SPECIFICATIONS
Max. operating fluid pressure: 147 bar (2160 PSI)
Max. operating air pressure: 6.8 bar (98 PSI)
Noise level (LAeqT): 69 dB (A)
Spray conditions: Nozzle tip used NT2004CMU
Fluid pressure: 100 bar (1440 PSI) Tested with water
Atomizing air pressure: 1.5 bar (21.4 PSI)

TECHNICAL SPECIFICATIONS

Model
Max. Operating Operating Max. atomizing
fluid pressure fluid pressure
air pressure
bar (PSI) bar (PSI) bar (PSI)
MSG-200B 147 (2160) 49 (720) 6.8 (98)
Manufactured by:
ANEST IWATA Corporation 3176,Shinyoshida-cho, Kohoku-ku, Yokohama, 223-8501 Japan
Instruction Manual
Max. Temperature:
Atmosphere 5 ~ 40 °C
Air - Fluid 5 ~ 43 °C
Air and fluid connection: G1/4"
Measuring point: 1m backwards from gun, 1.6 m height
Atomizing Use Fluid output Filter Weight
ml/min. size
air pressure
See page 6
bar (PSI) for selection of g (lbs)
nozzle tip
according to
1.5 (21.4) General 200 Mesh 510 (1.13)
kind of paint
