OBJ_DOKU-16809-003.fm Page 1 Tuesday, June 30, 2009 1:39 PM
Robert Bosch GmbH
Power Tools Division
70745 Leinfelden-Echterdingen
Germany
www.bosch-pt.com
F 016 L70 590 (2009.07) O / 165 WEU

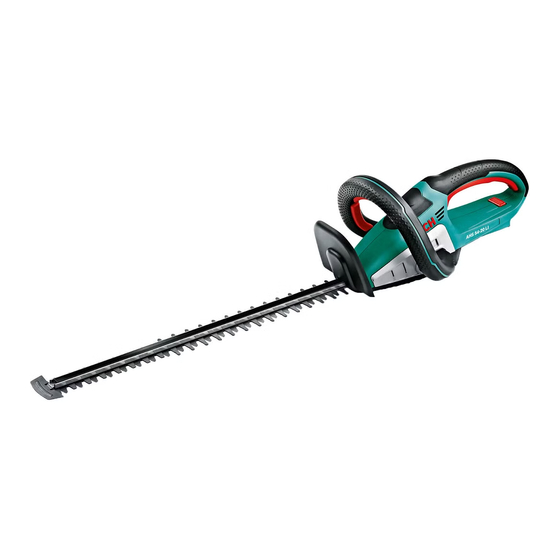

AHS
54-20 LI
de Originalbetriebsanleitung
el Πρωτότυπο οδηγιών χρήσης
en Original instructions
tr Orijinal işletme talimat
fr Notice originale
es Manual original
pt Manual original
it
Istruzioni originali
nl Oorspronkelijke
gebruiksaanwijzing
da Original brugsanvisning
sv Bruksanvisning i original
no Original driftsinstruks
fi
Alkuperäiset ohjeet
Advertisement
Table of Contents
Also See for Bosch AHS 54-20 LI
Related Manuals for Bosch AHS 54-20 LI
-
Trimmer BOSCH AHS 52 ACCU Operating Instructions
(5 pages)
-
Trimmer Bosch AHS 550-16 Original Instructions Manual
(173 pages)
-
Trimmer Bosch AHS 41 Accu Original Instructions Manual
Hedge trimmer (10 pages)
-
Trimmer Bosch AHS 41 ACCU Operating Instrucctions
(71 pages)
-
Trimmer Bosch AHS 48 LI Original Instructions Manual
(297 pages)
-
Trimmer Bosch AHS 48 LI Original Instructions Manual
(133 pages)
-
Trimmer Bosch AHS 45-26 Original Instructions Manual
(193 pages)
-
Trimmer Bosch AHS 45-26 Original Instructions Manual
Up to 700mm cutting length hedge trimmers (13 pages)
-
Trimmer Bosch AHS 45-16 Original Instructions Manual
(163 pages)
-
Trimmer Bosch AHS 45-16 Original Instructions Manual
(103 pages)
-
Trimmer Bosch AHS 45-15 LI Original Instructions Manual
(13 pages)
-
Trimmer Bosch AHS 35-15 LI Original Instructions Manual
(236 pages)
-
Trimmer Bosch AHS 40 - 24 Operating Instructions Manual
(69 pages)
-
Trimmer Bosch AHS 4-16 Operating Instructions Manual
(71 pages)
Summary of Contents for Bosch AHS 54-20 LI
- Page 1 OBJ_DOKU-16809-003.fm Page 1 Tuesday, June 30, 2009 1:39 PM Robert Bosch GmbH Power Tools Division 70745 Leinfelden-Echterdingen Germany www.bosch-pt.com 54-20 LI F 016 L70 590 (2009.07) O / 165 WEU de Originalbetriebsanleitung el Πρωτότυπο οδηγιών χρήσης en Original instructions tr Orijinal işletme talimat...
- Page 2 OBJ_BUCH-948-003.book Page 4 Tuesday, June 30, 2009 2:04 PM 15 16 F 016 L70 590 | (30.6.09) Bosch Power Tools...
- Page 3 OBJ_BUCH-948-003.book Page 5 Tuesday, June 30, 2009 2:04 PM 10 cm Ø 20 mm Ø 25 mm F 016 L70 590 | (30.6.09) Bosch Power Tools...
-
Page 4: Safety Notes
Carrying power tools with your fin- ger on the switch or energising power tools that have the switch on invites acci- dents. Bosch Power Tools F 016 L70 590 | (30.6.09) - Page 5 Have your power tool serviced by a qual- ified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. F 016 L70 590 | (30.6.09) Bosch Power Tools...
-
Page 6: Hedge Trimmer Safety Warnings
Carry the hedge trimmer by the handle with Use the battery only in conjunction with the cutter blade stopped. When transport- your Bosch power tool. This measure alone ing or storing the hedge trimmer always fit protects the battery against dangerous over- the cutting device cover. -
Page 7: Functional Description
– Hedgecutter – Blade guard – Battery – Battery Charger – Operating instructions When parts are missing or damaged, please con- tact your dealer. F 016 L70 590 | (30.6.09) Bosch Power Tools... -
Page 8: Technical Data
OBJ_DOKU-16823-003.fm Page 23 Wednesday, July 1, 2009 10:09 AM English | 23 Technical Data Cordless Hedgecutter AHS 54-20 LI Article number 3 600 H4A 100 No-load stroke rate 2000 Cutting length Cutting width Weight according to EPTA-Procedure 01/2003 Serial number... - Page 9 OBJ_BUCH-948-003.book Page 24 Tuesday, June 30, 2009 2:04 PM 24 | English Technical file at: Battery Charging (see figure A) Bosch Lawn and Garden Ltd., PT-LG/EAE, Do not use other battery chargers. The sup- Stowmarket, Suffolk IP14 1EY, England plied battery charger is designed for the Lith- ium-Ion battery in your garden product.
-
Page 10: Initial Operation
Note: The garden product will not operate un- When the battery is not within the allowable less both locking levels are engaged. temperature range, the red battery LED lights up when inserting the battery into the battery charger. Bosch Power Tools F 016 L70 590 | (30.6.09) - Page 11 15, the battery is defective and must be re- placed. For safety reasons, the charge condition of the battery can only be checked when the garden product is at a standstill. F 016 L70 590 | (30.6.09) Bosch Power Tools...
-
Page 12: Troubleshooting
Contact Service Agent stationary Cutting blade hot Cutting blade dull Have blade sharpened Cutting blade has dents Have blade inspected/over- hauled Too much friction, due to lack Apply lubricant spray of lubricant Bosch Power Tools F 016 L70 590 | (30.6.09) -
Page 13: Maintenance And Service
Check the mains voltage; have battery charger defective the battery charger checked by an authorised after-sales serv- ice agent for Bosch power tools Maintenance and Service Regularly check for obvious defects such as loose fixings, and worn or damaged compo- nents. -
