Receiver Installation (BF units only)
7. Insert the plug connector from
the remote control bracket
(Figure 4) into plastic plug
inside the fireplace.
8. Run black antenna wire under
remote bracket and ensure
all wiring is placed such that
it does not interfere with re-
assembly.
9. Install the two (2) screws
removed in step 4 into the
remote control bracket and
attach it to the fireplace.
10. Replace the log set by insert-
ing front edge and pushing the
back down until rear tab snaps
under back ledge (Figure
2) and the logs are resting
against the partially reflective
glass.
11. Replace log grate using two
(2) screws previously removed
in step 2.
6

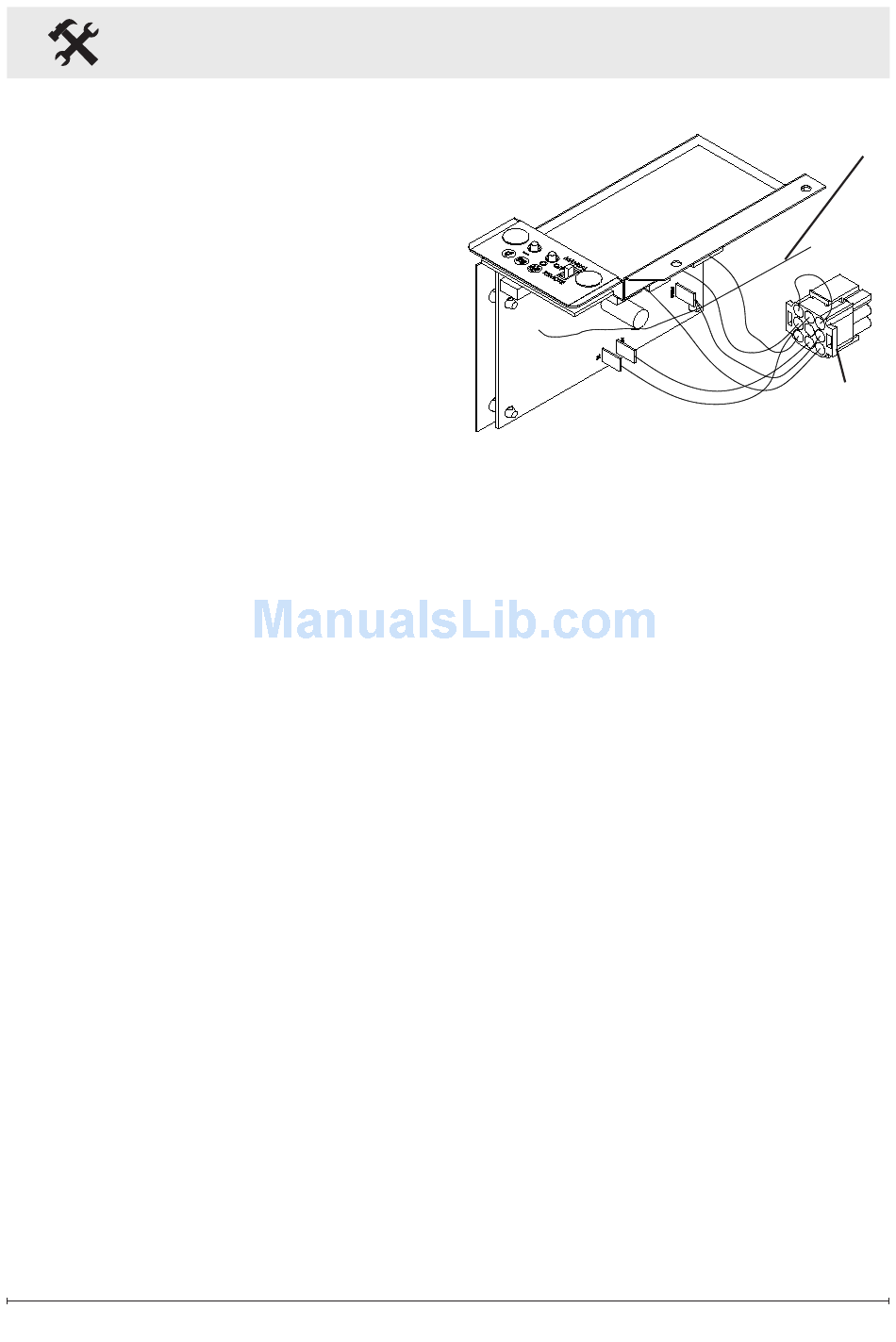

Figure 4
Remote Control
Antenna
Plug
Connector
