Receiver Installation (BF units only)

1. Open steel curtain (remove
glass doors if applicable).
2. Remove two (2) screws on log
grate and remove log grate
(Figure 1).

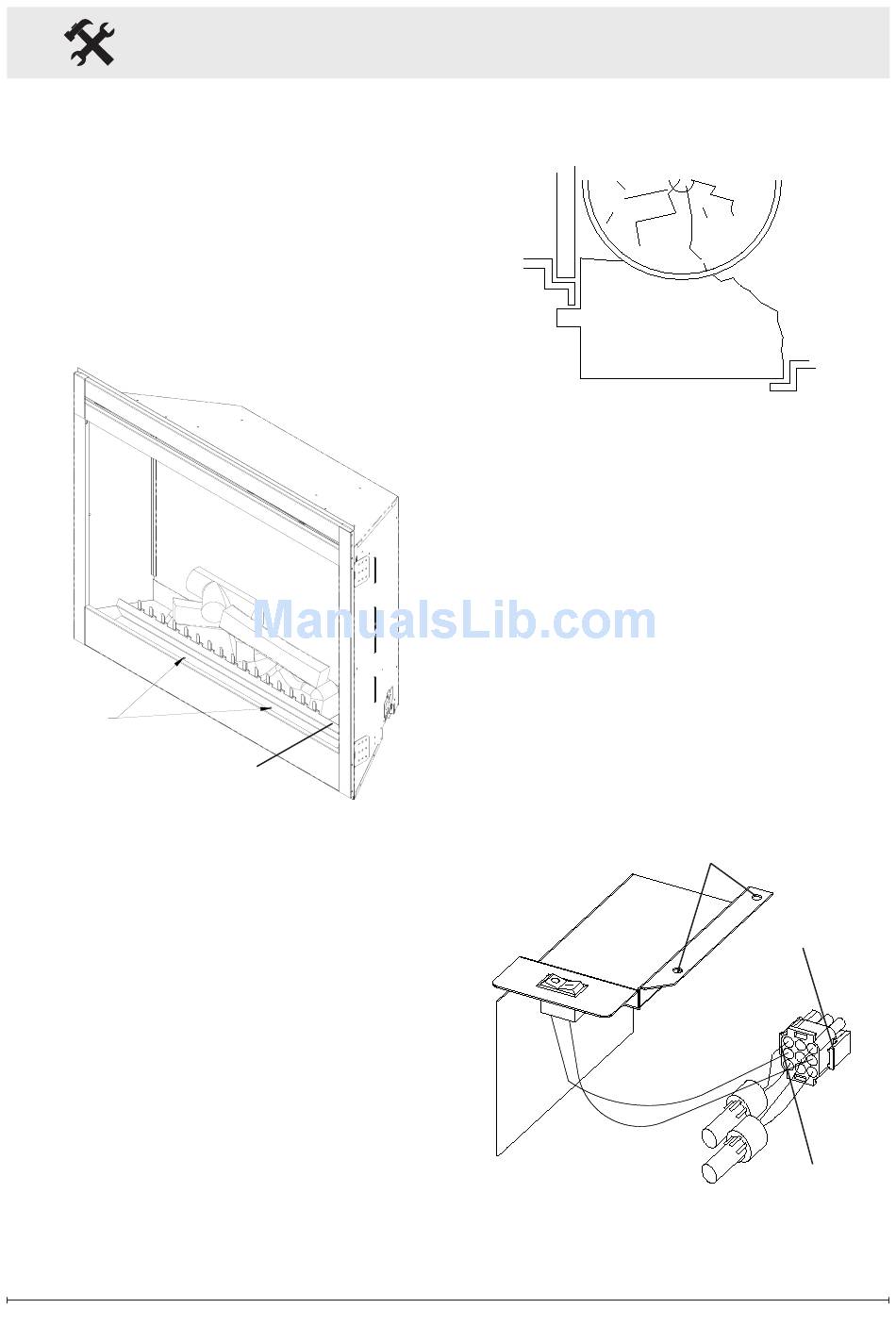

Figure 1
Screws
Manual Controls
3. Pull front edge of plastic em-
ber bed grate up and forward
until rear tab releases from the
ledge located at the bottom
of the partially reflective glass
(Figure 2).
!
NOTE: Log set fits tightly into
firebox, some force may be
necessary to remove.
4. Locate and remove the two (2)
screws on the manual control
bracket (Figure 3). Remove
the bracket.
Figure 2
Back
ledge
Rear
tab
Side section
5. Locate and depress the
mounting tabs on the plug con-
nector and remove the manual
control bracket from fireplace
(Figure 3).
6. Locate the plastic 9-pin plug
in the bottom corner of the
fireplace where the manual
controls were plugged in to.
Figure 3
Manual controls
Log
ember
bed
Front
edge
Screw locations
Mounting
Plug
connector
tabs
