Dimplex WRCPF-KIT Owner's Manual page 11

Wall Control Installation
without being removed first from
the device box in the wall.
! NOTE: A Philips head screw-
driver will be required for this
step.
8. Using the wiring diagram in
Figure 15 as a guide, make
the appropriate wire connec-

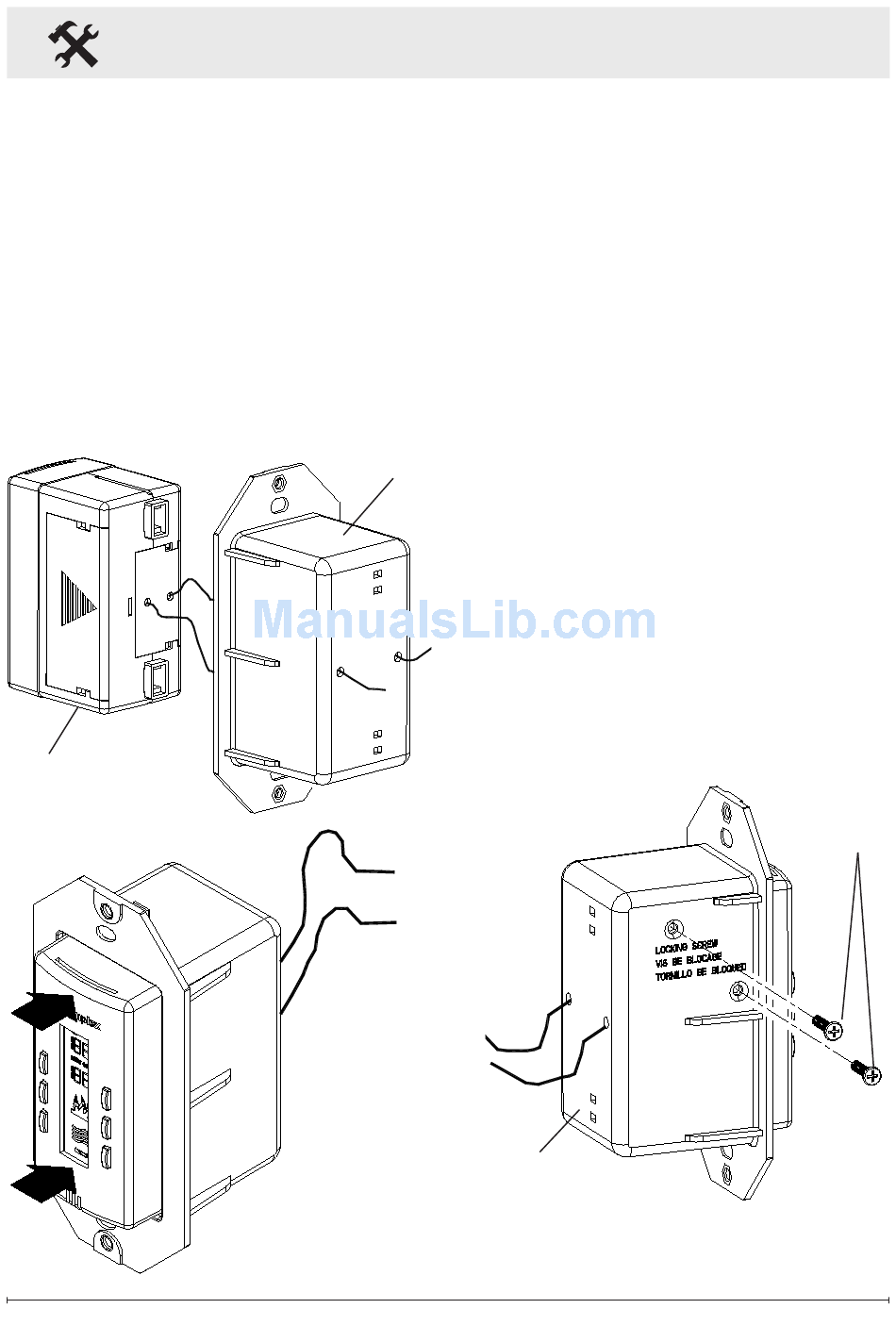

Figure 12
Controller
Figure 13
tions.
! NOTE: Wire leads are not
polarized due to the nature of
this device.
9. Coil excess wiring to the back
of the device box and insert
the Controller and Outer Hous-
ing into the device box (Figure
16). Fasten with two supplied
Outer
flat head screws.
Housing
10. Attach your choice of Decora
style faceplate (not supplied)
to complete the installation
and to blend the installation in
with your choice of decor.
11. Initialize the sender with the
receiver installed in your fire-
place.
Figure 14
Outer
Housing
Locking
screws
11
