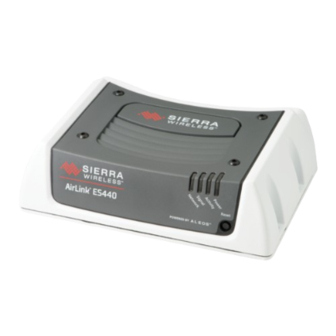

AirLink ES440 Quick Start Guide
®
This guide provides instructions for quickly getting your Sierra Wireless
For more information refer to the:
• AirLink ES440 User Guide
• ALEOS Configuration User Guide
™
Both are available for download from the Sierra Wireless web site (www.sierrawireless.com/Support/Downloads).

STEP 1 Install the SIM Card

1 Remove the four screws attaching the grey cover to the device's body.
2
Slide the SIM card into the SIM card holder.
Note the location of the notched corner for correct alignment.
3 Replace the cover.

STEP 2 Connect the Device

NOTE: If you want to configure all your devices at the same time using AirVantage
register your devices before applying power.
1 Connect the primary RF
antenna.
5 Connect the power cable to the device.
The device starts automatically, as indicated by the flashing LEDs.
© 2013 Sierra Wireless All Rights Reserved
2 Connect the secondary RF
antenna.
4
Optional: Connect the RS‑232 port to the router console port using a null
modem converter / cable.
Page 1
PN 2400000 Rev. 1
ES440 device configured and connected.
®
Management Service, follow the instructions on page 2 to
®
3a AceManager configuration:
Connect a Windows computer to the
®
device with an Ethernet cable.
3b AirVantage configuration:
Connect the router port performing
ISP failover to the ES440 device's
Ethernet port.
