Intel AC450NX Quick Start Manual page 6

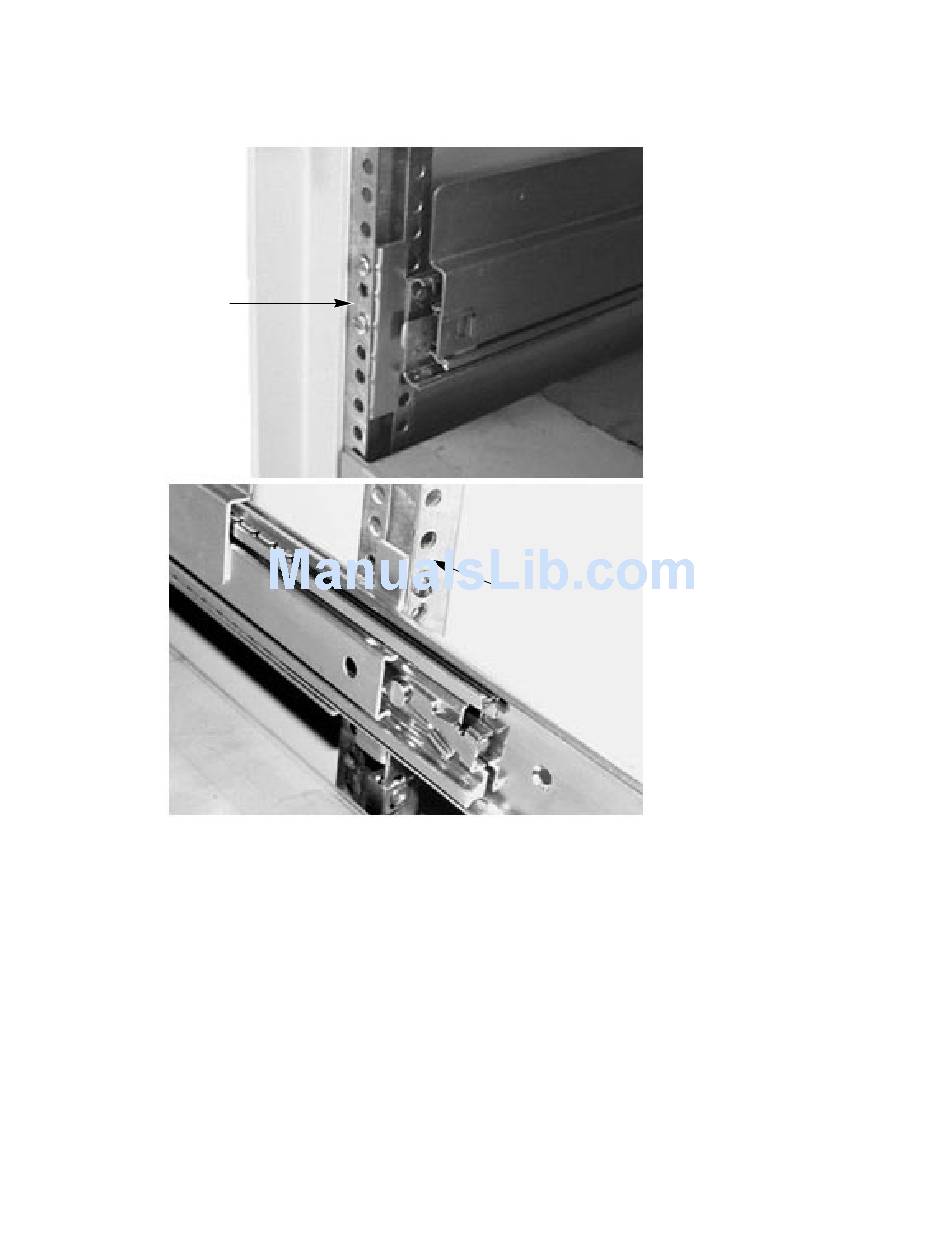

1. Select a height within the rack to install the slide assemblies.
2. Using the screws and nuts provides, attach the slide assemblies on the rack.
A
3. Fully extend the slide assemblies until they lock into place.
4. Lower the system onto the side assembly tabs. The tabs install into the slots on the system.
5. Secure each slide assembly to the system with three provided screws.
6 Quick Start Guide
B
A. Slide assembly front
B. Slide assembly rear
OM07362
