ZKTeco biocam series Installation Manual

BIOCAM Series Product Installation Guide

Precautions


DO NOT connect cables when the power is on.

Working Conditions
Operating temperature: -10 º C ~50 º C. Operating humidity: 10% ~80%.

Communication Distance
When communication distance exceeds 80 meters, please use relay device.
(Remarks: under the POE [Optional] mode, if transmission distance is greater than 60
meters, please use a repeater.)

Keep the lens clean. If the lens is too dirty, use a tidy and soft cloth to clean the lens.

Do not point the camera against an object emitting strong light for a long time.
Otherwise, the image sensor of the camera may malfunction, which leads to absence or
distortion of images.

Tips: The product is applicable only to indoor installation. Do not install the device
outdoors or semi-outdoor; otherwise, the warranty is not granted.

Power Requirement
The power must be DC 12V, rated current >= 1.5 A.

All uncovered cable should be less than 5mm, to avoid exceptional device damage.
Recommended horizontal distance from the user to face recognition camera is about 3
meters. (Applied to height range 1.5~1.9m)

Suggest Condition
Install the device indoors; stay away from and back to the window and the door; and 6.5 feet
(2m) away from light fixtures. Preferable light intensity should range between 0~300 Lux.
(Note: The installation and the use

The area in which face recognition can be implemented is defined as follows: the
left-to-right distance is about 0.35 m, and the front-to-rear distance is about 1 m. (For details,
see Appendix > Face Recognition Area)

Installing positions that affect the use effect of the device

Reference luminance of the light source in the installation environment
10 Lux
Version: 1.2 Date: July 2014
environment; please refer to the Application Guide.)
1200+ Lux 50~300 Lux
-1-

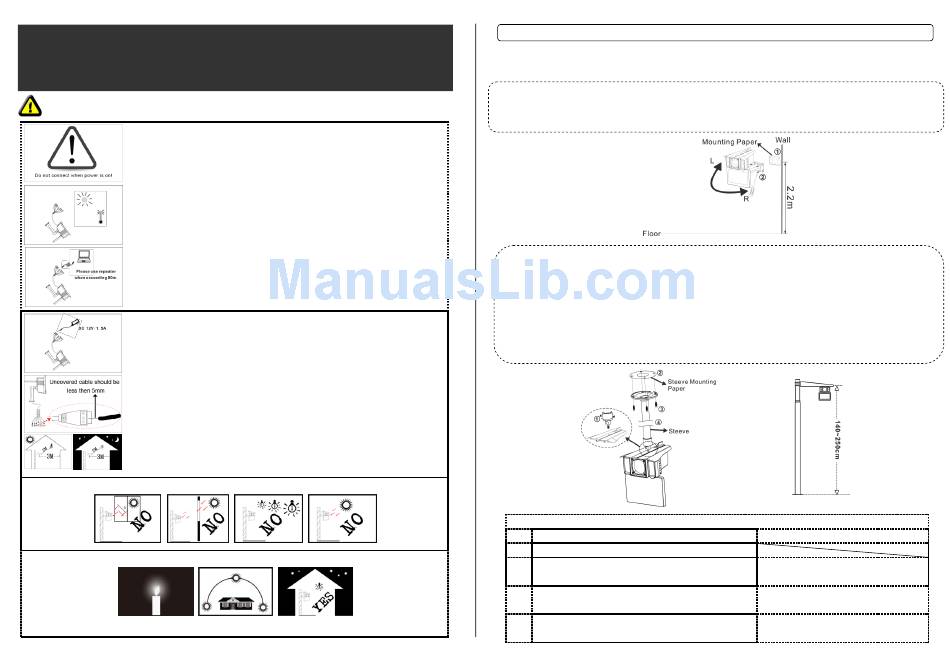

Chapter 1: The Installation of Device

1. Install Device



Wall Mounting

1. Attach the installation template to the wall where you want to mount the camera and drill holes. (It is recommended to install the
device at a height of 2.2 m; according to needs, you can adjust it to 2~2.4 meters)
2. Fix the camera on the wall using four screws. (The device can be rotated left to right so that screws can be conveniently fastened.)


Top Mounting

1. Connect the steeve to the device
2. Attach the steeve mounting paper onto the wall or ceiling where the device will be installed. Drill holes according to marks on the
steeve mounting paper
3. Use screws to fix the steeve
4. Adjust the length of the steeve to ensure that the Face Recognition Camera is 2.2 meters off the ground. (Note: according to
needs, you can adjust it to 2~2.4 meters.

Note: The steeve is not included in the standard configuration. The device supports three types of steeves that are
respectively 40~80 cm, 80~160 cm, and 140~250 cm (Floor Standing).
NO. Description
1 Use the standard wall-mount bracket that comes with the device.
Use a 40 to 80 cm ceiling-mount bracket instead of the standard
2
bracket that comes with the device.
Use an 80 to 160 cm ceiling-mount bracket instead of the
3
standard bracket that comes with the device.
4 Use a 140 to 250 cm floor-mount bracket.

Installation Mode

Note
The 40 to 80 cm bracket is applicable to the
storey height of 2.6 to 3.4 m.
The 80 to 160 cm bracket is applicable to the
storey height of 3.4 to 4.2 m.
Fix the bracket on the floor, and fix the device on
the bracket.
-2-
