➤ To zoom in to a more detailed chart:
1. Use the trackpad to position the cursor in the area you wish to see in
more detail and press the bottom of the RANGE key to zoom in.
The section of the chart around the cursor is enlarged to fill the screen
with the chart showing more detail. The cursor is now positioned in
the center of the screen.
2. If further chart enlargement is available using the current chart card
you can press the bottom of the RANGE key to zoom in again, reposi-
tioning the cursor first if needed.

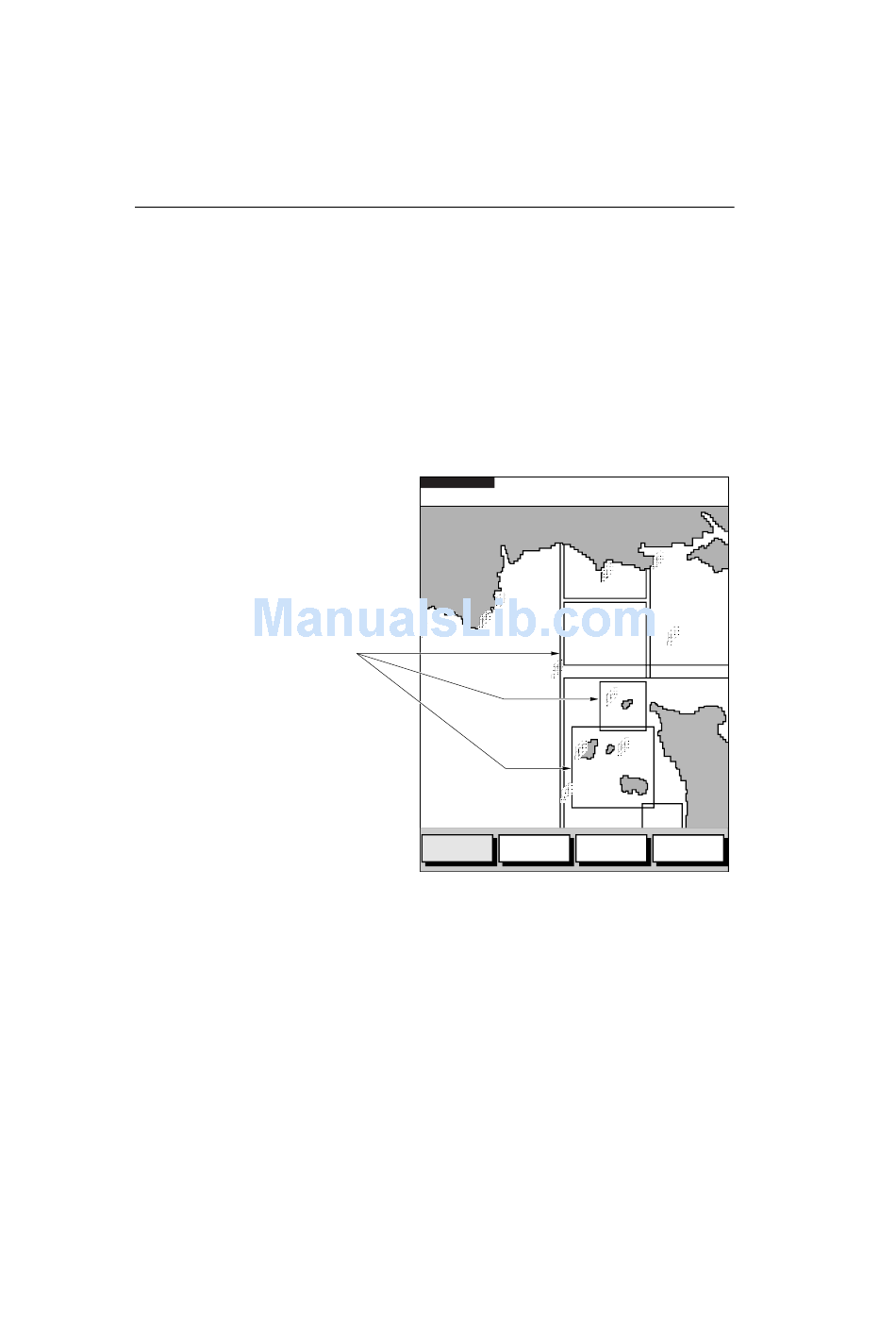

An area of further chart detail is indicated by a box around the area.
Chart Boundary -
Indicates further
detail is available inside.
Shown when using
®
Navionics
3. In normal operation, the unit will allow you to zoom in as far as the
chart detail allows. By selecting PLOTTER MODE in CHART SETUP you
can "overzoom" beyond that of the chart card and the vessel, way-
points, routes and tracklines will be displayed without cartography.
To zoom out to a less detailed chart, press the top of the RANGE key as
➤
many times as desired.
