Chapter 3: Getting Started
Press
to return to
Chart display
SUNRISE 05:05
SUNSET 21:14 TODAY
AT POSITION (VESSEL)
5 0 ° 4 6 . 3 4 9 ' N
0 0 1 ° 1 0 . 4 1 1 ' W
TIME 02:18
DATE 10/07/04
ETA (WAYPOINT) 03:03 10/07/04
TTG (WAYPOINT) 00:44
ETA (ROUTE) 03:44 10/07/04
TTG (ROUTE) 01:25
STEER STARBOARD
> l
Press to display
Time/Date
information
POSITION
50°46.338'N
1°10.391'W
COG 313° T
SOG 5.0 Kts
WAYPOINT "HILLHEAD"
BRG 313°T GPS FIX OK
RNG 3.74nm TIME 02:15 10/07/04
STEER STARBOARD
> l
Press
to display
Navigation Data

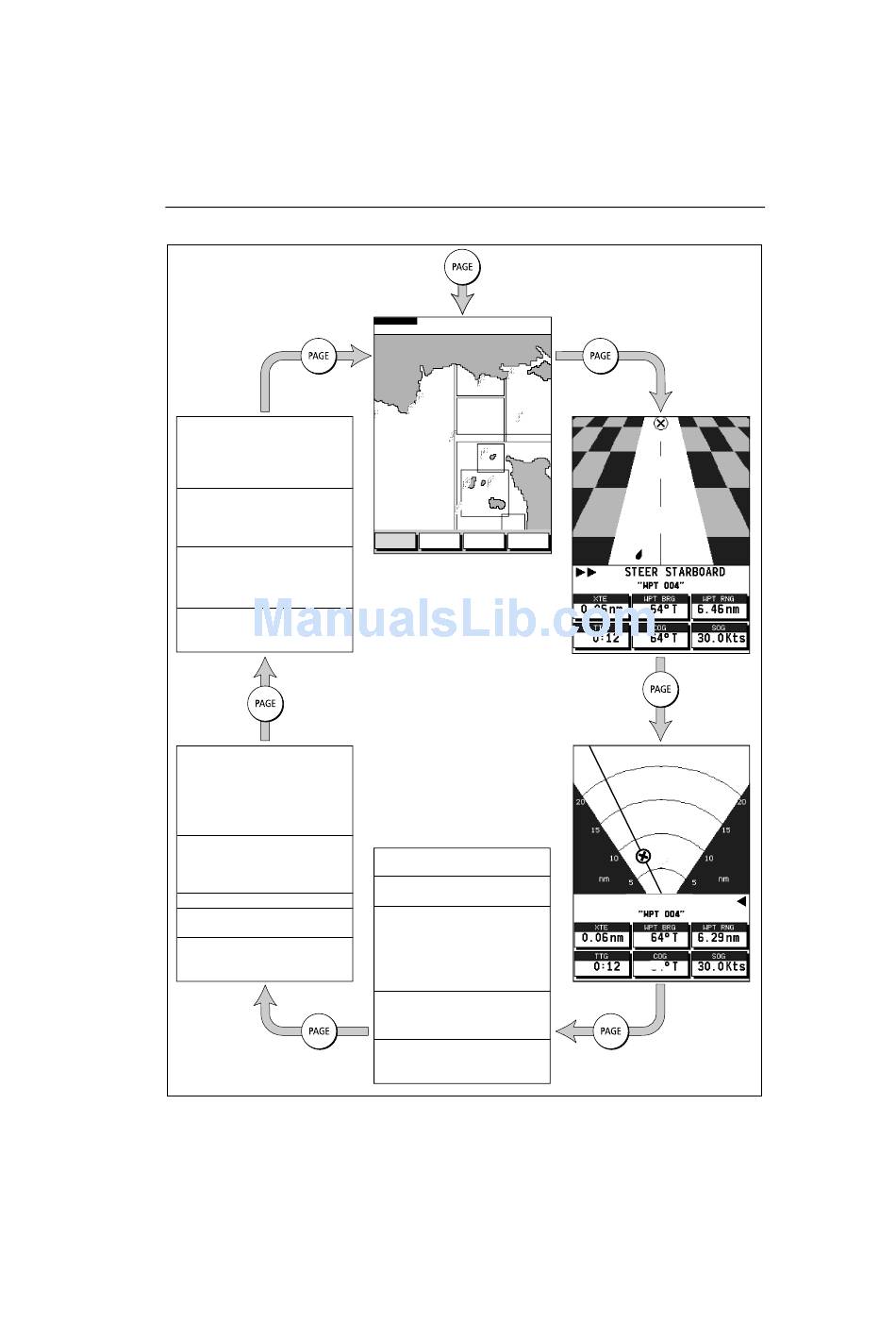

Figure 3-1: Display Modes
SIM OV NU CSR 48°30.367'N
BRG 231°T
128 nm
POS 1°35.636'W RNG 40.91nm
EXETER
TOPSHAM
TEIGNMOUTH
EXMOUTH
ENPORT
TORQUAY PORTLAND ISLE O
PLYMOUTH
DARTMOUTH
HARBOUR
SALCOMBE
CAP DE
LA HAGUE
ALDERNEY
GUERNSEY
JERSEY
PORTB
SYSTEM CHART TRACK GPS
SETUP SETUP SETUP SETUP
Note: In any display mode,
press GOTO to return
to chart display
ROUTE
"CURRENT"
WAYPOINT 01
"HILLHEAD"
BRG 313° T
RNG 3.76 nm
COG 313°T TIME 02:15 10/07/04
SOG 5.0 Kts TTG 00:47
XTE 0.02nm ETA 03:02 10/07/04
STEER STARBOARD
> l
Press
to display CDI
Press to display
BDI
STEER PORT
76
Press
to display
Waypoint Data
25
D6232-2
