Avonic CM50-IP User Manual

Hd video conferencing camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

HD Video Conferencing Camera
User Manual
V2.2
(English)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CM50-IP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Avonic CM50-IP

Summary of Contents for Avonic CM50-IP

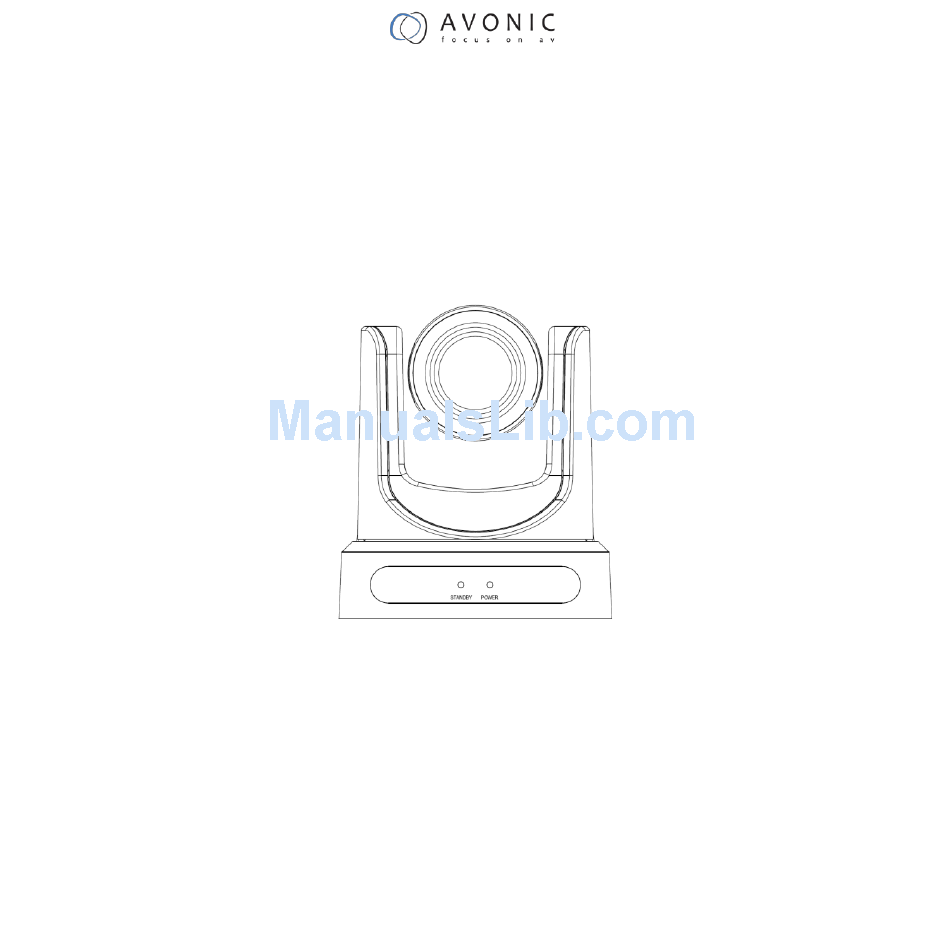

  • Page 1 HD Video Conferencing Camera User Manual V2.2 (English)
  • Page 2 Preface Thanks for using this HD Video Conferencing Camera. This manual introduces the function, installation and operation of the HD camera. Prior to installation and usage, please read the manual thoroughly. Precautions This product can only be used in the specified conditions in order to avoid any damage to the camera: ...

  • Page 3: Table Of Contents

    Contents Note .................................... 3 Supplied Accessories ..............................5 Quick Start ................................. 6 Features ..................................9 Product Specification ............................... 10 Main Unit ................................. 13 Size................................... 14 IR Remote Controller Explanation .......................... 15 USE IR Remote Controller ............................18 RS-232 Interface ..............................22 VISCA Network Configuration ..........................

  • Page 4: Note

    Note  Electric Safety Installation and operation must accord with electric safety standard.  Caution to transport Avoid stress, vibration and soakage in transport, storage and installation.  Polarity of power supply The power supply of the product is +12V, the max electrical current is 2A .Polarity of the power supply plug drawing as follows.
  • Page 5 The specific frequency of electromagnetic field may affect the image of the camera!

  • Page 6: Supplied Accessories

    Supplied Accessories When you unpack, check that all the supplied accessories are included: Camera ........1PCS AC power adaptor ..... 1PCS Power cord ........1PCS RS232 cable ........ 1PCS Remote controller ......1PCS User manual ......1PCS...

  • Page 7: Quick Start

    Quick Start Step1. Please check connections are correct before starting...
  • Page 8 Step2. Setting of the system select switch The option of video format: VIDEO SYSTEM 1080i60 1080i50 720p60 720p50 576i 1080p30 480i 1080p25 CAUTION: a. After changing the switch, you need to restart the camera to take effect. Step3. Press the Switch ON/OFF button on the rear of the camera, the power lamp light. Step4.
  • Page 9 RESTORE DEFAULT Restore Change Value [Home] OK [Menu] Back...

  • Page 10: Features

    Features 1. The camera provides a high performance in low illumination situations, particularly suitable for which room's lighting is not very well. 2. With maximum resolution of 1920 x 1080 and output frame rate up to 30 frames / sec, this camera provides high-definition as well as fluent video.

  • Page 11: Product Specification

    Product Specification Camera Video system 1080i/60,1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50, NTSC, PAL Sensor 1/2.7", CMOS, Effective Pixel: 2.07M Scanning Mode Progressive Lens 20x, f4.42mm ~ 88.5mm, F1.8 ~ F2.8 Digital Zoom Minimal Illumination 0.5 Lux @ (F1.8, AGC ON) Shutter 1/25s ~ 1/10000s Auto, 3000K/Indoor, 4000K,5000K/Outdoor, 6500K_1,6500K_2,6500K_3,One Push, White Balance...
  • Page 12 Main stream resolution 1920X1080,1280X720 Sub stream resolution 720X480,320X240 128K,256K,384K,512K,768K,1024K,1536K,2048K,3072K,4096K,5120K,6144K,8192K Bit Rate Optional, customize Bit Rate Type Variable rate, fixed rate Audio standard Audio rate 96K,128K,256k Support protocols TCP/IP,HTTP,DDNS,RTSP,PPPoE,SMTP,UPnP, SNMP,FTP(Optional) Maximum Frame Format PAL:1-25, format NTSC:1-30 I Frame Gap Customizable,(must be greater than or equal to the maximum frame rate) Video Format PAL,NTSC Web Stream...
  • Page 13 Input Voltage DC 12V Current consumption 1.0A (Max) Operating Temperature -5°C ~ 40°C Storage Temperature -20°C ~ 60°C Power 12W(Max) Dimensions 142mm x 169mm x 176mm Weight 1.5Kg...

  • Page 14: Main Unit

    Main Unit 1. Audio LINE IN Interface 7. Network Interface 2. CVBS Interface 8. HDMI Interface 3. System select switch 9. HD-SDI Interface 4. RS485 jack 10. USB2.0 5. RS232 IN jack 11. DC 12V jack 6. RS232 OUT jack 12.

  • Page 15: Size

    Size...

  • Page 16: Ir Remote Controller Explanation

    IR Remote Controller Explanation 0. Standby Button Press this button to enter standby mode. Press it again to enter normal mode. (Note: Power consumption in standby mode is approximately half of the normal mode) 1. Position Buttons To set preset or call preset 2.
  • Page 17 only in auto exposure mode) Note: If a light behind the subject, the subject will become dark. In this case, press the backlight ON / OFF button. To cancel this function, press the backlight ON / OFF button. 5. Focus Buttons Used for focus adjustment.
  • Page 18 [*]+[＃]+[F4]: Address4...

  • Page 19: Use Ir Remote Controller

    USE IR Remote Controller When the camera is working, you can use remote controller to perform panning, tilting, zooming and focusing, store and call back preset positions. Button Instruction： 1. In this instruction, ‘press the button’ means the press and relax the two actions. Such as ‘press [HOME] button’...
  • Page 20 Press and hold the button, the action of focus continues and stops as soon as the button is released. AUTO: Change focus mode to AF, adjusting the focus automatically. MANUAL: Change focus mode to MF, adjusting the focus manually. 4. Backlight Switch Zoom Out: press [ZOOM ] button Zoom In: press [ZOOM ] button...
  • Page 21 Press any of the numeric buttons 0-9 directly to recall stored preset positions and settings. Note: 1. To store a preset position: The users should No action is executed if a relative preset press the [SET PRESET] button first and then press position is not stored.
  • Page 22 8. Camera IR Address Set [*]+[＃]+[6]:Quickly recover the default [*]+[＃]+[7]:Display the manufacturer infornation [*]+[＃]+[8]:Look the camera version [*]+[＃]+[F1]: Address1 [*]+[＃]+[9]:Quickly set up inversion [*]+[＃]+[F2]: Address2 [*]+[＃]+[F3]: Address3 [*]+[＃]+[F4]: Address4 9. Shortcut Set [*]+[＃]+[1]: OSD menu default English [*]+[＃]+[3]: OSD menu default Chinese [*]+[＃]+[4]: Default IP address [*]+[＃]+[5]:Save OSD...

  • Page 23: Rs-232 Interface

    RS-232 Interface Camera Windows DB-9 1.DTR 1.CD 2.DSR 2.RXD 3.TXD 3.TXD 4.GND 4.DTR 5.RXD 5.GND 6.GND 6.DSR 7.IR OUT 7.RTS 8.NC 8.CTS 9.RI Camera Mini DIN Function 1.DTR 1.DTR 2.DSR 2.DSR 3.TXD 3.TXD 4.GND 4.GND 5.RXD 5.RXD 6.GND 6.GND 7.IR OUT 7.NC IR OUT 8.NC...

  • Page 24: Visca Network Configuration

    VISCA Network Configuration...

  • Page 25: Serial Communication Control

    Serial Communication Control In default working mode, the camera is able to connect to a VISCA controller with RS232C serial interface.  RS232 Communication Control The camera can be controlled via RS232 ,the parameters of RS232C are as follows: Baud rate: 2400/4800/9600 bit/s. Start bit: 1 bit.

  • Page 26: Visca Command List

    VISCA Command List (Ignore) Note: The camera serial standard VISCA/Pelco-D/Pelco-P, if the need for the secondary development, According to standard protocol to control the camera. If you need VISCA/Pelco - D/Pelco - P protocol command list in detail, please contact the manufacturer.

  • Page 27: Menu Setting

    Menu Setting 1. MENU EXPOSURE Press [MENU] button to display the main menu Mode Auto on the normal screen, using arrow button to move ExpCompMode the cursor to the item to be set. Press the [HOME] Backlight button to enter the corresponding sub-menu. Gain Limit Anti-Flicker 50Hz...
  • Page 28 mode) COLOR Backlight: Set the backlight compensation, WB Mode Auto Optional items: On, Off (Effective only in Auto Saturation mode ) DRC: DRC strength, Optional items: 0 ~ 8. AWB sens Bright: Intensity control, Optional items:00~17. (Effective only in Bright mode) Anti-Flicker Flicker: Anti-flicker.
  • Page 29 Optional items: Normal, High, Low. items: On, Off. 4. IMAGE Flip-V: Image Flip Vertical. Optional items: Move the cursor to the Image item in the main On, Off menu and press [home] button, IMAGE menu B&W-Mode: Image color. Optional items: On, appears, as shown in the following figure.
  • Page 30 Optional items: On, Off NR2D-Level: 2D noise reduction. Optional AF-Zone: Interested in focusing area, Optional items: Off, Auto, 1 ~ 5 items: Top, Center, Bottom NR3D-Level: 3D noise reduction. Optional AF-Sense: Automatic focusing sensitivity items: Off, 1 ~ 8 options, Optional items: Low, Normal, High D-HotPixel: Dynamic bad points, Optional...
  • Page 31 Chinese RESTORE DEFAULT Protocol: Control protocol type. Optional items: Restore? AUTO, VISCA, PELCO-D, PELCO-P V_Address: Protocol address, To be decided according to the agreement, AUTO, VISCA protocol Optional items: 1 ~ 7 P_D_Address: PELCO-D protocol Optional items: 0 ~ 254 P_P_Address: PELCO-P protocol Optional Change Value items: 0 ~ 31...

  • Page 32: Internet Connection(Only The Network Models)

    Internet connection 1. Operating Environment Picture 1.2 Connect by router /interchanger Operating System: Windows 2000/2003/XP/ vista/7/8 4. IP camera visited/ controlled by Network Protocol: TCP/IP Client PC: P4/128MRAM/40GHD/ support scaled graphics card, support DirectX8.0 or more 1. Setup IP address advanced version.
  • Page 33 NOTE! IP camera default IP address"192.168.100.88", user "admin", password "admin". 2. Visit/Access IP Camera Method 2: Open “upgrade_En.exe”, change IP Input http://192.168.100.88 to IE ( better and click “Set”. After modified, IP Camera be with IE web browser, others will cause little restart.
  • Page 34 5. IP Camera accessed/controlled by WAN (internet) 1. Setup IPC accessed/controlled by dynamic 2 dynamic DNS available: Dyndns.org, 3322.org Router Port Mapping: After login, shown as below: Take TP-LINK router for example, enter Router Home Page (interface page),select “Transit control”- “...
  • Page 35 2. Dynamic DNS visit camera Set domain name to camera, setup the parameter, then dynamic access camera.Access link: http://hostname :port numberFor example, setup host computer name: youdomain.f3322.org, camera port number: 554,Access link should http://youdomain.3322.org:554. Input URL address: NOTE！ rtsp://ip: port number/1 (Main stream); If camera port default as 80,then unnecessary to rtsp://ip: port number/2 (Sub stream).

  • Page 36: Ip Camera Parameter Setup

    1) Video playback pause button: control real-time video pause, stop the last picture, click recoverable video again. 2) Audio control buttons: can set slient mode. 3) Full screen switch button. 1.2 PTZ Setup 6. IP Camera parameter setup 1 Homepage introduction Menu All pages include 2 menu bars: Real time monitoring: displaying video image...
  • Page 37 left, right, home oblique button as above 2) Rate: Vertical speed can be chosen as 1 ~ 24, horizontal direction at the rate of 1 ~ 20. 3) select corresponding speed and click direction button to realize PTZ speed up or speed down.
  • Page 38 image will be, more network bandwidth will be window. taken. 9) dFluctuate level 5) Bit Rate Restrain the fluctuation magnitude of variable User can assign bit flow/stream, normally rate, grade 1 ~ 6 3 Image Setup,please click “Image” speaking, the bigger bit flow is, the clearer the image will be.
  • Page 39 Saturation 0~100, slider control, on the right shows the corresponding numerical. Default 50. 3) Contrast Contrast0~100, slider control, on the right shows the corresponding numerical. Default 57. 4) Sharpness Sharpness0~100, slider control, on the right shows the corresponding numerical. Default 16. 5) Hue Hue 0~100, slider control, on the right shows the 1) Audio Type...
  • Page 40 5 System Setting, please click “System” 6 Network Setting,please click “Network” 1) Lan Settings Default the IP address is 192.168.100.88, The MAC address can be modified. 1) Work Mode 2) Port Settings Work Mode RTSP IP address identifies the network device, the 2) Reboot device can run multiple web applications, each Click the "Reboot"...
  • Page 41 VLC tools broadcast. 4) TCP Port Support TCP protocol, default port: 5678. 5) Apply / Cancel Modify network parameters then press "Apply" button to modify network parameters, press "Cancel" button to cancel network parameters. 7 Device Information,please click “information” Show the current device information, as shown below.

  • Page 42: Maintenance And Troubleshooting

    Maintenance and Troubleshooting Camera Maintains  If camera will not be used for a long time, please turn off the power switch, disconnect AC power cord of AC adaptor to the outlet.  Use soft cloth or tissue to clean the camera cover. ...
  • Page 43  IE browser not video image IE When IPC first time accessed by Internet Explore (IE or other web browser),must install plug-in. User first time use this camera by internet (only for new user), must install a player software (VLC). and Install VLC (player software).
  • Page 44 Copyright Notice All contents of this manual, whose copyright belongs to our Corporation. Cannot be cloned, copied or translated without the permission of the company. Product specifications and information which were referred to in this document are for reference only, and the content will be updated at any time without prior notice 2015/4...
