Avonic AV-CM41-VCUC User Manual

Video conference camera usb2.0 black
Hide thumbs Also See for AV-CM41-VCUC:
Table of Contents

Advertisement

Quick Links

Download this manual

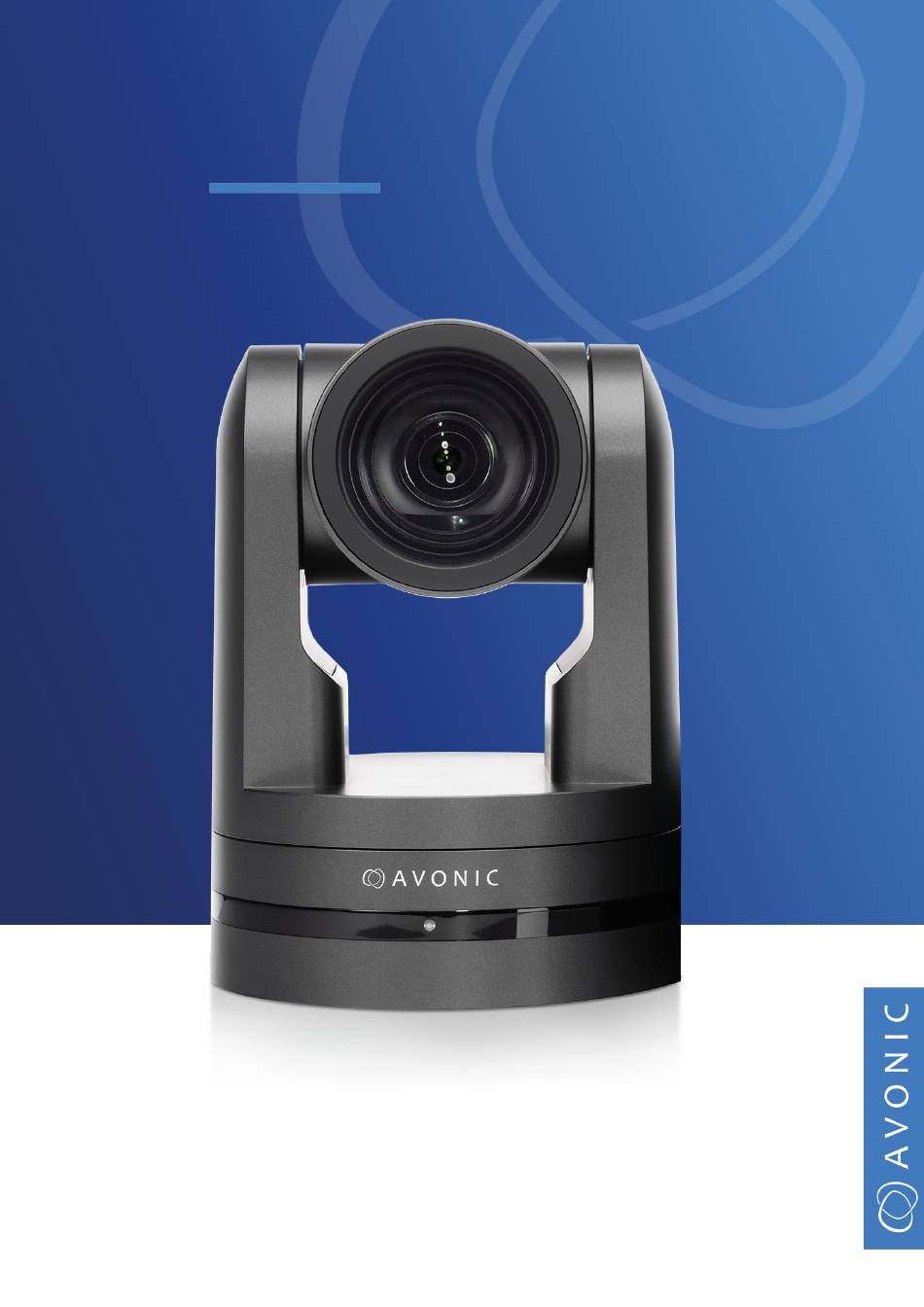

USER MANUAL
Video Conference Camera USB2.0 Black
AV-CM41-VCUC
www.avonic.com
•
© August 2023
•
Version 1.3.4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AV-CM41-VCUC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Avonic AV-CM41-VCUC

Summary of Contents for Avonic AV-CM41-VCUC

  • Page 1 USER MANUAL Video Conference Camera USB2.0 Black AV-CM41-VCUC www.avonic.com • © August 2023 • Version 1.3.4...

  • Page 2: Disclaimer, Contact, Ip Rating, Markings

    “look and feel” and arrangement of such Content, contained in this Manual is owned, controlled or licensed by or to Avonic, and is protected by trade dress, copyright, patent and trademark laws, and various other intellectual property rights and unfair competition laws.

  • Page 3: Ec Declaration Of Conformity

    EN 55032: 2015 EN 61000-3-2: 2014 EN 61000-3-3: 2013 EN 55024: 2010+A1: 2015 6. Signed for and on behalf of Avonic: Delfgauw, 6th of May 2020 Martijn van Bodegom, Product Manager For compliance to American (US) regulations, look for the FCC logo on the product/package.

  • Page 4: Important Information

    IMPORTANT INFORMATION Liability Avonic will NOT be held responsible for any damage or injury caused by unqualified persons carrying out these tasks, or by not following the instructions in this Manual. Intended Use and Non-Intended Use Installation The following applies to the installation of the camera: •...
  • Page 5 Setting that automatically determines the best configuration for the shutter speed. The higher the shutter speed, the more sharp the picture become. Stock Keeping Unit The stock keeping unit used by Avonic. Every camera has an unique SKU beginning with AV-CM (Avonic Camera). Transmission Control Protocol Communication protocol in computer networks and the internet.

  • Page 6: Table Of Contents

    Contents DISCLAIMER, CONTACT, IP RATING, MARKINGS................. ii EC DECLARATION OF CONFORMITY....................iii IMPORTANT INFORMATION........................iv Liability..............................iv Intended Use and Non-Intended Use....................iv Installation............................. iv Operation..............................iv Important Precautions......................... iv Symbols Used in This Manual......................iv Acronyms............................... v INTRODUCTION............................9 Purpose of This Manual........................9 Target Audience...........................9 Document Structure..........................
  • Page 7 m. Function Keys (F1/F2/F3/F4)......................21 n. Blank Buttons...........................21 Other Key Combinations........................22 Using the Select Switch........................22 OSD Menu............................23 First time usage........................... 24 1. MENU............................... 27 2. SETUP..............................27 3. CAMERA............................27 3.1 EXPOSURE............................28 3.2 COLOR............................31 3.3 IMAGE............................31 3.4 FOCUS............................
  • Page 8 APPENDIX C - HTTP API........................59 How to use HTTP API...........................59 Curl............................... 60 {"GetEnv"}.............................60 HTTP API code list..........................61 IR Remote Control..........................61 PTZ.................................61 Audio..............................63 Video..............................64 Network..............................68 System..............................69 APPENDIX D - CMOS SENSOR CHARACTERISTICS................71 APPENDIX E - DATASHEET SPECIFICATIONS..................72 SPECIFICATIONS...........................72 APPENDIX F - LIST OF SUPPORT ARTICLES..................

  • Page 9: Introduction

    INTRODUCTION Purpose of This Manual The Avonic CM41 camera manual provides instructions on the safety measures for unpacking, installation, operation, maintenance, and disposal of the camera. In this Manual the Avonic CM41 camera is referred to as the 'Product'. Target Audience This Manual is developed for installation technicians who install the Product at client sites, and for IT professionals who are responsible for operating the Product.

  • Page 10: Safety Instructions

    Set up this Product on a hard, stable surface or mount it to a wall or ceiling. • ONLY use an Avonic mount for mounting to a wall or ceiling. • Ensure the mounting construction is capable of supporting four times the weight of the Product. (See 'General Specifications >...

  • Page 11: Ventilation

    Don’t open this Product and don’t attempt to repair it yourself. Disassembling the Product may damage it or may cause injury to you. • If this Product is damaged, malfunctioning, or if it comes into contact with liquid, contact Avonic or an Avonic Authorized Service Provider. •...

  • Page 12: Product Overview

    PRODUCT OVERVIEW Description The Avonic AV-CM41-VCUC is a high-quality USB video conferencing PTZ camera with IP-control and a discrete design. The CM41-VCUC, with its versatile horizontal FOV of 70.4° and flexible 12x optical zoom range, is suitable for meeting rooms of all sizes, from small huddle rooms up to large board rooms.

  • Page 13: Unpacking

    (if needed). Package Contents The following tables contains an overview of the package contents of the Product. Quantity Description Avonic SKU 1 pc PTZ Camera AV-CM41-VCUC 1 pc...

  • Page 14: Handling Precautions

    • If the contents of the box matches exactly the items as described in Package Contents. • If this is NOT the case, contact Avonic and stop here. See also the picture below: Figure 6: Camera in plastic bag and protective foam 3. Break the seal of the sealed camera bag.

  • Page 15: Mounting And Installation

    Mounting on Wall or Ceiling The following accessories (AV-MT200 and AV-MT250) are separately available if the client wants to mount the camera to the wall or ceiling. Contact your Avonic reseller or local distributor for purchasing details. Wall (AV-MT200) Ceiling mount (AV-MT250)

  • Page 16: Connecting The Components To The Camera

    Connecting a Controller to a Camera You can connect one or more cameras to an (VISCA) video camera controller. https://avonic.com/en/product-categorie/controllers/ for an overview of the available controllers. A controller gives you direct control over the most important camera settings (e.g., Pan, Tilt, Zoom, Focus, White Balance).

  • Page 17: Serial Connecting Via Rs-232 Or Rs-485

    Serial Connecting via RS-232 or RS-485 COM Port Settings In default working mode, the camera can connect to a VISCA camera controller via a RS-232 or RS-485 serial interface. The applicable COM port settings are (where '*' stands for 'Default value'): RS-232 RS-485 (half-duplex mode) •...

  • Page 18: Connecting Via Lan

    Figure 12: RS-485 Network Connection Diagram Connecting via LAN Avonic cameras can be controlled by any device using a LAN and a standard switch. Settings By default, the IP address of the camera is "192.168.5.163" with "admin" for both the username and password.

  • Page 19: Operation

    OPERATION This chapter describes the ways in which you can set up and operate the Product. The descriptions are subdivided into the following sections: Using the Remote Control Other Key Combinations Using the System Select OSD Menu WebGUI Using the Remote Control The Product is provided with an IR Remote Control for full control of the camera and use of the OSD menu.

  • Page 20: Power

    a. Power 1. Put two AAA 1.5v batteries in the IR Remote Control. 2. Press the Power button to turn on the camera. If the position preset '0' has been stored, this will be called after initialization. 3. Press the Power button again to turn the camera off. It will turn to the back when turned off, this is called the “privacy mode”.

  • Page 21: Auto/Manual Focus

    f. Auto/Manual Focus Set the camera to 'auto focus' or 'manual focus'. If the camera is configured to 'autofocus', the buttons [Focus + -] are disabled. If the camera is in 'manual focus' and the Zoom buttons are used, the camera automatically switches to 'autofocus'.

  • Page 22: Other Key Combinations

    The rear of the Product is provided with a Select Switch that can be used to select a video format. This switch is important for the video quality during video recording or streaming. The System Select Switch has NO FUNCTION in the AV-CM41-VCUC as all the output resolutions are dictated by the computer to which it has been connected.

  • Page 23: Osd Menu

    The OSD Menu is visible on the USB output. The OSD menu can be accessed by the Remote Control or an Avonic PTZ controller. Figure 16: OSD menu structure...

  • Page 24: First Time Usage

    First time usage If you are using the camera for the first time, it is helpful for you to configure the basic camera settings before explaining the functionalities of the camera in detail. According to the light conditions in your room or on stage, you can follow instructions at: 1.
  • Page 25 5. Color Navigate to the Color and set the WB Mode to Auto. 6. Image and set the sharpness. The higher the number, Navigate to Image the more sharp the picture will become. 7. Noise Reduction tab and set the NR-2D to Auto. Navigate to Noise Reduction Basic Camera Setup using (semi)manual settings...
  • Page 26 1. Focus • Navigate to Video > Camera > Focus • If you have difficulties to focus, choose Focus Mode > Manual. Otherwise set the Focus Mode to Auto and choose at AF-Mode > Education Tracking/ Moving Objects if the filmed person or object is moving a lot, or Meeting for general meeting purposes.

  • Page 27: Menu

    1. MENU Figure 17: OSD - MENU 1. Press the [MENU] button to display the main menu on the screen. 2. Use the arrow buttons to move the cursor to the item to be set. Press the [HOME] button to enter the corresponding sub-menu.

  • Page 28: Exposure

    3.1 EXPOSURE Figure 20: OSD - EXPOSURE If you click in the field after the option ‘mode’, you will see that you have the following Exposure options: Auto, Manual, SAE, AAE and Bright. These options are outlined below. Auto Exposure Mode The camera's Automatic exposure mode allows it to determine the iris and shutter settings.
  • Page 29 G.Limit Gain limit is the maximum level of artificial brightness and contrast that the camera can automatically add to the image. This setting will make a significant difference to the overall picture. This setting add noise to the picture in dark areas and produce a washed out, greyish image in order to increase the brightness.
  • Page 30 This can be a particular helpful setting when the light conditions are challenging. The differences should be clearly visible in dark parts of the image, as they will become lighter/more grey as the level of DRC increases. SAE Mode (Shutter Auto Exposure) The shutter speed is user-adjustable in this mode.

  • Page 31: Color

    3.2 COLOR The color modes inside the camera are designed in such a way that the video output of the camera can match the current light conditions to produce accurate colors. There are several automatic preset modes and a manual mode to set the colors to the preference of the user.

  • Page 32: Focus

    Gamma The gamma curve selection has to do with the perception of the human eye to lighter and darker. If you select a higher rate of gamma, you will see that the picture become darker, but you get also more detail. The Dynamic Contrast affects the contrast of the picture.

  • Page 33: Noise Reduction

    3.5 NOISE REDUCTION Figure 29: OSD - NOISE REDUCTION Noise reduction can be used to soften the image when noise is present due to poor lighting conditions. The higher the amount of noise reduction, the softer the image will get, ultimately resulting in losing details. Be careful when adjusting the noise reduction, as it can take away the natural ‘crispness’...

  • Page 34: Network Settings

    Speed by zoom This mode affects PTZ speed when the camera is zoomed in to its max. Moving the joystick of your controller when this mode is disabled can result in uncontrollable movement due to the high speed. Enabling this mode will adjust the PTZ speed based on the current zoom factor, reducing the speed and making it easier to control.

  • Page 35: Webgui

    WebGUI You can access the camera remotely through a WebGUI where you can change network and system settings. Login Figure 35: WebGUI > Login Execute the following steps to log in to the WebGUI: 1. Open your web browser. 2. Enter the default IP address "192.168.5.163" in the URL box. The "Login" screen appears. 3.

  • Page 36: System

    NETWORK - DNS Here, you can specify the Preferred and Alternative DNS Server. Figure 38: WebGUI > NETWORK > DNS Click SAVE to apply your settings. A small confirmation dialogue appears in the bottom right corner. SYSTEM User Figure 39: WebGUI > SYSTEM > User You can define different users with specific permission levels and different username / passwords combinations.
  • Page 37 By default, this screen shows a readout of the current firmware versions. The Update file provides a firmware upgrade functionality via this screen. When the camera is done uploading and processing the update, it will automatically reboot. See How to update a CM40 or CM70 series camera on the website for more information.
  • Page 38 In this window, you can define various P/T/Z settings for your camera. See OSD Menu - PTZ. The PTZ speed is a WebGUI ONLY feature. This feature determines how fast you can move the camera. See below: Slow High Panning Speed: 100°...

  • Page 39: Maintenance

    MAINTENANCE Camera Maintenance Take the following actions to maintain the camera: • If you will not be using the camera for a long time, turn off the power switch and disconnect the AC powercord of the AC adaptor to the outlet. •...

  • Page 40: Transport And Storage

    Ensure also that the box is properly sealed. 2. Avonic's address and/or the address of the local distributor should be clearly visible on the package. 3. Keep the transportation vehicle dry and maintain the temperate and humidity when transporting the camera.

  • Page 41: Disposal And Recycling

    See the symbol below that can be found on the product and package label: Avonic is NOT responsible for personal data left in the settings of the camera as far as this is possible (like camera names, IP Addresses, user names, passwords etc.) Delete personal data BEFORE you send the camera back to Avonic! or your local distributor.

  • Page 42: Troubleshooting

    TROUBLESHOOTING General 1. Turn the camera off and on again and check if the problem persists. 2. If it does, restore to the factory default. Power Issues If the camera does NOT perform a self-test and / or if the power LED is OFF: 1.

  • Page 43: Control

    • When the camera itself moves, or when the iris is narrowed down When you experience one or more of the above mentioned problems check also our Appendix - CMOS characteristics Control No self-test (PTZ cameras only) and no power LED 1.

  • Page 44: Appendix A - Visca Settings And Command List

    You can use Hercules SETUP Utility application and a serial connection to make this work. VISCA over IP Avonic IP cameras are implemented with a TCP and an UDP server. The TCP as well as the UDP port are by default set to port 1259.
  • Page 45 To control the camera, you need an TCP or UDP supported application, like Hercules SETUP utility or Packet Sender for example. Follow instructions below: 1. Open the TCP/ UDP supported application. 2. Fill in the camera's IP Address, TCP/UDP port number and connect the application to your camera. Once the connection between client and server is configured, the client will be able to send PTZ commands to the server.

  • Page 46: Visca Over Ip Using The Full Sony Visca Protocol

    VISCA over IP using the full Sony VISCA protocol All Avonic cameras are capable of being controlled using the UDP Sony version of VISCA consisting of long VISCA commands, including headers and message counters. The advantage of using this version of VISCA is the fact that the camera responds with the same header counter as was used in the command.

  • Page 47: Camera Return Commands

    = Camera Address + 8 • This is one list for all Avonic PTZ Cameras (CM40 series, CM70 and CM90 series). Some features are CM70 and/or CM90 series specific and will not work in the CM40 series cameras. Return/complete Command...

  • Page 48: Camera Control Commands

    Camera Control Commands All parameter values are in HEX x = Camera Address • y = Socket Number • z = Camera Address + 8 • Camera Control Commands Command Function Command Packet Comments Address Set Broadcast 88 30 01 FF Address setting CAM_Power 8x 01 04 00 02 FF...
  • Page 49 Camera Control Commands Command Function Command Packet Comments CAM_Bgain Reset 8x 01 04 04 00 FF Manual Control of BGain 8x 01 04 04 02 FF Down 8x 01 04 04 03 FF Direct 8x 01 04 44 00 00 0p 0q FF pq: B Gain CAM_Rgain Reset...
  • Page 50 Camera Control Commands Command Function Command Packet Comments CAM_NR(3D)Level 8x 01 04 54 0p FF p: NR Setting (0: Off, level 1 to 8) CAM_Flicker 8x 01 04 23 0p FF p: Flicker Settings (0: Off, 1: 50Hz, 2: 60Hz) CAM_DHotPixel 8x 01 04 56 0p FF p: Dynamic Hot Pixel Setting (0: 0ff,...
  • Page 51 Camera Control Commands Command Function Command Packet Comments AbsolutePosition 8x 01 06 02 VV WW 0Y 0Y 0Y 0Y 0Z 0Z 0Z 0Z FF RelativePosition 8x 01 06 03 VV WW 0Y 0Y 0Y 0Y 0Z 0Z 0Z 0Z FF Pan range: -170°...
  • Page 52 Camera Control Commands Command Function Command Packet Comments CAM_TallyLight(Cm7x only 8x 01 7E 01 0A 00 02 03 FF Tally Light RedON with license active) Green 8x 01 7E 01 0A 00 03 02 FF Tally Light GreenON 8x 01 7E 01 0A 00 03 03 FF Tally Light OFF Preset_H_Speed Horizontal (Pan) speed...

  • Page 53: Inquiry Commands

    Inquiry Commands all parameter values are in hex x = camera address • y = socket number • z = camera address + 8 • Inquiry Commands Command Function Command Packet Comments CAM_ZoomPosInq 8x 09 04 47 FF 90 50 0p 0q 0r 0s FF pqrs: Zoom Position CAM_FocusAFModeInq 8x 09 04 38 FF...
  • Page 54 Inquiry Commands Command Function Command Packet Comments CAM_MemoryInq 8x 09 04 3F FF 90 50 0p FF p: Memory (Preset) number last operated. SYS_MenuModeInq 8x 09 06 06 FF 90 50 02 FF 90 50 03 FF CAM_LR_ReverseInq 8x 09 04 61 FF 90 50 02 FF 90 50 03 FF CAM_PictureFlipInq...
  • Page 55 Inquiry Commands Command Function Command Packet Comments CAM_FlipInq 8x 09 04 A4 FF 90 50 00 FF 90 50 01 FF Flip-H 90 50 02 FF Flip-V 90 50 03 FF Flip-HV CAM_IridixInq 8x 09 04 A7 FF 90 50 00 00 0p 0q FF pq: Iridix Position CAM_AFZone 8x 09 04 AA FF...

  • Page 56: Appendix A1 - Pelco-D Protocol And Command List

    Appendix A1 - Pelco-D Protocol and command List Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 0xFF Address 0x00 0x08 Pan Speed Tilt Speed Down 0xFF Address 0x00 0x10 Pan Speed Tilt Speed Left 0xFF Address 0x00 0x04 Pan Speed Tilt Speed Right 0xFF...

  • Page 57: Appendix A2 - Pelco-P Protocol And Command List

    Appendix A2 - Pelco-P Protocol and command List Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Byte8 0xA0 Address 0x00 0x08 Pan Speed Tilt Speed 0xAF Down 0xA0 Address 0x00 0x10 Pan Speed Tilt Speed 0xAF Left 0xA0 Address 0x00 0x04 Pan Speed Tilt Speed...

  • Page 58: Appendix B - Dimensions

    APPENDIX B - DIMENSIONS...

  • Page 59: Appendix C - Http Api

    APPENDIX C - HTTP API With the HTTP API you can control the camera by using a web browser like Microsoft Edge or Google Chrome for example. It is possible to change multiple settings at once using this feature. This document is available as an Appendix in the CM40 series manual and as a separate document on the product website.

  • Page 60: Curl

    Curl It is also possible to change the camera settings at once by using the Command Prompt from Windows. Follow instructions below: 1. Click on Start in the left corner of your screen in Windows. 2. Type Notepad and open this application. 3.

  • Page 61: Http Api Code List

    HTTP API code list IR Remote Control IR Enable/Disable Command Code Command Setting szCmd http://192.168.5.126/ajaxcom? bIrCtrlEnable 0: ON szCmd={"SetEnv":{"ArmPtz": 1: OFF {"bIrCtrlEnable":0}}} PTZControl Code: http://192.168.5.126/ajaxcom?szCmd={"SysCtrl":{"PtzCtrl":{"nChanel":0,"szPtzCmd":"left_start","byValue":50}}} Command Setting Function Command nChanel byValue 0,100 used to control the speed of ptz szPtzCmd left start left_start left stop...
  • Page 62 PTZ speed Set PTZ Speed Command Code Command Setting szCmd http://192.168.5.126/ajaxcom?szCmd={"SetEnv": nPTZSpeed 0: Slow 1: High {"PTZSpeed":{"nPTZSpeed":1}}} Speed by Zoom Set Speed By Zoom Command Code Command Setting szCmd http://192.168.5.126/ajaxcom?szCmd={"SetEnv": bSpeedByZoom 1: on 0: off {"ArmPtz":{"bSpeedByZoom":0}}} Low power mode Set Low Power Mode Command Code Command...

  • Page 63: Audio

    Focus Mode Commands 3: Manual 4 OnePush Zoom and focus Code http://192.168.5.126/ajaxcom?szCmd={"SysCtrl":{"PtzCtrl": {"nChanel":0,"szPtzCmd":"zoomdec_start","byValue":0}}} Command Setting Function Command nChanel byValue szPtzCmd Zoom add start zoomadd_start Zoom add stop zoomadd_stop Zoom decrease stop zoomdec_start Zoom decrease stop zoomdec_stop Focus add start focusadd_start Focus add stop focusadd_stop Focus decrease start...

  • Page 64: Video

    Audio Configure Sample http://192.168.5.126/ajaxcom? nSampleRate (Only 16000 Rate szCmd={"SetEnv":{"Audio": supporting these sample 32000 {"nSampleRate":32000}}} rates and gy11a can only 44100 be 8000.) 48000 Sample Bits http://192.168.5.126/ajaxcom? nSampleBits szCmd={"SetEnv":{"Audio": {"nSampleBits":16}}} Bit Rate http://192.168.5.126/ajaxcom? nBitRate szCmd={"SetEnv":{"Audio": {"nBitRate":96}}} Channel http://192.168.5.126/ajaxcom? nChannel 1: Mono 2: Stereo szCmd={"SetEnv":{"Audio": {"nChannel":2}}}...
  • Page 65 Camera Settings http://192.168.5.126/ajaxcom? expcomp_mode szCmd={"SetEnv":{"VideoParam":[{"stExp": {"expcomp_mode":2},"nChannel":0}]}} EV Level http://192.168.5.126/ajaxcom? expcomp [0, 14] szCmd={"SetEnv":{"VideoParam":[{"stExp": {"expcomp":8},"nChannel":0}]}} http://192.168.5.126/ajaxcom? backlight szCmd={"SetEnv":{"VideoParam":[{"stExp": {"backlight":2},"nChannel":0}]}} Camera Settings Exposure: Auto Function Code Command Setting Flicker http://192.168.5.126/ajaxcom? antiflicker 2: 60HZ szCmd={"SetEnv":{"VideoParam": 50HZ [{"stExp":{"antiflicker":0}"nChannel":0}]}} G.Limit http://192.168.5.126/ajaxcom? gainLimit [0, 15] szCmd={"SetEnv":{"VideoParam": [{"stExp":{"gainLimit":5},"nChannel":0}]}} http://192.168.5.126/ajaxcom? [0, 8]...
  • Page 66 Camera Settings http://192.168.5.126/ajaxcom? [0, 8] szCmd={"SetEnv":{"VideoParam":[{"stExp": {"drc":6},"nChannel":0}]}} Exposure: Bright Bright http://192.168.5.126/ajaxcom? bright [0, 23] szCmd={"SetEnv":{"VideoParam":[{"stExp": {"bright":0},"nChannel":0}]}} Flicker, G.Limit, DRC You can find the same configure at AAE Color and Image Camera Settings Color Function Code Command Setting WB Mode http://192.168.5.126/ajaxcom?szCmd={"SetEnv": emWbMode Auto 5500K...
  • Page 67 Camera Settings Flip-H http://192.168.5.126/ajaxcom? nFlipH szCmd={"SetEnv":{"VideoParam":[{"stImg": {"nFlipH":3},"nChannel":0}]}} Camera Settings Image Function Code Command Setting Flip-V http://192.168.5.126/ajaxcom? nFlipV szCmd={"SetEnv":{"VideoParam": [{"stImg":{"nFlipV":2},"nChannel":0}]}} AutoFlip http://192.168.5.126/ajaxcom? nAutoFlipV szCmd={"SetEnv":{"VideoParam": [{"stImg":{"nAutoFlipV":2},"nChannel":0}]}} DZoom http://192.168.5.126/ajaxcom? nEZoom szCmd={"SetEnv":{"VideoParam": [{"stImg":{"nEZoom":3},"nChannel":0}]}} Noise Reduction Camera Settings Function Code Command Setting NR-2D http://192.168.5.126/ajaxcom?szCmd={"SetEnv": noise2D [0, 8] {"VideoParam":[{"stNR":{"noise2D":0},"nChannel":0}]}} NR-3D...

  • Page 68: Network

    (Video) Output Format 1080I50 720P60 720P50 720P30 720P25 1080P59.94 1080I59.94 1080P29.97 720P59.94 720P29.97 Network Network configure and port settings Using the GetEnv code you will receive in return the port settings of multiple ports. Since only the Visca Port can be set in a CM40 series camera, the settings of other ports have no use in this type of camera. Network Configure Get network port parameters Code...

  • Page 69: System

    Get dns parameters Code http://192.168.5.126/ajaxcom?szCmd={"GetEnv":{"NetWork":{"nChannel":-1}}} Set dns parameters Code http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"NetWork":{"stDns":{"szDns1":"8.8.8.8","szDns2":"0.0.0.0"}}}} Function Code Command Setting Preferred DNS Server http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"NetWork":{"stDns": {"szDns1":"8.8.8.8"}}}} Alternative DNS Server http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"NetWork":{"stDns": {"szDns2":"8.8.8.8"}}}} System System Configure Get sysattr parameters Code http://192.168.5.126/ajaxcom?szCmd={"GetEnv":{"SysAttr":{"nChannel":-1}}} Set sysattr parameters Code http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"SysAttr": {"nLanguage":0,"szDeviceID":"1","emVideoStandard":1,"szDevName":"testname"}}} Function Code Command Setting Device Name...
  • Page 70 Default and Reboot Default Code http://192.168.5.126/ajaxcom?szCmd={"SysCtrl":{"Default":{}}} Reboot Code http://192.168.5.126/ajaxcom?szCmd={"SysCtrl":{"Reboot":{}}} The URL supports to set all params at one time and also can set one of them by splitting URL into one other command. Different commands can be found at different settings.

  • Page 71: Appendix D - Cmos Sensor Characteristics

    APPENDIX D - CMOS SENSOR CHARACTERISTICS The following occurrences that may appear in images are specific to CMOS (Complementary Metal Oxide Semiconductor) image sensors. They do not indicate malfunctions. White Flecks Although the CMOS image sensors are produced with high-precision technologies, fine white flecks may be generated on the screen in rare cases.

  • Page 72: Appendix E - Datasheet Specifications

    APPENDIX E - DATASHEET SPECIFICATIONS SPECIFICATIONS Camera Input / Output Interface Resolution USB output 1080p30 1080p30 USB2.0 Video Systems Network interface 1080p30 16:9/720p30 16:9/ 576p30 RJ45 for IP control and FW update 16:9/ 540p30 16:9/ 360p30 16:9/ IP control protocol VISCA OVER IP 180p30 16:9/ 768p30 16:9/ 600p30 4:3/ 480p30 4:3...

  • Page 73: Appendix F - List Of Support Articles

    What settings are stored in Avonic camera presets? • How to create a larger depth of field? • What ONVIF version and profile are used by Avonic? • How to use the Select Switch / Rotary dial? • How to set the White Balance with the OnePush option? Quick Start Guides •...

  • Page 74: Index

    Index AAE Mode (Aperture Auto Exposure) 30, HTTP API AF Sensitivity 32, 32, 51, HTTP Basic Authentication AF Version 34, 36, Hue 31, 51, AF Zone 32, 32, 51, Audio Auto Exposure Mode AWB Mode Image 25, AWB Sensitivity 31, 51, Image Freezing Image Quality IP Address 18, 34, 35, 59,...
  • Page 75 SAE Mode (Shutter Auto Exposure) 30, Saturation 31, Sharpness 31, 50, Shutter 28, 29, 49, Speed by Zoom 37, Style 33, System Select Tally Light TCP 18, UDP 18, USB 16, 16, Username 18, 35, 36, UVC Version Video Format 52, VISCA 27, 43, VISCA over IP Wall Mount (AV-MT200)
  • Page 76 Video Conference Camera USB2.0 Black AV-CM41-VCUC © August 2023 • Version 1.3.4 Exportweg 11a • 2645 ED Delfgauw • The Netherlands +31(0)15 7112 712 • info@avonic.com • www.avonic.com...
