Summary of Contents for Avonic CM60-IP-BOX

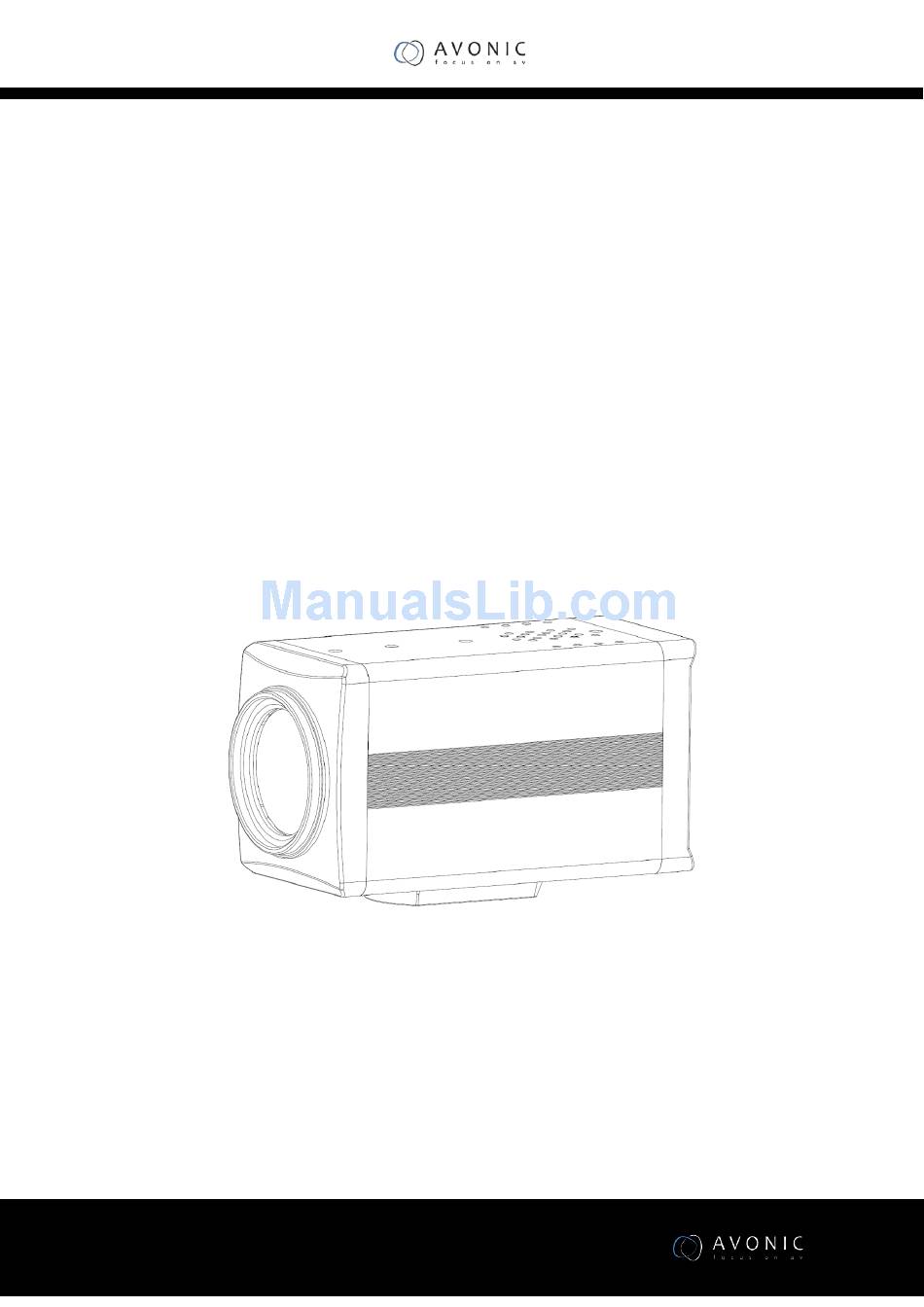

- Page 1 CM60-IP-BOX Integration HD Color Box Camera User Manual v2.1 www.avonic.eu...
-
Page 2: Safety Notes
Please use a soft cloth to clean the device, do not use strong or abrasive detergent to clean that will damage the device’s housing / lens. www.avonic.eu... -
Page 3: Table Of Contents
IMAGE ............................... 10 FOCUS ..............................10 NOISE REDUCTION ..........................11 SETTING ..............................11 INFORMATION ............................11 RESTORE FACTORY SETTINGS ......................11 Serial port control..............12 Annex 1 Technical Specifications ......... 13 Annex 2 Size and Dimension ..........14 Troubleshooting ..............15 www.avonic.eu... -
Page 4: Product Overview
When you open the package, please make sure below items are included. If any items is missing, please contact your supplier. Box Camera x 1 1 Camera Back Cover 2 Installation Positioning Track 3 Camera Front Cover 4 Lens Cap Power Adapter x 1 www.avonic.eu... - Page 5 Right key MENU key Down key Left key Up key RS485 interface Operating tips Press "MENU" button, then plug in the power supply and keep holding down the "MENU" button for 8 seconds, the camera will restore factory Settings. www.avonic.eu...
-
Page 6: Installation
"Information", the camera IP will be show on screen. Change IP address,2 methods as below: Method 1: On web control page, find "Network"-- ->Change IP---->Click "Apply" Input URL address: ----> Restart camera rtsp://ip: port number/1 (First stream); www.avonic.eu... -
Page 7: Ip Camera Parameter Setup
The bit allocation must combine with network bandwidth, when the network bandwidth is too narrow and the allocated bit flow is too big, will cause video signal flow not to be transmitted normally, the video effect will be worse. www.avonic.eu... -
Page 8: System Setting
Setting the ONVIF protocol and ONVIF 4. Apply / Cancel authorization "On", "Off". Modify password and click the "apply" 7. Multicast Setting button to the login page, press "cancel" Setting multicast "On", "Off", and button to cancel password change. multicast address(default address www.avonic.eu... -
Page 9: Information
Mode for Bright Mode, Optional items: choose[Exit]press【MENU】 to exit menu. 0 ~ 17. ExpCompMode: Set the exposure compensation mode, can be installed: On,Off. ExpComp: Set the exposure compensation value, only when ExpCompMode item to On effective, Optional items: -7 ~ 7. www.avonic.eu... -
Page 10: Color
Z-Doom Limit: Digital zoom camera settings, Optional items:x1. Saturation: Color saturation adjustment, Optional items: 60% ~ 200%. AF Sensitivity: Focus camera sensitivity, Optional items: Low,Middle,High. Hue: Chroma adjustment, Optional items:0 ~ Auto Focus: Autofocus camera settings, Optional items: On,Off. www.avonic.eu... -
Page 11: Noise Reduction
Optional items:0 ~ 7. Return: get back. P-D Address:P-D address settings, valid in PELCO-D mode, Optional items: 0 ~ 254. P-P Address:P-P address settings, valid in PELCO-P model, Optional items: 0 ~ 31. Baudrate: Camera baud rate settings, Optional www.avonic.eu... -
Page 12: Serial Port Control
LEFT 8x 01 06 01 08 08 01 03 FF RIGHT 8x 01 06 01 08 08 02 03 FF 8x 01 04 0B 02 FF Equivalent to the back【MENU】key. 8x 01 04 0B 03 FF x:Camera address number. www.avonic.eu... -
Page 13: Annex 1 Technical Specifications
Annex 1 Technical Specifications Specifications CM60-IP-BOX 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/120 (supported Video System by network only), 720p/60, 720p/50, 720p/30, 720p/25, 640x480p/240 (supported by network only, optional) Sensor 1/2.7'', CMOS, Effective Pixel: 2.07M Scanning Mode Progressive Lens 20x, f4.42mm ~ 88.5mm, F1.8 ~ F2.8... -
Page 14: Annex 2 Size And Dimension
Annex 2 Size and Dimension Front Rear Side Bottom www.avonic.eu... -
Page 15: Troubleshooting
Check whether the lens focusing accurately. Image blurring Check whether the lens surface is clean. The camera control parameters is set Can not control with serial port up correctly. Check whether control line connection is good www.avonic.eu... - Page 16 CM60-IP-BOX-MAN2.1 Avonic © 2017 www.avonic.eu...
