Video Conference Camera USB2.0 Black
AV-CM44-VCUC-B
www.avonic.eu
User Manual | Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AV-CM44-VCUC-B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Avonic AV-CM44-VCUC-B

Summary of Contents for Avonic AV-CM44-VCUC-B

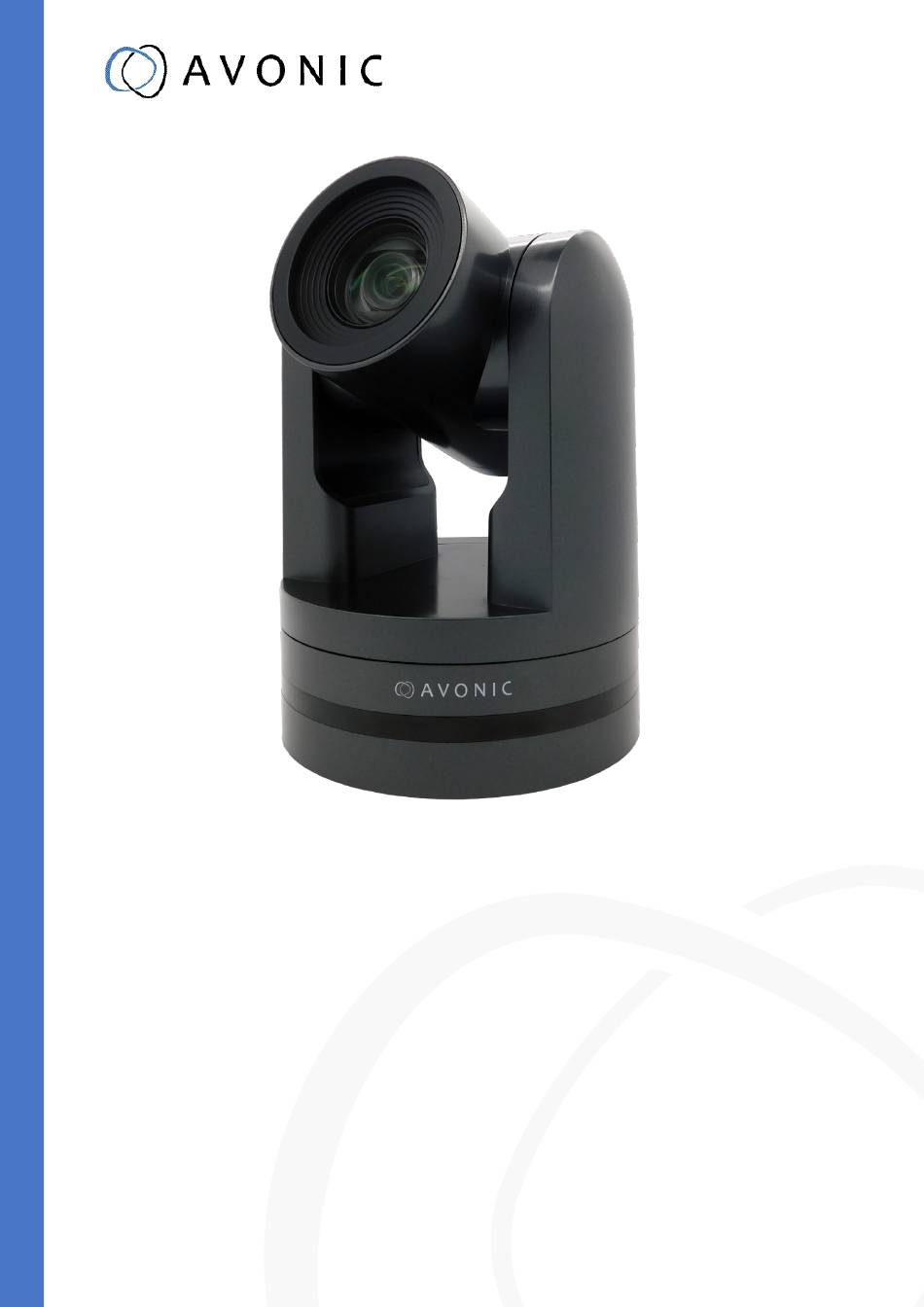

  • Page 1 Video Conference Camera USB2.0 Black AV-CM44-VCUC-B www.avonic.eu User Manual | Version 1.0...

  • Page 2: Table Of Contents

    Join Avonic ................
  • Page 3 Visca over IP properties and command list ............. 24 Pelco-D Protocol Command List ................34 Pelco-P Protocol Command List ................35 Appendix B Dimensions ....................36 www.avonic.eu...

  • Page 4: Introduction

    Contact For any questions or suggestions, contact your reseller or the local distributor of Avonic. Find the local distributor on the website of Avonic. For the most recent version of the manual or datasheet, look at the Avonic website: www.avonic.eu Join Avonic facebook.com/avonicPTZ...

  • Page 5: Package Contents And Accessories

    PACKAGE CONTENTS AND ACCESSORIES Contents Quantity Description Avonic SKU 1 pc PTZ Camera AV-CM44-VCUC 1 pc Power Supply 12V/A AV-CM40-PSU 1 pc Remote Control AV-CM40-RC 1 pc RS232 9-pin male to 8-pin male AV-CM-RS232 1 pc USB cable type A to type A...

  • Page 6: Product Overview

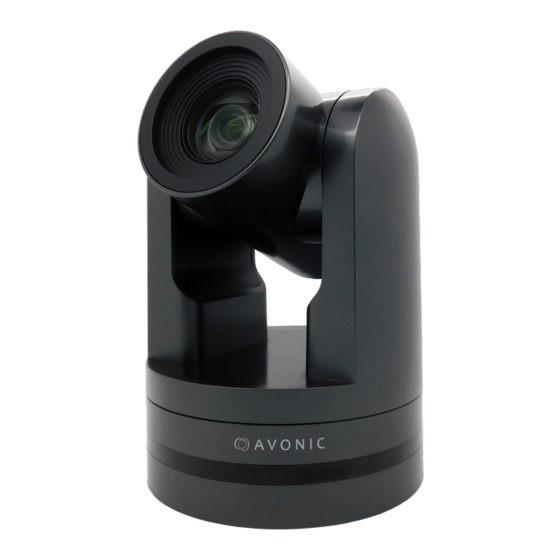

    PRODUCT OVERVIEW The Avonic AV-CM44-VCUC is a high-quality PTZ camera, with USB2.0 output. The camera is designed for fixed installations and works very well in low light conditions. The camera is equipped with high quality components like a Panasonic CMOS sensor and a glass lens with 5x optical zoom.

  • Page 7: Installation

    RS-232 mini-DIN-8 IN (connect the supplied RS-232 cable) RS-232 mini-DIN-8 OUT for daisy chaining RS-232 connection USB2.0 Type A, UVC video output RJ45 Ethernet connection for IP control or firmware update DC12V power with locking screw (connect the supplied DC PSU) Power ON/OFF Back to top www.avonic.eu...

  • Page 8: System Select Switch

    Address on the osd (Note: If the position preset 0 has been stored, the position preset 0 will be called after initialization). From this point onwards the user can control the camera with the supplied IR remote control, Serial control using RS232/RS485 or over IP using Visca over IP RS232 Interface Back to top Back to top www.avonic.eu...

  • Page 9: Rs232 Network Connection Diagram

    5m. IP network connection diagram Connect an Avonic camera to a LAN using a standard switch Addressing is done via IP, the Visca address in a Visca over ip environment is always 1. IP controller...

  • Page 10: Serial Communication Control

    Serial Communication Control COM port settings In default working mode, an Avonic camera is able to connect to a VISCA controller with RS-232 or RS-485 serial interface. The camera can be controlled via RS-232, the parameters of RS-232C are as follows: •...

  • Page 11: Operation

    OPERATION Remote controller Power Camera select Number Keys Focus + - Auto/Manual Focus Zoom + - Set & Clear Preset PTZ keys (up/down/left/right) Home BLC (Back Light Control) ON/OFF Menu Function Keys (F1/F2/F3/F4) Blank buttons Back to top www.avonic.eu...
  • Page 12 “Set Preset”. You can call the preset by pressing the number 0-9 on the remote control. Set Preset: [SET PRESET]+[<number>] Call Preset: [<number>] Clear Preset: [CLEAR PRESET]+[<number>] If the position preset 0 has been stored, this position will be called after initialization. Back to top www.avonic.eu...

  • Page 13: Other Key Combinations

    : Flip switch (just temporary flip to view the image flipped) [*]+[#]+[Auto] : Enter into the aging mode, only for quality control purposes [*]+[#]+[Manual] : Restore the default username, password, and IP address [#]+[#]+[#] : Clear all presets Back to top www.avonic.eu...

  • Page 14: Osd Menu

    Language Setup Protocol The OSD menu can be accessed by the Visca Address Remote Control or an Avonic PTZ controller. Visca Address Fix In the following pages, the navigating is Pelco-P Address described for using the IR Remote Control. Pelco-D Address...
  • Page 15 2400 / 4800 / 9600 / 115200 / 38400 Select Item Change Value [Menu] Back 3. CAMERA CAMERA Exposure Color Image Focus Noise Reduction Style Soft / Default / Normal / Clarity / Bright Select Item Change Value [Menu] Back Back to top www.avonic.eu...
  • Page 16 RG Tuning -10 ~ 10 BG Tuning -10 ~ 10 0 ~ 255 0 ~ 255 Saturation 60% - 200% 0 ~ 14 AWB Sensitivity Low / Middle / High Select Item Change Value [Menu] Back Back to top www.avonic.eu...
  • Page 17 Change Value [Menu] Back 3.5 NOISE REDUCTION NOISE REDUCTION NR-2D 1 ~ 7 / Auto / OFF NR-3D 1 ~ 8 / OFF Dynamic Hot Pixel 1 ~ 5 / OFF Select Item Change Value [Menu] Back Back to top www.avonic.eu...
  • Page 18 IP Address xxx.xxx.xxx.xxx [Menu] Back 6. VERSION VERSION MCU Version date Camera Version date AF Version date [Menu] Back 7. RESTORE DEFAULT RESTORE DEFAULT Restore default? NO / YES Select Item Change Value [Menu] Back [Home] OK Back to top www.avonic.eu...

  • Page 19: Webgui

    The default password is : admin The login screen looks like this: System In the System Tab it is possible to change username and password, perform a firmware upgrade, reset the camera to Default settings and Reboot the camera. Back to top www.avonic.eu...
  • Page 20 Update The update form gives information on the current firmware versions and the possibility to update the firm- ware by choosing an upgrade file provided by Avonic. Do not turn off the camera while updating. Network In the Network Tab network IP settings can be changed. These settings involve DHCP or fixed IP address, DNS- and port settings.
  • Page 21 Reboot If any changes made, these settings will only take effect after a reboot of the camera. Back to top www.avonic.eu...

  • Page 22: Maintenance

    Power Issues • No self-test (applies only to PTZ cameras) and no power LED - Check the net power - Check the power supply - Check the physical power button on the back of the camera www.avonic.eu Back to top...

  • Page 23: Image

    - Check if PC is in the same subnet as camera - Reset the factory default ip settings by pressing [*] [#] [Manual] and Reboot • Firmware update failed - Check firmware file integrity, download it again. www.avonic.eu Back to top...

  • Page 24: Visca Over Serial Properties

    VISCA OVER IP PROPERTIES AND COMMAND LIST The Avonic IP camera is implemented with a TCP server. The TCP port number is 1259 by default and can be altered in the WebGUI. Once the connection between client and server is set up, the client will be able to send PTZ commands to the server.
  • Page 25 Returned when a com- table (y: Execution com- mand cannot be exe- mand Socket No. cuted due to current Inquiry command: 0) conditions. For exam- ple, when commands controlling the focus manually are received during auto focus. Back to top www.avonic.eu...
  • Page 26 Outdoor mode OnePush mode 81 01 04 35 03 FF One Push WB mode Manual 81 01 04 35 05 FF Manual Control mode OnePush trigger 81 01 04 10 05 FF One Push WB Trigger Back to top www.avonic.eu...
  • Page 27 Gain Position CAM_Bright Reset 81 01 04 0D 00 FF Bright Setting 81 01 04 0D 02 FF Down 81 01 04 0D 03 FF Direct 81 01 04 0D 00 00 0p 0q pq: Bright Position Back to top www.avonic.eu...
  • Page 28 81 01 04 63 04 FF CAM_Memory Reset 81 01 04 3F 00 pp FF pp: Memory Num- ber(=0 to 127) 81 01 04 3F 01 pp FF Recall 81 01 04 3F 02 pp FF Back to top www.avonic.eu...
  • Page 29 CAM_AFSensitivity High 81 01 04 58 01 FF AF Sensitivity High/ Normal/Low Normal 81 01 04 58 02 FF 81 01 04 58 03 FF CAM_SettingReset Reset 81 01 04 A0 10 FF Reset Factory Setting Back to top www.avonic.eu...
  • Page 30 90 50 00 00 0p 0q FF pq: Shutter Position CAM_IrisPosInq 81 09 04 4B FF 90 50 00 00 0p 0q FF pq: Iris Position CAM_BrightPosInq 81 09 04 4D FF 90 50 00 00 0p 0q FF pq: Bright Position Back to top www.avonic.eu...
  • Page 31 CAM_PictureFlipInq 81 09 04 66 FF 90 50 02 FF 90 50 03 FF CAM_ColorGainInq 81 09 04 49 FF 90 50 00 00 00 0p FF p: Color Gain setting 0h (60%) to Eh (200%) Back to top www.avonic.eu...
  • Page 32 90 50 00 00 00 0p FF p: Color Hue setting 0h (− 14 degrees) to Eh ( +14 degrees) CAM_AWBSensitivi- 81 09 04 A9 FF 90 50 00 FF High tyInq 90 50 01 FF Normal 90 50 02 FF Back to top www.avonic.eu...
  • Page 33 81 01 7E 01 0A 00 02 03 FF Tally Light Red ON Green 81 01 7E 01 0A 00 03 02 FF Tally Light Green ON 81 01 7E 01 0A 00 03 03 FF Tally Light OFF Back to top www.avonic.eu...

  • Page 34: Pelco-D Protocol Command List

    Query Tilt Position 0xFF Address 0x00 0x5B Value Value Response High Byte Low Byte Query Zoom Position 0xFF Address 0x00 0x55 0x00 0x00 Query Zoom Position 0xFF Address 0x00 0x5D Value Value Response High Byte Low Byte Back to top www.avonic.eu...

  • Page 35: Pelco-P Protocol Command List

    Address 0x00 0x5B Value Value 0xAF Response High Byte Low Byte Query Zoom Position 0xA0 Address 0x00 0x55 0x00 0x00 0xAF Query Zoom Position 0xA0 Address 0x00 0x5D Value Value 0xAF Response High Byte Low Byte Back to top www.avonic.eu...

  • Page 36: Appendix B Dimensions

    APPENDIX B DIMENSIONS www.avonic.eu Back to top...
