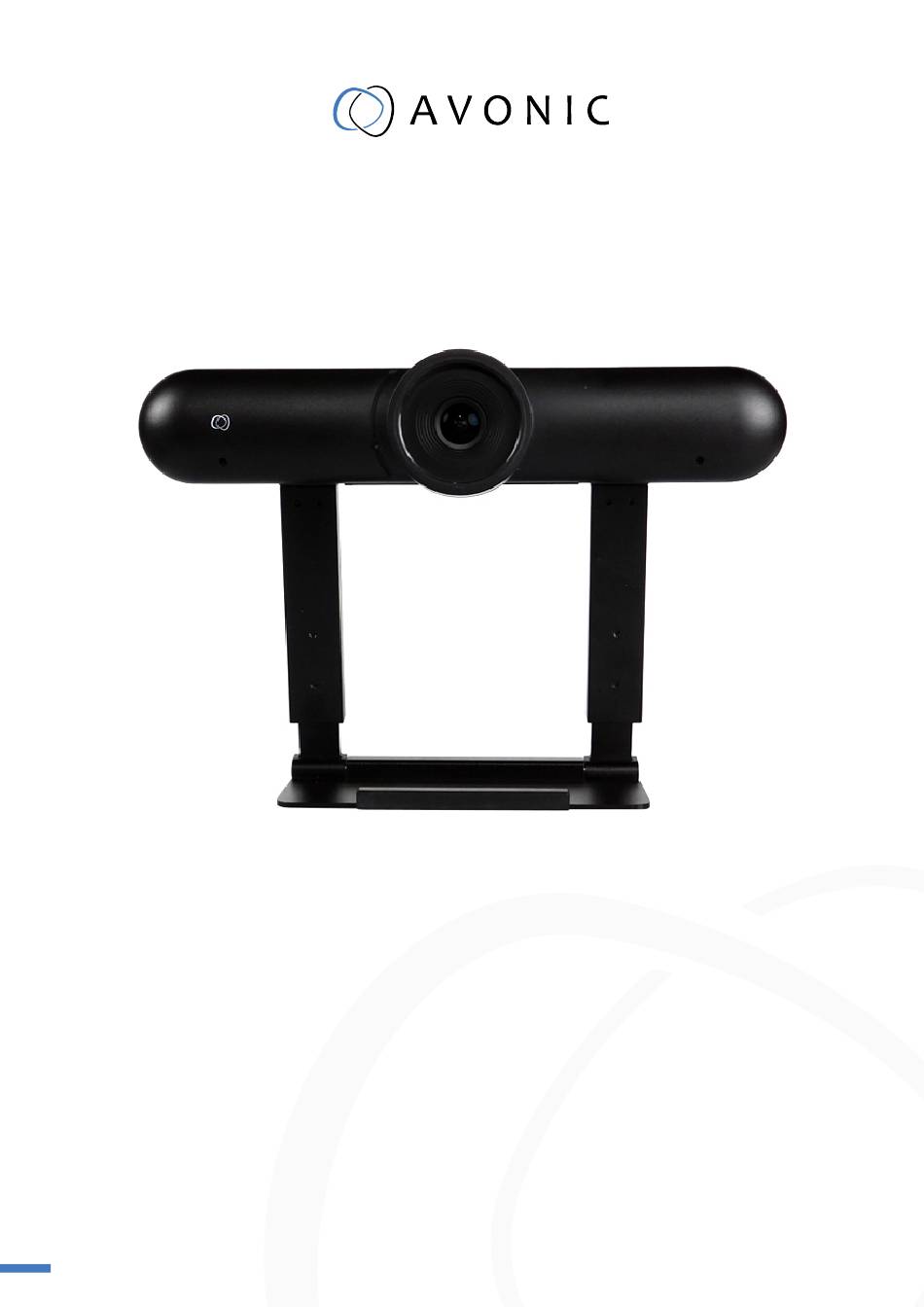

Avonic 4K Conference Camera USB3.0
AV-CM22-VCU
www.avonic.eu | User Manual | Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AV-CM22-VCU and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Avonic AV-CM22-VCU

Summary of Contents for Avonic AV-CM22-VCU

  • Page 1 Avonic 4K Conference Camera USB3.0 AV-CM22-VCU www.avonic.eu | User Manual | Version 1.0...

  • Page 2: Table Of Contents

    Join Avonic ................

  • Page 3: Introduction

    For any questions or suggestions, contact your reseller or the local distributor of Avonic. Find the local distri- butor on the website of Avonic. For the most recent version of the manual or datasheet, look at the Avonic website: www.avonic.eu Join Avonic facebook.com/avonicPTZ...

  • Page 4: Package Contents And Accessories

    PACKAGE CONTENTS AND ACCESSORIES Contents Quantity Description Avonic SKU 1 pc Device AV-CM22-VCU 4 pc USB Power Supply (EU, UK, AV-CM20-PSU US, AUS) 1 pc Remote Control CM-RC 1 pc USB 3.0 cable AV-USB30-AB Handling precautions Be cautious to take the camera by its base and do not touch the lens.

  • Page 5: Product Overview

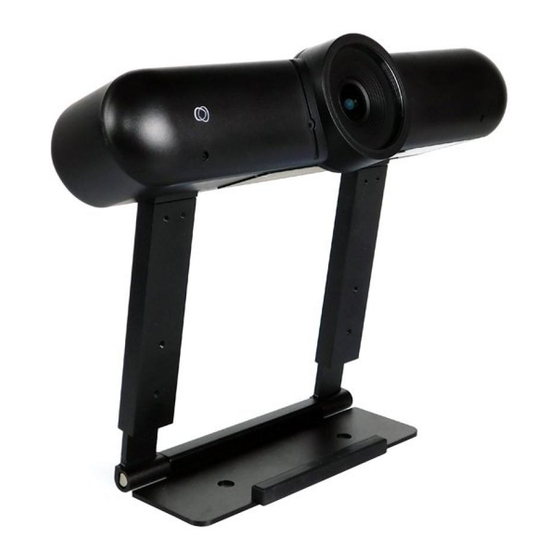

    PRODUCT OVERVIEW The Avonic CM22-VCU boasts a 4K, wide angle lens up to 120 degrees FOV that makes sure you can capture all attendees. It’s Smart automatic and fully user configurable modes guarantee crystal clear video even under the most challenging light conditions. Built in user configurable dual microphones allow for easy audio capture.

  • Page 6: Installation

    INSTALLATION Connections HDMI output USB 3.0 connector Camera placement The CM22 comes with a detachable integration mount with multiple placement options: 1. Monitor placement www.avonic.eu Back to top...
  • Page 7 3. Wall mounted below a screen The minimum (depending on connector type used) and maximum depth are indicated, due to the dual articulated sliding mount design there are numerous variations to make. 174mm 207mm 174mm 174mm 70mm 174mm 207mm 70mm 70mm www.avonic.eu Back to top...

  • Page 8: Operation

    4. Preset Key 13. Reset Key 5. Home key 14. PTZ control key 15. Menu Key 6. Return Key 7. Zoom Button 16. Backlight Key 8. Left/Right 17. PTZ reset key Setting Key 9. Focus Key www.avonic.eu Back to top...
  • Page 9 This Menu button opens of closes the the OSD menu. If the menu is not in English, please press [*]+[#]+[1] to change the Menu language to English. Backlight Key This button has no function with this camera. PTZ Reset Key This button has no function with this camera. www.avonic.eu Back to top...

  • Page 10: Quick Codes List

    [*]+[#]+[4] : 1080P@30fps default hdmi resolution [*]+[#]+[5] : Disable microphone, setting is persistant even after power cycle [*]+[#]+[6]: Factory default [*]+[#]+[7]: 1080P@60fps default resolution [*]+[#]+[9]: Enable microphone, setting is persistant even after power cycle Contact Avonic for latest firmware info@avonic.eu www.avonic.eu Back to top...

  • Page 11: Osd Menu

    RG tuning BG tuning Saturation Image Luminance Contrast Sharpness Flip-H Flip-V Gamma Style Noise Reduction 2D-NR 3D-NR Setting Language DPTZ Zoom Limit HDMI Enable DVI Mode HDMI Format Auto Framing UVC EXT Setting Information Restore Default www.avonic.eu Back to top...
  • Page 12 Full Auto / Bright / Shutter Priority ExpCompMode ON / OFF Exposure Compensation -7 ~ 7 Gainlimit 0 ~ 15 Backlight ON / OFF DRC Strength 0 ~ 8 Antiflicker 50hz / 60hz / OFF Select Item Change Value [Menu] Back www.avonic.eu Back to top...
  • Page 13 -10 ~ 10 Select Item Change Value [Menu] Back 5. NOISE REDUCTION NOISE REDUCTION 2D NR Close / Auto / 1 ~ 5 3D NR Close / Auto / 1 ~ 8 Select Item Change Value [Menu] Back www.avonic.eu Back to top...
  • Page 14 Auto Framing OFF/ ON Select Item Change Value [Menu] Back 7. INFORMATION Read out of model and firmware version 8. RESTORE DEFAULT RESTORE DEFAULT Restore default? NO / YES Select Item Change Value [Menu] Back [Home] OK www.avonic.eu Back to top...

  • Page 15: Maintenance

    TROUBLESHOOTING General advise • Turn the camera off and on again and check if the problem persists. Power Issues • No power LED - Check the USB cable - Check the power supply www.avonic.eu Back to top...

  • Page 16: Image

    - Check options in OSD, like exposure, color temp, Red and Blue tuning Control • No power LED - Check the USB power - Check the power supply • Remote Controller does not work - Check batteries of the controller www.avonic.eu Back to top...
