User Guide

Works with
iScanAir Go
Scanner App
All trademarks are the property of their respective
owners and all rights are acknowledged.
Images and screenshots used in this User Guide
may vary according to the devices used and its
operating system. Images and screenshots shown
inside are example only.

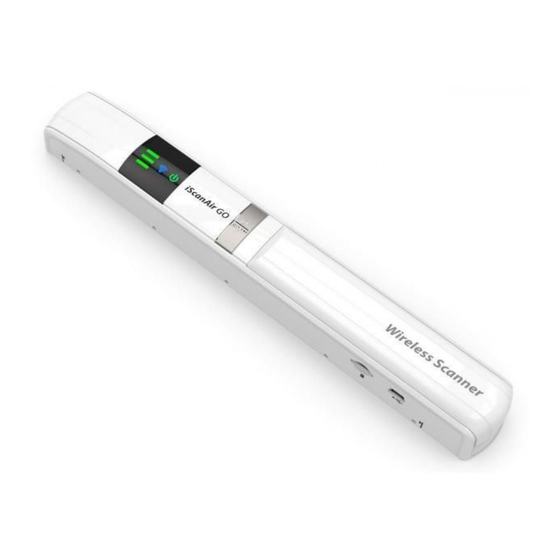

Wireless Handy Scanner
For smartphones, tablets, and computers
Compatible with iOS, Mac OS X, Android, Windows
PC, and Windows Phone
Wi-Fi
®
802.11g/n
supported
V2.4

Advertisement

Table of Contents
loading

Related Manuals for Mustek H410W

Summary of Contents for Mustek H410W

  • Page 1: User Guide

    Wireless Handy Scanner User Guide For smartphones, tablets, and computers Works with iScanAir Go Scanner App Wi-Fi ® 802.11g/n supported All trademarks are the property of their respective owners and all rights are acknowledged. Images and screenshots used in this User Guide Compatible with iOS, Mac OS X, Android, Windows may vary according to the devices used and its operating system.

  • Page 2: Safety And Precautions

    Safety and Precautions Never store the unit in hot, or very cold, or humid or dusty places. • For an extended storage period, we recommend storing the unit in a cool and dry place. • To help keep the scanning area clean, store the unit in a proper case when not in use. •...

  • Page 3: Table Of Contents

    Contents Safety and Precautions ...................... 2 Contents ........................3 Supported Devices ......................4 Unpack.......................... 5 Scanner Parts ......................... 6 LED Messages ......................... 7 Insert AAA Batteries ......................8 Set the Resolution ......................9 Set the Scanner Mode .......................10 Install the iScanAir Go app (WiFi Mode) .................11 Connect to Wireless Network (WiFi Mode) ................12 Scan, Save, and Share (WiFi Mode) ..................13 Scan ..................................

  • Page 4: Supported Devices

    Supported Devices The Scanner is compatible with following devices in the WiFi mode: PC: Windows XP, Vista, 7, RT, 8, 8.1, 10 Mac: OS X 10.7 or later iPads and iPhones with iOS 5.0 or later Android devices with version 2.3.3 or later Windows Phone 8, 8.1, 10...

  • Page 5: Unpack

    Unpack Make sure following items are included. Scanner USB Cable Calibration Sheet AAA battery x 4 (See p.15) (See p.17) (See p.8) Cleaning Cloth User Guide (See p.16)

  • Page 6: Scanner Parts

    Scanner Parts Guide Rollers Mini USB Port MicroSD Card Slot Battery Cover Scanning Lens WiFi/MicroSD POWER/SCAN Switch Button SQ/HQ Switch Power LED WiFi LED Scanning LED Guide...

  • Page 7: Led Messages

    LED Messages Symbol LED Light Message Power LED Solid green The power is turned on. Blinking green The battery is low. Memory is full or unknown error happen. (Note: The scanner will hang, Solid red Free up some memory and restart the scanner to solve the problem.) Blinking orange The image is being saved in the MicroSD card on the scanner.

  • Page 8: Insert Aaa Batteries

    Insert AAA Batteries Push and slide the battery cover away to detach it from the base. Place 4 alkaline batteries according to the polarity indicators inside the compartment. Slide back the battery cover to close it. Press and hold the /SCAN button for 3 seconds to turn on or off the scanner.

  • Page 9: Set The Resolution

    Set the Resolution Locate the SQ/HQ switch on the side of the Scanner. Slide the switch to “SQ” (Standard Quality) or “HQ” (High Quality) for scanning resolution. NOTES • Scanning at “HQ” mode will take a longer time to scan the image, and produce a larger files.

  • Page 10: Set The Scanner Mode

    Set the Scanner Mode Locate the WiFi/MicroSD switch on the side of the Scanner. Slide the switch to “WiFi” or “MicroSD” for setting the scanner mode. In the WiFi mode, you can scan images directly to a supported device using direct WiFi connection. See p.11 for operations.

  • Page 11: Install The Iscanair Go App (Wifi Mode)

    Install the iScanAir Go app (WiFi Mode) The Scanner includes free iScanAir Go apps to scan images directly to your devices. You need to install iScanAir Go from Internet to your device before use. NOTES • Ensure that your device has Internet access via your service provider or wireless connection.

  • Page 12: Connect To Wireless Network (Wifi Mode)

    Connect to Wireless Network (WiFi Mode) You can make a direct wireless connection between the Scanner and your device in following steps. Press and hold the /SCAN button for 3 seconds until the power LED emits green light. * Wait about 20 seconds until the LED blinks blue light.

  • Page 13: Scan, Save, And Share (Wifi Mode)

    Scan, Save, and Share (WiFi Mode) NOTES • Ensure the Scanner is switched to the “WiFi” mode on the side of the Scanner, and is connected to your device prior to use. (See p.10) • Make sure your device is supported. (See p.4) Scan Press iScanAir Go app on your device to open it, then press Start.

  • Page 14: Save

    Scan, Save, and Share (WiFi Mode) (cont'd) Save Press Save to save the image to your device’s photo folder. * For Mac, save the image with a chosen file name, directory, and file format (JPG or PDF). * Press Cancel to exit without save or to re-scan. For Windows Phone, press on the device to exit.

  • Page 15: Use As The Standalone Scanner (Microsd Mode)

    Use as the Standalone Scanner (MicroSD Mode) NOTES • Ensure the Scanner is switched to the “MicroSD” mode on the side of the Scanner. (See p.10) Insert a microSD card into the card slot with the Press / SCAN to start. gold contacts facing up.

  • Page 16: Clean Lens And Rollers

    Clean Lens and Rollers Dirt and residues can build up on the Scanner’s rollers and lens which can affect image quality. Clean Scanner’s lens and rollers periodically to get the best result. NOTES • Make sure the Cleaning Cloth is clean before use. • Use the Cleaning Cloth dampened with alcohol to help remove dirt and residues easily.

  • Page 17: Calibrate

    Calibrate NOTES • Always clean the Scanner’s rollers and lens first before calibration. If cleaning rollers and lens did not improve image quality, then please perform calibration procedures. • If necessary, perform calibration few times until the image quality is improved. • Make sure the Calibration Sheet is clean and free of dust before use.

  • Page 18: Calibrate In The Microsd Mode

    Calibrate (cont'd) Calibrate in the MicroSD Mode Slide the WiFi/Micro SD switch to “MicroSD”. Press and hold the /SCAN button for seconds until the WiFi LED blinks a purple light. Remove the plastic foil on the Calibration Sheet, place it on the table with the white side facing up. Place the scanner on the Calibration Sheet, then move it back and forth only in the white area few times until the Scanner turns off.

  • Page 19: Helpful Hints

    Helpful Hints Scanner does not turn on Press and hold the /SCAN button 3 seconds to turn on. • Check if the Scanner’s battery has drained and no power is available. • Scanner cannot connect to your device Try moving the Scanner closer to your device. The effective wireless transmission range is 60~100 feet •...
  • Page 20 Helpful Hints Scanner hangs with red power LED • Free up some memory and restart the scanner. On the Apple device, a message ‘iScanAir Go Would Like to Access Your Photos’ appears after pressing SAVE button This is a privacy settings requested by your device. Press ‘OK’ button in order to save images to your device. If •...

  • Page 21: Specifications

    Specifications Scanner Type A4 color handheld scanner Image Sensor Color CIS (Contact Image Sensor) Light Source LED (RGB) Scan Size (Max.) W 216mm x L 356 mm (W 8.5" x L 14") Scan Resolution SQ (300 dpi), HQ (600dpi) Scan Speed 4 seconds per page (A4 color) at 300 dpi 12 seconds per page (A4 color) at 600 dpi Interface...
