Embest SBC6245 User Manual page 3

- 1Kbit EEPROM (with encrytion)
10/100M Ethernet controller
One power indicator
One system working status indicator
Two 1.27mm pitch dual row 80-pin female headers (UART 0-3, Debug serial port, Ethernet, USB
Host, 2 SPI, 2 TWI, SDIO, PWM, AC97, LCD, Touch Screen, JTAG and all IOs are led out via
the two connectors.)
The SBC6245 Expansion Boards
Power supply: 24V
One 3-wire RS232 Debug serial port
Two 5-wire RS232 serial ports (COM1 & COM2)
Two RS485 serial ports (COM0 & COM3, with isolation)
Two High-speed USB 2.0 Host ports, 480Mbps (One channel can be configured as Device)
One 10/100Mbps Ethernet port (RJ45)
TFT LCD interface
4-wire resistive Touch screen interface
Buzzer
Battery backed RTC

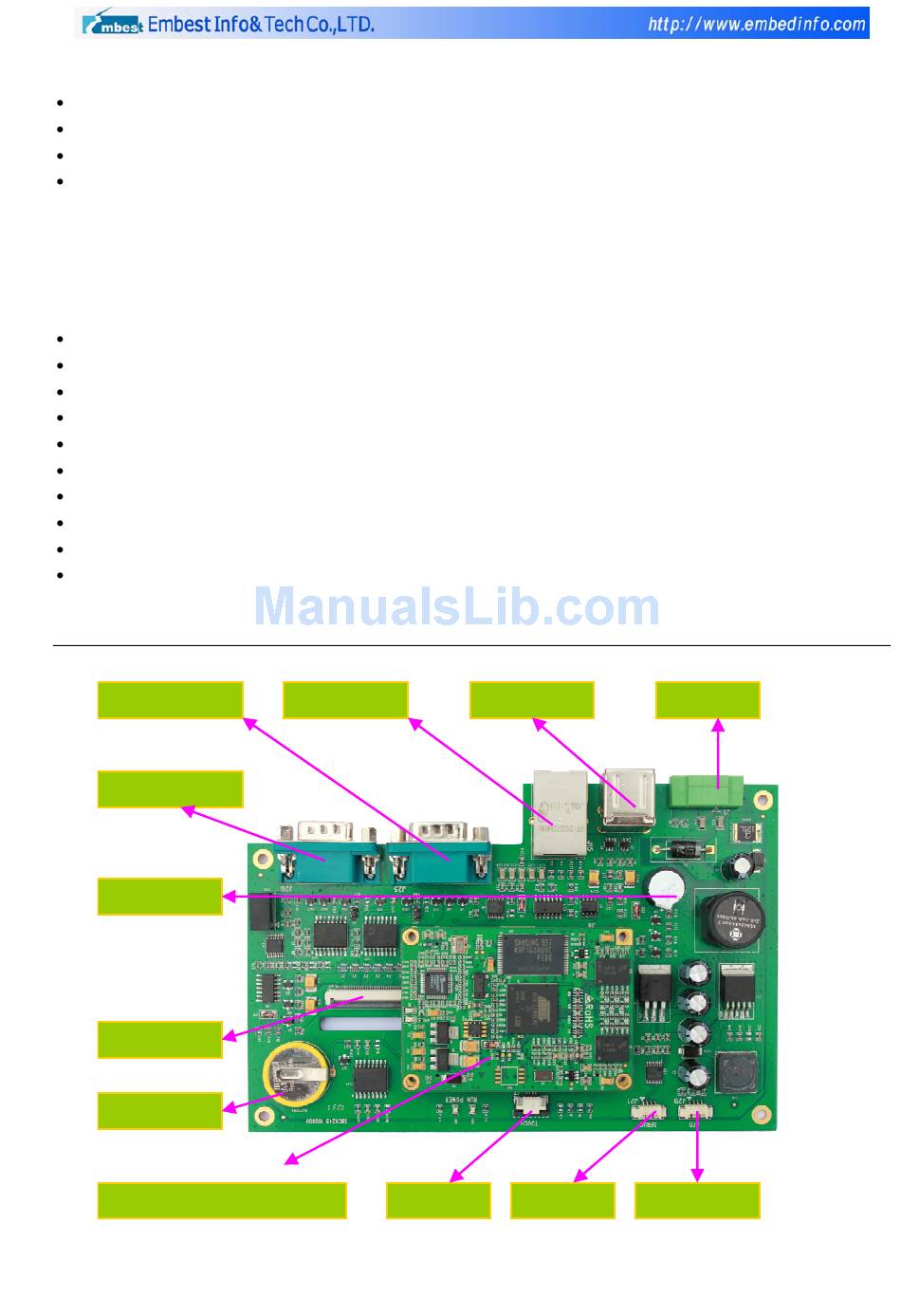

Onboard Interfaces and Connectors
COM1&COM0
COM2&COM3
Buzzer
LCD CON
RTC Battery
Mini6245 (CPU core board)
Ethernet
TSP CON
2 USB Host
Debug LED&RUN
Power IN
