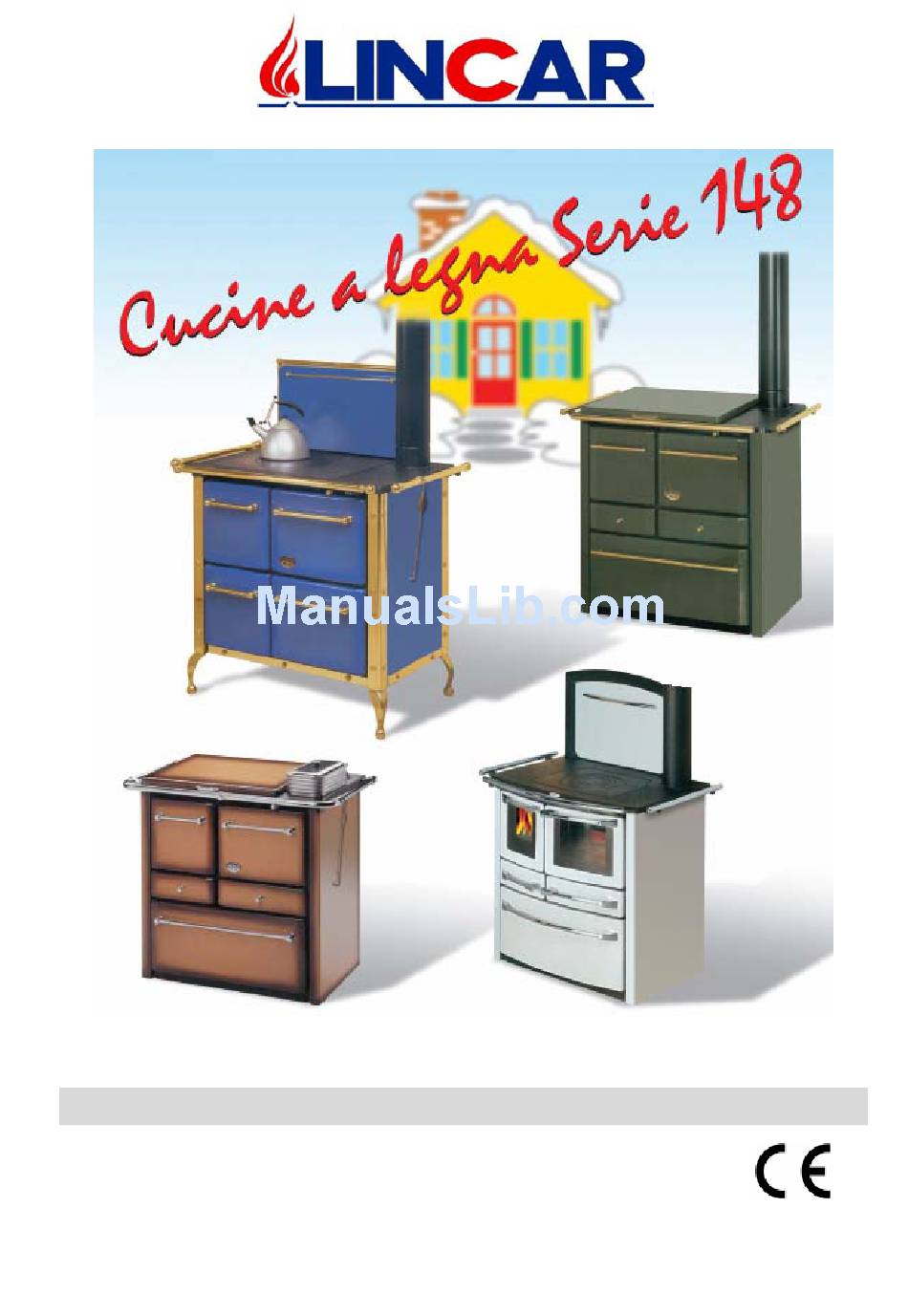

- Page 1 Residential space heating appliances f ired by: Wood Mod. Aurora Mod. America Mod. Gaia Mod. Valentina USING INSTRUCTIONS AND MAI NTENANCE Equipments built in conformity with European Norms for marking Cod. 90003033 Rev. 2 1/20...
-
Page 2: Table Of Contents
mod. Serie 148 GB Dear Customer, We thank You for Your preference; we try to built a product without default to make Your life easier, in any case we remember You to read this handbook before equipment using . To leave out the reading of this handbook has to be considered as “NOT CORRECT USE “... -
Page 3: Installation
mod. Serie 148 GB 1 INS TALLATION RES ERVED TO INS TALLER 1.1 Normative and prescriptions • Read carefully the contents of this handbook, it contains important information and instructions for installation, use, maintenance and product safety. • The appliance must be installed inside an environment considered suitable for installation and use by competent authorities. - Page 4 mod. Serie 148 GB SECURITY DISTANCES • From flammable object : − A > 400 mm B > 100 mm C > 100 mm • From flammable object and from principal wall in rein forced concrete : − A > 800 mm B >...
-
Page 5: Connection
mod. Serie 148 GB 1.4 Connection • Before connection check technical data reported in the technical plate ( Chap. 4 ) and control that it correspond to the ones required in the order. • All heating biomass equipment especially wood appliance has to evacuate the combustion products in a flue built in conformity with normative in force. - Page 6 mod. Serie 148 GB TOP ASSEMBLING For Mod. Aurora…, Gaia…, Fig.4 To take the top out of wood drawer To put the top over wood cooker plate, insert the top pin into the right holes on plate fra me than screw it and tighten. Fig.
- Page 7 mod. Serie 148 GB CHIMNEY OR FLUE • The chimney or flue should have the following characteristics: − It’ s advisable read, follow and respect what indicated in the paragraphe 1.1 − Good sel of combustion products, impermeable and completely insulated as normative condiction −...
- Page 8 mod. Serie 148 GB Inclination Roof Re Flux Area Highness Z ( m) C (°) 1,85 1,00 0,50 1,50 1,30 0,80 1,30 2,00 1,50 1,20 2,50 2,10 Re-flux Chimney pot area wind damping Chimney Revolving P ot Wind chimney pot for strong Damping horizontal...
- Page 9 mod. Serie 148 GB CONNECTION TO FLUE • The connect the heating equipment to the flue / chimney checking that the exhaust pipe don’t take up the free section of flue. • Employ only tubes supplied by seal gasket. • To not use horizontal tubes ( max 1 meter ) and curves.
-
Page 10: Technical Details
mod. Serie 148 GB 1.5 Technical details Serie 148 Aurora … Valentina ... Gaia … Description Mod. America … WIDTH DEPHT HEIGHT EQUIPMENT WEIGHT See Chap 1.3 Ø DIAMETER EXHAUST FUME MAX FOYER TERMIC POWER 10.2 10.2 10.2 TERMIC POWER OUTPUT EMISSION OF CO AT 13% OXYGEN 0.295 0.295... -
Page 11: Using
mod. Serie 148 GB 2 US ING - RES ERVED TO US ER 2.1 Important warnings • To read carefully this section’s instruction which are very important for use, maintenance and appliance safety. • This handbook has to be ridden completely, in case of lack it can be consider an improper use of the equipment so a not right use of it. -
Page 12: Starting
mod. Serie 148 GB • To guarantee a perfect combustion it’s necessary to preserve the wood in a dry and clean place. • The wood thermic output is related to its humidity in %. (see the schedule ). 2.3 Starting •... - Page 13 mod. Serie 148 GB LOADING - TO RESTART WITH EMB ERS ( Moderates flames ) In case of starting with embers, go on as follows : • Thicken the embers on centre foyer . • Open totally the prime air and the fumes valve •...
- Page 14 mod. Serie 148 GB PRIME AIR VALVE The equipment is supplies by a regulation prime air, placed in the down part of the foyer (Fig.7), to reach it it’ s necessary open the wood-drawer. A secondary fix air is placed in the upper part of foyer sides, this one allows to improve the equipment functioning and the heating power consequently with the lower Co emissions.
- Page 15 mod. Serie 148 GB COOKING OVEN The equipment is supplied by a stainless steel oven for a food cooking. The oven of the models Aurora, Valentina and America are supplied by a light that light on automatically at oven door opening.
-
Page 16: Maintenance And Cleaning
mod. Serie 148 GB 3 MAINTENANCE AND CLEANING RESERVED TO USER Important warnings • Every maintenance and cleaning operations must be done when the appliance is light off and cold. • Disconnect the equipment from central electrical connection than go on with cleaning and maintenance operations. - Page 17 mod. Serie 148 GB • Aurora – Valentina – America models : take away the radiant plate, than lift and remove the oven structure, employing the little brush ( accessories enclosed ) clean the equipment sides from combustion residuals and ash. •...
-
Page 18: Extraordinary Maintenance
mod. Serie 148 GB 3.2 Extraordinary maintenance (by qualif y staff ) • EVERY YEAR IS RECOMMENDED THE FOLLOWING OPERATIONS MAINTENANCE: − Complete check up of the appliance by qualify staff. − Cleaning of exhaust gas and fumes tubes. − To check and eventually to replace of seal.. -
Page 19: P Ossible Failure And Its Solution
Every intervention has be done from qualify staff ! Lincar S.p.A is not responsible for damages to thing or people due to a wrong installation, equipment tampering, improper use, bad maintenance or no observation of normative in force. -
Page 20: Technical Data Plate
Serie 148 GB 4 Technical data plate. You find here enclosed a copy of technical data plate Lincar S.p.A. Via E. Fermi, 5 – 42046 Reggiolo (RE) – Italy – Tel. +39 0522 972260 – Fax +39 0522 973625 www.lincar.it info@lincar.it...
