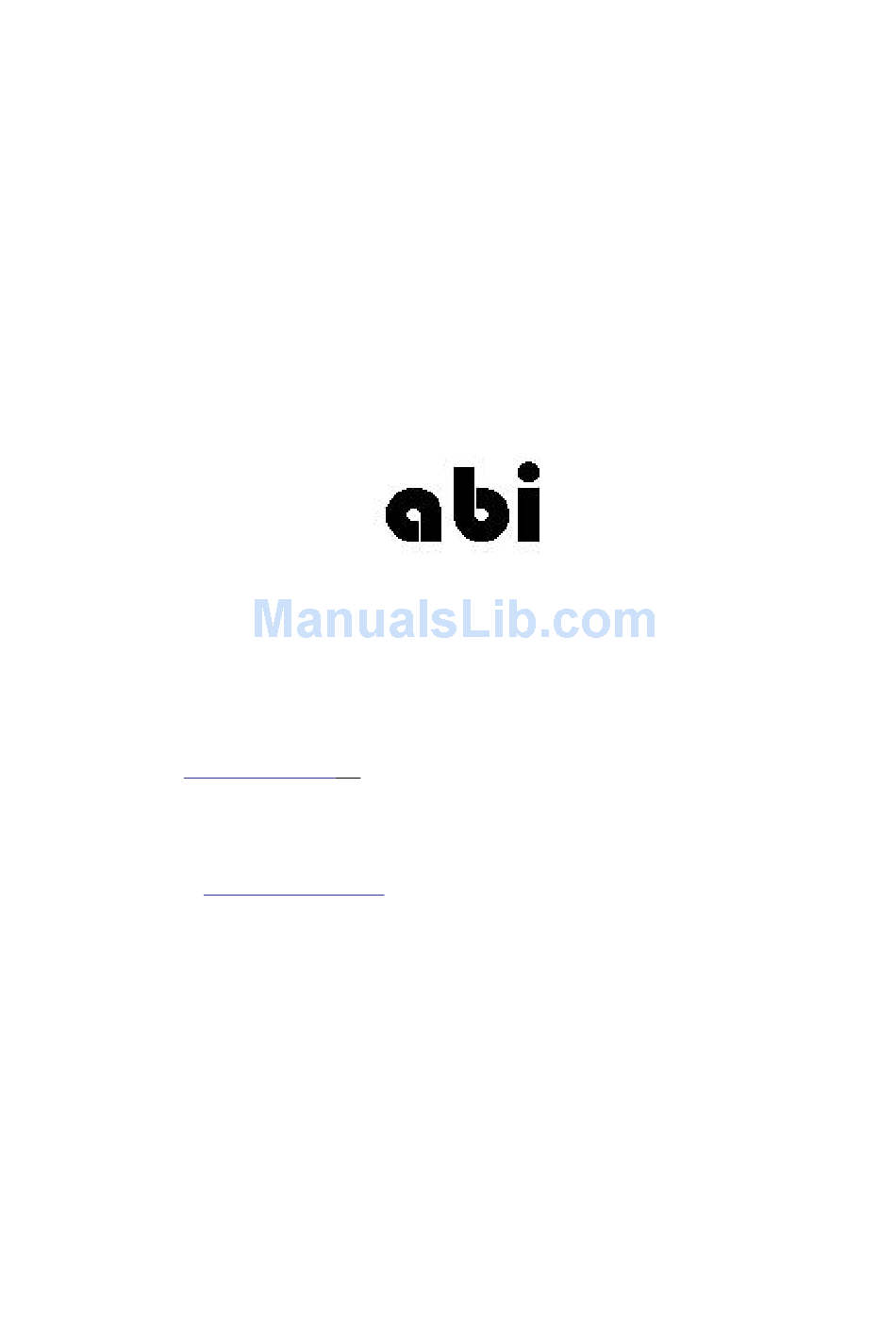

- Page 1 User Manual for IMAGE IQBoardA Interactive Whiteboard Software Version 4.2 Copyright(C) 2007 A Brighter Image Pty Ltd Web: www.abimage.com.au Tel: +02 9938 6866 Fax: +02 9938 6899 E-mail: info@abimage.com.au...
-
Page 2: Table Of Contents
Contents Brief Introduction ......................4 -5 1:Specifications ........................ 5 2: Warning prior to Installation ..................6 Installation Method ......................7-10 1: Installation of Hardware ................... 7-9 2: Installation and Uninstall of Software ................. 10 Uninstall software ....................10 3: Connect the data line ....................10 4: Orientation ......................... -
Page 3: Brief Introduction
Brief Introduction The IMAGE IQBoardA Interactive EWB is the latest equipment for teaching, training and conference presentation. It incorporates the latest high-tech research results, such as top electronic technology, software technology, internet technology, etc. It will be the major instrument for modern information-based teaching, conference, distance education and training, gradually substituting for traditional teaching methods and conference mode. -
Page 4: 1:Specifications
6) Achieves long-distance interactive teaching through Internet and Intranet. 7) Provides various working modes, such as mouse, writing and sign note, edit and long-distance interaction, etc. 8) Software upgrades provided FREE. Visit website www.abimage.co.au for the latest software version. Whiteboard Specifications: Item no. -
Page 5: 2: Warning Prior To Installation
Warning prior to Installation Do not look directly at the projector light. Don’t leave cables that may causing tripping. If the cables must be put on the floor, straighten and tape them to the floor using “gaffer” tape. Environment Please do not put any electrical wiring within 50cm of the EWB. -
Page 6: Installation Method
1: Installation of Hardware Installation Method for Wall Mounting Accessories: Number Description Amount Image Tapping Screws Plugs Hanging Support Bar Steps: The height of the Hanging Support Bar, (as Figure 3-1) should be 190 cm above floor. Fix the middle screw hole first, and then fix other 4 after checking with a level, using the instructions below, depending on whether concrete, plaster or wooden wall. - Page 7 2. Installation of Stand Note: Stand is optional; there may be no stand in your package of products. Accessories: Number Description Image Wheels Stands Rectangular frame Alignment brackets Washers Adjusting Screw Hex Socket Screw Hex screws (size M8) White gloves Inner hexagonal spanner spanner (size 17 and 19)
- Page 8 The installation method is as per the following pictures: (1) Firstly, fix two wheels to each stand foot. (2) Fix Rectangular frame into both stand uprights with 4 inner hexagonal screws of size M8. (3) Fix the Alignment jigs onto the outer edge of the stand and ensure sawtooth...
-
Page 9: 2: Installation And Uninstall Of Software
2: Installation and Uninstall of Software Install Interactive software Note: There are 2 software programs to load. Please double click on the software in the CD supplied, and follow the instructions: a. IQBoardET - Board drivers and calibration software b. Setupliben - Board Presentation software Do not connect the data line before installing the software. -
Page 10: Hardware Use
Board Hardware Use: There are two identical pen columns on the two sides of the EWB, so you can operate it at both sides to satisfy your needs. There are six function buttons in the pen columns, press the button once or twice changes the function. There is toolbar at the bottom. It has eight common toolbars;... -
Page 11: 3: Operation Hints
5. Zoom: Press button to display the area that the electronic pen is pointed to as an enlarged window. Dragging the frame of the window can change the size of the window and youcan move the window when use electronic pen drags the frame. The zoom factor can be adjusted in the zoom setting that pops up (This function is provided by OS). -
Page 12: Use Of The Whiteboard Software
Use of the Whiteboard Software: The Software sits in minimised mode in the lower Right Desktop, and uses the whiteboard icon. Simply click on the whiteboard icon, and left click “Tools” to maximise the software. Alternatively, or select “Returnstar Electronic Whiteboard Software” in Start>Programs>Retrnstar Electronic Whiteboard Software The Software Control Panel will operate in conjunction with other windows programs, and will sit as an “overlay”... -
Page 13: 2: Windows/Board
2. Windows/Board: Button at lower left of Control Panel. Toggles between a standard windows screen and a blank whiteboard screen. 3, Control Box Toolbar: The following Toolbar on the left side of the Control Panel. The Toolbar functions are: Insert to Office: Page &... -
Page 14: 4:Draw Toolbar
d. Source: Contains a huge library of clipart, stored by subject topic, that can be used for lesson preparation. Items such as Agriculture, Chemistry, Physics, Maths, etc are included here. Note that Music symbols are stored in b. Graph (above). All items are inserted into the working page as an object and can be edited. - Page 15 Brush Pen: The “Brush Pen” is a writing effect based on the characteristics of traditional calligraphy from some Asian countries such as China, Korea, and Japan. It shows the writing art of brush pen brilliantly. You can choose the thickness, colour, and transparency of strokes.
- Page 16 b. Line Functions: (6th & 7th icons). Both line icons have the same sub-bar icons: 7 x colour defaults; 3 x line thickness defaults, 2 x colour density & arrow defaults. Each line can save its respective defaults. Line: You can choose the thickness, colour, transparency and arrow effect of lines. Double clicking the “Solid Line”...
- Page 17 f. Eraser: (2nd last icon) We have offered ten erasing options including the circle & square fill erase, object erase, circle erase, square erase, and whole area erase, as follows: Circle middle erase: Choose small, medium, large, and clear the selected fill of a circle.
-
Page 18: Board Software Tools
6. Board Software Tools: As with the previous toolbar group, the main top icons have a sub-bar display of icons (on the bottom line). Working through each of the top line icons: 1. Screen Tool: Click on Screen Tool to display 6 options on bottom line: a. - Page 19 2. Maths Tools: Click on Maths Tools on top line to display 6 options on bottom line: a. Length or Angle Measurement: Click to display choice option. Length: You can measure between 2 points and the measurement is displayed on the screen. Angle Measurement: You can measure an angle and the measurement will be displayed.
- Page 20 4. Screen Record and Play: We provide Full Screen Record, Area Record, and Windows Record functions. If you activate the Sound Record function, the sound also can be recorded simultaneously. The recorded file can be saved in AVI or WMV format. You also can convert AVI to WMV, SWF (FLASH file), or EXE to playback.
-
Page 21: Taskbar Menu
7. Play/Pause: When the software is in “Board” mode, the icon with the blue play button (see pic to left) will be displayed at the lower left side of the screen. This button enables you to replay/pause the building of any page in any whiteboard file. This is a great teaching tool. -
Page 22: Editing Objects
Editing Objects: Every stroke, image and element inserted is an independent object, and can be edited in object edit mode, (e.g. copy, cut, paste, delete, select all, rotate, stretch, zoom, move, combine, cancel combine, place in bottom or top, move to previous or next layer, insert to background, lock position, sort, hyperlink, etc). -
Page 23: Page And Resource Manager
Hyperlink: You can set the Hyperlink for any object. Click the top right Properties button to display the the object Properties box (see pic page 23) and then click the bottom “Attribute” label. The box shown below will be displayed, showing the Object’s colour, thickness and transparency, and also showing a hyperlink location. - Page 24 Page Background: The Extended Color Toolbar will popup for page edition by selecting the “Current Page Background” or “All Backgrounds” button above the Page Manage Box or the relevant option in the right-key menu. You can also insert various background images into the page background from the background image folder in Favorite, such as graph paper, English homework paper, normal letter paper, grid letter paper, staff composing paper, crystal lattice designing paper, coordinate designing paper, etc.
-
Page 25: Other Features
Other Features Direct Saving We support writing, text editing, marking, inserting picture, drawing, and various special demonstrating effect and assistant function in PPT demonstrating and slide mode, and the editing mode of third party edit software, such as WORD, EXCEL, etc. File can be saved without changing its format. -
Page 26: Pen Operation And Maintenance
Pen Operation: Click, Double click: Do not move pen or finger; press the surface lightly in close quarters (1-2mm). (Note: Since the whiteboard and the whiteboard pen are delicate electronic products, please do not hit the surface heavily, o avoid the damage of the whiteboard and the pen point) Dragging: Press the surface with the whiteboard pen, and drag it to the appointed position (the whiteboard pen should not leave the surface midway) -
Page 27: Faqs
Then connect them again. If they board become loose or need to be still don’t work, contact ABI. replaced. Replace the battery or pen (4) The battery of electronic pen is no longer working properly or the pen needs to be replaced. - Page 28 This means part of the whitebaord. If this doesn’t solve white board is damaged or there is error the problem, contact ABI. in system files. Click on “Tools” in Taskbar icon (1) The tool software of EWB has not 1.The buttons...
-
Page 29: Whiteboard Maintenance
Whiteboard Maintenance Please exit the system before cleaning and it’s preferable to exit system and standby projector so that any marks are easily seen. (Note: Although the whiteboard can be used with dry erase pens, it is not recommended as ta build up of dirt and ink will occur, detracting from the projected image. Interactiive whiteboards are designed for “virtual”... -
Page 30: Product Service And Copyright
Three years warranty is provided on the board and its operation. The service “back to base”, so the client has to return the board to ABI and ABI will organize the return of the board to the user. It does not include: (1) Accessories (pens, batteries, cable).
