TG10-I-0915
E-SPTS-I-0809
EQUIPMENT DEVELOPMENT CO., INC.
Operator's Instruction Manual

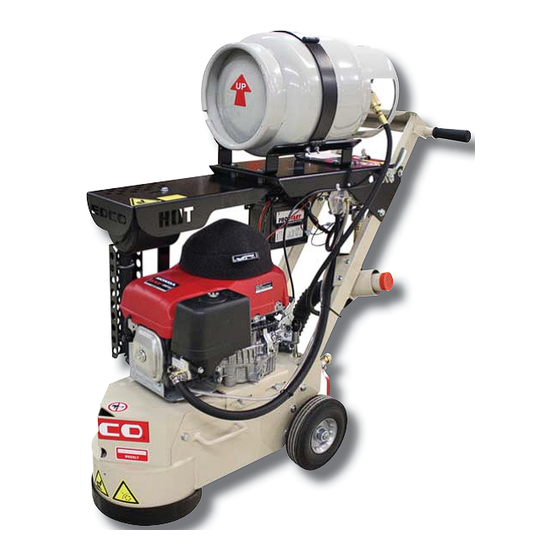

TG-10
TURBO GRINDERS
Available in Gasoline, Propane and Electric
100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA
Phone: 301-638-3326 • 301-663-1600
Fax: 800-447-3326 • 301-663-1607
EQUIPMENT DEVELOPMENT CO., INC.
edcoinc.com • sales@edcoinc.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TG-10 and is the answer not in the manual?

Questions and answers

Related Manuals for Edco TG-10

Summary of Contents for Edco TG-10

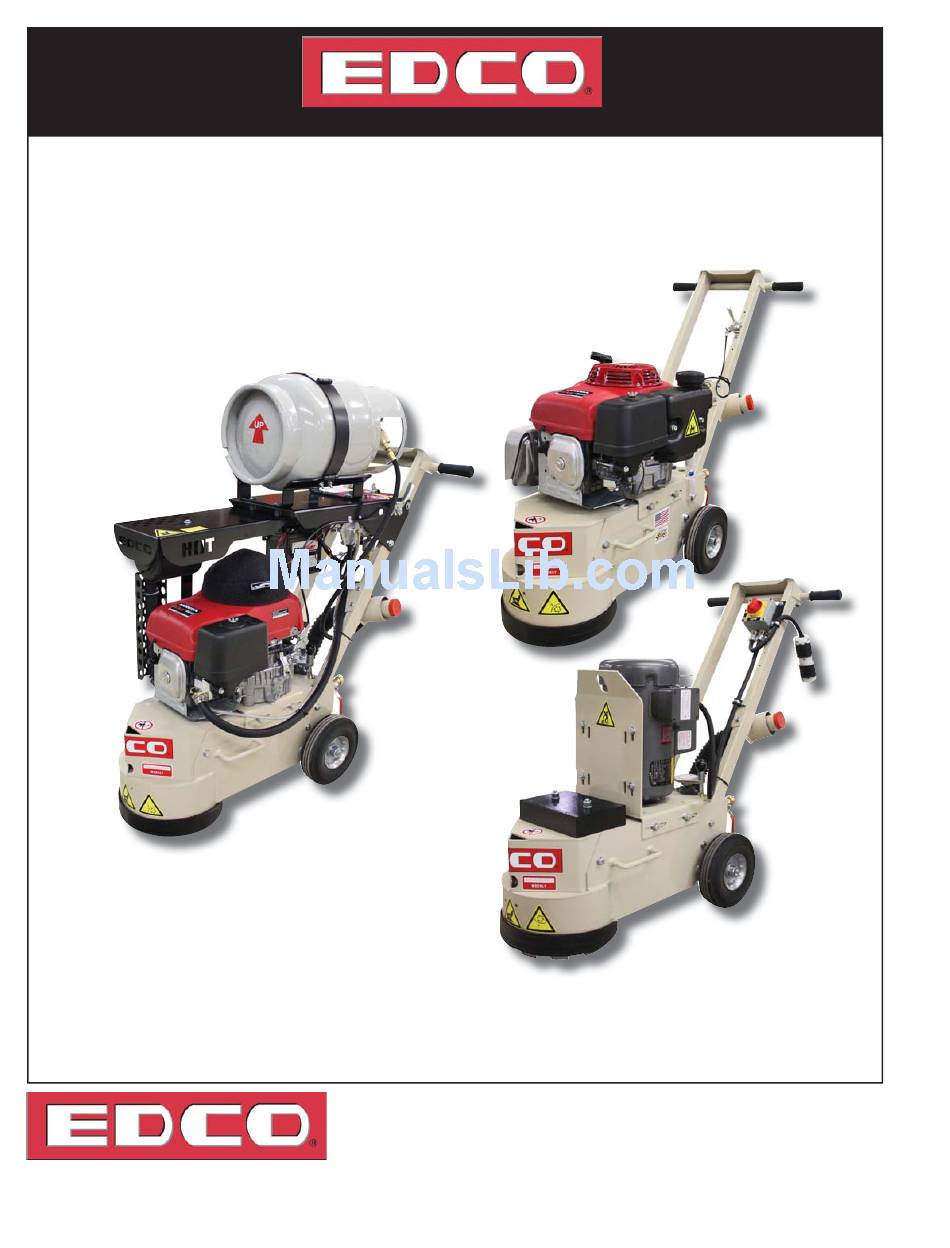

  • Page 1 TG10-I-0915 E-SPTS-I-0809 EQUIPMENT DEVELOPMENT CO., INC. Operator’s Instruction Manual TG-10 TURBO GRINDERS Available in Gasoline, Propane and Electric 100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA Phone: 301-638-3326 • 301-663-1600 Fax: 800-447-3326 • 301-663-1607 EQUIPMENT DEVELOPMENT CO., INC. edcoinc.com • sales@edcoinc.com...

  • Page 2: Safety Information

    TG10-I-0915 EQUIPMENT DEVELOPMENT CO., INC. READ AND UNDERSTAND THE OPERATORS INSTRUCTION MANUAL THOROUGHLY BEFORE ATTEMPTING TO OPERATE THIS EQUIPMENT. Death or serious injury could occur if this machine is used improperly. SAFETY SAFETY MESSAGES • Do not disconnect power by pulling cord. To disconnect, grasp the plug, not the cord.

  • Page 3: Table Of Contents

    To insure product safety and reliability, always use genu- Model TG10-5B TG10-11H TG10-13P ine EDCO replacement parts when making repairs to the equipment. Length (L) 41”/104cm 41”/104cm 41”/104cm When ordering parts, please specify the MODEL and SERI- AL NUMBER of the machine as given on the NAMEPLATE.

  • Page 4: Safety Guidelines

    Hazardous areas should be properly identifi ed and clearly marked. • The TG-10 is designed to be controlled by a single operator . • Inspect the discs carefully before installing. Do not use any questionable disc since serious personal injury and/ or damage to property can result.

  • Page 5: Operating Instructions

    • Inspect the work area: Inspect work area carefully before starting to grind. EDCO will not be held responsible for damage to the discs caused by striking protruding slab inserts, nails, screws, pipe extensions, machinery bases, or other objects that transmit sudden shocks.
  • Page 6 TG10-I-0915 EQUIPMENT DEVELOPMENT CO., INC. Gasoline Models: (11 HP Honda Engine) To Start the Engine: • Tilt the machine back slightly to allow the disc to clear the slab surface. • Start the engine according to the directions in the engine manufacturer’s Owner’s Manual. NOTE: If during operation refueling becomes necessary, allow the engine to cool down.
  • Page 7 MOTION, do not let the grinder stay in one spot, even for a few seconds, or the surface will be damaged. When grinding is completed, tilt the machine back and shut off the power. • To achieve a smooth “polished” surface, complete the grinding operation with an EDCO dual disc unit using grinding stones or dyma-serts. •...
  • Page 8 • Inspect the disc (Figure 7) periodically to determine it’s wear characteristics, if signs of uneven wear appear the cause should be determined and corrected. If repairs are needed contact EDCO or your EDCO representative. • Rigid Head can be used on uneven expansion joints, high spots, joint curls and bridge decks, removing coatings and grinding rough concrete surfaces.

  • Page 9: Quick Change Multi-Accessory Disc Accessories

    Removal - Digs through industrial strength coverings, water-proofing membranes, thick epoxies and much more - Leaves a textured concrete surface. EDCO ARROW: Hard glue removal, fast coating removal, create smooth surfaces and more PEAKS: General Purpose Grind - Smoothes surfaces with fewer scratchs - Ideal for concrete preparation and polishing.

  • Page 10: Maintenance

    TG10-I-0915 EQUIPMENT DEVELOPMENT CO., INC. Maintenance Follow the engine manufacturer’s guidelines for regular maintenance. Disconnect spark plug lead (Figure 10) before performing any maintenance on this machine! Or on the electric model, unplug the electric cord at the machine (instead of at the wall) to assure the machine will remain un-plugged while you are working on it.
  • Page 11 • Remove belt cover to expose belts. (Figure 14) • Loosen engine/motor mounting bolts (Figure 15) on both sides of the TG-10 and slide engine forward to allow belts to slide off. • Replace worn belts with a complete set of new belts - even if only one belt is showing wear.

  • Page 12: Maintenance Schedule

    TG10-I-0915 EQUIPMENT DEVELOPMENT CO., INC. Read and follow the Repairs are to be done by engine manufacturer’s authorized EDCO Dealers only. maintenance schedule. Maintenance Schedule Inspect/tighten Jam nuts on head assy. Inspect Entire Machine * Check Oil & Fuel Levels...

  • Page 13: Smi Dust And Silica Warning

    TG10-I-0915 E-SPTS-I-0809 EQUIPMENT DEVELOPMENT CO., INC. SMI Dust and Silica Warning Grinding/cutting/drilling of masonry, concrete, metal and other materials can generate dust, mists and fumes containing chem- icals known to cause serious or fatal injury or illness, such as respiratory disease, cancer, birth defects or other reproductive harm.

  • Page 14: Notes

    TG10-I-0915 EQUIPMENT DEVELOPMENT CO., INC. NOTES _________________________________________________________________________________________________________________ _________________________________________________________________________________________________________________ _________________________________________________________________________________________________________________ _________________________________________________________________________________________________________________ _________________________________________________________________________________________________________________ _________________________________________________________________________________________________________________ _________________________________________________________________________________________________________________ _________________________________________________________________________________________________________________ _________________________________________________________________________________________________________________ _________________________________________________________________________________________________________________ _________________________________________________________________________________________________________________ _________________________________________________________________________________________________________________ _________________________________________________________________________________________________________________ _________________________________________________________________________________________________________________ _________________________________________________________________________________________________________________ _________________________________________________________________________________________________________________ _________________________________________________________________________________________________________________ _________________________________________________________________________________________________________________ _________________________________________________________________________________________________________________ _________________________________________________________________________________________________________________ _________________________________________________________________________________________________________________ _________________________________________________________________________________________________________________ _________________________________________________________________________________________________________________ _________________________________________________________________________________________________________________ _________________________________________________________________________________________________________________ _________________________________________________________________________________________________________________ _________________________________________________________________________________________________________________ This page intentionally left blank. Page 14 800-638-3326 •...
  • Page 15 *Seller reserves the right to hold shipments against past due accounts. EDCO will, at its option, repair or replace, at the EDCO factory or at a point designated by *Seller reserves the right to alter payment terms.
  • Page 16 E-SPTS-I-0809 EQUIPMENT DEVELOPMENT CO., INC. SURFACE PREPARATION, RESTORATION, PROFESSIONAL SAWING EQUIPMENT & HAND HELD TOOLS 100 THOMAS JOHNSON DRIVE, FREDERICK, MD 21702 PHONE: 800-638-3326 OR 301-663-1600 Fax: 800-447-3326 or 301-663-1607 Email: sales@edcoinc.com Website: edcoinc.com Patents Pending & Issued Created 5 2014 Printed in USA ©2015 800-638-3326 •...
