Edco TMC-7 Operator's Instruction Manual

Edger grinder
Hide thumbs Also See for TMC-7:
Table of Contents

Advertisement

Quick Links

E-TMC7,EDG7,TG7-I-0710
Operator's Instruction Manual
MODELS TMC-7, EDG-7, TG-7
TMC-7
EDG-7
TG-7
EDGER GRINDER
Gasoline/Electric Powered
100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA
Phone (301) 663-1600 • 1-800-638-3326
Printed in USA
Fax (301) 663-1607 • 1-800-447-3326
©2010
Website: www.edcoinc.com
TVW
Page 1
A Division of Equipment Development Company, Inc.
Email: sales@edcoinc.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TMC-7 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Edco TMC-7

Summary of Contents for Edco TMC-7

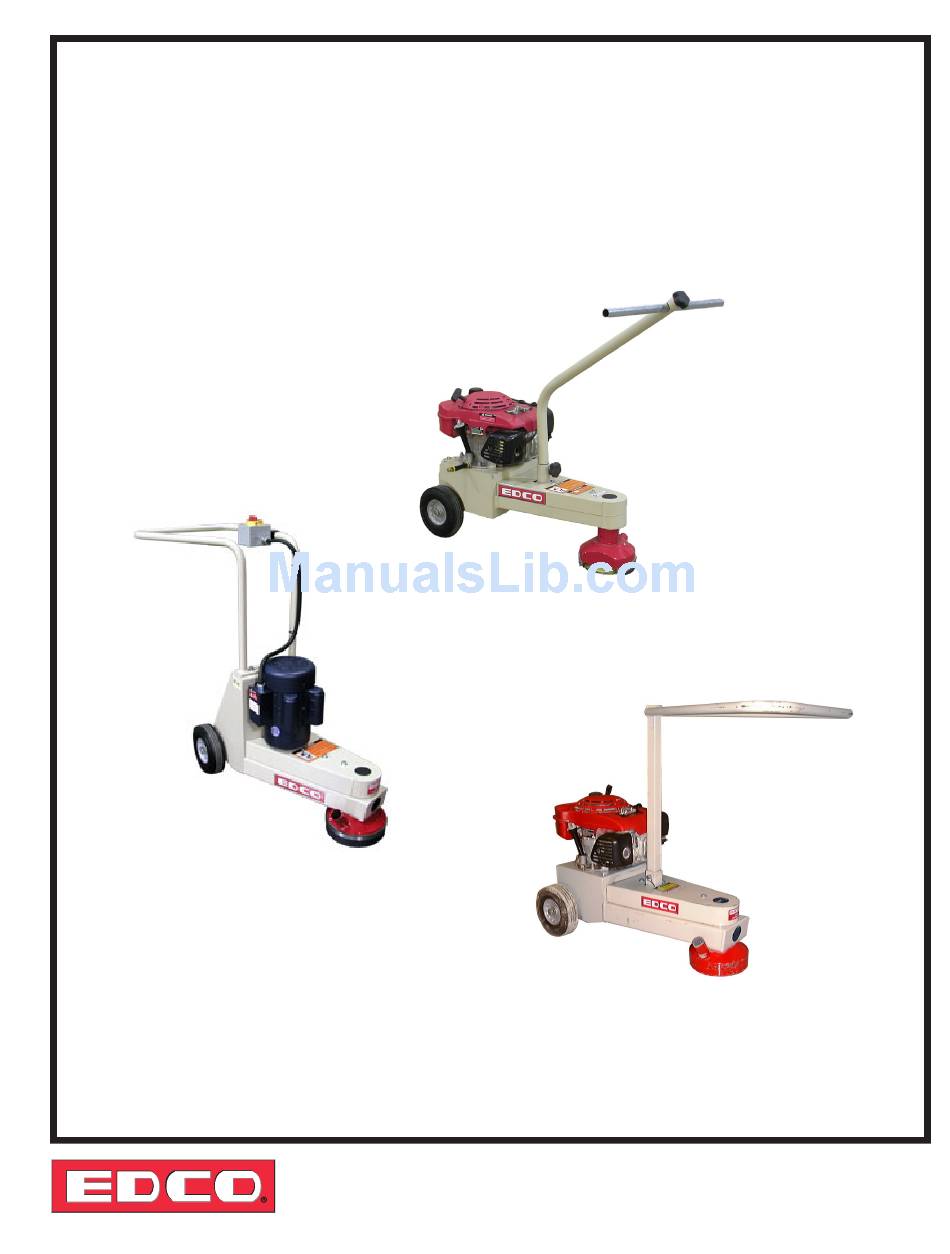

  • Page 1 E-TMC7,EDG7,TG7-I-0710 Operator’s Instruction Manual MODELS TMC-7, EDG-7, TG-7 TMC-7 EDG-7 TG-7 EDGER GRINDER Gasoline/Electric Powered 100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA Phone (301) 663-1600 • 1-800-638-3326 Printed in USA Fax (301) 663-1607 • 1-800-447-3326 ©2010 Website: www.edcoinc.com Page 1 A Division of Equipment Development Company, Inc.

  • Page 2: General Instructions

    E-TMC7,EDG7,TG7-I-0710 READ AND UNDERSTAND THE OPERATORS INSTRUCTION MANUAL THOROUGHLY BEFORE ATTEMPTING TO OPERATE THIS EQUIPMENT. Death or serious injury could occur if this machine is used improperly. SAFETY SAFETY MESSAGES • Do not disconnect power by pulling cord. To disconnect, grasp MESSAGES the plug, not the cord. • Safety Instructions are proceeded by a graphic alert symbol • Unplug power cord at the machine when not in use and before of DANGER, WARNING, or CAUTION.
  • Page 3 42.6cm TG-7 Shown Figure 1 Specifications and dimensions are approximate HOW TO ORDER REPAIR PARTS and subject to change. To ensure product safety and reliability, always use genuine EDCO replacement parts when making repairs to the equipment. TMC-7 EDG-7 Model TG-7 When ordering parts, please specify the MODEL and SERIAL 38.5”...

  • Page 4: Safety Guidelines

    Materials being removed can be toxic or hazardous. A breathing respirator is required to help protect the op- erator from inhaling the airborne material when operating this machine. • Inspect the work surface for cracks, uneven joints and foreign objects such as nails, screws and pipes. Damage to the disc and/or equipment may result which can also cause serious injury to the operator. Hazardous areas should be properly identified and clearly marked. • The TMC-7, EDG-7 and TG-7 are designed to be controlled by a single operator . • Inspect the discs carefully before installing. Do not use any questionable disc since serious personal injury and/ or damage to property can result. • Never operate this grinder while under the influence of drugs, alcohol or when taking medications that impair the senses or reactions, or when excessively tired or under stress.

  • Page 5: Before Operation

    E-TMC7,EDG7,TG7-I-0710 Operating Instructions The EDCO edge grinders are designed to be used in conjunction with other EDCO surface preparation products. It’s small, lightweight construction allows the operator to grind close to obstacles. These units are equipped with a single 7” diameter Diamond Segmented Disc that is an aggressive surface material grinder for removing excess concrete, epoxy mortar, urethane coatings and overlays, and non-skid abrasive coatings on steel, concrete, or polymer slab floors. A scarifier disc is optional. This machine is capable of either wet or dry grinding.
  • Page 6 Check materials being removed to determine if they are listed on an EPA hazardous substance list. A breathing respirator is required to help protect the operator. • The EDCO VAC-100, VAC-160 and VAC-150 have available optional HEPA filter kits designed to be used when removing hazardous materials. Standard, shop-vac style vacuums are not capable of extended operation.

  • Page 7: Maintenance

    • Grease disc bearings every 4 hours of use. To access the bearings on the EDG-7 and TG-7, simply remove the front cap-plug cover (Figure 4) with a flat screwdriver. Both of the bearings are self-aligning, sealed flange mounted, equipped with grease fittings. To access the fitting on the TMC-7 refer to (Figure 4A) . These bearings are tapered roller bearings lubricated with High Temp Lubriplate No. 930-AA, or equivalent bearing grease. Do not over lubricate. Be sure to clean up any excess grease after lubricating the bearings. These bearings can occassionally require adjustment. If it is evident that these bearing need adjustment they can be accessed by removing the belt cover.

  • Page 8: Specifications

    *Seller reserves the right to alter payment terms. EDCO will, at its option, repair or replace, at the EDCO factory or at a point designated by EDCO, 3. FREIGHT TERMS any part which shall appear to the satisfaction of EDCO inspection to have been defective in All shipments will be made F.O.B.

This manual is also suitable for:

Edg-7Tg-7

Table of Contents
